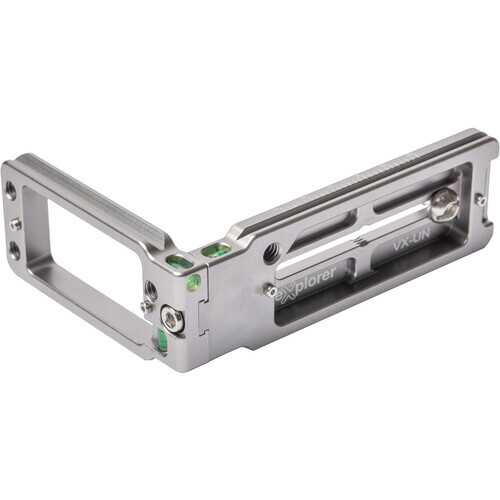

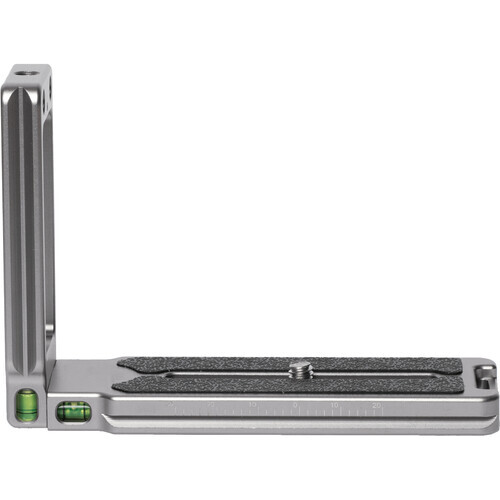

Explorer VX-UN Vertical Explorer Universal L Bracket
The Vertical Explorer Universal L-Bracket from Explorer Photo & Video offers compatibility with a wide range of DSLR and mirrorless cameras, allowing for seamless transition between horizontal and vertical shooting positions while ensuring balance on a tripod. Crafted from CNC-machined aluminium and finished with a titanium-tone anodized coating, the VX-UN bracket prioritizes durability. Its Arca-type dovetail mount design ensures compatibility with most Arca-type clamps, offering versatility in tripod setups. With the ability to swiftly adjust the camera's orientation from landscape to portrait, photographers gain multiple composition options while maintaining balance and weight distribution on the tripod, making it a valuable alternative to standard quick-release mounting plates.
In addition to the tripod mounting socket, three 1/4"-20 accessory mounting threads are located on the bracket's bottom and side to support accessories such as video lights or microphones connected via mounting arms or cold shoe adaptors. Anti-slip rubber pads and dual safety stop screws minimize lateral movement for security and help to prevent the camera from accidentally sliding out of quick release clamps.
The two-piece design allows the L-bracket to be disassembled, and each piece can be used independently as a standard quick release plate. When inverted vertically and used with a ball head with a panning clamp, the VX-UN can be used as a panning tilt head for video purposes.
- Better weight distribution and balance when used on a tripod
- Maintain composition when changing from horizontal to vertical orientation
- Great for panoramic shots in both vertical and horizontal orientation
- Allows for a full range of motion in portrait / vertical orientation when using a ball-head
- Maintain access to the accessory ports on the camera body
- Acts as a protective shell around the camera body
- CNC-Machined aluminium construction
- Arca-type quick release dovetail
- Bubble levels
- Rubberized strips prevent camera movement
- Integrated hand strap loop
Mounting Screw |
1/4"-20 Male
|
Tripod Mounting Thread |
1/4"-20 Female
|
Accessory Mounting Thread |
1/4"-20 Female
|
Quick Release Plate Type |
Arca-Type
|
Material of Construction |
Aluminium
|
Length |
12.00 cm
|
Width |
3.8 cm
|
Height |
8.5 cm
|
Weight |
0.099 kg
|
* Specifications subject to change by the manufacturer without notice.
