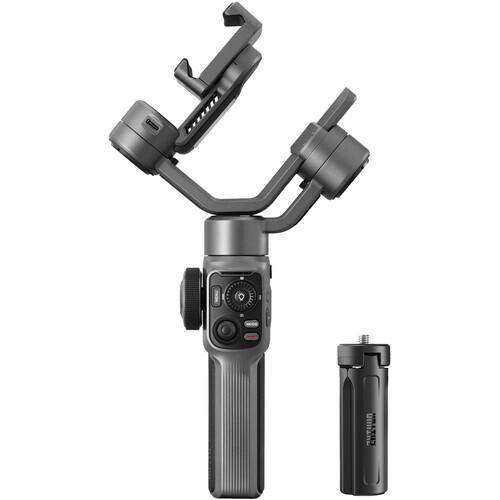

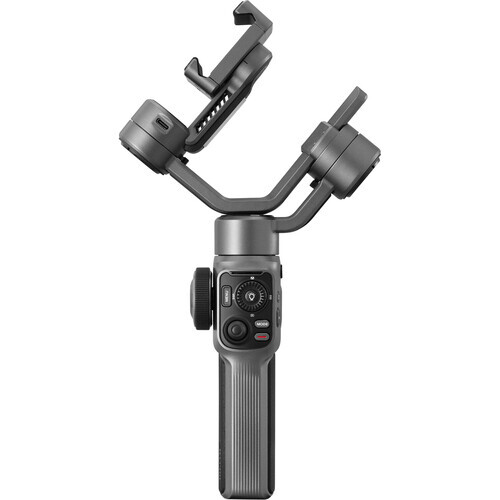

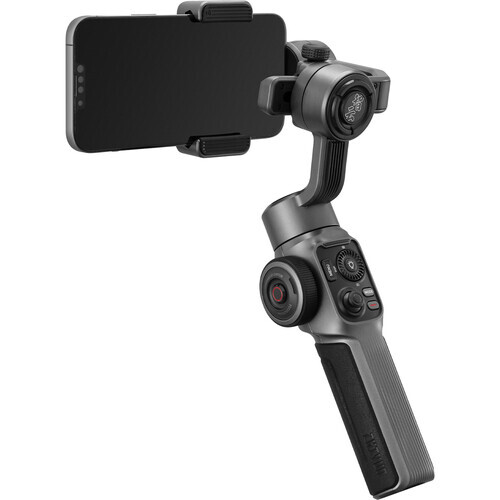

Zhiyun-Tech has improved the grey SMOOTH 5S Pro Smartphone Stabilizer with a potent integrated fill light, upgraded motors, a new algorithm, and a wider clamp. The SMOOTH 5S will even support some external lens/smartphone combinations, supporting larger smartphones weighing 0.15 to 0.30 kg, measuring 1.01 cm thick and 5.08 to 8.89 cm wide. You can create more extreme, cinematic angles if there is more room between each of the three axes.

Designed for one-person capture, this gimbal stabilizer also offers intuitive panel control, quick-switch modes, a robust runtime of up to 25 hours, and fast PD charging of only two hours. Compatibility with three mobile apps geared towards users of various levels enables you to Livestream, control focus, and create time-lapse, cloning, dolly/zoom, and slow-motion effects.

Smartphone Compatibility

The SMOOTH 5S gimbal can accommodate smartphones measuring 5.08 to 8.89 cm wide and up to 1.01cm thick and weighing from 0.15 to 0.30 kg, enabling you to use it with select smartphone and external lens combos

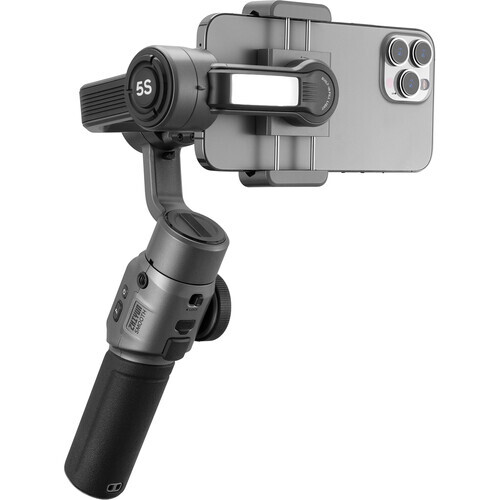

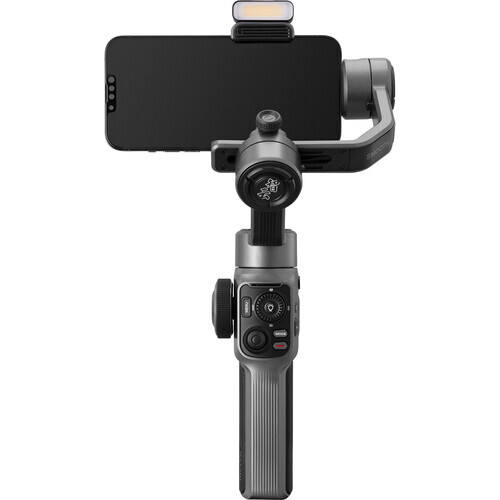

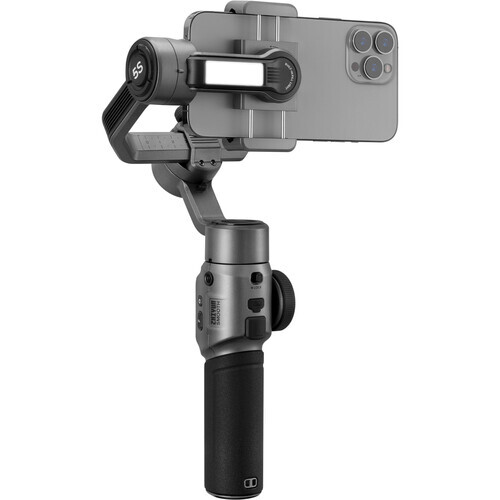

Integrated Fill Light

The integrated fill light helps illuminate your subject

3-Axis Design

The wider space between each axis facilitates extreme angle capture

Motor Performance

Magnetic motors, an upgraded algorithm, and wider clamp support larger phones than earlier SMOOTH models

Intuitive Control Panel

The control panel includes a round-cap joystick and visible shooting modes that enable you to make smooth fingertip adjustments during single-handed capture

Smartphone Apps

ZY Cami

The beginner-level ZY Cami app features a SMART mode, SmartFollow 3.0 mode, Gesture Control, Live Stream Master, and the ZY Cami Editor

StaCam

The StaCam app features pro-level functions like Parameter fine-tuning, exposure setup, lens switching, zoom and focus control, focus peaking, false colour, highlight clipping, and LUT use

Filmic Pro

The pro-level Filmic Pro app offers features like a manual override, lens switching, LED light control, set focus, and Reticle mode

Robust Runtime

With PD fast charging in just two hours and a maximum runtime of up to 25 hours, the SMOOTH 5S enables almost nonstop capture

Built-In Fill Light

Let your talent shine with the integrated fill light that provides a 5000K colour temperature, a 90+ CPI rating, and 2W power

Optimal Stabilization

The SMOOTH 5S provides optimal stabilization while preserving the original video quality

Quick-Switch Modes

Multiple classic shooting options like PF (pan/follow), L (lock), F (follow), and POV (point-of-view) enable you to quickly switch modes to best suit the action

Dolly/Zoom Effect

The control wheel, focal length adjustment, and zoom-and-focus switch enable users to easily create dolly/zoom effects

AI Shooting Templates

The ZY Cami app provides multiple templates for easy content creation, while the StaCam app enables you to adjust pro parameters directly on the gimbal

Creative Effects

Smart Follow

Use the Smart Follow mode with hand gesture control to keep your subject in the spotlight

MagicClone Pano

Create an amusing clone effect using the MagicClone Pano function

Slow Motion and Timelapse

Use the Slow Motion and Timelapse functions to create dynamic motion effects

Grip Design Single Handgrip (Slanted)
GIMBAL
Load Capacity 5.3 to 10.6 oz / 150 to 300 g
Number of Axes 3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range Yaw (Pan): -180 to 180°
Pitch (Tilt): -90 to 170°
Roll: -50 to 50°
Follow Speed Pan/Tilt/Roll: 0.01 to 0.04°/s
COMPATIBILITY
Smartphone Dimensions Height: 2 to 3.5" / 50 to 90 mm
Thickness: 0.4" / 10 mm
CONNECTIVITY
Inputs/Outputs 1 x USB-C (1 A 5 VDC Power / Firmware Updates) Output
Wireless Protocol Bluetooth 4.2
App Compatible Yes
App Name: ZY Cami, StaCam, Filmic Pro
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
BATTERY
Battery Type 1 x Built-In
Battery Capacity 2600 mAh
Battery Runtime 2.5 to 24 Hours
Battery Charging Time 3.75 Hours
Battery Chemistry Lithium-Ion
POWER
Operating Voltage 6.5 to 8.4 VDC
Operating Current 70 to 3000 mA
ENVIRONMENTAL
Operating Temperature 32 to 113°F / 0 to 45°C
GENERAL
Mounting 1 x 1/4"-20 Female
Dimensions 31.1 x 16.8 x 5.2 cm
Weight 0.62 kg


* Specifications subject to change by the manufacturer without notice

  • Zhiyun SMOOTH 5S Pro Smartphone Stabilizer (Gray)
  • Detachable Tripod
  • USB-C Charging Cable
