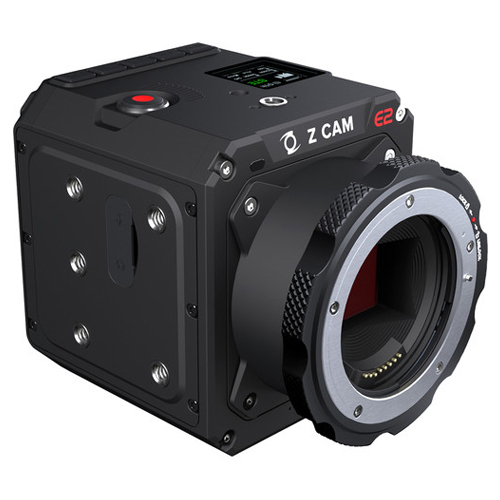

The Z CAM E2-F6 Full-Frame 6K Cinema Camera with a Canon EF lens mount offers a unique combination of stunning images, capable codecs (internal ProRes recording), up to 6k resolution, high framerate options, and a minimalistic body design. It is an excellent choice for videographers, cinematographers, and filmmakers looking for a video camera that can shoot pro-quality video at high bit rates in a small form factor but with a beautiful full-frame sensor.

The E2-F6 Cinema Camera with a Canon EF lens mount offers professional high-definition cinema footage. The camera has a full-frame sensor with 10-bit 4:2:2 colour support and nominal 15 stops of dynamic range. It also supports timecode, video up to 6K at 60 frames per second, and records data at up to 300 Mb/s onto CFast 2.0 media.

The E2-F6 supports various recording formats including ZRAW format for 12-bit recording, MOV and MP4 using H.265 for 10-bit recording and H.264 for 8-bit recording. Besides, it supports 4K60, 10-bit 4:2:2 video output via HDMI 2.0 port. Through its 3.5mm stereo connection or a separately available XLR connector using its 5-pin LEMO connection, audio is recorded in 24-bit 48 kHz utilising AAC or PCM (PCM for MOV format only).

You are able to control the camera via a USB Type-C port, serial ports, a 2.5mm LANC connector or Ethernet port. In addition, the Z Camera iOS app allows you to view a live image preview and configure settings while controlling the camera via Wi-Fi. The E2-F6 can capture slow motion, time-lapse, and can even live stream via its Gigabit Ethernet port.

The Z CAM E2-F6 Full-Frame 6K Cinema Camera has a built-in L-series battery mount as well as a 2-pin LEMO port that uses a power adapter to power the camera (battery and adapter sold separately). The camera also has a 12 VDC 2-pin LEMO power output for powering optional accessories.

  • 12-Bit ProRes RAW recording over HDMI to the Ninja V 5” HDR monitor-recorder
  • 6K @60fps* & 4K @120fps* max, 10-bit colour
  • Full Frame CMOS sensor
  • EF mount
  • 15 stops dynamic range
  • ZRAW supported
  • Gigabit Ethernet for data, control & live preview

Sensor Type

Full Frame CMOS Sensor

Sensor Size

37.09 x 24.75 mm

Effective Pixels

26M

Dynamic Range

15 Stops

Lens Mount

EF mount (with optional M, MFT, and PL mount accessory)

Microphone

Built-in Stereo Microphone

Resolution & Max Frame Rate

6064x4040 @30fps max (Open Gate)

6064x3196 @48fps max (6K DCI)

6064x2560 @60fps max (6K 2.4:1)

5760x3240 @48fps max (6K UHD)

5376x4032 @30fps max (5K 4:3)

4848x4040 @30fps max (5K 6:5)

4096x2160 @72fps max (4K DCI) *

4096x1728 @120fps max (4K 2.4:1)

3840x2160 @72fps max (4K UHD) *

1920x1080 @120fps max (FHD)

* Super sampling / cropping selectable, 4K super sampling is supported at the same frame rates as 6K DCI resolution mode

Video Encoder

ZRAW* / H.265 main 10 profile / H.264 high profile**

* Up to 4K @30fps

Bit Rate

300 Mbps max for H.265 & H.264 / 1.2 Gbps for ZRAW

Colour Bit-depth

12-Bit ProRes RAW / 12-bit ZRAW / 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)

Audio Format

24-bit 48 kHz

Audio Encoder

AAC / PCM (for MOV only)

File Format

MOV / MP4

Record Mode

Video / Time Lapse Video

ISO

Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 2500

Shutter

Shutter Speed: Auto, Manual (1” ~ 1/8000”) or

Shutter Angle: Auto, Manual (1° ~ 360°)

White Balance

Auto, Pre-set, Manual (2300K ~ 7500K)

Focus Mode

MF / AF / CAF


Brightness / Contrast / Saturation / Sharpness

Image Config

Rec.709 / Z-Log2 / FLAT / HLG

Audio

Audio In / Out Level

Time Code

Current Time / Manual Input

Storage



Media

CFAST 2.0

File System

exFAT

HDMI

HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2)

USB

USB 3.0 Type C for camera control & data transfer only

COM

2 x Serial Port

Remote Control

2.5 mm jack socket (Sony LANC compatible)

Audio-in

3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)

Audio-out

3.5 mm stereo jack socket

Wi-Fi

5G, 802.11n with external antenna port

Ethernet

Gigabit Ethernet port for control, setting & live streaming

Battery

Sony NP-F series compatible, 6.8V ~ 8.4V (Battery not included)

Power Input

DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector

Power Output (AUX)

DC 12V (2-pin LEMO socket)

Material

Aluminium Alloy

Weight

1090g (EF mount)

Dimensions (W x H x D)

91.20mm x 99.25mm x 122.25mm (EF mount)

Storage Temperature

-20 °C ~ 60 °C

Operation Temperature

0 °C ~ 40 °C


* Specifications subject to change by the manufacturer without notice
