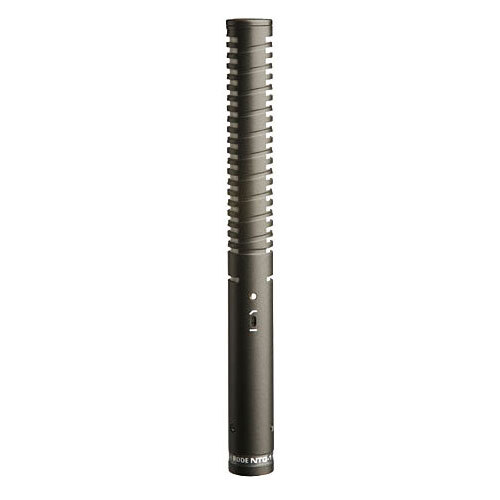

The NTG-1 provides an electronically balanced output stage and operates on 48V to the P48 standard. The NTG-1 offers wide bandwidth and a controlled polar response coupled with low noise SMT electronics. The NTG-1 is extremely lightweight making it ideal for mounting directly to video cameras (with optional accessories) or a Boom pole.

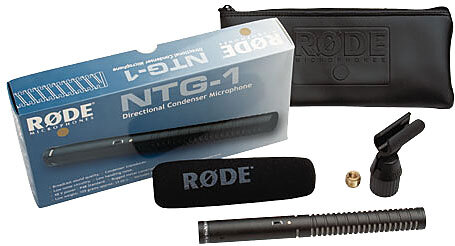

The NTG-1 comes complete with mount and windshield. The supplied windscreen effectively suppresses wind noise when recording outdoors in moderate conditions.
NOTE: This microphone requires an XLR Patch cable (sold separately) to connect to XLR enabled video cameras.
Note: The NTG-1 requires power to operate. This needs to be supplied via P48V phantom power supply which is available from most professional video cameras or mixing consoles.
If the mixer or preamp does not contain this phantom power requirement, then an external phantom power supply is needed.
Some phantom power supplies do not supply the voltage at which they are rated. If the required voltage is not supplied, the dynamic range and general performance of the microphone will be reduced.
We strongly suggest the use of a reputable high quality power supply. Damage caused by a faulty power supply is not covered by the warranty.
P48 (48V) phantom supply

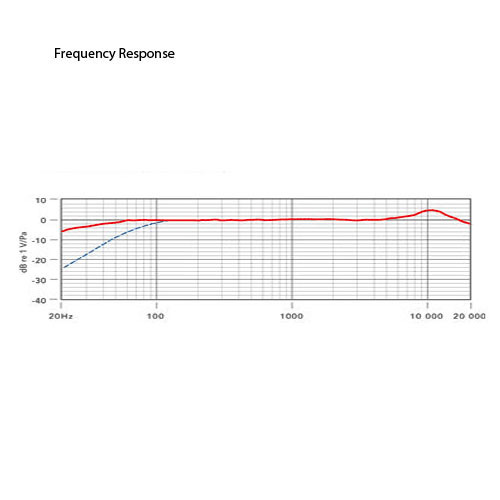

20Hz-20kHz, selectable HPF @ 80Hz/12dB/octave
Signal noise ratio
76 dB SPL (A - weighted per IEC651)
18 dB SPL (A - weighted per IEC651)
139dB SPL (@ 1kHz, 1% THD into 1KO load)
Maximum output voltage
-15.4dBu (@ 1kHz, 1% THD into 1KO load)
-36 dB re 1 Volt/Pascal (15 mV @ 94 dB SPL) +/- 2 dB @ 1kHz
217mmH x 22mmW x 22mmD
* Specifications subject to change by the manufacturer without notice
