Enhance Your PXW-FX9 Camera

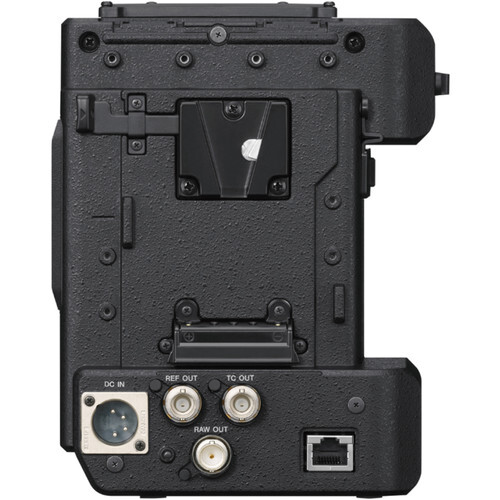

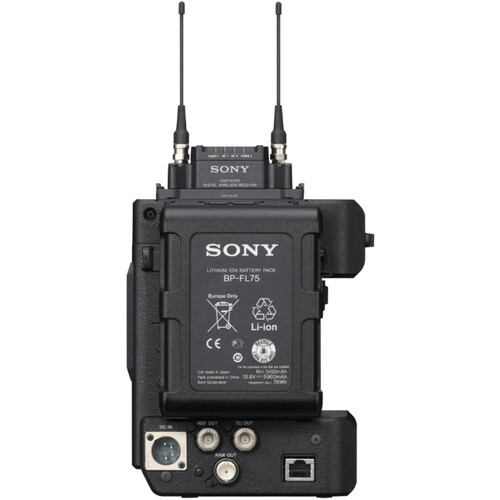

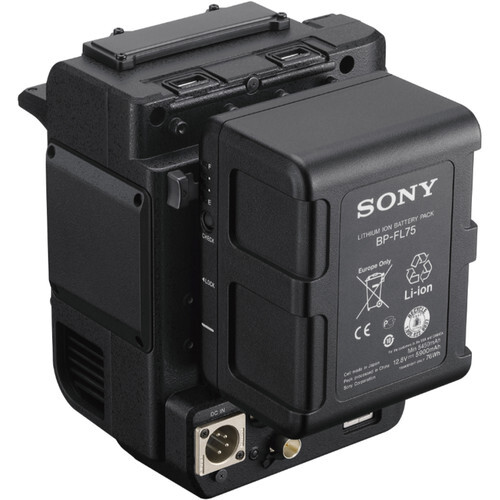

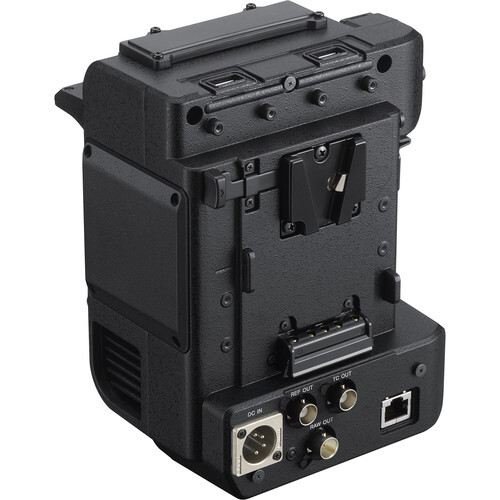

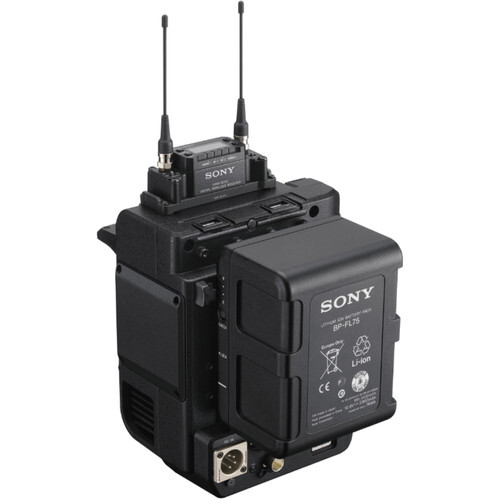

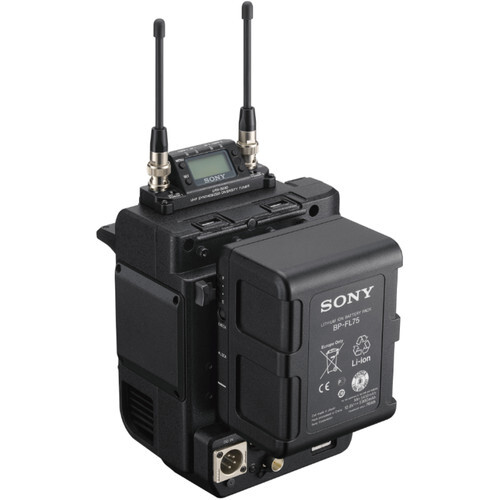

Boost the capabilities of your PXW-FX9 camera with the Sony XDCA-FX9 Extension Unit. This unit adds an ENG-style shoulder mount and extra I/O and power to your camera. It features a 4-pin XLR DC power output to power accessories and other equipment, as well as three BNC outputs for raw video, a reference signal, and timecode. Plus, there's a LAN interface and two USB ports for live streaming and file transfer, and compatibility with XDCAM Air streaming playback.

With the latest firmware update, the unit supports 16-bit raw 4K/2K recording output to compatible external recorders, as well as provides functionality to a built-in wireless audio slot for DWX/UWP wireless receivers.


  • Multi-pin V-lock-type camera mount
  • 2-pin light power output
  • D-Sub 15-pin port for wireless receiver
Compatibility Sony PXW-FX9 Camera
USB I/O 2 x USB-A Female Output
Video I/O 3 x BNC Input/Output
Power Source AC Input
DC Input Power 12 VDC
Power Consumption 69 W
Mounting 1 x Multi-Pin Camera Mount
Dimensions 17.73 x 15.73 x 13.65 cm
Weight 1 kg

* Specifications subject to change by the manufacturer without notice

  • Sony XDCA-FX9 Extension Unit for PXW-FX9 Camera
