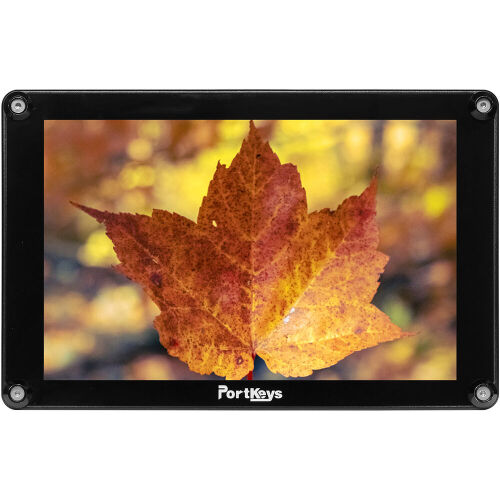

Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support

Experience accurate monitoring with the PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor, designed to support up to DCI 4K24 video with a crisp 1920 x 1200 resolution, 10-bit colour depth, and 3D LUT output via both 4K HDMI and 3G/HD/SD-SDI connections. With a high brightness level of 1100 cd/m², it's well suited for outdoor use, while its 178° wide viewing angle allows multiple crew members to view footage simultaneously. The rear panel includes a detachable cover for installing a video transmitter and dual Sony L-series/NP-F battery plates for versatile power options.

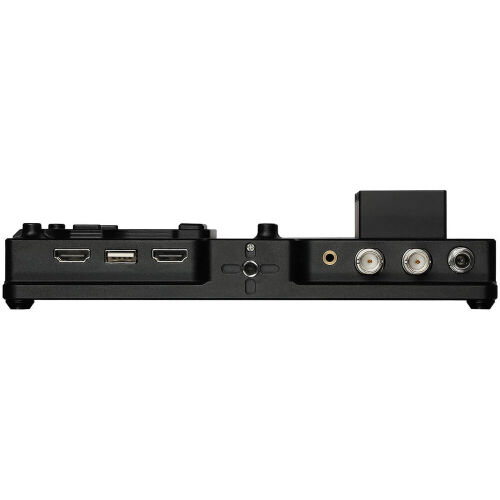

HDMI and 3G-SDI Input/Output

4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs

3D LUT Support

3D LUTs for colour grading and monitoring can be applied to both the HDMI and SDI outputs

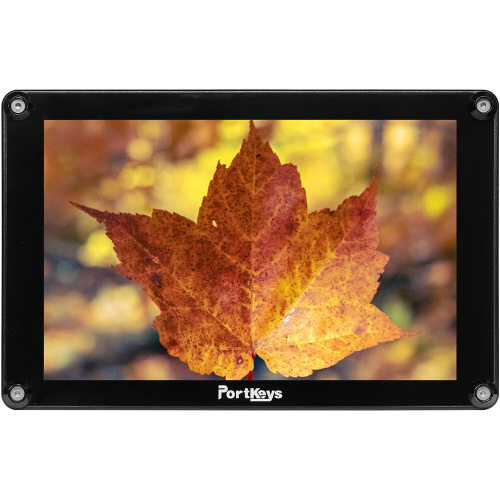

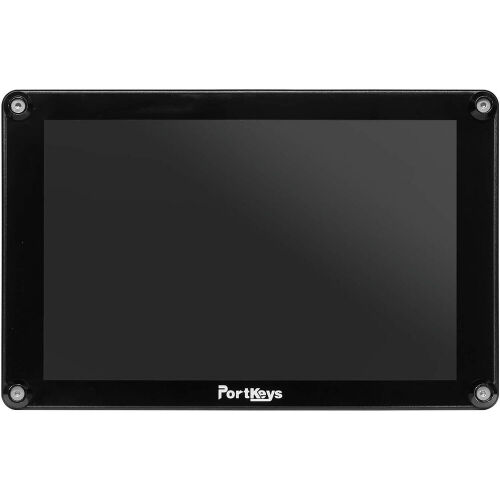

Hi-Bright Monitor

8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio

Durable Housing

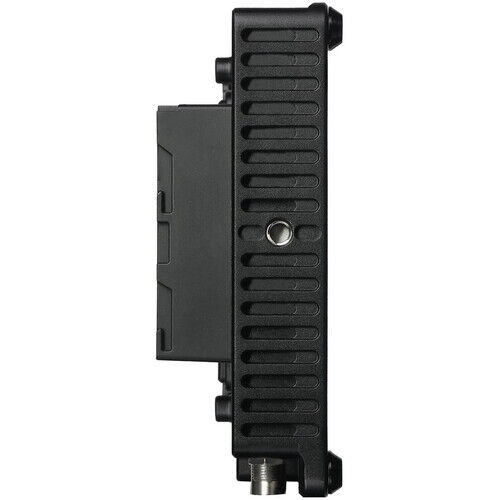

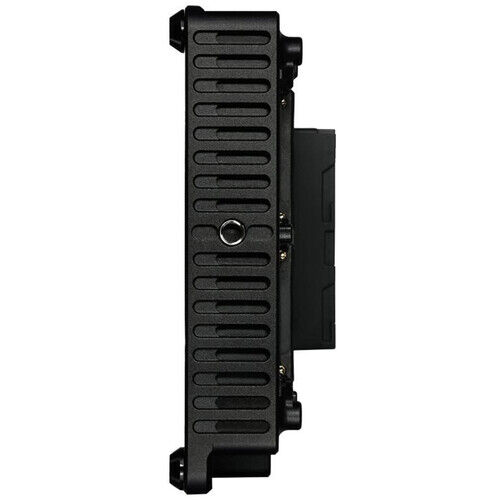

Rugged, heat-dissipating CNC-machined aluminium alloy housing

Top and bottom 1/4"-20 thread mounts

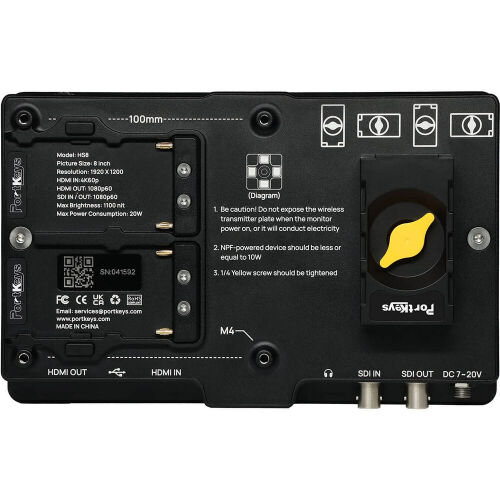

Hot-Swappable Battery Plates

Hot-swappable, dual Sony L-series-type battery plates

DC input port for power supply

Optional Wireless Video Transmitter

Comes with a detachable cover for the wireless video transmitter mount

Barcode (UPC / EAN): 797417735488

DISPLAY


Panel Type
LCD
Display Size
8.0" / 20.3 cm
Native Resolution
1920 x 1200
Aspect Ratio
0.672916667
Viewing Angle
Horizontal: 178°
  Vertical: 178°
Maximum Brightness
1100 nits / cd/m2
Contrast Ratio
41.66736111
Colour Support
1.07 Billion Colours (8-Bit+FRC)
HDR Support
Yes
Colour Gamut
100% Rec. 709
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, Blue Only, Check Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

INPUTS/OUTPUTS


Video I/O
1x BNC (3G-SDI) Input
  1x HDMI (Unspecified Signal) Input
  1x BNC (3G-SDI) Output
  1x HDMI (Unspecified Signal) Output
Embedded Audio
HDMI
  SDI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Power I/O
1x Barrel (20 VDC) Input
Other I/O
1x USB-A (LUT Upload)

FORMAT SUPPORT


Video Format
HDMI
  DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
  UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080PsF: 30/29.97/25/24/23.98
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080PsF: 30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50
  SDI (4:2:2 YUV)
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  SDI (4:4:4/4:2:2/4:2:0 RGB, YUV)
  1080PsF: 30/29.97/25/24/23.98
  SDI (4:4:4/4:2:2)
  1080i: 60/59.94/50
  720p: 60/59.94/50
Video Signal Conversion
HDMI to SDI

  SDI to HDMI

POWER


Input Power
7 to 20 VDC
Battery
2x L-Series Mount on Fixed Plate
Power Consumption
20 W (Maximum)
MOUNTING

VESA Mounting-Hole Pattern
100 x 100 mm
Tripod/Accessory Mounting
2x 1/4"-20 Female
GENERAL

Material of Construction
Aluminium
Dimensions
208 x 133.7 x 50.5 cm
Weight
0.675 Kg


* Specifications subject to change by the manufacturer without notice.

  • PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
  • D-Tap to DC Barrel Power Cable
  • Screen Cleaning Cloth
  • M2 Allen Key
  • M3 Allen Screw
  • Cup Head Gasket
  • Micro-USB Flash Drive
