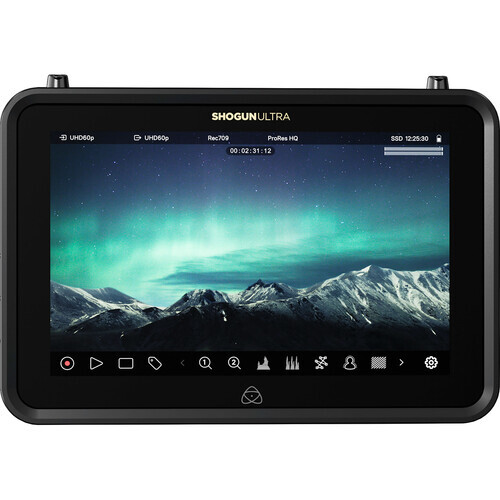

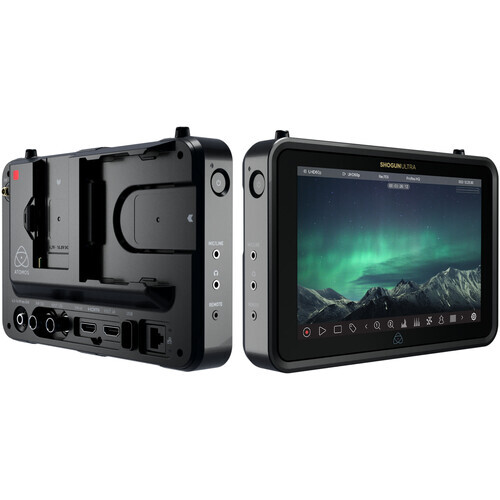

Atomos Shogun 7 Ultra

Unlock the power of the Atomos Shogun Ultra Monitor-Recorder, the latest in the Atomos line of Shogun onboard camera video monitor-recorders. Enjoy built-in network connectivity for your mirrorless, DSLR, and cine-style capture, enabling fast and productive workflows. Experience efficient cloud-based workflow options such as dual ProRes RAW/H.265 recording for Camera to Cloud, automated matching file names with popular cine-style cameras, and 4K H.265 capture for instant publishing from the cloud. Partner with industry-leading camera manufacturers to ensure the Shogun Ultra works seamlessly with an ever-growing range of cameras.

AtomOS 11

  • The 7" Shogun Ultra features the new AtomOS 11 operating system with EL Zone exposure-referenced colourized images, ARRI false colour, and new scheduled recording and playback tools.
  • An increased number of standard codecs include up to 8K Apple ProRes Raw, DNxHD, and H.265.

Complete Connectivity

  • More Codecs: the 7" Shogun Ultra's additional standard codecs include 8K Apple ProRes Raw, DNxHD, and H.265.
  • Dual Recording: the ability to record full-quality Apple ProRes Raw files at rates up to UHD 4K 60p while at the same time recording 1080p 60 to H.265 makes the 7" Shogun Ultra ideal for use with cine-style cameras.
  • Matched Files: file name matching provides easier workflows with ARRI, Canon, RED, and Sony cameras.
  • Improved Monitoring: improved monitoring functions include EL ZONE System exposure and ARRI false colour.
  • RemoteView: this new feature enables you to share live views from your screen over the internet.

NDI TX Option

  • Use the optional NDI transmission function to send high-quality video over ordinary networks (including Wi-Fi and mobile) using remarkably low bandwidth requirements.
  • NDI is increasingly being used in live production, and now your Shogun can be part of an NDI environment.
  • The NDI TX option turns your Shogun into an NDI source, visible to all other authorized devices on the network.

Ultrabright Screen

  • The Shogun Ultra's super-bright, large 7" screen is viewable in almost every kind of light: indoors, outdoors, or anywhere you need critical, instantly viewable feedback on your images.
  • I2000 cd/m² brightness makes the Shogun Ultra ideal for checking your HDR footage while you're still on set.
  • Play back your recently captured shots on the same pristine screen for reviewing or even uploading to the cloud.

Durable Build

  • The Shogun Ultra's durable housing is suitable for use in all environments.
  • Use the built-in tally light to quickly see the recording status.
  • The solid Wi-Fi and AirGlu RF antennas ensure stable transmission.
  • Power the Shogun Ultra using the L-series battery plate on the back of each monitor or optional DC power input.
  • Mount this monitor-recorder using the 3/8"-16 threads on the top and bottom or use the included 1/4"-20 adapter.
  • The Shogun Ultra has a built-in slot for the included Master Caddy III, an SD card slot that supports cards up to 4TB, and CFast II card compatibility using an SSDmini adapter to record as long as your media allows.
  • The USB-C port can be used to add options and for future AtomOS updates.
Panel Type
Display Size
7.0" / 17.8 cm
1920 x 1200
Aspect Ratio
Maximum Brightness
2000 nits /cd/m2
Bit Depth / Colour Support
10-Bit (1.07 Billion Colours)
HDR Compatibility
Pixels Per Inch (ppi)
315 ppi
Colour Gamut
100% DCI-P3
100% Rec. 2020
Real-Time LUT Monitoring
Image Controls
Anamorphic De-Squeeze, False Colour, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

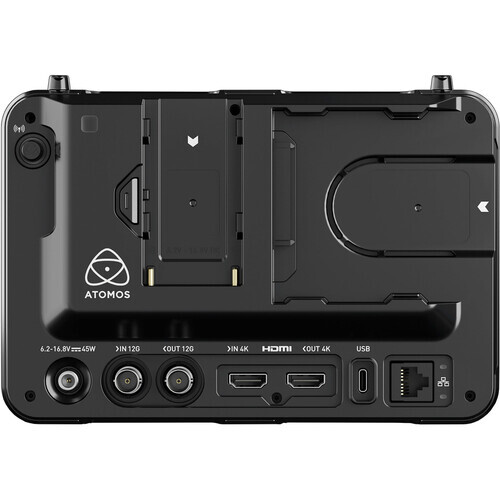

Video I/O
1 x HDMI 2.0 Input
1 x BNC (12G-SDI) Input
1 x HDMI 2.0 Output
1 x BNC (12G-SDI) Output
Embedded Audio
HDMI: 8-Channel
SDI: 24-Channel

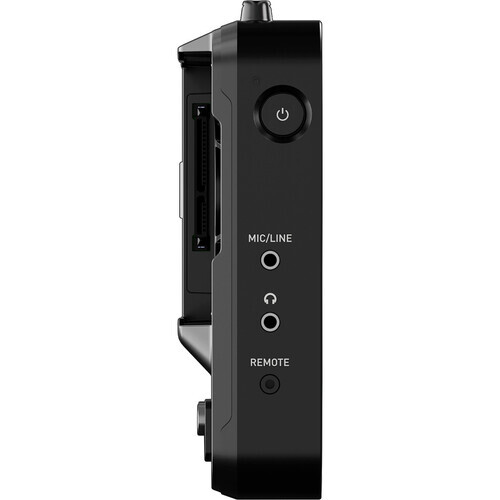

Audio I/O
1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Input
1 x 1/8" / 3.5 mm Output
Power I/O
1 x Barrel Input
Other I/O
1 x 2.5 mm (LANC)
1 x USB-C (Serial) Input
1 x RJ45 (Gigabit Ethernet) Input
Media/Memory Card Slot
Single Slot: SSDmini/SSD with Master Caddy II/III
File System Support
Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)
Mobile App Compatible
Yes: Android & iOS
  App Name: AtomRemote
  Functionality: Adjust Settings, Setup
Video Format
HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
8K Raw: 30
6K Raw: 60/30
4K Raw: 120
DCI 4K: 60
UHD 4K: 60
DCI 2K: 60
1080p: 120
1080i: 60/50
720p: 60
Gamma Curve
ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2
Video Signal Conversion
Timecode Support
Camera Trigger
Encoding Formats
Metadata Tagging
DC Input Power
6.2 to 16.8 VDC
Battery Type
1 x L-Series
3 x 1/4"-20 Female
3 x 3/8"-16 Female
Operating Temperature
72°F / 40°C
Material of Construction
Aluminium, Polycarbonate
19.8 x 13.3 x 4 cm
0.73 kg

* Specifications subject to change by the manufacturer without notice

  • Atomos 7" Shogun Ultra Monitor-Recorder
  • USB-C PD to 2.1mm DC Power Lead
  • MasterCaddy III
  • Wi-Fi Antenna
  • AirGlu Antenna
  • Antenna Tip Set
  • 3.5mm Audio Cable
