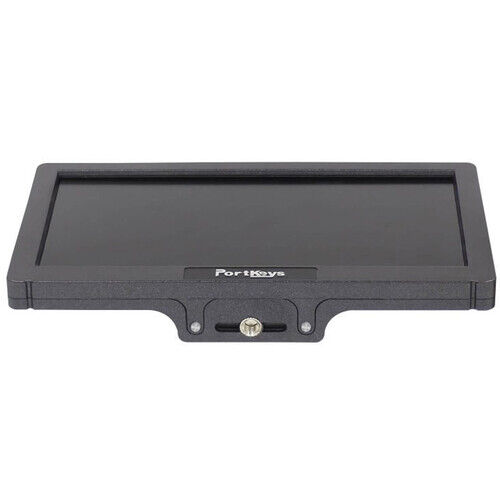

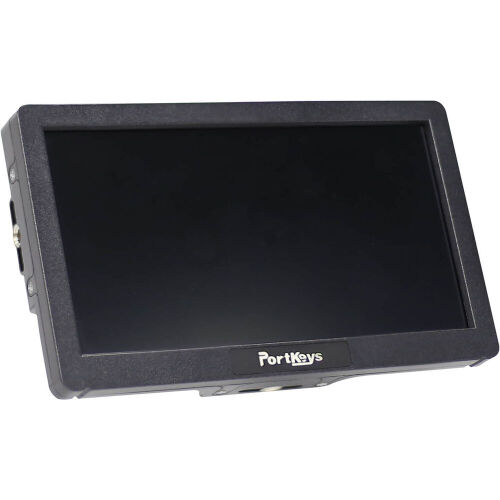

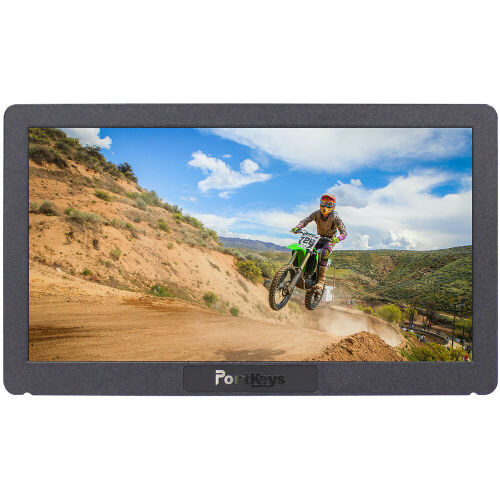

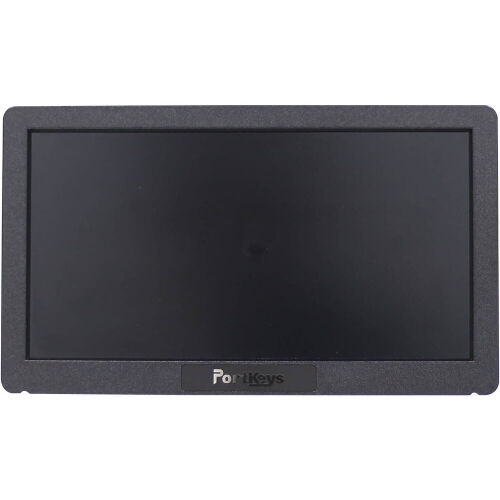

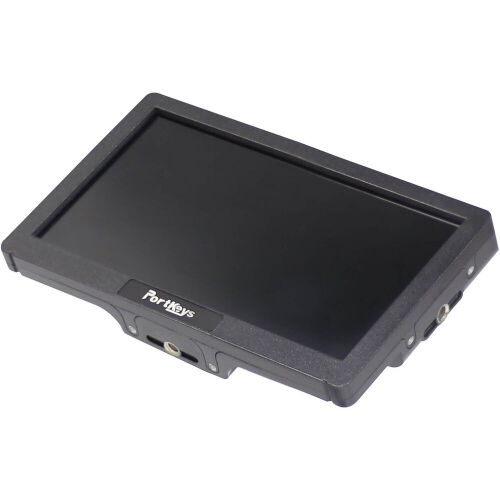

Portkeys HD7H 7" High-Bright HDMI Monitor

The HD7H 7" High-Bright HDMI Monitor from PORTKEYS enables you to view up to DCI 4K24 or UHD 4K30 video even in bright locations. This 1280 x 720 LCD panel features one HDMI input and one AV input, a 16:9 aspect ratio, a 1000:1 contrast ratio, and a 1000 cd/m² brightness for easy viewing outdoors as well as inside. The LCD provides a 178° viewing angle, enabling you to see an image without being directly in front of the monitor.

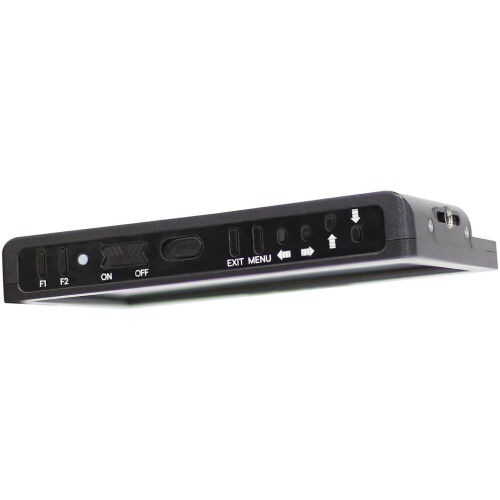

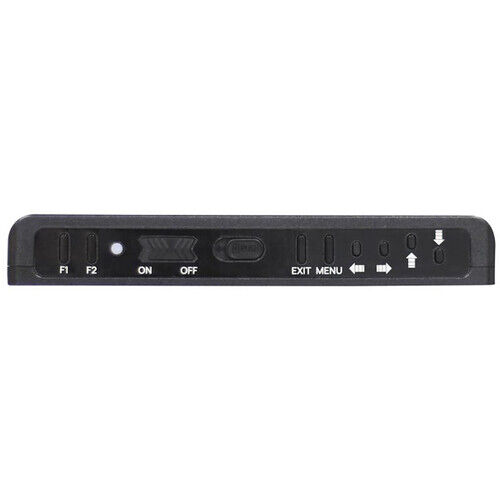

Power this monitor using the one Sony L-series-type battery or a separately available power supply. Control buttons are located on top of the monitor with a built-in speaker and a headphone output providing audio monitoring. The HD7H monitor features a variety of image-evaluating tools, including a histogram, false colour, exposure, focus peaking, anamorphic de-squeezing, and frame markers.

DISPLAY



Panel Type
LCD
Display Size
7.0" / 17.8 cm
Native Resolution
1280 x 720
Aspect Ratio
0.67
Viewing Angle
Horizontal: 178°
  Vertical: 178°
Touchscreen
No
Maximum Brightness
1000 nits / cd/m2
Contrast Ratio
41.67
Colour Support
16.7 Million Colours (8-Bit)
HDR Support
No
Colour Gamut
75% Rec. 709
LUT Support
No
Image Controls
Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Peaking, Histogram, Image Flip, OSD Flip, Screen Markers, Zebra

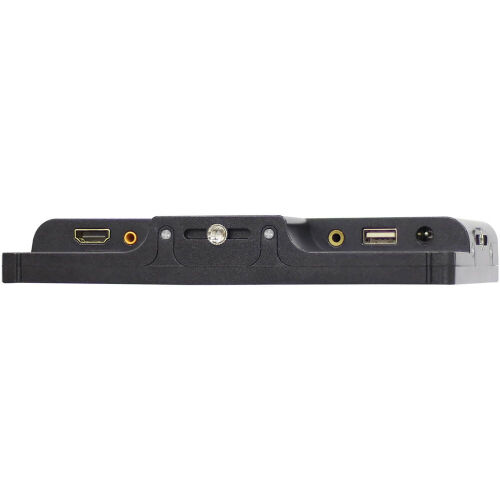

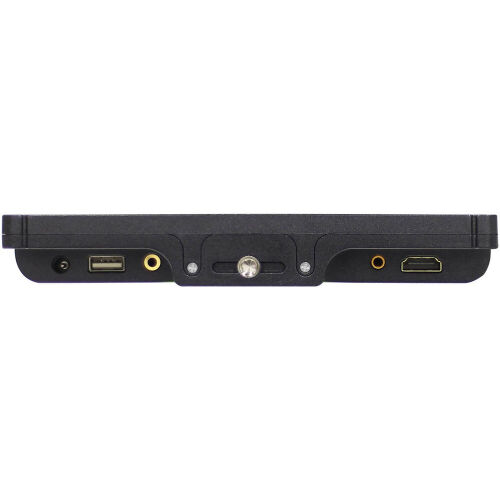

INPUTS/OUTPUTS


Video I/O
1x HDMI (Unspecified Signal) Input
  1x 1/8" / 3.5 mm TRRS A/V Input
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
Mono
Other I/O
1x USB-A
Media/Memory Card Slot
No
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No

FORMAT SUPPORT


Video Format
HDMI
  DCI 4K: 24
  UHD 4K: 30

POWER


Input Power
7 to 24 VDC

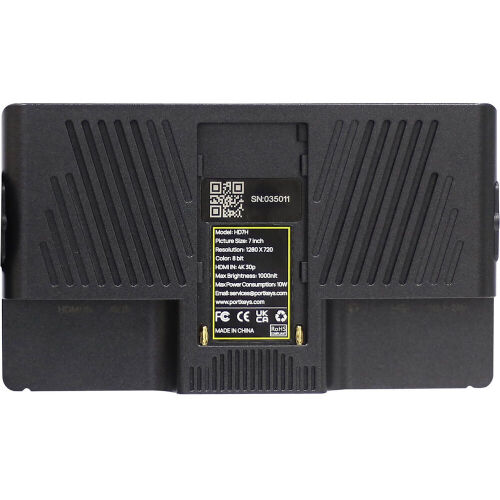

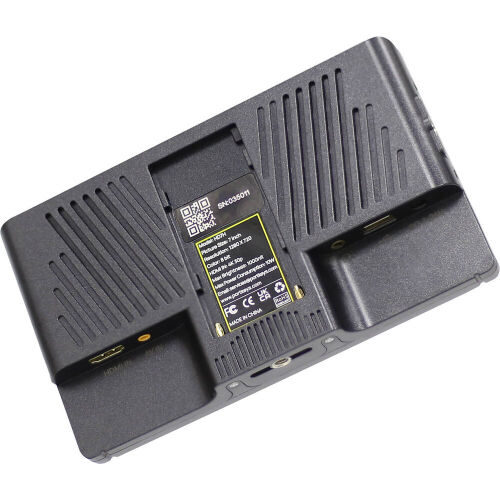

Battery
1x L-Series Mount on Fixed Plate
Power Consumption
10 W

MOUNTING

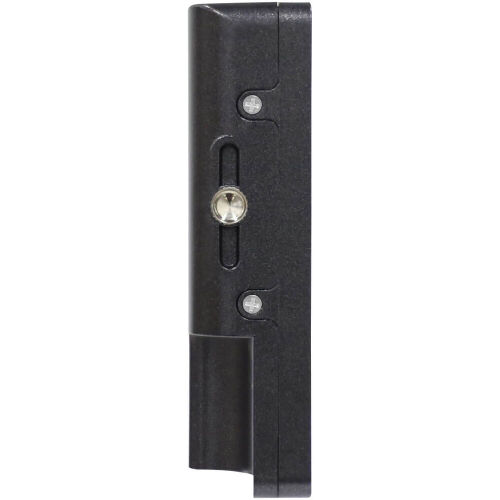

Tripod/Accessory Mounting
1x 1/4"-20 Female

GENERAL


Material of Construction
Aluminium
Dimensions
17.8 x 10.4 x 2.58 cm
Weight
0.27 kg


* Specifications subject to change by the manufacturer without notice.

  • Portkeys HD7H 7" High-Bright HDMI Monitor
  • HDMI to Mini HDMI Cable

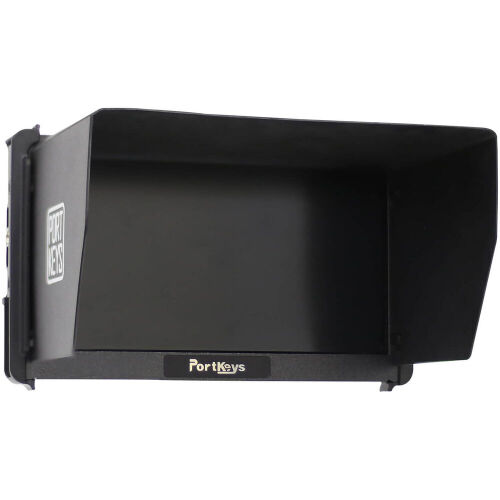

  • Rubber Sunshade
  • HDMI to HDMI Cable
  • HDMI to Micro-HDMI Cable
  • AV Cable
  • Ball Head Mount
