Updated 20.3 Megapixel Sensor

The Panasonic GH5 is a worthy successor to the award winning GH4 mirrorless camera. Built for professionals and serious enthusiasts, its updated 20.3 megapixel sensor delivers 4K video recording @ 60fps and Full HD @ 180fps. Looking for an uncompromising photo and video powerhouse? This is it.



Low Pass Filter Eliminated

Equipped with a re-engineered 20 megapixel Micro Four Thirds sensor, the GH5 offers a significantly improved level of detail over the GH4. The removal of the Low Pass Filter ensures it delivers the highest-ever picture quality ever in the Lumix range, producing outstanding low-light performance and impressive dynamic range for both photo and video capture. Additionally, video footage is now captured without cropping, ensuring the entire 20 megapixel sensor is utilised to deliver as much image information as possible.



5-Axis In-Camera Stabilisation

5-Axis In-body Image Stabilisation has also been added to the GH5's arsenal to deliver improved sharpness when shooting with slow shutter speeds or long range telephoto lenses. The 5-axis stabilised design can be combined with selected image stabilised Lumix lenses (lens firmware update may be required) to deliver 5-axis Dual I.S. 2 compensation. Providing an advantage of 5-stops at a focal range of up to 280mm (35mm equivalent) Dual I.S. 2 combines gyroscopic data from the camera body and lens to ensure your photos are razor sharp and your videos are silky smooth.



4K @ 60fps & Full HD @ 180fps

An updated Venus Engine image processor sees substantial improvements in the sheer computational power of the camera. The GH5 offers 4K 60fps video recording for exceptional image quality and creative versatility. It will also shoot Full HD videos at up to an incredible 180fps, equipping you with the ability to slow down ultra-fast motion while retaining an impressive level of clarity and detail.



10bit 4:2:2 Recording In-Camera

For serious filmmakers the capability of the processor also delivers 4K 10bit 4:2:2 recording at 30p directly to your SD card. Previously requiring the DMW-YAGH interface unit and an external hard disk or SSD recorder, the GH5 now achieves the same cinematic quality footage in-camera, offering impressive colour grading capabilities to seasoned broadcast professionals and budget filmmakers alike.



Dual UHS-II U3 SD Card Slots

Dual SD memory card slots have been added to satisfy the demands of professional shooters. Both slots feature an uncompromising UHS-II U3 rating to support the fastest, largest capacity SD cards on the market today. The slots can be customised according to your specific shooting requirements. These configurations include support for relay recording which allows you to seamlessly record and hot swap from one card to another, backup recording which records to both slots simultaneously or allocation recording which enables you to allocate what file types are saved to which card. For example, you can save your RAW image files to slot 1 and JPGs and Videos to Slot 2.



Unlimited Recording Time

The new dual SD card design is complemented by unlimited recording time in all video settings. Perfect for professional videographers, the GH5 does not cut files at 29 minutes and 59 seconds. It will continue to record as long as your memory card has capacity, ensuring you never have to miss a moment during a speech or ceremony.



Push/Pull Focus Effects

Getting professional quality footage is made easy thanks to a raft of built-in recording aids. The innovative Focus Transition function allows you quickly and consistently achieve professional focus pull effects for up to 3 focal points. Simply define up to 3 points along your focal plane then hit start and the camera will begin recording and smoothly transition between your selected points. Fine-tune the effect by adjusting the transition speed and defining the waiting time between each focus position.



Improved Shooting Aids

Other features include hue adjustment in the photo style shooting mode, cinelike gamma, colour bars and a 1kHz test tone, mater pedestal level, synchro scan, zebra pattern, focus peaking, wave or vector form monitoring, centre marker and much more.



Full-Size HDMI Port

A full-size HDMI Type-A interface replaces the previous Type-D port of the GH4. Used much more commonly in professional video production devices, the Type-A port eliminates the need for cumbersome adapters to output your recording to an external monitor.



Wind Cancelling Internal Microphone

The internal microphone has also been overhauled with a redesigned wind noise cancellation and sound synthesis system that delivers up to 25dB of wind suppression. The built-in microphone also features a new interior noise suppression processor that minimises interior noise while improving interior noise cancellation.



DMW-XLR1 Microphone Adapter

For professional audio requirements, the optional DMW-XLR1 microphone adapter can be attached to the hot shoe of the GH5 to offer two XLR jacks to your production. The interface unit delivers high resolution sound recording in 96kHz/24bit and offers independent control of levels, gain and low-cut settings for each channel separately. Powered by the hot shoe connector the microphone adapter adds impressive audio recording flexibility without compromising on the portability of your shooting kit.



Photography Powerhouse

Photographers will also find substantial improvements in the GH5. The immense processing power used to capture video has been leveraged to ensure you are equally well equipped to handle virtually any photographic scenario thrown your way.



Bright, Detail Rich Results

The updated 20.3 megapixel sensor combined with the elimination of the Low Pass Filter from the sensor design delivers vivid, high resolution stills with impressive colour moiré suppression and rich three-dimensional colours.



12fps Burst Mode with 100+ RAW Image Buffer

Continuous burst mode shooting at 12fps with single focus or 9fps with continuous focus now supports full resolution RAW capture for 100+ continuous images, ensuring you don't have to sacrifice shooting in JPEG format when trying to capture a fast motion subject, or a decisive moment in time.



4K & 6K Photo Modes

The framerate of the 4K photo mode which was pioneered by the GH4 has doubled, and is now capable of recording at 60fps. Additionally, a 6K photo mode has been introduced, enabling you to pull an 18 megapixel still from a 30fps clip, offering improved editing leeway and options to print images as large as 11x14" without quality loss.



Post Focus Mode

A Post Focus mode is also available to give you the power to decide the focal point of the photo after the shot has been taken. Simply shoot the scene with post focus enabled then use the touch screen to pinpoint the exact part of the image that you want to look sharp. The camera will determine the sharpest frame and extract an 18 megapixel still image as a JPG.



Focus Stacking In-Camera

Focus stacking in-camera has also been added to the GH5. Perfect for macro shooters, it can combine one or more post-focus images into a single composition, enabling you to choose multiple points of focus and combine them into a single ultra-detailed JPG.



Hybrid Autofocus System

Autofocus performance has also been upgraded using an advanced Hybrid focusing system which combines traditional contrast detection AF with depth from de-focus technology to offer focus lock in as little as 0.05 seconds. This design delivers impressive focusing performance when tracking a moving subject by using distance data and contrast AF to calculate the best focus position, resulting in more usable images when shooting in the 4K or 6K photo modes.



225 AF Points

Additionally, the number of focus points has been significantly increased from 49 to 225, spanning the entire frame. This versatility enables you to define one or multiple areas for focus ensuring your compositions are not limited compromised by your available focus points. A new joystick on the rear of the camera ensures selecting a focus point or a focus area is fast and intuitive, allowing you to adjust focus without looking away from the viewfinder.

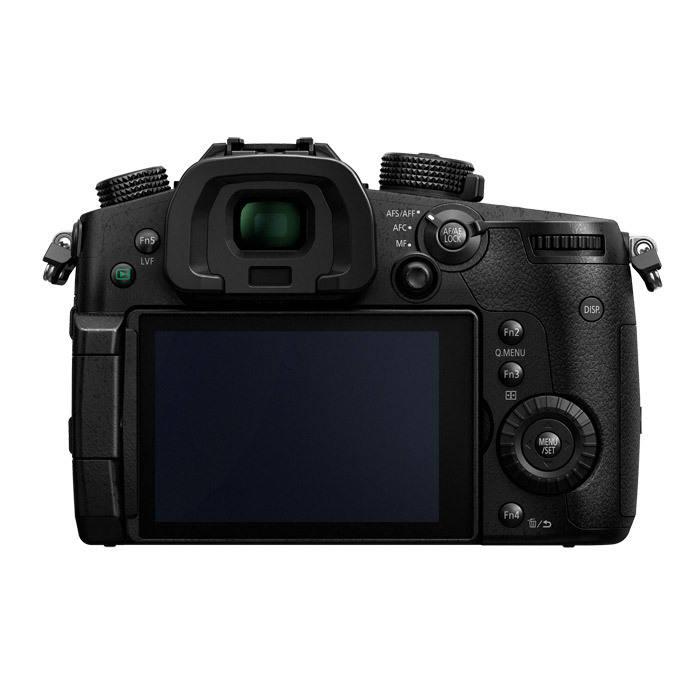

Large 3.2-inch LCD Screen

The rear of the camera houses a larger 3.2-inch 1.6 million-dot articulating touch screen LCD. Usable in all types of lighting conditions, the GH5 also features an improved 3.6 million-dot OLED electronic viewfinder that is perfect for extremely bright daytime shooting and critical focusing requirements.



Wi-Fi & Bluetooth Connectivity

Expand your creative potential with lightning fast 5GHz 802.11ac Wi-Fi connectivity. The convenient Bluetooth v4.2 BLE (Bluetooth Low Energy) compatibility enables the camera to remain conveniently connected to your smart device without sacrificing battery life.



Wireless Remote Camera Control

The wireless connection can be combined with the Panasonic Image App to remotely control the camera and shooting functions from your phone or tablet. You can also configure the camera to automatically transfer images to your smart device, or copy camera settings and preferences from one GH5 to another - perfect for users who shoot on multiple camera bodies.



Weather Sealed, Freeze Proof Construction

Built for seasoned professional photographers and filmmakers, the camera features an updated magnesium alloy designed body that is weather sealed for dust and moisture. For improved shooting versatility on-location, the Panasonic Lumix GH5 mirrorless camera has been upgraded with a freeze proof rating of -10°C giving you additional confidence that you're equipped to capture virtually anything that life can throw at you.

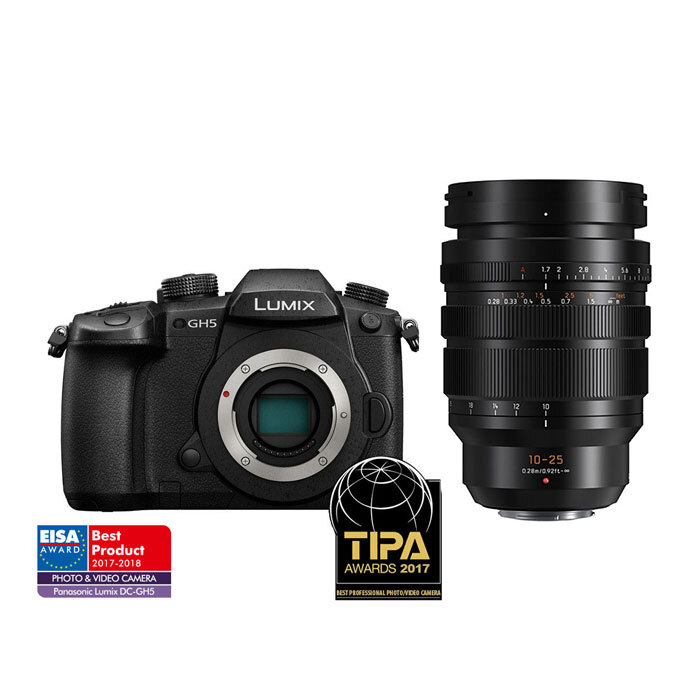

Kit Includes Panasonic Lumix GH5 Camera + Panasonic Leica DG Vario-Summilux 10-25mm f/1.7 Lens

TYPE

Type Digital Single Lens Mirrorless camera
Recording media SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards)
Image sensor size 17.3 x 13.0 mm (in 4:3 aspect ratio)
Lens mount Micro Four Thirds mount

IMAGE SENSOR

Type Live MOS Sensor
Total pixels 21.77 Megapixels
Camera effective pixels 20.30 Megapixels
Colour filter Primary colour filter
Dust reduction system Supersonic wave filter

IMAGE STABILIZATION SYSTEM

Image sensor shift type (5-axis / 5-stop*), Dual I.S. (Dual I.S. 2 compatible)

IMAGE STABILIZATION SYSTEM

* Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm), when H-FS12060 is used.

RECORDING SYSTEM

Recording file format

Still image JPEG (DCF, Exif 2.31), RAW
6K PHOTO*1 / 4K PHOTO 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
6K PHOTO*1 / 4K PHOTO 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Motion picture MOV: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
Motion picture MP4: H.264/MPEG-4 AVC
Motion picture AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2ch)

System frequency

59.94Hz, 50.00Hz, 24.00Hz

Aspect ratio

4:3, 3:2, 16:9, 1:1

Image quality

RAW, RAW+Fine, RAW+Standard, Fine, Standard

Colour Space

sRGB, AdobeRGB

File size(Pixels) -Still Image

4:3 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
3:2 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
16:9 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
1:1 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)

File size (Pixels) -Motion picture

MOV*2/*4-59.94Hz <[C4K] 4096x2160> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[4K] 3840x2160> 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[4K] 3840x2160> 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[4K] 3840x2160> 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[4K] 3840x2160> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[4K] 3840x2160> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <[4K] 3840x2160> 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <[4K] 3840x2160> 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-50.00Hz <[4K] 3840x2160> 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-24.00Hz <[C4K] 4096x2160> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-24.00Hz <[C4K] 4096x2160> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-24.00Hz <[4K] 3840x2160> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-24.00Hz <[4K] 3840x2160> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) LPCM, High-Res Audio)
MOV*2/*4-24.00Hz <[Full HD] 1920x1080> 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-24.00Hz <[Full HD] 1920x1080> 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-24.00Hz <[Full HD] 1920x1080> 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MP4*2-59.94Hz <[C4K] 4096x2160> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[C4K] 4096x2160> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[4K] 3840x2160> 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[4K] 3840x2160> 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[4K] 3840x2160> 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-59.94Hz <[4K] 3840x2160> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[4K] 3840x2160> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[Full HD] 1920x1080> 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[Full HD] 1920x1080> 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <[Full HD] 1920x1080> 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-59.94Hz <[Full HD] 1920x1080> 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-50.00Hz <[4K] 3840x2160> 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <[4K] 3840x2160> 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-50.00Hz <[4K] 3840x2160> 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <[Full HD] 1920x1080> 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-50.00Hz <[Full HD] 1920x1080> 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-50.00Hz <[Full HD] 1920x1080> 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-50.00Hz <[Full HD] 1920x1080> 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-24.00Hz <[C4K] 4096x2160> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-24.00Hz <[C4K] 4096x2160> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-24.00Hz <[4K] 3840x2160> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-24.00Hz <[4K] 3840x2160> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-24.00Hz <[Full HD] 1920x1080> 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-24.00Hz <[Full HD] 1920x1080> 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-24.00Hz <[Full HD] 1920x1080> 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-24.00Hz <[Full HD] 1920x1080> 24.00p, 24Mbps (4:2:0 8-bit LongGOP) (AAC)
AVCHD Progressive*2/ AVCHD*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 28Mbps (LongGOP) (Dolby)
AVCHD Progressive*2/ AVCHD*2-59.94Hz <[Full HD] 1920x1080> 59.94i, 24Mbps (LongGOP) (Dolby) (Sensor output is 29.97fps)
AVCHD Progressive*2/ AVCHD*2-59.94Hz <[Full HD] 1920x1080> 59.94i, 17Mbps (LongGOP) (Dolby) (Sensor output is 59.94fps)
AVCHD Progressive*2/ AVCHD*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 24Mbps (LongGOP) (Dolby)
AVCHD Progressive*2/ AVCHD*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 28Mbps (LongGOP) (Dolby)
AVCHD Progressive*2/ AVCHD*2-50.00Hz <[Full HD] 1920x1080> 50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps)
AVCHD Progressive*2/ AVCHD*2-50.00Hz <[Full HD] 1920x1080> 50.00i, 17Mbps (LongGOP) (Dolby) (Sensor output is 50.00fps)

Continuous recordable time (Motion picture)

AVCHD [FHD/60p]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 150 min (LVF) with H-HSA12035 / H-FS12060

Continuous recordable time (Motion picture)

AVCHD [FHD/60i]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 160 min (LVF) with H-HSA12035 / H-FS12060

Continuous recordable time (Motion picture)

MP4 [4K/60p]: Approx. 100 min (rear monitor), 100 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060

Continuous recordable time (Motion picture)

MP4 [4K/30p]: Approx. 110 min (rear monitor), 110 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060"

Actual recordable time (Motion picture)

AVCHD [FHD/60p]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 75 min (LVF) with H-HSA12035 / H-FS12060

Actual recordable time (Motion picture)

AVCHD [FHD/60i]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 80 min (LVF) with H-HSA12035 / H-FS12060

Actual recordable time (Motion picture)

MP4 [4K/60p]: Approx. 50 min (rear monitor), 50 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060

Actual recordable time (Motion picture)

MP4 [4K/30p]: Approx. 55 min (rear monitor), 55 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060

WIRELESS

WiFi IEEE 802.11a/b/g/n/ac * 5GHz Wi-Fi is not available in some countries.
WiFi 1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161, 165 ch
Bluetooth Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
QR Code Connection Yes
Password-less connection Yes (ON / OFF selectable)

VIEWFINDER

Type OLED Live View Finder (3,680k dots)
Field of view Approx. 100%
Magnification Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1
Eye point Approx. 21 mm from eyepiece lens
Diopter adjustment -4.0 - +3.0 (dpt)
Eye sensor Yes
Eye sensor adjustment High / Low

FOCUS

Type Contrast AF system
DFD technology Yes
Post Focus Yes
Focus Stacking Yes
Focus mode AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
AF mode Face/Eye Detection / Tracking / 225-Area / Custom Multi / 1-Area / Pinpoint
AF mode (Full area touch is available) (Scalable AF frame size (by Joystick) and flexible AF position (by front/rear dial))
AF detective range EV -4 - 18 (ISO100 equivalent)
AF assist lamp Yes
AF lock Yes (AF/AE LOCK button)
AF custom setting AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
Others One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter

EXPOSURE CONTROL

Light metering system 1,728-zone multi-pattern sensing system
Light metering mode Multiple / Centre Weighted / Spot
Metering range EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode Program AE, Aperture Priority AE, Shutter Priority AE, Manual
ISO sensitivity (Standard Output Sensitivity) Still image: Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
ISO sensitivity (Standard Output Sensitivity) Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)
AE lock Yes (AF/AE LOCK button)

WHITE BALANCE

White balance AWB / AWBc / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
White balance adjustment Blue/Amber bias, Magenta/Green bias
Colour temperature setting 2500-10000K in 100K

SHUTTER

Type Focal-plane shutter
Shutter speed Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Shutter speed Electronic first curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Shutter speed Electronic shutter: 1/16,000 - 1
Shutter speed Motion picture: 59.94Hz: 1/16,000 - 1/30, 50.00Hz: 1/16,000 - 1/25, 23.98Hz: 1/16,000 - 1/24 (When using Synchro Scan)
Shutter life Approx. 200,000 images
Self-Timer 10sec, 3 images / 2sec / 10sec
Remote control Remote control with Bulb function by DMW-RSL1 (sold separately)

BRACKET

AE bracket 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket 3, 5 or all positions in 1 EV step
Focus Bracket 1 to 999 images, focus steps can be set in 5 levels
White balance bracket 3 exposures in blue/amber axis or in magenta/green axis, colour temperature setting

BURST SHOOTING

Burst speed [Mechanical shutter] AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed [Mechanical shutter] AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed [Electronic shutter] AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed [Electronic shutter] AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images More than approx. 60 images (when there are RAW files with the particular speed)
Number of recordable images More than approx. 600 images (when there are no RAW files)
Number of recordable images (depending on memory card size, battery power, picture size, and compression)

6K PHOTO*1 / 4K PHOTO

Burst speed [6K PHOTO] 30 frames/sec
Burst speed [4K PHOTO] 60 frames/sec, 30 frames/sec
Exif information Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.)
Marking function Yes (in 6K/4K Burst (S/S) mode)
Loop rec function Yes (in 6K/4K Burst (S/S) mode)

FLASH

Flash type TTL External Flash (sold separately)
Flash Mode Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA, iA+ only.
Synchronization speed Less than 1/250 second
Flash output adjustment 1/3EV step ±3EV
Flash synchronization 1st. Curtain Sync, 2nd Curtain Sync.
Synchronization for flash dimming and exposure compensation Yes
Wireless control Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket Yes

REAR MONITOR

Type TFT LCD monitor with static touch control
Monitor size Free-angle 3.2-inch (8.0cm) / 3:2 aspect / Wide viewing angle
Pixels Approx. 1,620k dots
Field of view Approx. 100%
Monitor adjustment Brightness, Contrast, Saturation, Red-Green, Blue-Yellow

LIVE VIEW

Digital zoom 2x, 4x
Extra Tele Conversion Still image: Max. 2x
Extra Tele Conversion 4K PHOTO: 1.6x (4:3), 1.5x (3:2), 1.4x (16:9, 1:1)
Extra Tele Conversion Motion picture: 2.7x (FHD), 1.4x (4K)
Other functions Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Centre Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture)

DIRECTION DETECTION FUNCTION

Direction Detection Function Yes

FUNCTION BUTTON

Fn1-20 Wi-Fi / Q.MENU / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot RAW+JPG / 1 Shot Spot Metering / Operation Lock / Dial Operation Switch / Photo Style / Filter Select / Aspect Ratio / Picture Size / Quality / AFS/AFF / Metering Mode / Burst Rate / 6K/4K PHOTO / Self Timer / Bracket / Highlight Shadow / i. Dynamic / i. Resolution / Post Focus / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / ON/OFF of each item in White Balance / ON/OFF of each item in Photo Style / AF Mode/MF / Rec/Playback Switch / Off / 4K Live Cropping / Motion Pic. Rec Format / Motion Pic. Rec Quality / Variable Frame Rate / Picture Mode in Rec. / Synchro Scan / Time Code Display / Mic. Directivity Adjust / Colour Bars / WFM/Vector Scope / Focus Transition / LUT Monitor Display* / LUT HDMI Display* / Silent Mode / Peaking / Histogram / Guide Line / Zebra Pattern / Monochrome Live View / Rec Area / Video-Priority Display / Step Zoom / Zoom Speed / Restore to Default *Upgrade Software Key DMW-SFU1 (sold separately) is required.

PHOTO STYLE

Photo Style Standard / Vivid / Natural / Monochrome / L. Monochrome / Scenery / Portrait / Custom 1, 2, 3, 4 / Cinelike D / Cinelike V / Like709* / V-LogL*/**
Photo Style *When Creative Video Mode is selected. **Upgrade Software Key DMW-SFU1 (sold separately) is required.

CREATIVE CONTROL

Creative Control Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect** / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine* *For photos only. **Not available in 4:2:2 10-bit video or 4K video recording.

CREATIVE VIDEO MODE

Exposure mode

Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure

Variable frame rate

59.94Hz 2, 30, 56, 58, 60, 62, 64, 90, 120, 150, 180 fps
59.94Hz 2, 15, 26, 28, 30, 32, 34, 45, 60 fps
59.94Hz 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, 105, 120, 135, 150, 165, 180 fps
59.94Hz 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
59.94Hz 2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96, 108, 120, 132, 144, 156, 168, 180 fps
50.00Hz 2, 25, 46, 48, 50, 52, 54, 75, 100, 150, 180 fps
50.00Hz 2, 12, 21, 23, 25, 27, 30, 37, 60 fps
50.00Hz 2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 87, 100, 125, 150, 175, 180 fps
24.00Hz 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
24.00Hz 2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96, 108, 120, 132, 144, 156, 168, 180 fps

ANAMORPHIC MODE

Anamorphic 4K mode (4:3)

MOV*2/*4-59.94Hz <3328x2496> 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <3328x2496> 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <3328x2496> 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <3328x2496> 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <3328x2496> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <3328x2496> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <3328x2496> 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <3328x2496> 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <3328x2496> 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-50.00Hz <3328x2496> 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-50.00Hz <3328x2496> 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-24.00Hz <3328x2496> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-24.00Hz <3328x2496> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-24.00Hz <3328x2496> 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MP4*2-59.94Hz <3328x2496> 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <3328x2496> 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <3328x2496> 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <3328x2496> 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <3328x2496> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <3328x2496> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <3328x2496> 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <3328x2496> 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <3328x2496> 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-50.00Hz <3328x2496> 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-50.00Hz <3328x2496> 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-24.00Hz <3328x2496> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-24.00Hz <3328x2496> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-24.00Hz <3328x2496> 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)

MOTION PICTURE FUNCTION

Master pedestal level 31 steps
Luminance level 8-bit: 0-255 / 16-235 / 16-255
Luminance level 10-bit: 0-1023 / 64-940 / 64-1023
Wave form monitor / Vectorscope Selectable
LUT display LUT Monitor Display / LUT HDMI Display *Upgrade Software Key DMW-SFU1 (sold separately) is required.
Synchro scan Yes
Time code Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When system frequency [59.94Hz] is selected.)
SS/Gain operation Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Colour bars / 1kHz test tone Yes (SMPTE / EBU / ARIB) / Yes
Photo style for motion picture Cinelike D / Cinelike V / Like709* / V-LogL*/**
Photo style for motion picture *When Creative Video Mode is selected. **Upgrade Software Key DMW-SFU1 (sold separately) is required.
Knee control Yens (in Like709 mode)

PLAYBACK

Playback mode 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only, duration & effect is selectable), Playback Mode (Normal / Picture Only / Video Only), Protect, Rating, Title Edit, Face Recognition Edit, DPOF Print Set, RAW Processing, 6K/4K PHOTO Bulk Saving, 6K/4K PHOTO Noise Reduction, Light Composition, Clear Retouch, Text Stamp, Copy, Resize, Cropping, Rotate, Video Divide, Time Lapse Video, Stop Motion Video, Rotation Display, Picture Sort, Delete Confirmation, Creating Still Pictures from a Motion Picture

IMAGE PROTECTION / ERASE

Protection Single / Multi or Cancel
Erase Single / Multi / All / Except Favorite

PRINT

Direct Print PictBridge compatible

INTERFACE

USB

USB Type-C, Super Speed USB3.1 GEN1

HDMI*3

Monitor-through 4:2:2 10-bit (When [Rec Quality] is set to [4:2:2 10bit] or when [Rec Quality] is set to [4K/60p]/[4K/50p] and [4K/60p Bit Mode]/[4K/50p Bit Mode] is set to [4:2:2 10bit].When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the SD memory card in the camera unit.)
Monitor-through 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit], except for [4K 60p]/[4K/50p])
Monitor-through 4:2:0 8bit (When [Rec Quality] is set to [4K/60p]/[4K/50p] and [4K/60p Bit Mode]/[4K/50p Bit Mode] is set to [4:2:0 8bit].)
Monitor-through Auto / 4K/30p/25p / 1080p / 1080i / OFF
Monitor-through Information display ON/OFF (selectable)
Monitor-through Automatic down-conversion
Playback HDMI TypeA / VIERA Link, Audio: Stereo
Playback 59.94Hz: Auto / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
Playback 50.00Hz: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
Playback 24.00Hz: Auto / C4K / 4K/24p / 1080p

Audio video output

No

Remote input

f2.5mm for remote

External microphone input

f3.5mm for external microphone

External microphone input

Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).

Headphone output

f3.5mm for headphone

Microphone

Stereo, Wind Noise Canceller: OFF / Low / Standard / High / AUTO

High-res audio recording

Yes with DMW-XLR1 (sold separately)

Speaker

Monaural

SD card slot

Slot 1, Slot 2

LANGUAGE

OSD language Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified)

GENERAL

POWER

Battery Li-ion Battery Pack (7.2V, 1860mAh, 14Wh) (included)
Battery life (CIPA standard) Approx. 410 images (rear monitor), 400 images (LVF), 1,000 images (Power Save LVF mode*) with H-FS12060
Battery life (CIPA standard) Approx. 410 images (rear monitor), 390 images (LVF), 1,000 images (Power Save LVF mode*) with H-HSA12035
Battery life (CIPA standard) Approx. 400 images (rear monitor), 380 images (LVF), 1,000 images (Power Save LVF mode*) with H-ES12060
Battery life (CIPA standard) * Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 3 sec.
Battery grip DMW-BGGH5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D) 138.5 x 98.1 x 87.4 mm (excluding protrusions)
Weight Approx. 725g (SD card, Battery, Body)
Weight Approx. 645g (Body only)
Weight Approx. 935g (SD card x 1, Battery, H-FS12060 lens included)
Weight Approx. 1030g (SD card x 1, Battery, H-HSA12035 lens included)
Weight Approx. 1045g (SD card x 1, Battery, H-ES12060 lens included)

OPERATING ENVIRONMENT

Operating temperature*5 -10? to 40?
Operating humidity 10%RH to 80%RH

STANDARD ACCESSORIES

Software · The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.0XE is available for download at Panasonic website using computer connected to the Internet. http://panasonic.jp/support/global/cs/soft/download/d_pfs99pe.html (For Windows) · The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet. http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories Battery Charger (AC Cable included), Battery Pack, Body Cap, Hot Shoe Cover, Eye Cup, Flash Syncro Socket Cap, Cover for the Battery Grip Connector, USB Connection Cable, Shoulder Strap, Cable Holder

NOTE

*1 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.

NOTE

*2 About motion picture recording / 6K PHOTO/4K PHOTO recording

NOTE

- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD] or [MP4(under 28Mbps)].

NOTE

- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [mov], [MP4] in [4K] or [6K PHOTO/4K PHOTO].

NOTE

(SD speed class is the speed standard regarding continuous writing.)

NOTE

- MP4 motion pictures with [MP4] in [4K]:

NOTE

- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.

NOTE

- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.

NOTE

- MP4 motion pictures with [MP4] in [FHD]:

NOTE

- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.

NOTE

*3 For [4K 60p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

NOTE

*4 High-res audio is selectable only when using the DMW-XLR1 (sold separately).

NOTE

*5 The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

NOTE

*6 Firmware must be updated to the latest version 1.1.

NOTE

·4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. It may cause problems such as freezing when played on these devices.



*Specifications subject to change by manufacturer without notice.

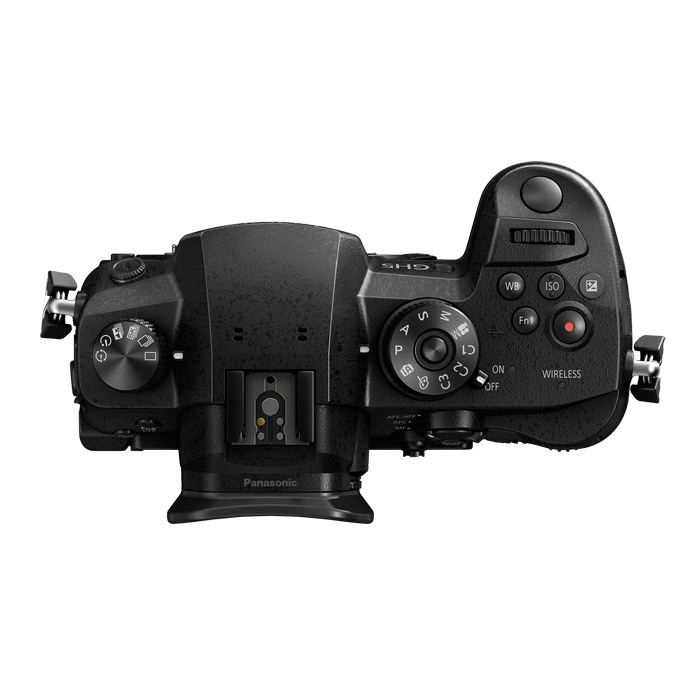

Panasonic Lumix DMC-GH5 Body
Panasonic Leica DG Vario-Summilux 10-25mm f/1.7 Lens
Rechargeable Battery Pack (DMW-BLF19E)
Battery Charger with AC Cable
Body Cap
Hot Shoe Cover
Eye Cup
Flash Synchro Socket Cap
Cover for Battery Grip Connector
USB Connection Cable
Shoulder Strap
Cable Holder
Lens Cap
Lens Rear Cap
Lens Hood
Lens Storage Bag

Manufacturer Warranty


This product comes with a

12  month Australian warranty

from Panasonic Australia

Want to read more about warranties?

Click here

Add extra protection for peace of mind


Reviews

* Dispatch timeframes are indications only and may vary for multiple quantities. Timeframes are updated regularly during normal business hours.
