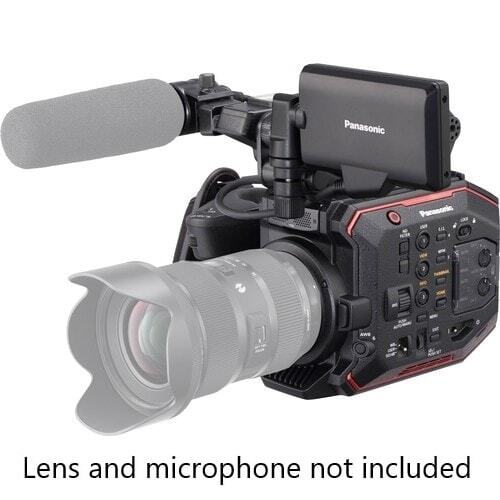

With a high-resolution 5.7K Super 35mm sensor, the Panasonic AU-EVA1 cinema camera delivers a massive 14-stop dynamic range in an extremely light and compact body. Perfect for run-and-gun work, the EVA 1 can handle a range of shooting conditions with a Dual Native ISO for low light performance, V-Log capabilities for colour grading and ultra-fast frame capability of up to 240fps in Full HD. An EF mount, Dual SD card slots and Electronic Image Stabilisation ensure it has all the feature professional shooters need.

5.7K Super 35mm Image Sensor

Built for modern filmmakers, The Panasonic AU-EVA1 features an advanced Super 35mm sensor that captures video with a 5.7K resolution with more than 17.25 million photosites - almost double the amount required to capture 4K DCI. The resulting footage can be down sampled to 4K, UHD, 2K or 720p for sharp results that offer optimised colour quality and excellent detail.

Dual Native ISO of 800 and 2500

Featuring a Dual Native ISO of 800/2500, the handheld 35mm camera can quickly switch between standard and high sensitivity to minimise grain in low light conditions. This reducing image degradation, and allows you to capture clean footage regardless of lighting condition, dramatically increasing your range of shooting options.

14-stops of Dynamic Range

A huge 14-stops of Dynamic Range gives you compositional and exposure flexibility that can be modified during the post production process. The camera performs incredibly well in high contrast scenes, allowing you to capture a huge amount of detail as well as a wide range of colour and light.

V-Log / V-Gamut Capture

The EVA1 captures such a wide dynamic range using Panasonic’s V-Log and V-Gamut technology, which can accurately reproduce a massive range of colours while at the same time delivering rich skin tones, perfect for both HDR and SDR production workflows. The large colour profile and unique log curve allow you to capture a massive amount of colour information, that provide complete colour grading flexibility for your post production workflow.

Electronic Image Stabilisation

To assist with shooting handheld footage, the EVA1 has built-in Electronic Image Stabilisation (EIS) that compensates for camera shake. Able to switch on and off at the touch of a button, the EIS works in UHD, 4K, 2K, and Full HD resolutions. It is an innovative way to incorporate stabilisation into a video camera without using a floating sensor that may not play nicely with some cinema camera movement rigs.

Focus Assist Modes

The camera has several integrated focus aids to make sure that your focus is spot on, every time. A Focus Box assist displays several green squares that increase in size over the part of the shot that is in focus, while the peaking mode displays a coloured highlight on the subject in focus. A one-push auto focus function works with lenses that support autofocus and can help you get a quick starting focus point.

ND and IR Cut filters

Positioned behind the lens mount, the Panasonic EVA-1 Super 35 features built-in ND filters in 2, 4 and 6 stops, so you can accurately control the exposure. A removeable infrared (IR) filter further heightens your control, reducing colour distortion and allowing other effect like night vision. Both types of filters are electronically controlled, allowing you to operate them wirelessly from your smartphone or tablet.

Compatible with EF Mount Lenses

The EF mount used on the camera means you can shoot with a wide range of cinema prime and zoom lenses. Full compatibility ensures the EVA1 Cinema Camera supports Iris Control, One-Push AF and lens data for convenience.

Accepts Affordable SD Cards

Dual SD card slots rather than CFast or SSD means that recording high quality videos on the EVA 1 is convenient and more cost effective. Two cards can be used at the same time for simultaneous dual recording for complete data protection. Alternatively, the Relay Record function lets you record for long periods by overflowing from one card to the other when full.

Internal 10-But 4:2:2 Sampling

The camera captures up to 10-bit 4:2:2 footage internally without requiring an external recorder. 4K footage can be recorded at up to 59.94 fps, 120fps in 2K with a slight crop and 240fps for super slow-motion footage in a 2K resolution with a Micro Four Thirds crop.

XLR Audio Inputs and Stereo Microphone

Thanks to dual XLR audio inputs, Dolby audio encoding is available. You can output 4K video to an external recorder or monitor using the split HDMI and SDI video outputs, and Panasonic have announced that an optional RAW recording accessory should be available soon. Timecode functionality makes it possible to use of multi-camera setups and synchronise the footage easily.

3.5-Inch Touchscreen Monitor

A touch enabled 3.5-Inch LCD Monitor allows users to adjust basic settings, receive live updates on camera operation and preview a live video feed. The monitor hood ensures that the monitor is visible while shooting outside or in dim lighting.

Compact and Lightweight Build

Weighing only 1.2 kg without accessories, the Panasonic AU-EVA1 5.7K Super 35mm Compact Cinema Camera has been designed to be incredibly portable, making it perfect for handheld shoots and run-and-gun productions. The 5900mAh battery powers the Panasonic EVA1 for up to 90 minutes making it a great camera to take on location.
  • Super 35mm Camera with 5.7K Sensor
  • Dual Native ISO
  • V-Log / V-Gamut Capture
  • Electronic Image Stabilisation
  • Accepts EF Mount Lenses
  • SD Card Compatible
  • XLR Audio Inputs /4K-Capable HDMI and SDI
  • 3.5 Inch LCD

General

Power

DC e 7.28 V (when battery is used)

DC e 12 V (when the AC adaptor is used)

Power consumption

19 W (when LCD monitor is used)

Operating ambient temperature

0 °C - 40 °C

Operating ambient humidity

10% - 80% (relative humidity, no condensation)

Mass

Approx. 1.2 kg (camera body only, excluding the accessories)

Approx. 2.05 kg (including accessories of handle, grip, LCD monitor, LCD monitor hood, microphone holder, microphone holder adaptor, and battery)

Dimensions (W×H×D)

Camera body only 135 × 133 × 170 mm

Camera unit

Pickup device

Super 35 mm, MOS sensor

Number of pixels

· Total pixels: Approx. 20.49 million pixels (6340 (H) × 3232 (V))

· Valid pixels: Approx. 17.52 million pixels (5720 (H) × 3016 (V))

Lens mount

EF mount

Optical filter

· Built-in ND filter, electrical [ND:1.8]/[ND:1.2]/[ND:0.6]/[ND:CLR]



· IR cut filter [ON]/[OFF] by assigning [IR SHOOTING] to the USER button (switched by menu)

Color temperature setting

ATW, AWB, 2000 K - 15000 K, -10.0GMg - +10.0GMg Maximum of 12 items can be registered

Gain setting

· [ISO] mode Dual native ISO compatible, [200 ISO] to [25600 ISO]

· [dB] mode

[NORMAL]/[HIGH] gain compatible, -12 dB to 26 dB (2 dB steps)

Shutter speed

· When set to [deg] 3.0 deg - 357.0 deg (0.5 deg steps) Maximum of 12 items can be registered

· When set to [sec] 1/24.1 seconds to 1/8000 seconds (for 23.98p) Maximum of 12 items can be registered

Memory card recorder

Recording media

· Card slot × 2

SDHC memory card (4 GB - 32 GB)

SDXC memory card (exceeding 32 GB - 128 GB)

: UHS-I/UHS-II, UHS Speed Class 3 compatible, video Speed Class V90 compatible

Number of recording pixels

4096×2160 (4K), 3840×2160 (UHD), 2048×1080 (2K), 1920×1080 (FHD), 1280×720 (HD)

Recording codec

MOV, AVCHD

System frequency

59.94p, 59.94i, 50p, 50i, 29.97p, 24p, 25p, 23.98p

Recording frame rate (max)

· 4K/UHD

59.94fpsor50fps

· 2K/HD

120fps/100fps

240fps/200fps (crop mode)

Recording format

· MOV: 4:2:0 (8 bits)

420LongGOP 150M/420LongGOP 100M/420LongGOP 50M

· MOV: 4:2:2 (10 bits)

422LongGOP 150M/422LongGOP 100M/422LongGOP 50M

· AVCHD:

PS/PH/HA/PM

Recording video signal

4096×2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p

3840×2160/59.94p, 50p, 29.97p, 25p, 23.98p

2048×1080/59.94p, 50p, 29.97p, 25p, 24p, 23.98p

1920×1080/59.94p, 50p, 29.97p, 25p, 23.98p, 59.94i, 50i

1280×720/59.94p, 50p

Recording and playback time

When using a 64 GB SDXC memory card

· 4096×2160/420LongGOP 150M/59.94p, 50p

Approx. 55 minutes

· 2048×1080/420LongGOP 100M/59.94p, 50p

Approx. 1 hour 20 minutes

· 1920×1080/420LongGOP 50M/29.97p, 25p, 23.98p

Approx. 2 hours 20 minutes

Two-slot function

Simultaneous recording, relay recording

Special recording

Pre-recording

Digital video

Number of quantizing bits

· MOV: 4:2:2 (10 bits)/4:2:0 (8 bits)

· AVCHD: 4:2:0 (8 bits)

Video compression format

H.264/MPEG-4 AVC High Profile

Video output



terminal

· BNC×1

4K (6G), HD (3G/1.5G): 0.8 V [p-p], 75 O

· SDI remote control support

· Output format (4:2:2 (10 bits) output)

4096×2160/3840×2160: 29.97p, 25p, 24p, 23.98p

1920×1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 29.97fps, 25p, 25fps, 24p, 24fps, 23.98p, 23.98fps

1280×720: 59.94p, 50p

terminal

· HDMI type A × 1 (VIERA Link not compatible)

· HDMI remote control support

· Output format (4:2:2 (10 bits) output)

4096×2160/3840×2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p

1920×1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p

1280×720: 59.94p, 50p

720×480: 59.94

Audio input

Built-in microphone

Supports stereo microphone

XLR×2, 3-pin

Input high impedance, [LINE]/[MIC] switch by menu

· [LINE]:

4/0 dBu (selectable menu)

· [MIC]:

-40/-50/-60 dBu (selectable by menu), +48 V ON/OFF (switch by menu)

Audio output

terminal

terminal

LPCM 2ch

Headphone terminal

Stereo mini jack × 1

Speaker

20 mm diameter, round ×1

Other input/output

terminal

BNC×1

Used as input/output terminal, input/output switch by menu

· Input: 1.0 V - 4.0 V [p-p], 10 kO

· Output: 2.0 V±0.5 V [p-p], low impedance

terminal

40-pin (for connecting LCD monitor)

terminal

2.5 mm diameter super mini jack × 1, for connecting grip

terminal

Type A connector, 4-pin (5 V, 0.5 A), for attaching the wireless module (optional)

terminal

DC12 V, EIAJ type 4

Monitor

LCD monitor

3.5-type LCD monitor

(Approx 1.15 million dots), touch panel support

Can be changed to mirror shooting display with the switch

AC adaptor

Power source

AC d 100 V - 240 V, 50 Hz/60 Hz, 1.2 A

Power output

DC e 12 V, 3.0 A

Battery charger (AG-BRD50)

Input voltage

DC e 12 V, 3.0 A

Output voltage

DC e 8.4 V, 4.0 A

Charging current

Maximum 4,000 mA

Operating ambient humidity

10% - 80% (relative humidity, no condensation)

Mass

Approx. 230 g

Dimensions (W×H×D)

130 mm × 48 mm × 107 mm

Battery pack (AG-VBR59)

Voltage/capacity

DC e 7.28 V/5900 mAh 43 Wh


* Specifications subject to change by the manufacturer without notice
  • Panasonic AU-EVA1 Super 35 Handheld Cinema Camera
  • 7.28V 43Wh Battery for DVX200 (5,900mAh)
