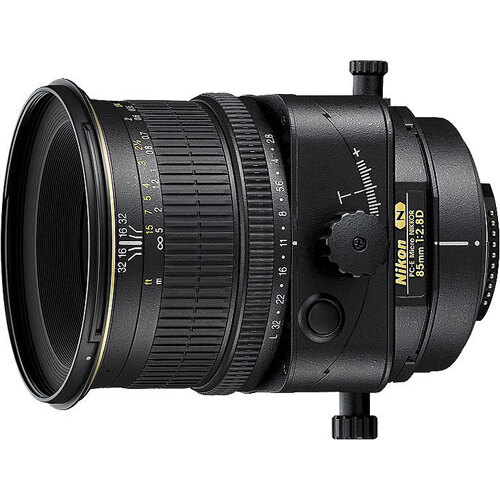

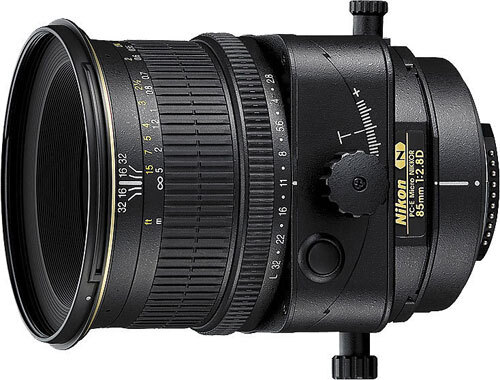

Nikon PC-E Micro 85mm f2.8D Tilt-Shift Lens
- The Essentials
- Bags, Cases & Straps
- Filters
- Cleaning & Maintenance
- Protection & Waterproof
- Books, DVDs & Education
- Advanced
- Other
The Essentials
Bags, Cases and Straps
Filters
Cleaning and Maintenance
Protection and Waterproof
Books, DVDs and Education
Take your photography to the next level with these Optional Accessories:
Other products you may consider:
The PC-E NIKKOR lens series features a tilt/shift mechanism that provides extraordinary control over the relationship between the optical axis of the lens and the image plane, thereby enabling Perspective Control. This function proves particularly valuable for specialised professional users such as architecture and product photographers.
Together with the PC-E NIKKOR 24 mm f/3.5D ED, released in February 2008, the PC-E NIKKOR series now covers a range extending from 24mm wide-angle to medium telephoto 85mm.
Together with the PC-E NIKKOR 24 mm f/3.5D ED, released in February 2008, the PC-E NIKKOR series now covers a range extending from 24mm wide-angle to medium telephoto 85mm.
Product Code: 1Nik85 F/2.8 PC-E
• Wide shifting and tilting range (shift: ±11.5 mm; tilt: ±8.5°)
• ±90° lens revolving capability for versatile tilt/shift effects
• Maximum reproduction ratio of 1/2
• Nano Crystal Coat virtually eliminates internal lens element reflections, effectively reducing ghosting and flare
• High-performance Nikon Super Integrated Coating delivers superior color reproduction while substantially reducing ghosting and flare
• Rounded 9-blade diaphragm for more natural appearance of out-of-focus image elements
• Lens aperture can be preset by using aperture ring and aperture stop-down button
• With the Nikon D3, D700 and D300, auto aperture control with electromagnetic diaphragm is possible
• Dust and moisture-resistant for reliable use even in harsh shooting situations
• ±90° lens revolving capability for versatile tilt/shift effects
• Maximum reproduction ratio of 1/2
• Nano Crystal Coat virtually eliminates internal lens element reflections, effectively reducing ghosting and flare
• High-performance Nikon Super Integrated Coating delivers superior color reproduction while substantially reducing ghosting and flare
• Rounded 9-blade diaphragm for more natural appearance of out-of-focus image elements
• Lens aperture can be preset by using aperture ring and aperture stop-down button
• With the Nikon D3, D700 and D300, auto aperture control with electromagnetic diaphragm is possible
• Dust and moisture-resistant for reliable use even in harsh shooting situations
Lens construction | 6 elements in 5 groups (with Nano Crystal Coat) |
Picture angle | 28°30’ (maximum 37°50’ when fully shifted) |
Number of diaphragm blades | 9 (rounded) |
Diaphragm | Electrically automatic/One-touch preset aperture operation |
Minimum f/stop | 32 |
Lens movement | Shift and tilt movement at right angles (the two operations can be modified for a surcharge, to move in the same [parallel] direction. The shift lock release knob can also be changed for a larger one, but the changed knob may affect mounting the lens to the camera or lens operation.) Maximum shift amount: ±11.5mm Maximum tilt amount:±8.5° |
Lens rotation | 90° right and left (click-stop for each 30° step) |
Closest focusing distance | 0.39 m (1.3 ft.) |
Maximum reproduction ratio | 0.5x |
Wight (approx.) | 635 g/22.4 oz. |
Dimensions (approx.) (from the camera’s lens mounting flange) | 83.5 x 107 mm/3.3 x 4.2 in. |
Lens cap | Snap-on |
Lens hood | HB-22 |
Lens case | CL-1120 |
External front filter attachment frame | Does not rotate |
External front filter | 77 mm |
Supplied accessories | 77mm Snap-on front lens cap LC-77, Rear lens cap LF-1, Bayonet hood HB-22, Flexible lens pouch CL-1120 |
Optional accessories | 77 mm screw-in filters |
Aperture ring | Does have |
Distance scale | Does have |
Note: These lenses can be used with the D3, D700 and D300 without any limitation; and can also be used with the following cameras, though some restrictions or limitations on functions exist: D2 series, D1 series, D200, D100, D80, D70 series, D60, D50, D40 series, F6, F5, F4 series, F100, F90X/N90s, F90 series/N90, F80 series /N80 series, F75 series /N75 series, F65 series /N65 series, and PRONEA 600i/6i. |
* Specifications subject to change by the manufacturer without notice
