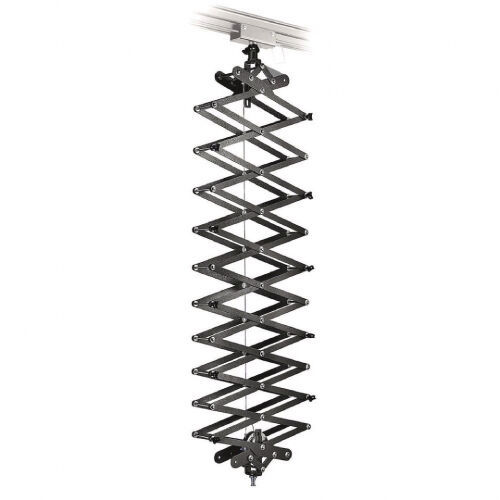

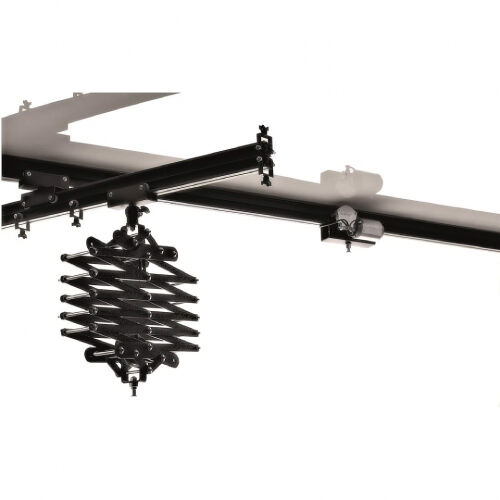

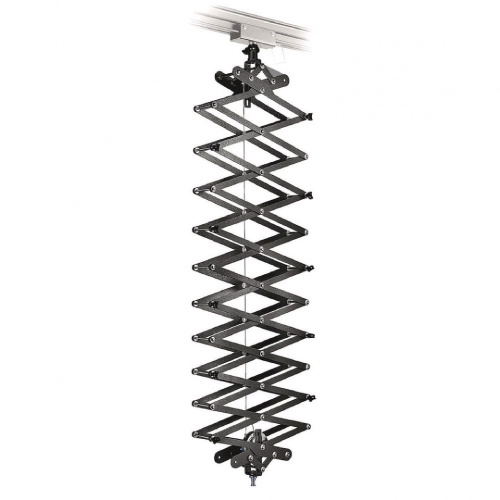

Manfrotto FF3514N86 Pantograph Top 4C with 5/8" Male/Female Mounts

The Pantograph Top 4C model from Manfrotto is made of aluminium and features a 5/8" male mount on the bottom and a 5/8" female on top. Your load is supported by a steel cable that's 2mm in diameter. Loads up to 11.79 kg can be suspended by the pantograph as it comes, by friction alone, while up to 18 kg can be supported with perfect balance if you add optional springs. (This extra-long version of the Pantograph supports springs with a blue notch ring, such as MFR# FF3533. Please see the Accessories section for more info.)

Friction is adjustable by turning the coloured notched ring. This will ensure that the load remains stable when set in position but will move smoothly up and down when necessary.

Extension Range
38 cm to 3.8 m

PHYSICAL

Mounting
Top: 1x 5/8" (16mm) Socket
  Bottom: 1x 5/8" (16mm) Stud
Load Capacity
12 kg
  18 kg (With Optional Springs)
Colour
Black
Material of Construction
Aluminium
Dimensions
15 cm (Width)
Weight
8.5 kg


* Specifications subject to change by the manufacturer without notice.
