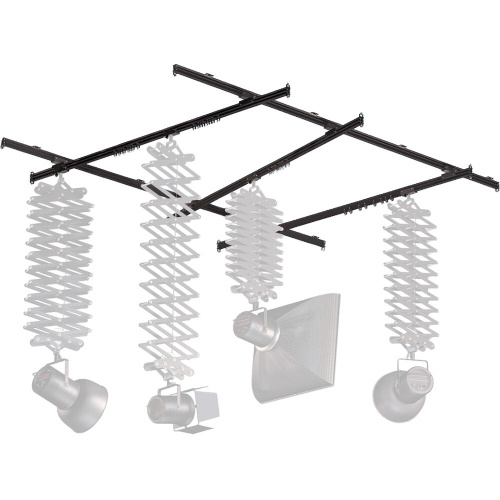

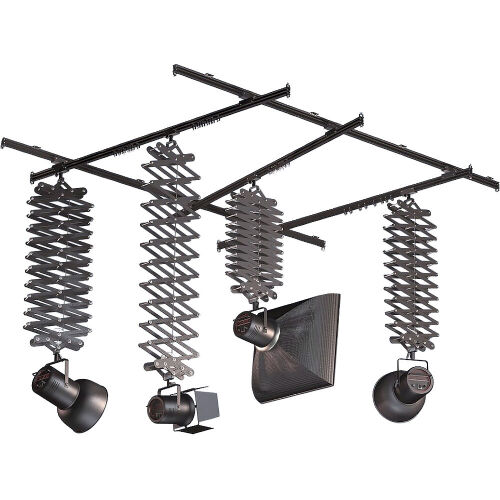

Manfrotto FF3054 Sky Track Top System 54

The Manfrotto FF3054 Sky Track Top System 54 is a fully modular overhead lighting suspension system designed to streamline studio workflows by enabling fast, precise light positioning. Ideal for professional environments, it removes the need for floor stands and minimises cable clutter. The system incorporates rails, carriages, telescopic posts, and pantographs - available in manual spring/cable assisted or motorised versions - for customisable and efficient lighting control.

This is a 4 Pantograph System, for a larger-size studio.

Aluminium rails in this kit are 9' 10" and 16' 6".

This kit features 2 stationary, and 2 moving rails.

The Pantograph supports a load of up to 11.79 kg suspended from 1' 6" to 6' 6" using only the friction device, while loads up to a maximum of 18.14 kg require the use of the optional springs. The pantograph can be adjusted to keep suspended loads from 0.91 kg to 4.54 kg perfectly balanced. The coloured ring can adjust the pantograph's friction; this will ensure that the load remains stable when set in position, but that it will move smoothly up and down when necessary. It is advisable to use springs to aid raising the pantograph.

Each pantograph extends from 1'6" to 6'6".

Nylon wheels with metal ball bearings ensure safe operation with loads of up to 17.92 kg.

Extruded aluminium rails enable efficient utilisation of studio perimeter walls and corners for backlighting, drapes, and background paper.

All components are black, to eliminate unwanted reflections.

  • Manfrotto FF3054 Sky Track Top System 54
  • 9.8 Rails (FF6003B)
  • 16.4 Rails (FF6005B)
  • Top 2 Pantographs (FF3512N86)
  • Double sliding carriages (FF3232)
  • Double sliding carriages with single brakes (3236)
  • Manfrotto Single Carriage with 5/8" Spigot
  • Mounting brackets (FF3210)
  • Sets of 4 End stops
  • Manfrotto Cable Runners - Pack of 5
  • Safety cables (FF3276)
