Manfrotto FF3043 Top System 43

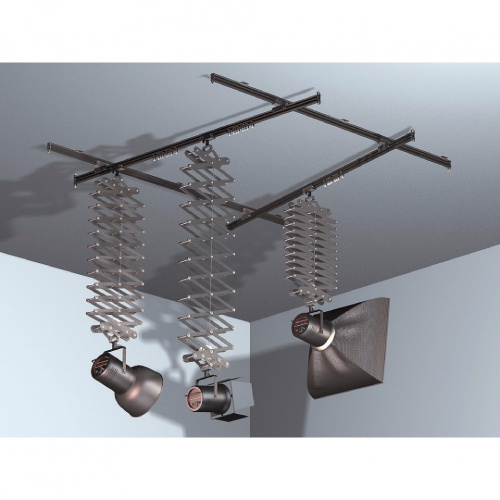

The Manfrotto FF3043 Pro Studio Rail System 43 Kit for 3 Lights is a modular overhead lighting suspension system designed for precision, flexibility, and a clutter-free workspace. Ideal for professional studios, it allows quick and accurate light positioning while eliminating the need for floor stands and loose cables. The system includes a combination of rails, carriages, telescopic posts, and pantographs-either manual with spring or cable assistance, or motorised for advanced control.

This is an 3 Pantograph System, for a large-size studio.

Aluminium rails in this kit are 9' 10" and 13' 3".

This kit features 2 stationary, and 2 moving rails.

The Pantograph supports a load of up to 11.79 kg suspended from 1' 6" to 6' 6" using only the friction device, while loads up to a maximum of 18.14 kg require the use of the optional springs. The pantograph can be adjusted to keep suspended loads from 0.91 kg to 4.54 kg perfectly balanced. The coloured ring can adjust the pantograph's friction; this will ensure that the load remains stable when set in position, but that it will move smoothly up and down when necessary. It is advisable to use springs to aid raising the pantograph.

Each pantograph extends from 1'6" to 6'6".

Nylon wheels with metal ball bearings ensure safe operation with loads of up to 17.92 kg.

Extruded aluminium rails enable efficient utilisation of studio perimeter walls and corners for back lighting, drapes, and background paper.

All components are black, to eliminate unwanted reflections.

  • Manfrotto FF3043 Top System 43
  • 9' 10" Rails (Ff6003b)
  • 12' 3" Rails (Ff6004b)
  • Top 2 Pantograph (Ff3512n86)
  • Double Sliding Carriages (Ff3232)
  • Double Sliding Carriages with Single Brakes (3236)
  • Wheeled Sliding Carriages with 5/8" Spigots (Ff3230)
  • Mounting Brackets (Ff3210)
  • Sets Of 4 End Stops (Ff3207)
  • Safety Cables (Ff3276)
