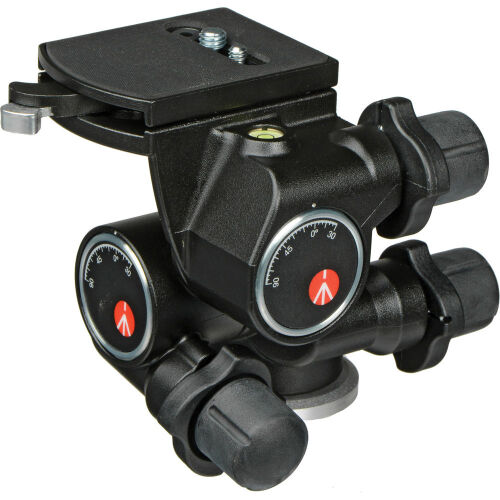

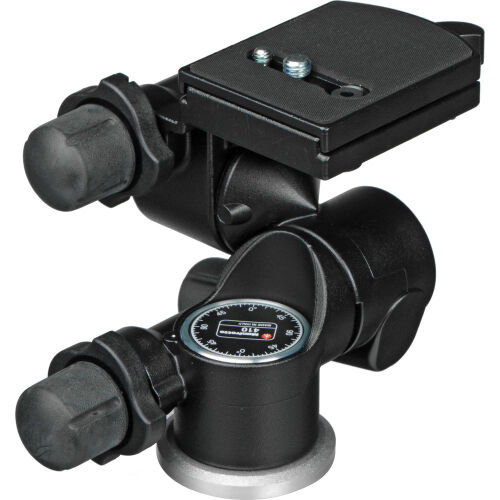

Manfrotto 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate

The Manfrotto 410 3-Way Geared Pan-and-Tilt Head supports up to 5kg and attaches to tripods or support systems with a 3/8"-16 mount, featuring precise geared movement for accurate positioning. It includes an RC4 quick release cam lock and 410PL Quick Release Plate, which can be easily detached or secured using the spring-loaded lever for fast and secure camera mounting.

Cameras or accessories that are compatible with a 1/4"-20 or 3/8-16" mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberised, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, 4-star grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberised knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 410 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

To further promote fast and repeatable device positioning, this 410 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.

410 3-Way, Geared Pan-and-Tilt Head

4.99 kg load capacity

Compatible with tripods or support systems that feature a 3/8"-16 mount

Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation

Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, 4-star grips

Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place

An additional, rubberised knob set within each snap-lock knob allows incremental, geared adjustments

Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning

Integrated, RC4 quick release cam lock

Built-in bubble level

Durable, aluminium-alloy construction

410PL Quick Release Plate

Compatible with Manfrotto RC4 quick release cam lock

Measures 2.5 x 3.3 x 0.5" and has a rubberised, non-slip surface

1/4"-20 and 3/8"-16 mount

Durable, aluminium-alloy construction
