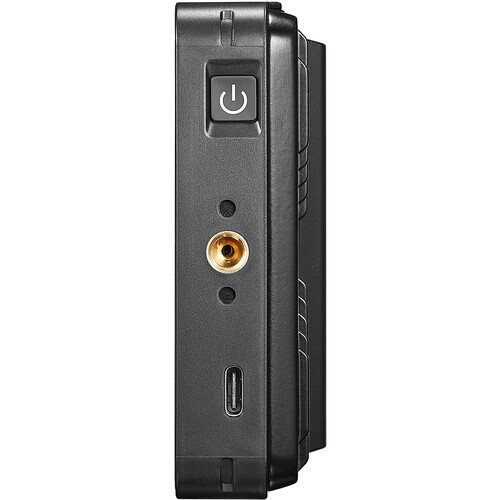

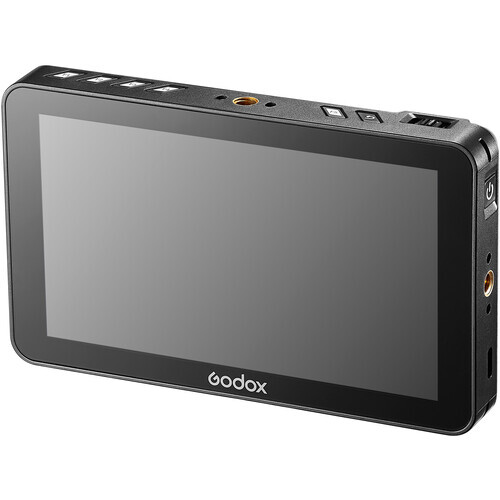

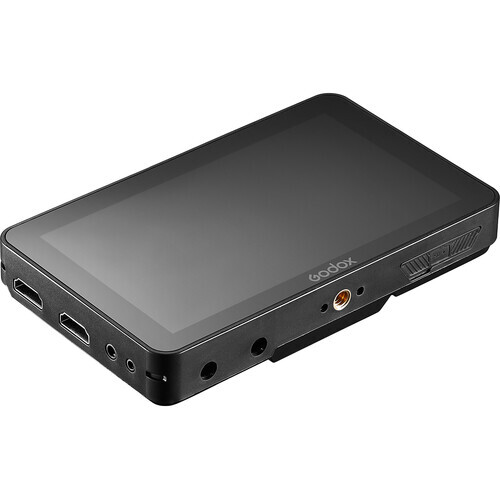

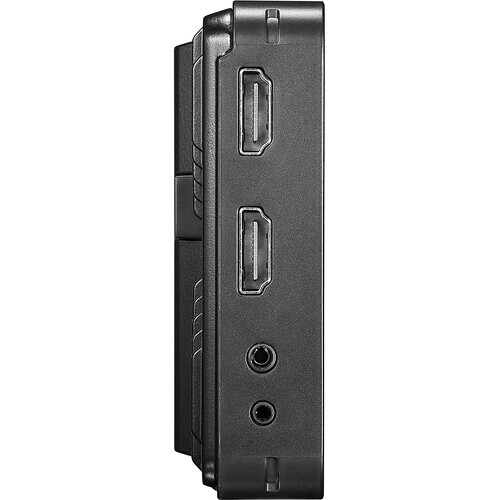

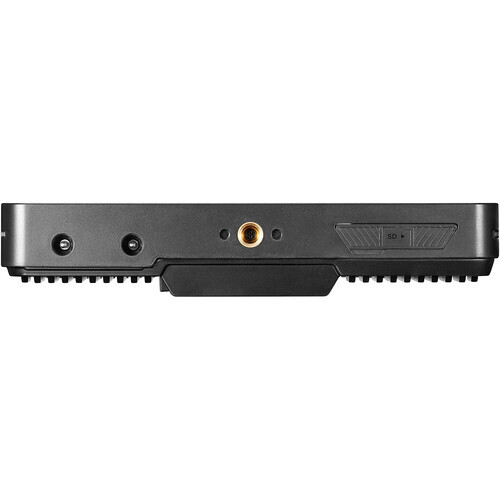

Godox GM6S 5.5 Inch Ultra Bright 4K HDMI Monitor

The Godox GM6S On-Camera Monitor retains the compact and lightweight design of its predecessor but features an upgraded screen with a brightness of 1200 cd/m², ensuring clear visibility even in bright environments. With HDMI input and output supporting both DCI and UHD 4K video, this monitor provides versatility for various shooting scenarios. Additionally, it offers a camera control interface for communicating settings to the camera, facilitated by separately available proprietary cables. The inclusion of a 3.5mm headphone jack enables audio monitoring on set, while the SD card slot allows for loading up to twenty-five 3D LUTS, expanding creative possibilities for colour grading.

Ultrabright Screen

The 5.5" monitor features a maximum brightness of 1200 cd/m² for visibility in bright daylight applications. An included sun hood further reduces glare in particularly sunlit filming locations.

Rec.709 Colour, 3D LUT Support

  • Rec.709 colour calibration guarantees images with accurate, reliable colour
  • Converts Log into Rec.709
  • Supports up to twenty-five 3D LUTs via SD card and compatible 17/32/33/64/65 cubic files

Interface and Control

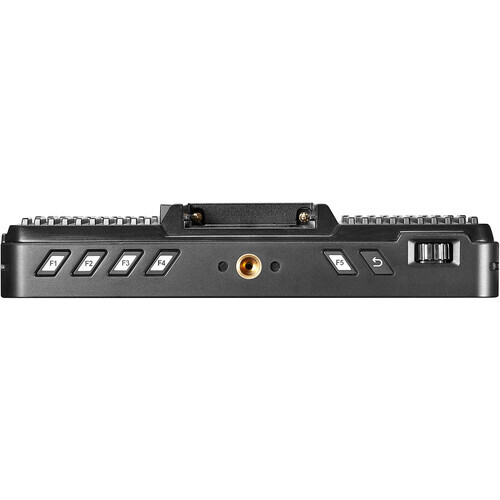

  • Five function keys can be custom programmed to toggle between various settings
  • Separately available camera control cable accesses camera controls via GM6S
  • Improved UI design and layout
  • HDMI input/output
  • Three 1/4"-20 mounting threads for accessories

Image Monitoring Tools

  • Focus assist
  • Zebra
  • Waveform
  • LUT management
  • Video aspect ratio
  • Center marker
  • Safety marker
  • Image flip
  • Grid
  • Audio meter
  • False colours
  • Monochrome
  • Pixel-to-pixel
  • Zoom

Multiple Power Options

  • DC power input
  • 7.8V DC output port for accessories
  • USB-C power input

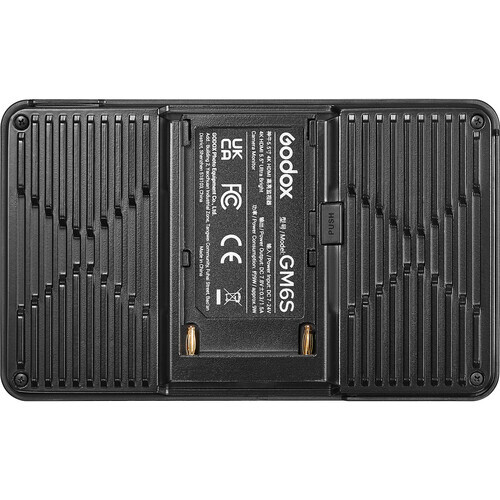

  • L-series battery plate

Barcode (UPC / EAN): 6952344224564

Panel Type
IPS-Type LCD
Display Size
5.5" / 14.0 cm
Resolution
1920 x 1080
Aspect Ratio
0.672916667
Viewing Angle
Horizontal: 160°
Vertical: 160°
Maximum Brightness
1200 nits / cd/m²
Contrast Ratio
41.66736111
Bit Depth / Colour Support
8-Bit (16.7 Million Colours)
Pixels Per Inch (ppi)
400 ppi
Image Controls
Focus Assist, Image Flip, Waveform, Zebra
Video I/O
1x HDMI 1.4 Input
1x HDMI 1.4 Output
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Power I/O
1x USB-C Input
1x Barrel 5.5 mm (24 VDC) Input
1x Barrel 5.5 mm (1.5 A / 7.8 VDC) Output
Other I/O
1x 2.5 mm Input
Media/Memory Card Slot
Single Slot: SD/SDHC
Video Format
HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50
576p: 60/50
576i: 60/50
Gamma Curve
Rec709
DC Input Power
7 to 24 VDC
Battery Type
1x L-Series
Power Consumption
9 W
Mounting
3x 1/4"-20 Female
Operating Temperature
22 to 82°F / -10 to 50°C
Material of Construction
Metal, Plastic
Dimensions
14.5 x 8.7 x 2.8 cm
Weight
273 g


* Specifications subject to change by the manufacturer without notice.

  • Godox GM6S 5.5 Inch Ultra Bright 4K HDMI Monitor
  • Sun Hood
  • Tilting Cold Shoe Mount
  • HDMI to HDMI Cable
  • HDMI to Micro-HDMI Cable
  • HDMI to Mini-HDMI Cable
  • Screen Cloth
