Blackmagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor
SKU code: 61168
- 1920 x 1080 5" Touchscreen LCD
- HDMI & 3G-SDI Video Inputs
- Records up to 1080p60 Video
- USB Type-C Webcam Output
- Stores to SDXC/SDHC Memory Card
- Loop-Through Video Outputs
- Waveform, Vectorscope, Histogram
- Focus Peaking, False Colour, Zebra
- 11 x Display Language Options
- Dual Sony L-Series Battery Slots
For store pickup please contact us
You May Also Like
The Essentials:
Action Mounts:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Gimbals & Stabilisers:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Studio Lighting:
Storage:
Other:
Blackmagic Design Video Assist 3G-SDI/HDMI 5"" Recorder/Monitor
Add professional monitoring and high-quality recording to your camera with the Blackmagic Design Video Assist 3G-SDI/HDMI 5"" Recording Monitor. Featuring a bright 5"" 1920 x 1080 display with 300 cd/m² brightness, it helps you frame and focus your shots with clarity. The monitor offers 3G-SDI and HDMI inputs, allowing you to record video from both professional and consumer cameras in up to 1080p60 10-bit 4:2:2 resolution. You can also monitor up to 16 channels of embedded 24-bit 48 kHz audio. With firmware update 3.3.1, the USB Type-C port provides a video output for webcam functionality, while also enabling the selection of channels for audio monitoring.
The Blackmagic Design Video Assist 3G 5"" features an SDXC/SDHC memory card slot for recording video to a single UHS-I SD card. The USB Type-C port allows for configuring and upgrading the monitor, while video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs, ensuring high-quality footage and flexible post-production options.
Up to 1080p60 Video
Supports video formats up to 1080p60
Upgrades Older Camera Viewing/Recording
Can be used to upgrade viewing and recording options with older cameras

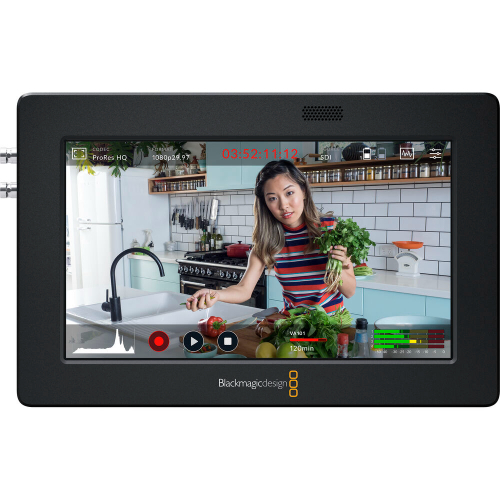

5"" Touchscreen Display
This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools

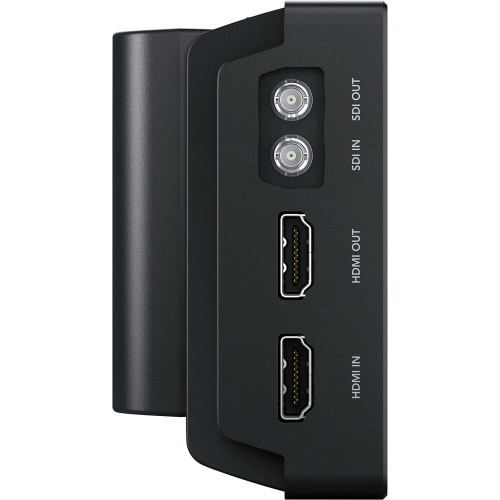

3G-SDI and HDMI Input/Loop-Out
3G-SDI and HDMI input ports with loop-through outputs provide compatibility with a variety of cameras and wireless video receivers
3D LUT Support
3D LUT support for customised viewing
1080p USB Webcam Output
Sends a streaming-friendly 1080p video signal to your computer, enabling the use of your connected camera as a webcam
Tally Light
A tally light on top of the monitor indicates it is operating and recording
Metadata Entry
Direct metadata entry

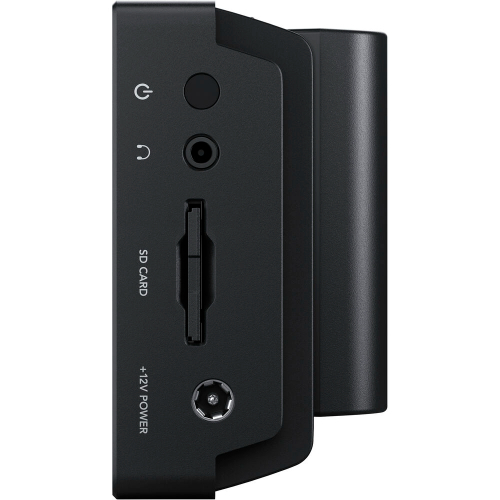

SD Card Slot
Single SD card slot for ProRes recording
Selectable Audio Monitoring
Ability to select which audio channels you are monitoring

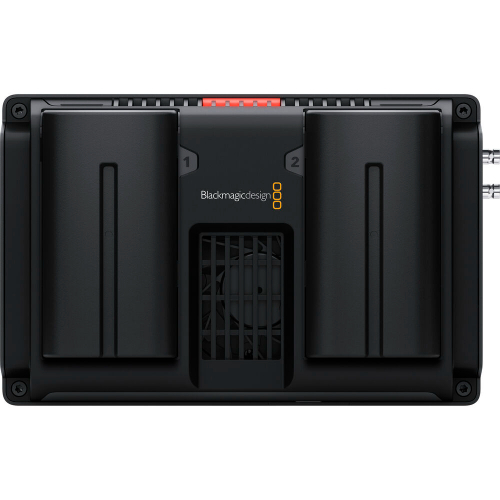

Power Options
Power the monitor using the included 12V power adapter or the separately available Sony L-Series type batteries on the dual battery slots
Multiple Language Displays
Choose from 11 languages for easier use of on-screen text displays and menu options:
- English
- Chinese
- French
- German
- Italian
- Japanese
- Korean
- Portuguese
- Russian
- Spanish
- Turkish
Minimum macOS System Requirements
- macOS 10.15 Catalina
- macOS 10.14 Mojave
- USB 2.0 port for updates
Minimum Windows System Requirements
- Microsoft Windows 10 64-bit
- USB 2.0 port
DISPLAY
|
|
Panel Type |
LCD
|
Display Size |
5.0" / 12.7 cm
|
Native Resolution |
1920 x 1080
|
Aspect Ratio |
16:09
|
Viewing Angle |
Horizontal: 135°
|
Touchscreen |
Yes
|
Maximum Brightness |
300 nits / cd/m2
|
Colour Support |
16.7 Million Colours
|
Pixels Per Inch (ppi) |
441 ppi
|
Colour Gamut |
100% Rec. 709
|
LUT Support |
Yes
|
Image Controls |
Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
|
INPUTS / OUTPUTS
|
|
Video I/O |
1x HDMI (Unspecified Signal) Input
|
1x Micro BNC (3G-SDI) Input | |
1x HDMI (Unspecified Signal) Output | |
1x Micro BNC (3G-SDI) Output | |
1x USB-C (Unspecified Signal) Output | |
Embedded Audio |
HDMI: 8-Channel
|
SDI: 16-Channel | |
Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
Built-In Speaker |
Mono
|
Power I/O |
1x Barrel Input
|
Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-I)
|
FORMAT SUPPORT
|
|
Video Format |
SDI (10-Bit 4:2:2 YUV)
|
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576i: 50 | |
480i: 59.94 | |
HDMI (10-Bit) | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576i: 50 | |
480i: 59.94 | |
Timecode Support |
Yes
|
RECORDING
|
|
Encoding Formats |
Up to 1920 x 1080
|
ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps | |
DNxHD 45, 45 MXF, 145, 145 MXF, 220x, 220x MXF 10-Bit 4:2:2 at up to 60 fps | |
Maximum Audio Tracks |
16
|
Metadata Tagging |
Yes
|
POWER
|
|
Input Power |
12 VDC
|
Battery Type |
2x L-Series
|
MOUNTING
|
|
Mounting |
3x 1/4"-20 Female (Top)
|
3x 1/4"-20 Female (Bottom) | |
GENERAL
|
|
Operating Conditions |
32 to 72°F / 0 to 40°C up to 90% Humidity
|
Storage Conditions |
-4 to 113°F / -20 to 45°C
|
Material of Construction |
Aluminium
|
Dimensions |
14.81 x 8.99 x 3.66 cm
|
Weight |
0.410 kg
|
* Specifications subject to change by the manufacturer without notice.
