Atomos Ninja V Pro Kit
SKU code: 47706

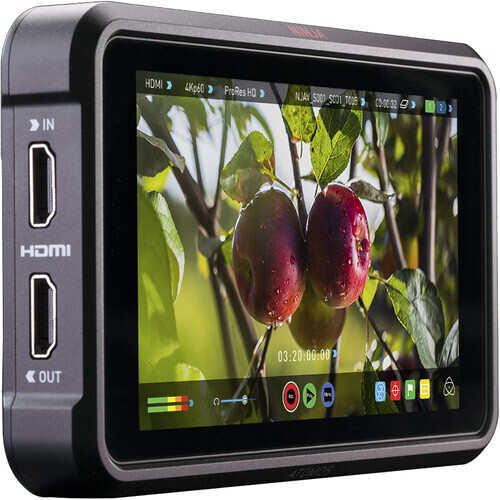

- Atomos Ninja V 5" Recording Monitor
- AtomX SDI Module with 2 x 12G-SDI Ports
- Atomos Connect 4K HDMI to USB Converter
- Pre-Activated SDI Raw Capability
- Up to 6K Raw Recording via HDMI & SDI
- Simultaneous 1 x HDMI & 2 x 12G-SDI Out
- 1080p60 Streaming via Connect 4K
- HDMI to SDI Cross Conversion
- AtomHDR Support for Log Inputs & 3D LUTs
- Sunshade/Battery Eliminator/D-Tap Cable
You May Also Like
The Essentials:
Bags, Cases & Straps:
Batteries & Chargers:
Tripods & Monopods:
Cleaning & Maintenance:
Audio Equipment:
Studio Lighting:
Cables & Connectivity:
Other:

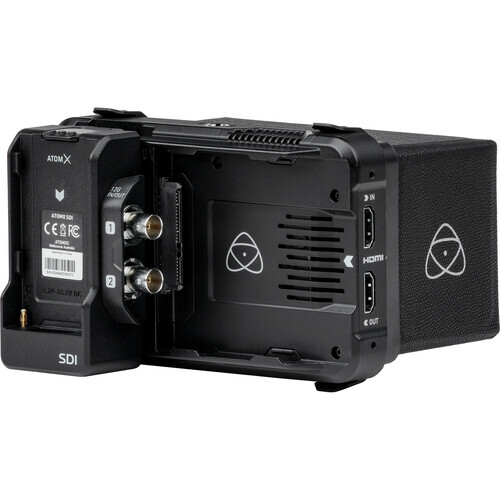

The Ninja V Pro kit includes an AtomX SDI module that adds two 12-SDI ports to the Ninja V monitor's HDMI output, allowing for up to three simultaneous video outputs. The SDI raw licence enables up to 12-bit 6K ProRes raw video support via the HDMI and SDI outputs, as well as 4K ProRes.
Besides, HDMI raw to SDI output is available, as well as the ability to crop and down-convert DCI and UHD 4K for compatibility with EVFs and wireless video transmitters/receivers without the use of additional converters. This kit also includes a sunshade, battery eliminator, and a locking D-Tap power cable.
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Touchscreen | Yes |
| Maximum Brightness | 1000 cd/m2 |
| Bit Depth / Colour Support | 8-Bit+FRC (1.07 Billion Colours) |
| Pixels Per Inch (ppi) | 423 ppi |
| Colour Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra |
| I/O | |
| Video | 1 x HDMI Type A (HDMI 2.0) Input |
| Embedded Audio | HDMI: 2-Channel |

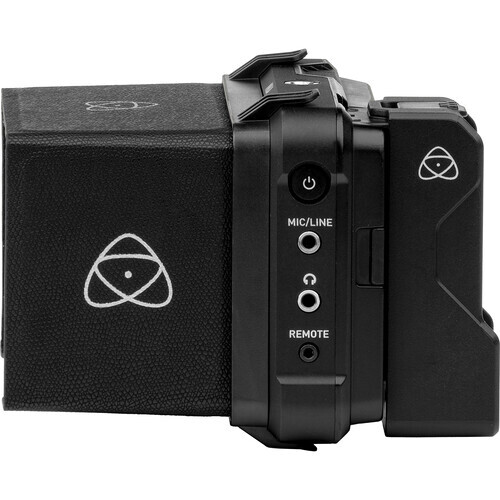

| Audio | 1 x 1/8" / 3.5 mm Mic/Line Input |
| Built-In Speaker | None |
| Power | 1 x D-Tap Input |
| Other I/O | 1 x LANC (2.5 mm) |
| Wi-Fi | None |
| Format Support | |
| Video Format | HDMI (8/10-Bit 4:2:2) |
| Gamma Curve | Rec709 |
| Video Signal Conversion | HDMI to SDI |
| Recording | |
| Pulldown Conversion | 2:2, 3:2 |
| Camera Trigger | HDMI |
| Pre-Roll Record | 4K: 2 Seconds |
| Encoding Formats | Up to 4097 x 2160 |
| Maximum Audio Tracks | 12 |
| Metadata Tagging | 10 |
| Power | |
| DC Input Power | 6.2 to 16.8 VDC |
| Battery Type | 1 x L-Series |
| Power Consumption | 10 W (Typical) |
| General | |
| Mounting | 2 x 3/8"-16 Female |
| Operating Temperature | 40°C |
| Material of Construction | Aluminium, Polycarbonate |
| Dimensions | 151 x 91.5 x 31.5 mm |
| Weight | 360 g |
| Atomos AtomX SDI Module For Ninja V Specs | |
| Connections | 12G-SDI: 2 x BNC (Selectable In/Out) |
| Power | L-Series Battery |
| Dimensions | 8.93 x 6.2 x 4.25 cm |
| Weight | 119.07 g |
| Atomos Connect 4K Specs | |
| Host Connection | USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0) |
| Video Input Connectors | 1 x HDMI |
| Input Video Format | HDMI (8/10/12-Bit) |
| Audio Input Connectors | None |
| Embedded Audio Input | HDMI |
| Output Video Format | USB Type-A |
| Embedded Audio Output | HDMI |
| Dimensions | 64 x 28 x 13 mm |
| Weight | 21.4 g |
* Specifications subject to change by the manufacturer without notice

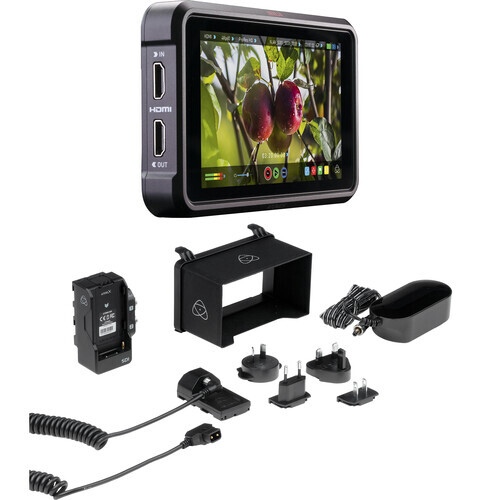

- Ninja V (RAW over SDI Pre-Activated)
- AtomX SDI module
- 1 x Battery eliminator
- 1 x DC power supply
- 1 x DTap Cable
- 1 x AtomX 5" Sunhood
