Sony ECM-VG1 Shotgun Microphone
key features
- Supercardioid Microphone
- 40 Hz to 20 kHz Frequency Response
- Windscreen with Rigid Internal Frame
- High Noise Suppression
- Low-Cut Filter
- Suitable for Outdoor Applications
- Compact and Lightweight Metal Build
- Suitable for on Camera and Boom Pole Mounting
Dispatches within 24 hours*
For store pickup please contact us
For store pickup please contact us
- The Essentials
- Bags, Cases & Straps
- Cleaning & Maintenance
- Cables & Connectivity
- Books, DVDs & Education
- Advanced
- Other
The Essentials
Bags, Cases and Straps
Cleaning and Maintenance
Cables and Connectivity
Books, DVDs and Education
Take your photography to the next level with these Optional Accessories:
Other products you may consider:

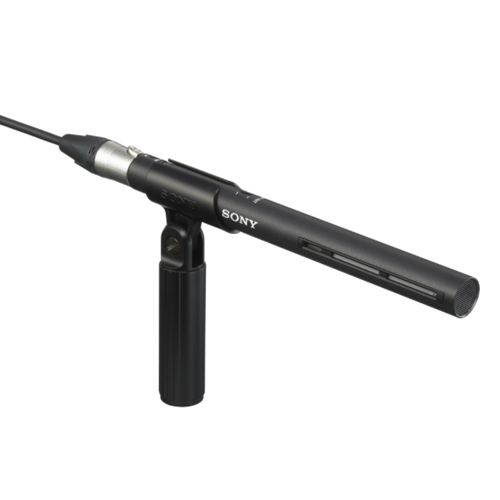

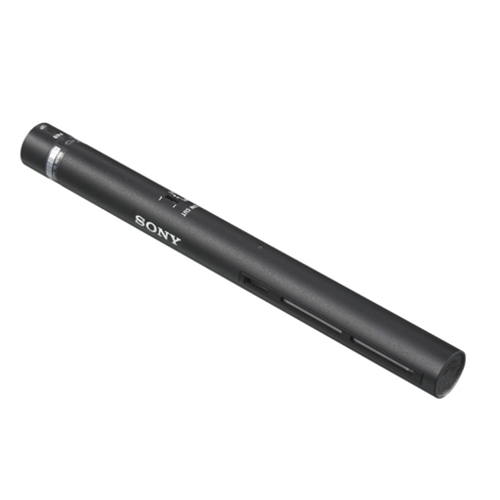

The Sony ECM-VG1 Electret Condenser Shotgun Microphone is perfect for professional field and studio uses. The rugged, all-metal design is ideal for boom pole or camera mounting. The included windscreen has a specially designed frame and reduces wind noise significantly.
High Quality Sound Reproduction
With a flat-and-wide frequency response of 40 Hz to 20 kHz andan excellent sensitivity of -33 dB, the microphone delivers exceptionally smooth and natural sound reproduction. The supercardioidpickup pattern focuses on audio directly in front of the mic, while minimising off-axis sound.Innovatively Designed High Quality Windscreen

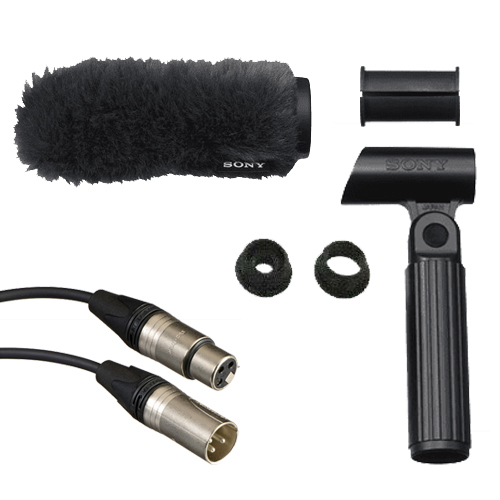

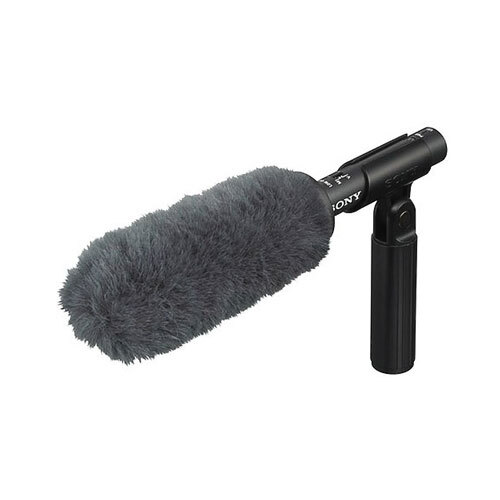

The included windscreen has a specially designed rigid internal frame that creates a gap between it and the microphonefor superior wind noise reduction. A built-inlow-cut switch supresses the effects of unwanted ambient noise even further.Compact and Extremely Lightweight

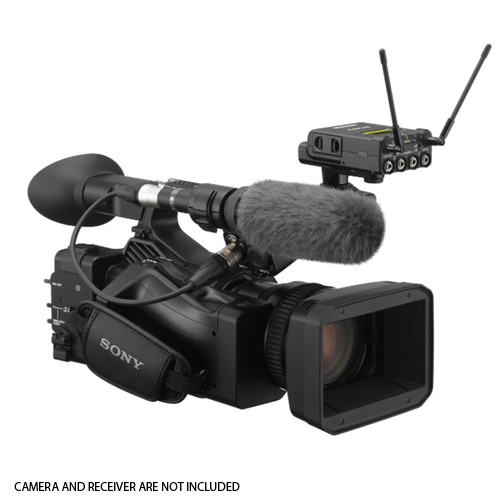

Small in size and verylightweight, the microphone maintains good balance when mounted on compact camcorders and is also well-suited for use attached to a boom pole.Operates on External DC Power
The Sony ECM-VG1 Microphone requires external 48V phantom power to function and connects through an XLR cable (not included).
Product Code: SonyMicECMVG1
Capsule Type | Mono Electret Condenser |
Frequency Response | 40 Hz to 20 kHz |
Directivity | Uni-directional (super-cardioid) |
Sensitivity | -33 dB ±3 dB (0 dB = 1 V/Pa, at 1 kHz) |
Output Impedance | 60Ω±20%, Balanced (at 1 kHz) |
Dynamic Range | 107 dB or more |
Signal-to-Noise Ratio | 76 dB or more (A-weighted, 1 kHz, 1 Pa.) |
Inherent Noise | 18 dB SPL or less (0dB SPL = 20? Pa.) |
Induction Noise from External Magnetic Field | 0 dB SPL (0dB SPL = 20? Pa.) |
Wind Noise | 45 dB SPL or less (with windscreen)(0 dB SPL=20u PA) |
Maximum Input Sound Pressure Level | 125 dB SPL (0 dB SPL = 20? Pa.) |
Connector | XLR-3-12C (male) |
Mic Cable | XLR 3-pin Cable Required (Not Supplied) |
Power Requirements | External, DC 40 V to 52 V |
Dimensions | 20 x 210 mm |
Mass | Approx. 66 g |
* Specifications subject to change by the manufacturer without notice
