SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B

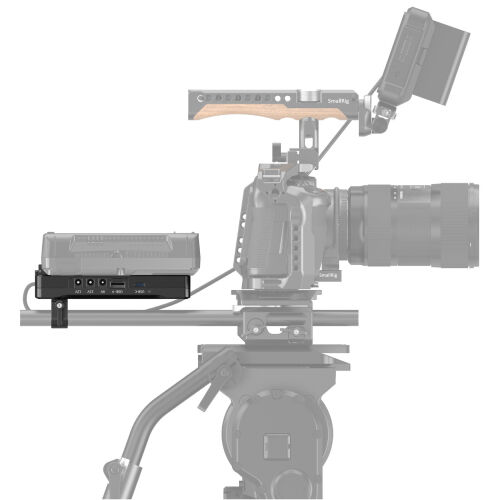

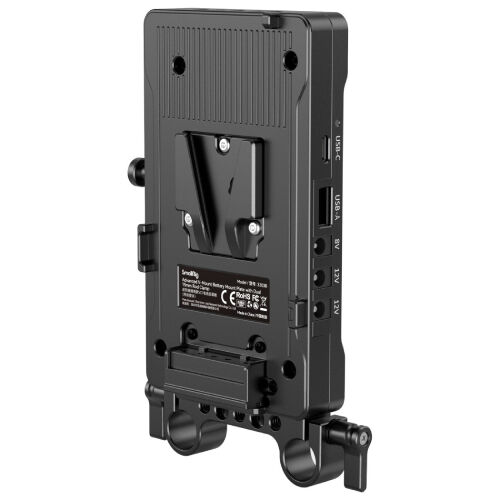

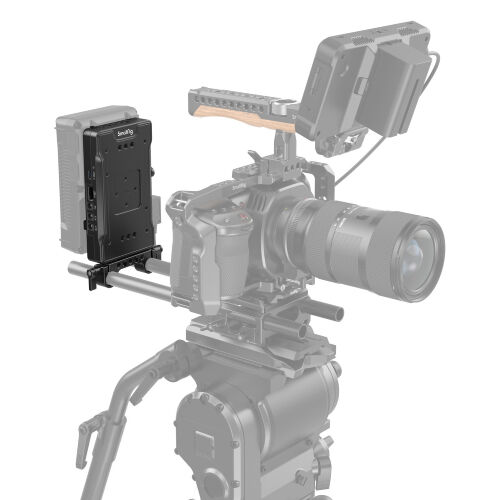

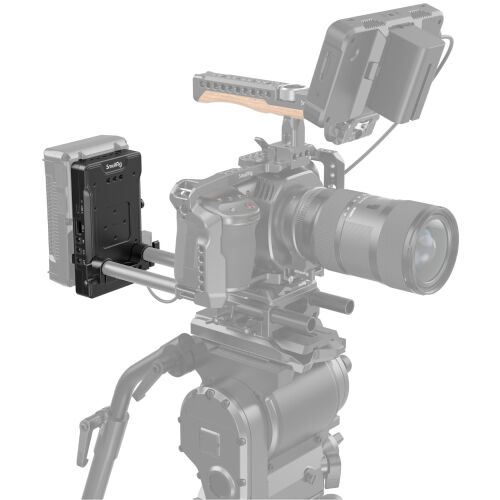

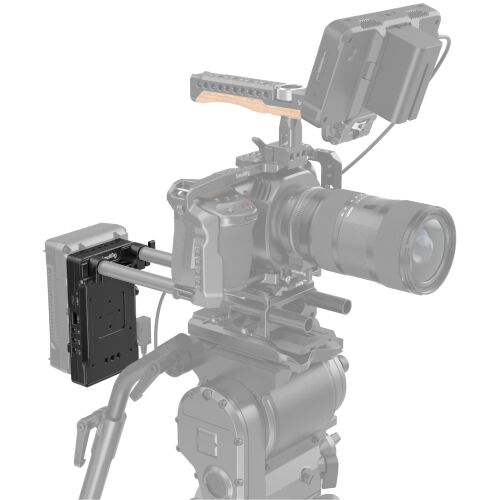

The SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B is designed for seamless integration with 15mm LWS rod systems, providing reliable power support for your filming gear. Featuring a standard V-mount, this mount is compatible with most V-mount batteries on the market. It includes multiple mounting options with six 1/4"-20 threaded holes, ten M4 threaded holes on the back, and five 1/4"-20 threaded holes on the top and bottom, allowing you to attach various accessories and a dual rod clamp. The plate offers a wide range of charging and power output options, including a PD-compatible USB-C input/output (65W Max.), QC protocol-compatible USB-A output (36W Max.), a D-Tap input/output (14.8V), and three DC output ports (DC5521 8V, DC5525 12V x 2), ensuring versatile power options for your equipment. The power indicator light and charging/discharging status lights provide clear feedback on the working status and charging mode. The aluminium alloy plate ensures durability, excellent heat dissipation, and a premium texture for long-lasting performance. With the power on/off button to control multiple ports, this advanced V-mount plate is the ideal solution for power management on set.

Functions

Charging / Discharging: USB-C charging

Indicator Light: orange light-slow charging/discharging, ice blue light-fast charging/discharging

Power Indicator Light

Light on-powered on

Light off-powered off

Light flashing-working temperature exceeds 65°C

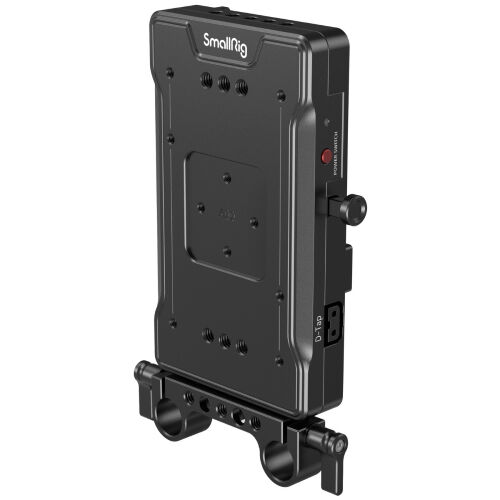

Power on / off Button

Power on-tap the button; power off-long press the button for 2 seconds

D-Tap, USB-A, and DC output are unavailable after powering off

D-Tap input and USB-C input/output available after powering off

Product Dimensions 16.87× 10.8× 3.3cm
Product Weight 0.337 ± 0.005kg
Battery Compatibility V-Mount Battery
Dual Rod Diameter 15mm (for 15mm LWS rod system)
Battery Voltage 11.0V~16.8V
Battery Rated Capacity 3500mAh~20000mAh / 14.8V
Cut-off Voltage 11.0V
Input Voltage (Max.) 16.8V
Working Power (Max.) ≤ battery power (subject to battery capacity)
Total Maximum Power Discharging: 271W (Max.)
D-Tap Rated Input / Output Current 5A
D-Tap Input / Output Current (Max.) 10A (subject to power adapter)
D-Tap Input Voltage 11.0V~16.8V
USB-A Output Power 36W (Max.)
USB-A Output Protocol QC2.0 / QC3.0 / AFC / DCP-1.5A / APPLE-2.4A
USB-C Input Power 65W (Max.)
USB-C Output Power 65W (Max.)
USB-C Input / Output Protocol PD3.0 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
DC1 Output 8.0V / 3A (Max.)
DC2 Output 12V / 3A (Max.)
DC3 Output 12V / 3A (Max.)
DC Overcurrent Protection ≥4.1A
Material Aluminium Alloy


* Specifications subject to change by the manufacturer without notice.

  • SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B
  • Dual Rod Clamp
  • Hex Spanner
  • Screw
  • User Manual

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from SmallRig Australia
