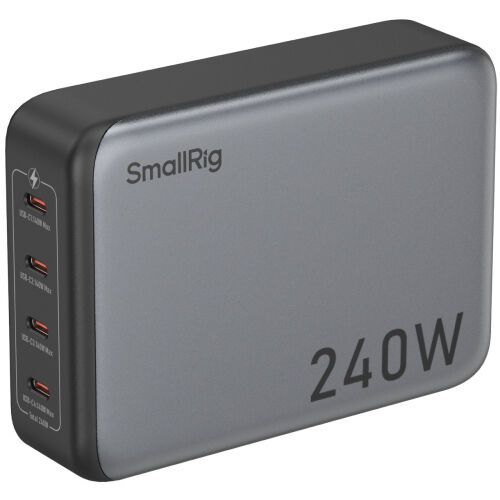

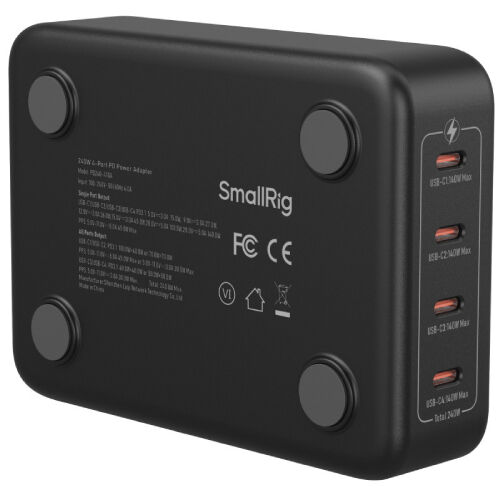

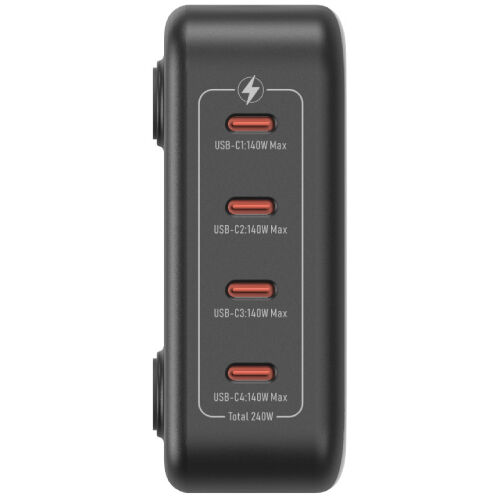

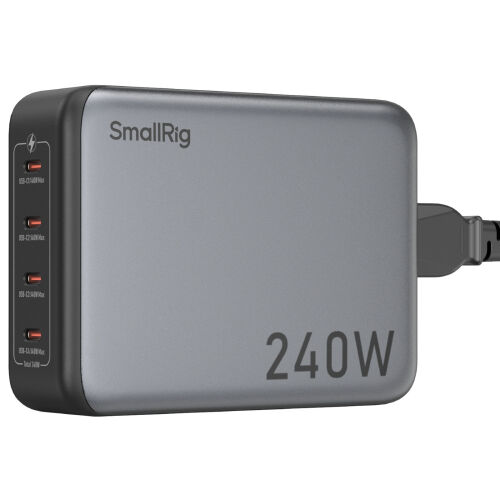

SmallRig 240W 4-Port PD Power Adapter (EU Standard) 4752

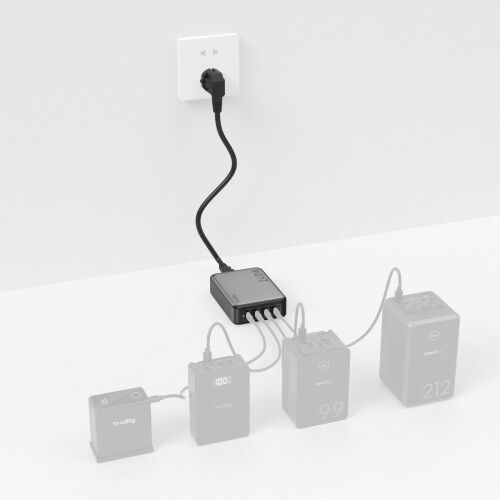

The SmallRig 240W 4-Port PD Power Adapter (EU Standard) 4752 delivers 240W total output, making it perfect for charging multiple devices simultaneously. Equipped with four USB-C ports, it supports fast charging for V-mount batteries, NP-F batteries, camera batteries, smartphones, computers, cameras, and more, with each port offering up to 140W (Max) via PD3.1. Designed for safety, each port features short-circuit and overcurrent protection. Compact and travel-friendly, this charger is ideal for everyday and on-the-go use.

Product Weight (Including Cable) 0.664 ± 0.01kg
Product Dimensions 12.2 x 8.8 x 3.5cm
Material PC
Total Output Power 240W
Power Input 100-240VAC 50 / 60Hz 4.0A

SINGLE-PORT MODE

USB-C1 / C2 / C3 / C4 5V3A 9V3A 5V5A 20V5A 28V5A
Total 140W MAX


DUAL-PORT MODE

C1 + C2 / C3 + C4 100W + 40W / 40W + 100W / 70W + 70W
Total 140W MAX
C1 + C3 / C1 + C4 / C2 + C3 / C2 + C4 140W + 100W
Total 240W Max

TRIPLE-PORT MODE

USB-C1 + C2 + C3 / C1 + C2 + C4 70W + 70W + 100W / 100W + 40W + 100W / 40W + 100W + 100W
Total 240W Max
C2 + C3 + C4 / C1 + C3 + C4 140W + 60W + 40W / 140W + 40W + 60W / 140W + 50W + 50W
Total 240W MAX

QUAD-PORT MODE

USB-C1 + C2 + C3 + C4 100W + 40W + 60W + 40W / 100W + 40W + 40W + 60W / 100W + 40W + 50W + 50W / 70W + 70W + 50W + 50W / 70W + 70W + 60W + 40W / 70W + 70W + 40W + 60W / 40W + 100W + 40W + 60W / 40W + 100W + 60W + 40W / 40W + 100W + 50W + 50W
Total 240W Max


* Specifications subject to change by the manufacturer without notice.

  • SmallRig 240W 4-Port PD Power Adapter (EU Standard) 4752

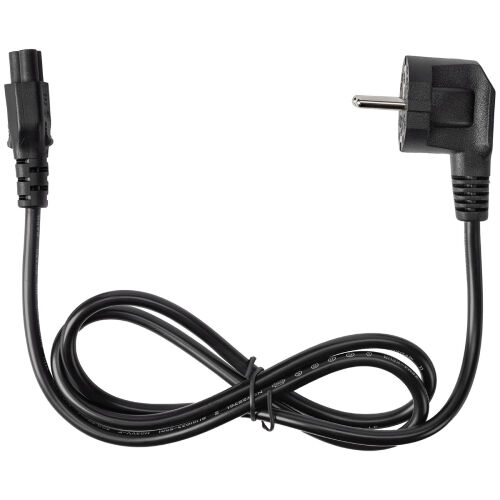

  • AC Power Cable (EU Standard)

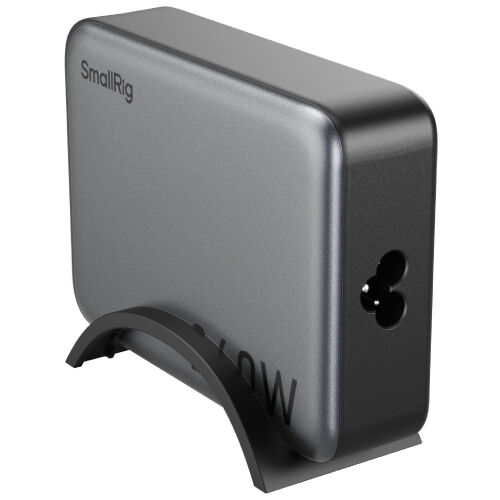

  • Adapter Bracket
  • Operating Instruction
  • User Manual
  • Guarantee Card
