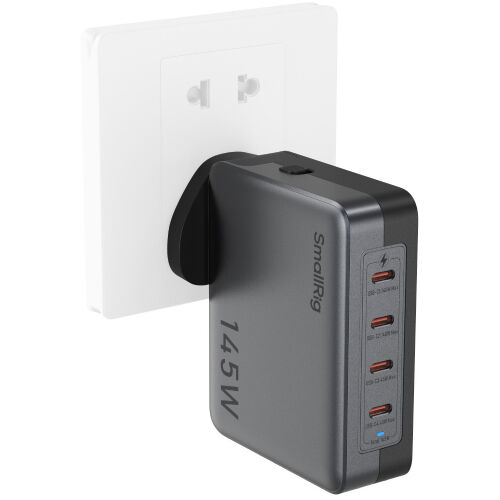

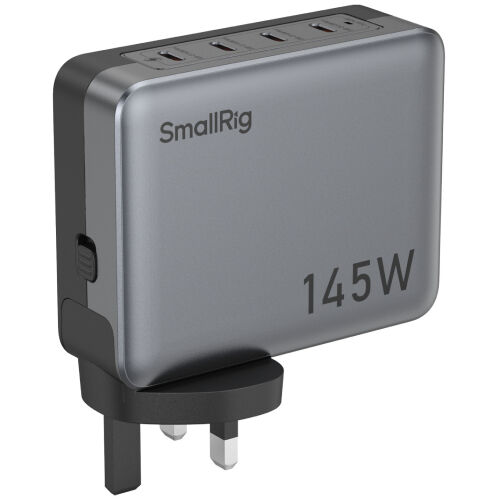

SmallRig 145W 4-Port PD Power Adapter (UK Standard) 4749

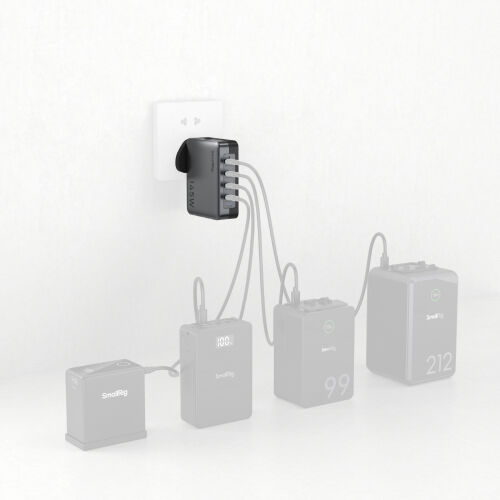

The SmallRig 145W 4-Port PD Power Adapter (UK Standard) 4749 is a versatile and efficient charging solution with a total output power of 145W. Equipped with four USB-C ports, it allows for simultaneous charging of devices like V-mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, and computers. USB-C1 and C2 support up to 140W single-port output via PD3.1, while USB-C3 and C4 offer up to 45W. The adapter is compact, travel-friendly, and includes short-circuit and overcurrent protection for safe usage. A power status indicator light shows connection status.

Button / Indicator Function:

Power connected: Light on.

Power disconnected: Light off.

Barcode (UPC / EAN): 6941590017266

Product Weight 0.350 ± 0.01kg
Product Dimensions 9.7 x 7.6 x 3.1cm
Material PC
Total Output Power 145W
Power Input 100-240VAC 50 / 60Hz 2.2A

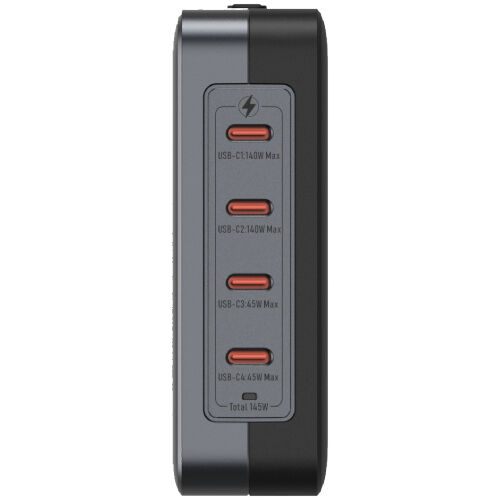

SINGLE-PORT MODE

USB-C1 / C2 28V5A (140W) Max
USB-C3 / C4 20V2.25A (45W) Max
Total 40W Max

DUAL-PORT MODE

  C1 / C2 + C3 / C4
  USB-C1 / C2
  USB-C3 / C4
  C1 + C2
  USB-C1 / C2
  C3 + C4
USB-C3 / C4 9V2.22A Max
Total 145W Max

TRIPLE-PORT MODE

  C1 + C2 + C3 / 4
  USB-C1
  USB-C2
  USB-C3 / C4
  C1 / C2 + C3 + C4
USB-C1 / C2 20V5A Max
USB-C3 / USB-C4 9V2.22A Max
Total 145W Max

QUAD-PORT MODE

USB-C1 20V3.25A Max
USB-C2 20V1.5A Max
USB-C3 9V2.22A Max
USB-C4 9V2.22A Max
Total 145W Max


* Specifications subject to change by the manufacturer without notice.

  • SmallRig 145W 4-Port PD Power Adapter (UK Standard) 4749
  • Operating Instruction
  • User Manual
  • Guarantee Card
