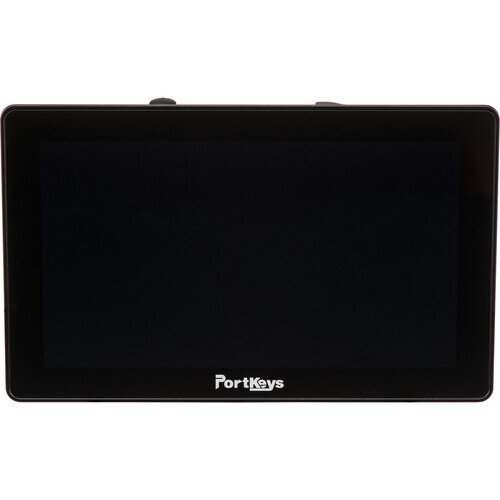

Portkeys LH5P II Overview

Add pro monitoring and control to select Sony cameras with the Portkeys LH5P II 5.5" Touchscreen Monitor. This bright 5.5" on-camera touchscreen display offers 2200 cd/m² brightness and can input and output up to DCI 4K24 or UHD 4K30 video via HDMI. Compatible with Sony FS5, FS7, FX6, and FX9 cameras, this monitor features a built-in Bluetooth module that enables select camera functions and comes with a control cable to connect your device to the monitor.

Camera Control Functions

  • Camera control via the integrated Bluetooth module and control cable
  • Control functions include iris, shutter, zoom, frame rate, and ISO

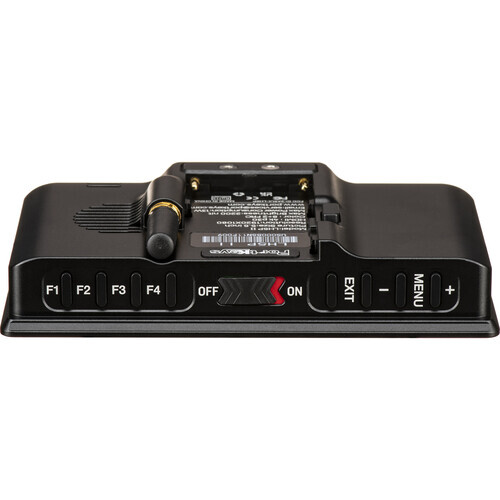

  • Set shortcut key F to control camera recording start/stop

Tilta Motor Control

Provides wired control for Tilta Nucleus-N/M lens motors.

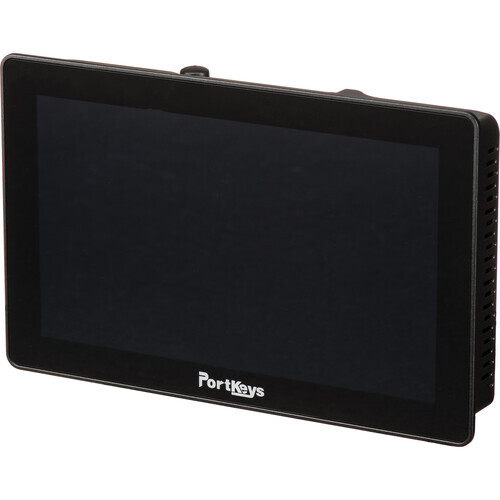

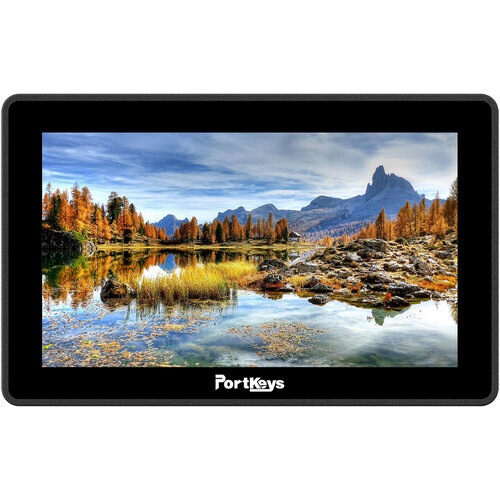

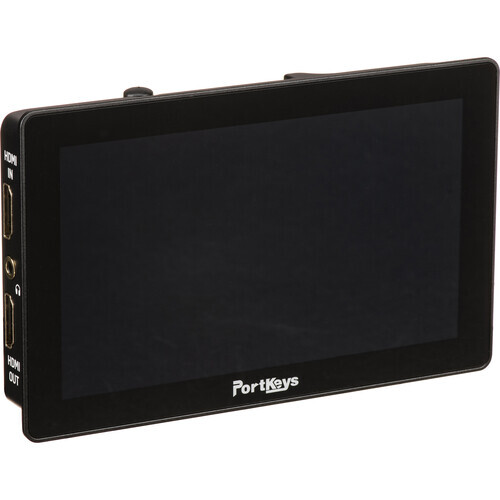

Hi-Bright 5.5" Touchscreen Monitor

5.5" LCD on-camera monitor features 2200 cd/m² and a 1000:1 contrast ratio for daylight visibility.

DCI/UHD 4K Video

Supports HDMI input and output up to DCI 4K24 or UHD 4K30.

Display Functions

  • 3D LUT support with custom LUTs via USB
  • Customized peaking, false Colour, luma waveform
  • Real-time eye focus
  • Anamorphic de-squeeze
  • Anamorphic lens calibration
  • Frame guides, crosshairs, grids, crop
  • Check field, zebra, luma histogram
  • RGB waveform, audio meters
  • HDR/HLG support

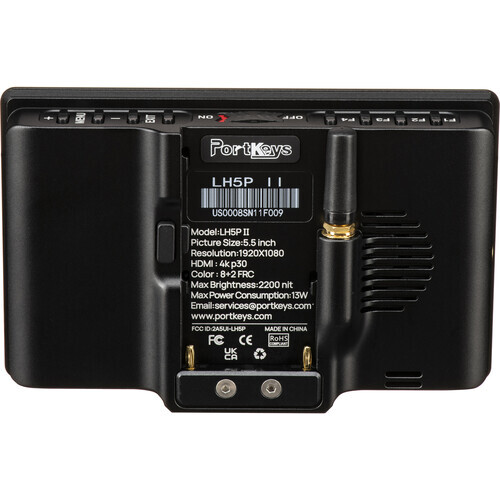

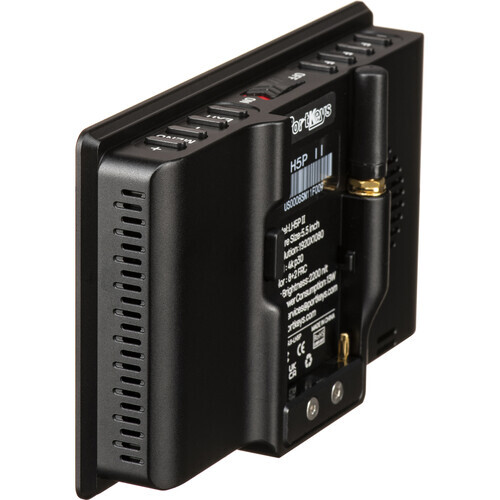

Sony L-Series Battery Plate

Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.

Barcode (UPC / EAN): 797427331809

DISPLAY

Panel Type
LCD
Display Size
5.5" / 14.0 cm
Resolution
1920 x 1080
Aspect Ratio
16:09
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
2200 nits / cd/m2
Contrast Ratio 10000:1
Bit Depth / Colour Support
10-Bit (1.07 Billion Colours)
HDR Compatibility
Yes
Pixels Per Inch (ppi)
401 ppi
Colour Gamut
100% Rec. 2020
85% DCI-P3
Image Controls
Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, Customizable Aspect Ratios, False Colour, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Waveform, Zebra

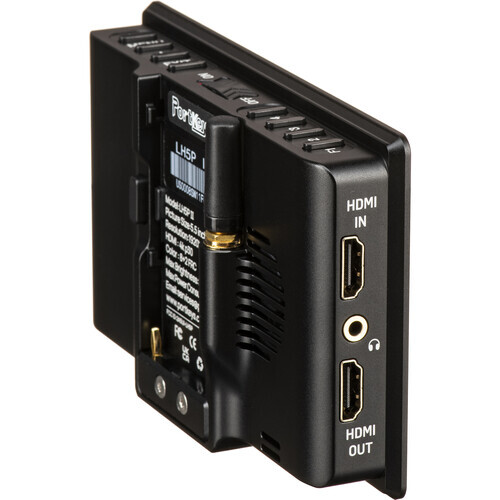

Video I/O
1 x HDMI Input
1 x HDMI Output
Embedded Audio
HDMI
Audio I/O
1 x 1/8" / 3.5 mm Headphone Output

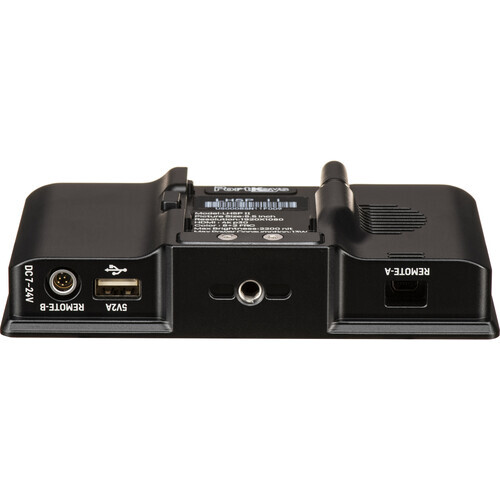

Power I/O
1 x Proprietary (24 VDC) Input/Output
Other I/O
1 x Mini-USB
1 x USB-A Input

FORMAT SUPPORT

Video Format
HDMI (8-Bit 4:4:4/4:2:2)
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50

POWER

DC Input Power
7 to 24 VDC
Battery Type
1 x L-Series
Power Consumption
13 W (Maximum)
Mounting
1 x 1/4"-20 Female

ENVIRONMENTAL

Certifications
FCC Part 15 C
Operating Temperature
32 to 104°F / 0 to 40°C

GENERAL

Material of Construction
Aluminium, Glass
Dimensions
14.4 x 9 x 3.08 cm
Weight
0.285 kg


* Specifications subject to change by the manufacturer without notice

  • Portkeys LH5P II 5.5" Touchscreen Monitor with Camera Control for Sony FS5/FS7/FX6/FX9
  • Control Cable for Sony FS5/FS7/FX6/FX9
  • USB Flash Drive
  • Power Cord
  • 2.4 GHz Antenna

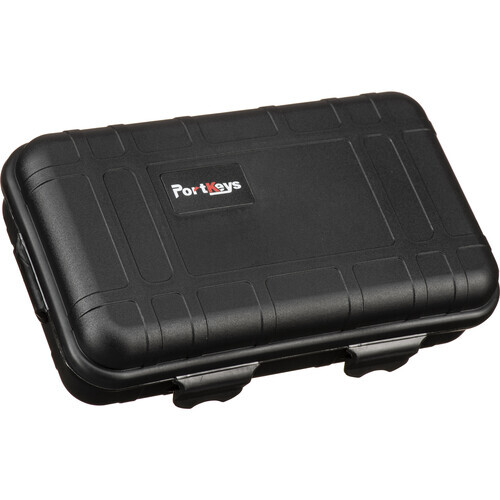

  • Storage Box
