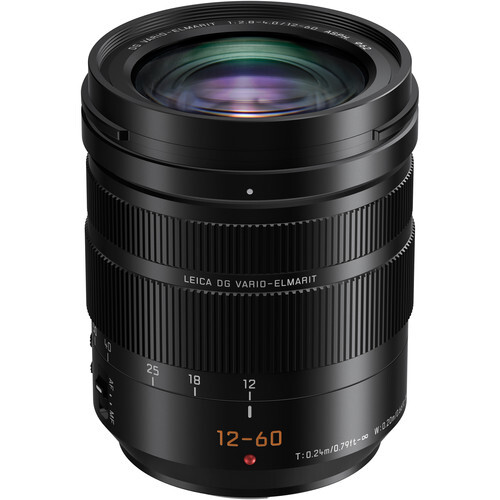

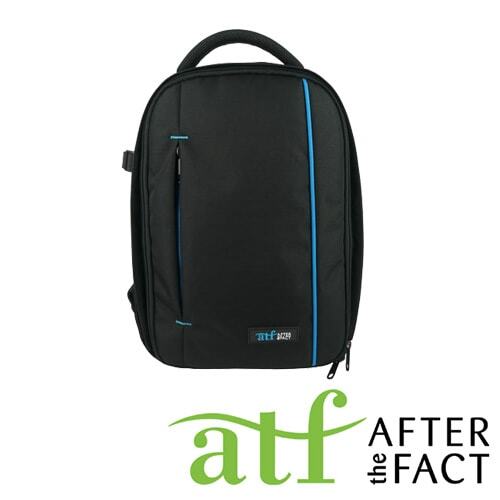

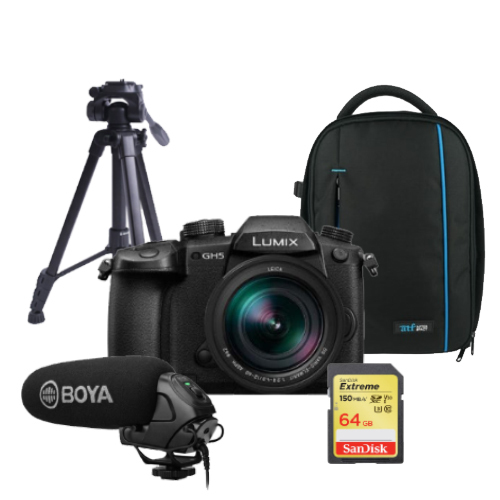

The Panasonic GH5 Filmmaker Kit comprises Lumix GH5 bundled with Panasonic Leica 12-60mm f/2.8-4 Lens, Boya BY-BM3030 On-Camera Shotgun Microphone, ATF Musketeer Tripod, ATF Diaz Backpack, and SanDisk 64GB Extreme UHS-I SDXC Memory Card. This versatile and capable kit has been carefully curated with professional and enthusiast videographers, filmmakers and content creators in mind.

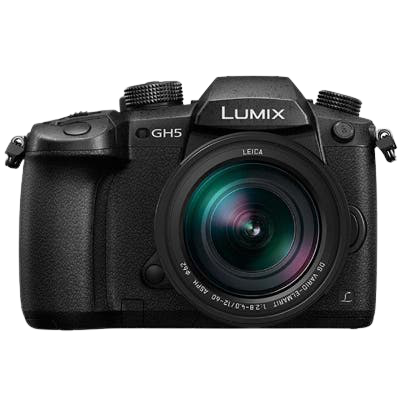

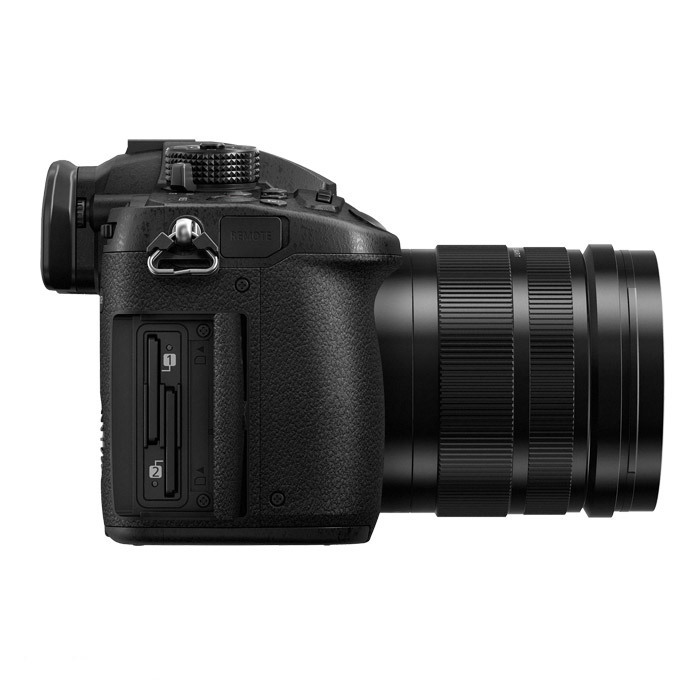

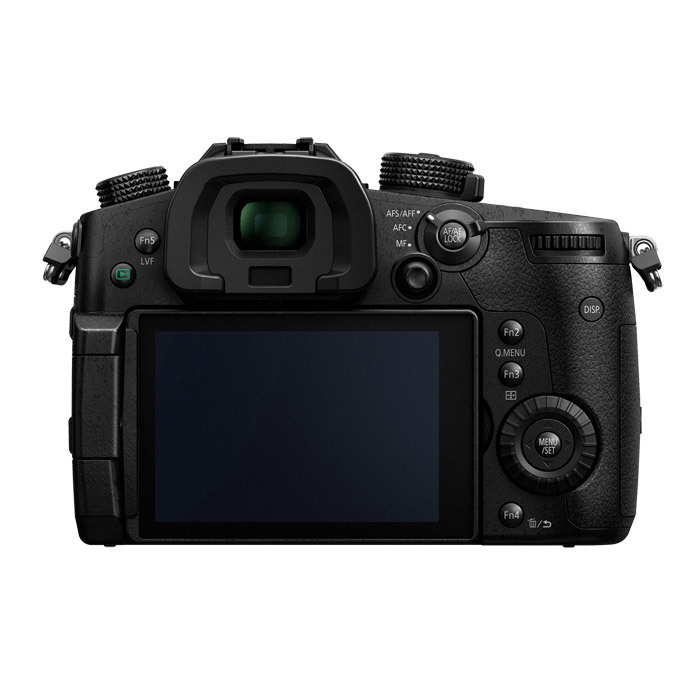

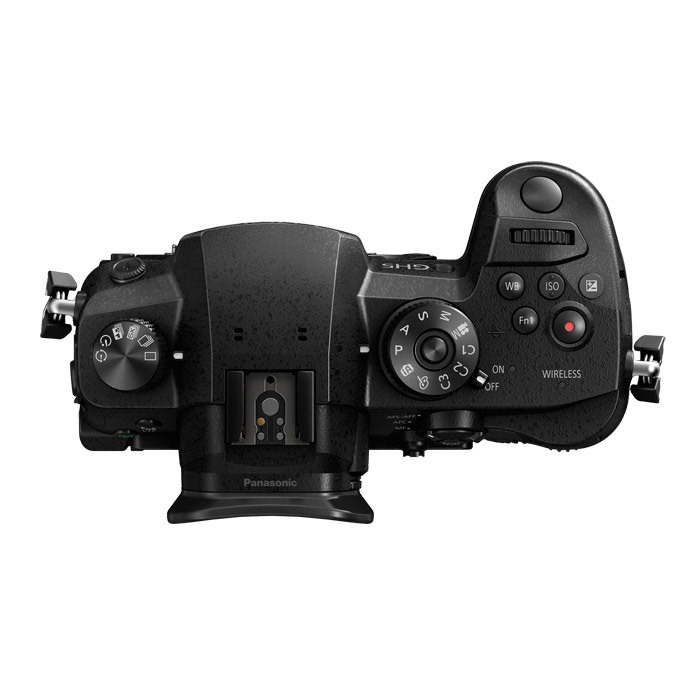

The Panasonic GH5 is a Micro Four Thirds mirrorless camera aimed towards videographers, with features often seen on more professional cinema cameras. It takes video at up to 4K/60p resolution, including 4:2:2 10-bit colour at up to 4K/30p, and has essential tools for shooting such as waveforms and a built-in LUT display. The body is very solid, with multiple customised function buttons and a very strong EVF. Paired with Leica 12-60mm f/2.8-4 Lens makes it a great choice for videographers who need high-spec video features as well as photographers who need to capture both stills and video.

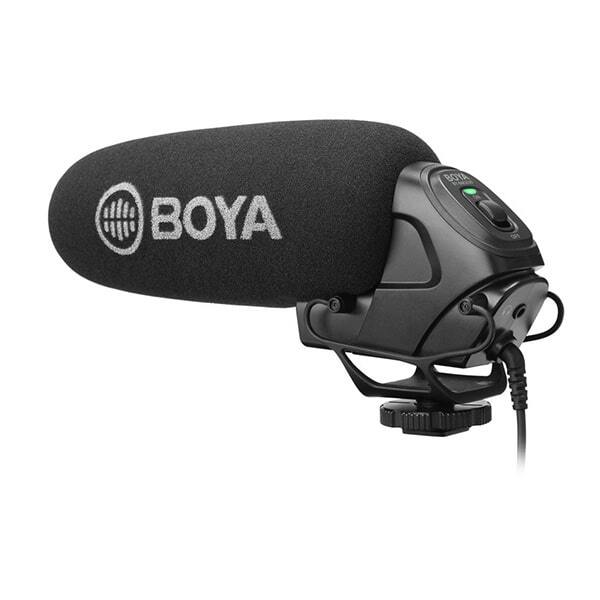

The Boya BY-BM3030 Shotgun Microphone is a lightweight condenser microphone that captures studio-grade audio and can significantly increase the quality of your video production. For photographers and videographers alike, the ATF Musketeer Tripod is ideal. It has a fluid pan and tilt head for crisp photos and silky-smooth video.

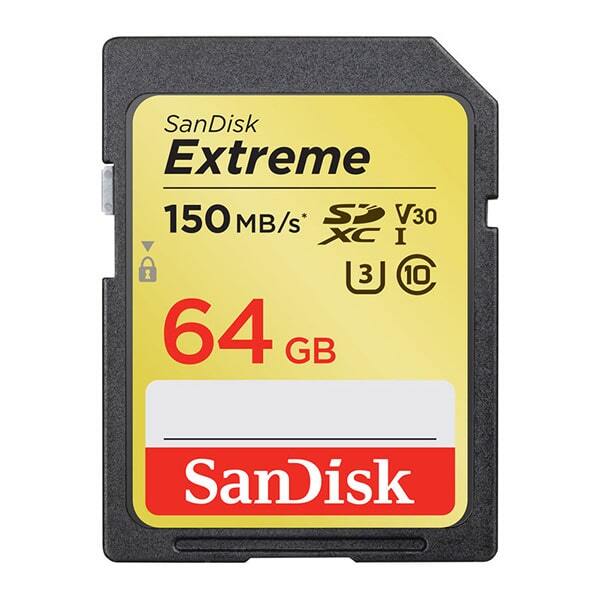

With such a versatile camera, you'll need a reliable and fast memory card, such as the SanDisk 64GB Extreme UHS-I SDXC Memory Card. A well-designed camera bag, like the ATF Diaz, also allows you to protect and carry a large amount of gear for long periods of time. This case makes it simple to store and protect your camera, lenses, and other accessories like batteries, filters, and a tripod.

TYPE

 Type Digital Single Lens Mirrorless camera
Recording media SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards)
Image sensor size 17.3 x 13.0 mm (in 4:3 aspect ratio)
Lens mount Micro Four Thirds mount

IMAGE SENSOR

 Type Live MOS Sensor
Total pixels 21.77 Megapixels
Camera effective pixels 20.30 Megapixels
Colour filter Primary colour filter
Dust reduction system Supersonic wave filter

IMAGE STABILIZATION SYSTEM

 Image sensor shift type (5-axis / 5-stop*), Dual I.S. (Dual I.S. 2 compatible)

IMAGE STABILIZATION SYSTEM

 * Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm), when H-FS12060 is used.

RECORDING SYSTEM

Recording file format

 Still image JPEG (DCF, Exif 2.31), RAW
6K PHOTO*1 / 4K PHOTO 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
6K PHOTO*1 / 4K PHOTO 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Motion picture MOV: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
Motion picture MP4: H.264/MPEG-4 AVC
Motion picture AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2ch)

System frequency

 59.94Hz, 50.00Hz, 24.00Hz

Aspect ratio

 4:3, 3:2, 16:9, 1:1

Image quality

 RAW, RAW+Fine, RAW+Standard, Fine, Standard

Colour Space

 sRGB, AdobeRGB

File size(Pixels) -Still Image

 4:3 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
3:2 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
16:9 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
1:1 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)

File size (Pixels) -Motion picture

 MOV*2/*4-59.94Hz <[C4K] 4096x2160> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[4K] 3840x2160> 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[4K] 3840x2160> 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[4K] 3840x2160> 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[4K] 3840x2160> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[4K] 3840x2160> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <[Full HD] 1920x1080> 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <[4K] 3840x2160> 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <[4K] 3840x2160> 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-50.00Hz <[4K] 3840x2160> 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-50.00Hz <[Full HD] 1920x1080> 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-24.00Hz <[C4K] 4096x2160> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-24.00Hz <[C4K] 4096x2160> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-24.00Hz <[4K] 3840x2160> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-24.00Hz <[4K] 3840x2160> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) LPCM, High-Res Audio)
MOV*2/*4-24.00Hz <[Full HD] 1920x1080> 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-24.00Hz <[Full HD] 1920x1080> 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-24.00Hz <[Full HD] 1920x1080> 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MP4*2-59.94Hz <[C4K] 4096x2160> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[C4K] 4096x2160> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[4K] 3840x2160> 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[4K] 3840x2160> 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[4K] 3840x2160> 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-59.94Hz <[4K] 3840x2160> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[4K] 3840x2160> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[Full HD] 1920x1080> 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[Full HD] 1920x1080> 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <[Full HD] 1920x1080> 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-59.94Hz <[Full HD] 1920x1080> 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-50.00Hz <[4K] 3840x2160> 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <[4K] 3840x2160> 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-50.00Hz <[4K] 3840x2160> 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <[Full HD] 1920x1080> 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-50.00Hz <[Full HD] 1920x1080> 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-50.00Hz <[Full HD] 1920x1080> 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-50.00Hz <[Full HD] 1920x1080> 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4*2-24.00Hz <[C4K] 4096x2160> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-24.00Hz <[C4K] 4096x2160> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-24.00Hz <[4K] 3840x2160> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-24.00Hz <[4K] 3840x2160> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-24.00Hz <[Full HD] 1920x1080> 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-24.00Hz <[Full HD] 1920x1080> 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-24.00Hz <[Full HD] 1920x1080> 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-24.00Hz <[Full HD] 1920x1080> 24.00p, 24Mbps (4:2:0 8-bit LongGOP) (AAC)
AVCHD Progressive*2/ AVCHD*2-59.94Hz <[Full HD] 1920x1080> 59.94p, 28Mbps (LongGOP) (Dolby)
AVCHD Progressive*2/ AVCHD*2-59.94Hz <[Full HD] 1920x1080> 59.94i, 24Mbps (LongGOP) (Dolby) (Sensor output is 29.97fps)
AVCHD Progressive*2/ AVCHD*2-59.94Hz <[Full HD] 1920x1080> 59.94i, 17Mbps (LongGOP) (Dolby) (Sensor output is 59.94fps)
AVCHD Progressive*2/ AVCHD*2-59.94Hz <[Full HD] 1920x1080> 23.98p, 24Mbps (LongGOP) (Dolby)
AVCHD Progressive*2/ AVCHD*2-50.00Hz <[Full HD] 1920x1080> 50.00p, 28Mbps (LongGOP) (Dolby)
AVCHD Progressive*2/ AVCHD*2-50.00Hz <[Full HD] 1920x1080> 50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps)
AVCHD Progressive*2/ AVCHD*2-50.00Hz <[Full HD] 1920x1080> 50.00i, 17Mbps (LongGOP) (Dolby) (Sensor output is 50.00fps)

Continuous recordable time (Motion picture)

 AVCHD [FHD/60p]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 150 min (LVF) with H-HSA12035 / H-FS12060

Continuous recordable time (Motion picture)

 AVCHD [FHD/60i]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 160 min (LVF) with H-HSA12035 / H-FS12060

Continuous recordable time (Motion picture)

 MP4 [4K/60p]: Approx. 100 min (rear monitor), 100 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060

Continuous recordable time (Motion picture)

 MP4 [4K/30p]: Approx. 110 min (rear monitor), 110 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060"

Actual recordable time (Motion picture)

 AVCHD [FHD/60p]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 75 min (LVF) with H-HSA12035 / H-FS12060

Actual recordable time (Motion picture)

 AVCHD [FHD/60i]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 80 min (LVF) with H-HSA12035 / H-FS12060

Actual recordable time (Motion picture)

 MP4 [4K/60p]: Approx. 50 min (rear monitor), 50 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060

Actual recordable time (Motion picture)

 MP4 [4K/30p]: Approx. 55 min (rear monitor), 55 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060

WIRELESS

 WiFi IEEE 802.11a/b/g/n/ac * 5GHz Wi-Fi is not available in some countries.
WiFi 1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140, 149, 153, 157, 161, 165 ch
Bluetooth Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
QR Code Connection Yes
Password-less connection Yes (ON / OFF selectable)

VIEWFINDER

 Type OLED Live View Finder (3,680k dots)
Field of view Approx. 100%
Magnification Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1
Eye point Approx. 21 mm from eyepiece lens
Diopter adjustment -4.0 - +3.0 (dpt)
Eye sensor Yes
Eye sensor adjustment High / Low

FOCUS

 Type Contrast AF system
DFD technology Yes
Post Focus Yes
Focus Stacking Yes
Focus mode AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
AF mode Face/Eye Detection / Tracking / 225-Area / Custom Multi / 1-Area / Pinpoint
AF mode (Full area touch is available) (Scalable AF frame size (by Joystick) and flexible AF position (by front/rear dial))
AF detective range EV -4 - 18 (ISO100 equivalent)
AF assist lamp Yes
AF lock Yes (AF/AE LOCK button)
AF custom setting AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
Others One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter

EXPOSURE CONTROL

 Light metering system 1,728-zone multi-pattern sensing system
Light metering mode Multiple / Centre Weighted / Spot
Metering range EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode Program AE, Aperture Priority AE, Shutter Priority AE, Manual
ISO sensitivity (Standard Output Sensitivity) Still image: Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
ISO sensitivity (Standard Output Sensitivity) Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)
AE lock Yes (AF/AE LOCK button)

WHITE BALANCE

 White balance AWB / AWBc / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4
White balance adjustment Blue/Amber bias, Magenta/Green bias
Colour temperature setting 2500-10000K in 100K

SHUTTER

 Type Focal-plane shutter
Shutter speed Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Shutter speed Electronic first curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Shutter speed Electronic shutter: 1/16,000 - 1
Shutter speed Motion picture: 59.94Hz: 1/16,000 - 1/30, 50.00Hz: 1/16,000 - 1/25, 23.98Hz: 1/16,000 - 1/24 (When using Synchro Scan)
Shutter life Approx. 200,000 images
Self-Timer 10sec, 3 images / 2sec / 10sec
Remote control Remote control with Bulb function by DMW-RSL1 (sold separately)

BRACKET

 AE bracket 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket 3, 5 or all positions in 1 EV step
Focus Bracket 1 to 999 images, focus steps can be set in 5 levels
White balance bracket 3 exposures in blue/amber axis or in magenta/green axis, colour temperature setting

BURST SHOOTING

 Burst speed [Mechanical shutter] AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed [Mechanical shutter] AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed [Electronic shutter] AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed [Electronic shutter] AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images More than approx. 60 images (when there are RAW files with the particular speed)
Number of recordable images More than approx. 600 images (when there are no RAW files)
Number of recordable images (depending on memory card size, battery power, picture size, and compression)

6K PHOTO*1 / 4K PHOTO

 Burst speed [6K PHOTO] 30 frames/sec
Burst speed [4K PHOTO] 60 frames/sec, 30 frames/sec
Exif information Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.)
Marking function Yes (in 6K/4K Burst (S/S) mode)
Loop rec function Yes (in 6K/4K Burst (S/S) mode)

FLASH

 Flash type TTL External Flash (sold separately)
Flash Mode Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA, iA+ only.
Synchronization speed Less than 1/250 second
Flash output adjustment 1/3EV step ±3EV
Flash synchronization 1st. Curtain Sync, 2nd Curtain Sync.
Synchronization for flash dimming and exposure compensation Yes
Wireless control Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket Yes

REAR MONITOR

 Type TFT LCD monitor with static touch control
Monitor size Free-angle 3.2-inch (8.0cm) / 3:2 aspect / Wide viewing angle
Pixels Approx. 1,620k dots
Field of view Approx. 100%
Monitor adjustment Brightness, Contrast, Saturation, Red-Green, Blue-Yellow

LIVE VIEW

 Digital zoom 2x, 4x
Extra Tele Conversion Still image: Max. 2x
Extra Tele Conversion 4K PHOTO: 1.6x (4:3), 1.5x (3:2), 1.4x (16:9, 1:1)
Extra Tele Conversion Motion picture: 2.7x (FHD), 1.4x (4K)
Other functions Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Centre Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture)

DIRECTION DETECTION FUNCTION

 Direction Detection Function Yes

FUNCTION BUTTON

 Fn1-20 Wi-Fi / Q.MENU / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot RAW+JPG / 1 Shot Spot Metering / Operation Lock / Dial Operation Switch / Photo Style / Filter Select / Aspect Ratio / Picture Size / Quality / AFS/AFF / Metering Mode / Burst Rate / 6K/4K PHOTO / Self Timer / Bracket / Highlight Shadow / i. Dynamic / i. Resolution / Post Focus / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / ON/OFF of each item in White Balance / ON/OFF of each item in Photo Style / AF Mode/MF / Rec/Playback Switch / Off / 4K Live Cropping / Motion Pic. Rec Format / Motion Pic. Rec Quality / Variable Frame Rate / Picture Mode in Rec. / Synchro Scan / Time Code Display / Mic. Directivity Adjust / Colour Bars / WFM/Vector Scope / Focus Transition / LUT Monitor Display* / LUT HDMI Display* / Silent Mode / Peaking / Histogram / Guide Line / Zebra Pattern / Monochrome Live View / Rec Area / Video-Priority Display / Step Zoom / Zoom Speed / Restore to Default *Upgrade Software Key DMW-SFU1 (sold separately) is required.

PHOTO STYLE

 Photo Style Standard / Vivid / Natural / Monochrome / L. Monochrome / Scenery / Portrait / Custom 1, 2, 3, 4 / Cinelike D / Cinelike V / Like709* / V-LogL*/**
Photo Style *When Creative Video Mode is selected. **Upgrade Software Key DMW-SFU1 (sold separately) is required.

CREATIVE CONTROL

 Creative Control Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect** / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine* *For photos only. **Not available in 4:2:2 10-bit video or 4K video recording.

CREATIVE VIDEO MODE

Exposure mode

 Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure

Variable frame rate

 59.94Hz 2, 30, 56, 58, 60, 62, 64, 90, 120, 150, 180 fps
59.94Hz 2, 15, 26, 28, 30, 32, 34, 45, 60 fps
59.94Hz 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, 105, 120, 135, 150, 165, 180 fps
59.94Hz 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
59.94Hz 2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96, 108, 120, 132, 144, 156, 168, 180 fps
50.00Hz 2, 25, 46, 48, 50, 52, 54, 75, 100, 150, 180 fps
50.00Hz 2, 12, 21, 23, 25, 27, 30, 37, 60 fps
50.00Hz 2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 87, 100, 125, 150, 175, 180 fps
24.00Hz 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
24.00Hz 2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96, 108, 120, 132, 144, 156, 168, 180 fps

ANAMORPHIC MODE

Anamorphic 4K mode (4:3)

 MOV*2/*4-59.94Hz <3328x2496> 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <3328x2496> 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <3328x2496> 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <3328x2496> 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-59.94Hz <3328x2496> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-59.94Hz <3328x2496> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-59.94Hz <3328x2496> 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <3328x2496> 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-50.00Hz <3328x2496> 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-50.00Hz <3328x2496> 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-50.00Hz <3328x2496> 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MOV*2/*4-24.00Hz <3328x2496> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio) *The firmware will be released in second half of 2017.
MOV*2/*4-24.00Hz <3328x2496> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) *6
MOV*2/*4-24.00Hz <3328x2496> 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
MP4*2-59.94Hz <3328x2496> 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <3328x2496> 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <3328x2496> 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <3328x2496> 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-59.94Hz <3328x2496> 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-59.94Hz <3328x2496> 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-59.94Hz <3328x2496> 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <3328x2496> 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-50.00Hz <3328x2496> 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-50.00Hz <3328x2496> 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-50.00Hz <3328x2496> 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
MP4*2-24.00Hz <3328x2496> 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM) *The firmware will be released in second half of 2017.
MP4*2-24.00Hz <3328x2496> 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) *6
MP4*2-24.00Hz <3328x2496> 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)

MOTION PICTURE FUNCTION

 Master pedestal level 31 steps
Luminance level 8-bit: 0-255 / 16-235 / 16-255
Luminance level 10-bit: 0-1023 / 64-940 / 64-1023
Wave form monitor / Vectorscope Selectable
LUT display LUT Monitor Display / LUT HDMI Display *Upgrade Software Key DMW-SFU1 (sold separately) is required.
Synchro scan Yes
Time code Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When system frequency [59.94Hz] is selected.)
SS/Gain operation Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Colour bars / 1kHz test tone Yes (SMPTE / EBU / ARIB) / Yes
Photo style for motion picture Cinelike D / Cinelike V / Like709* / V-LogL*/**
Photo style for motion picture *When Creative Video Mode is selected. **Upgrade Software Key DMW-SFU1 (sold separately) is required.
Knee control Yens (in Like709 mode)

PLAYBACK

 Playback mode 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only, duration & effect is selectable), Playback Mode (Normal / Picture Only / Video Only), Protect, Rating, Title Edit, Face Recognition Edit, DPOF Print Set, RAW Processing, 6K/4K PHOTO Bulk Saving, 6K/4K PHOTO Noise Reduction, Light Composition, Clear Retouch, Text Stamp, Copy, Resize, Cropping, Rotate, Video Divide, Time Lapse Video, Stop Motion Video, Rotation Display, Picture Sort, Delete Confirmation, Creating Still Pictures from a Motion Picture

IMAGE PROTECTION / ERASE

 Protection Single / Multi or Cancel
Erase Single / Multi / All / Except Favorite

PRINT

 Direct Print PictBridge compatible

INTERFACE

USB

 USB Type-C, Super Speed USB3.1 GEN1

HDMI*3

 Monitor-through 4:2:2 10-bit (When [Rec Quality] is set to [4:2:2 10bit] or when [Rec Quality] is set to [4K/60p]/[4K/50p] and [4K/60p Bit Mode]/[4K/50p Bit Mode] is set to [4:2:2 10bit].When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the SD memory card in the camera unit.)
Monitor-through 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit], except for [4K 60p]/[4K/50p])
Monitor-through 4:2:0 8bit (When [Rec Quality] is set to [4K/60p]/[4K/50p] and [4K/60p Bit Mode]/[4K/50p Bit Mode] is set to [4:2:0 8bit].)
Monitor-through Auto / 4K/30p/25p / 1080p / 1080i / OFF
Monitor-through Information display ON/OFF (selectable)
Monitor-through Automatic down-conversion
Playback HDMI TypeA / VIERA Link, Audio: Stereo
Playback 59.94Hz: Auto / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
Playback 50.00Hz: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
Playback 24.00Hz: Auto / C4K / 4K/24p / 1080p

Audio video output

 No

Remote input

 f2.5mm for remote

External microphone input

 f3.5mm for external microphone

External microphone input

 Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).

Headphone output

 f3.5mm for headphone

Microphone

 Stereo, Wind Noise Canceller: OFF / Low / Standard / High / AUTO

High-res audio recording

 Yes with DMW-XLR1 (sold separately)

Speaker

 Monaural

SD card slot

 Slot 1, Slot 2

LANGUAGE

 OSD language Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified)

GENERAL

POWER

 Battery Li-ion Battery Pack (7.2V, 1860mAh, 14Wh) (included)
Battery life (CIPA standard) Approx. 410 images (rear monitor), 400 images (LVF), 1,000 images (Power Save LVF mode*) with H-FS12060
Battery life (CIPA standard) Approx. 410 images (rear monitor), 390 images (LVF), 1,000 images (Power Save LVF mode*) with H-HSA12035
Battery life (CIPA standard) Approx. 400 images (rear monitor), 380 images (LVF), 1,000 images (Power Save LVF mode*) with H-ES12060
Battery life (CIPA standard) * Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 3 sec.
Battery grip DMW-BGGH5 (sold separately)

DIMENSIONS / WEIGHT

 Dimensions (W x H x D) 138.5 x 98.1 x 87.4 mm (excluding protrusions)
Weight Approx. 725g (SD card, Battery, Body)
Weight Approx. 645g (Body only)
Weight Approx. 935g (SD card x 1, Battery, H-FS12060 lens included)
Weight Approx. 1030g (SD card x 1, Battery, H-HSA12035 lens included)
Weight Approx. 1045g (SD card x 1, Battery, H-ES12060 lens included)

OPERATING ENVIRONMENT

 Operating temperature*5 -10? to 40?
Operating humidity 10%RH to 80%RH

STANDARD ACCESSORIES

 Software · The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.0XE is available for download at Panasonic website using computer connected to the Internet. http://panasonic.jp/support/global/cs/soft/download/d_pfs99pe.html (For Windows) · The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet. http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories Battery Charger (AC Cable included), Battery Pack, Body Cap, Hot Shoe Cover, Eye Cup, Flash Syncro Socket Cap, Cover for the Battery Grip Connector, USB Connection Cable, Shoulder Strap, Cable Holder

NOTE

 *1 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.

NOTE

 *2 About motion picture recording / 6K PHOTO/4K PHOTO recording

NOTE

 - Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD] or [MP4(under 28Mbps)].

NOTE

 - Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [mov], [MP4] in [4K] or [6K PHOTO/4K PHOTO].

NOTE

 (SD speed class is the speed standard regarding continuous writing.)

NOTE

 - MP4 motion pictures with [MP4] in [4K]:

NOTE

 - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.

NOTE

 - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.

NOTE

 - MP4 motion pictures with [MP4] in [FHD]:

NOTE

 - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.

NOTE

 *3 For [4K 60p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

NOTE

 *4 High-res audio is selectable only when using the DMW-XLR1 (sold separately).

NOTE

 *5 The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

NOTE

 *6 Firmware must be updated to the latest version 1.1.

NOTE

 ·4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. It may cause problems such as freezing when played on these devices.



*Specifications subject to change by manufacturer without notice.

  • Panasonic Lumix DMC-GH5 Body
  • Panasonic Leica DG Vario-Elmarit 12-60mm f/2.8-f/4.0 Lens
  • Rechargeable Battery Pack (DMW-BLF19E)
  • Battery Charger with AC Cable
  • Body Cap
  • Hot Shoe Cover
  • Eye Cup
  • Flash Synchro Socket Cap
  • Cover for Battery Grip Connector
  • USB Connection Cable
  • Shoulder Strap
  • Cable Holder
  • Lens Cap
  • Lens Rear Cap
  • Lens Hood
  • Lens Storage Bag
  • Boya BY-BM3030 On-Camera Shotgun Microphone
  • SanDisk 64GB Extreme UHS-I SDXC Memory Card
  • ATF Diaz Backpack
  • ATF Musketeer Tripod

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Panasonic Australia

Want to read more about warranties?

Click here

Add extra protection for peace of mind

Reviews

* Dispatch timeframes are indications only and may vary for multiple quantities. Timeframes are updated regularly during normal business hours.
