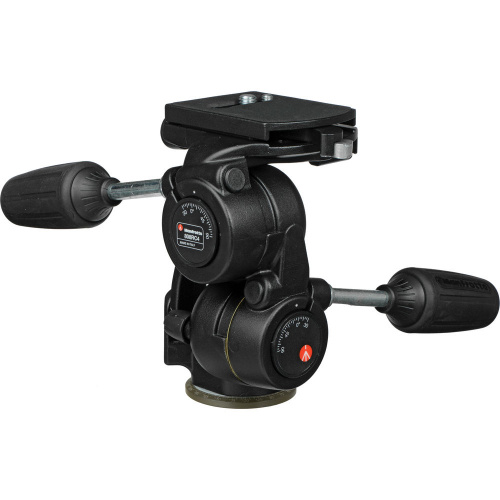

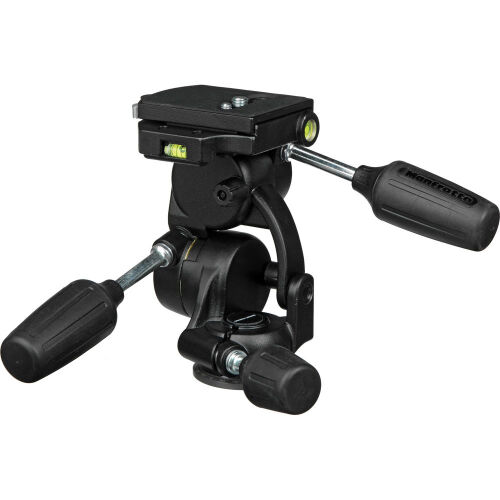

Manfrotto 808RC4 3-Way, Pan-and-Tilt Head with 410PL Quick Release Plate

The Manfrotto 808RC4 3-Way Pan-and-Tilt Head supports loads up to 12.02 kg and fits tripods or supports with a 3/8"-16 mount. It features an integrated RC4 quick release cam lock and comes with a 410PL Quick Release Plate. Compatible RC4 plates like the 410PL can be easily removed or reattached by operating the cam lock's spring-loaded lever for quick setup and changes.

Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberised, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place by twisting each corresponding handle's rubberised grip.

To promote fast, repeatable, and accurate device positioning, the 808RC4 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs can be user-activated to help ensure smooth as well as gradual backwards, forwards, and portrait orientation tilt movements.

HEAD

Camera Mounting
1/4"-20 & 3/8"-16 Screws (Quick Release Plate: RC4)
Head Type
Pan & Tilt Head
Base Mount
Flat Base with 3/8"-16 Female

PAN & TILT

Vertical Tilt
+90° to -30°
Lateral Tilt
-90° to +30°

GENERAL

Load Capacity
12 kg
Bubble Level
Yes
Weight
1.49 kg


* Specifications subject to change by the manufacturer without notice.

  • Manfrotto 808RC4 3-Way, Pan-and-Tilt Head with 410PL Quick Release Plate
  • Manfrotto 410PL Quick Release Plate - for RC4 Quick Release System
