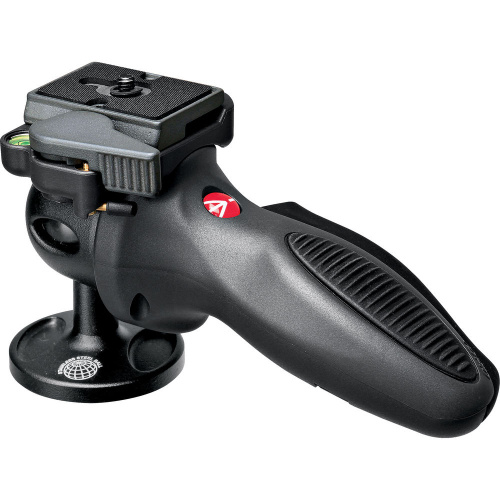

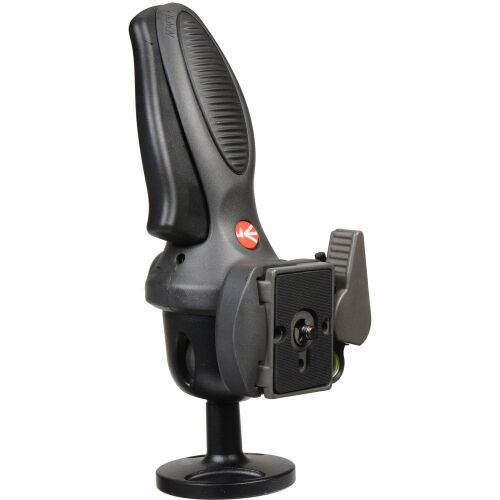

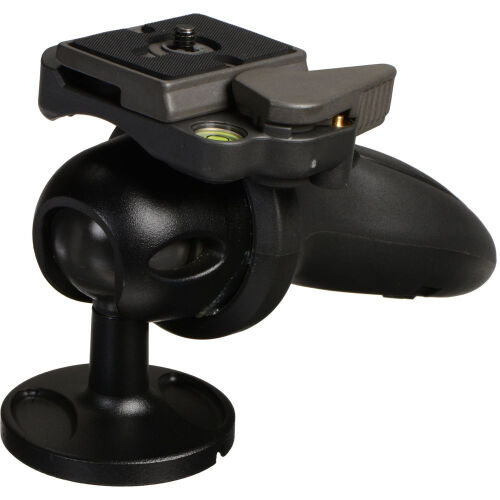

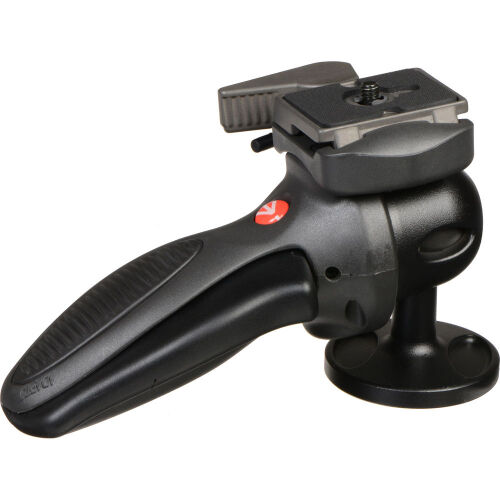

Manfrotto 324RC2 Head Joystick & QR Plate

The Manfrotto 324RC2 Ball Head supports loads up to 3.99 kg and fits tripods or supports with a 3/8"-16 mount. It features an RC2 quick release cam lock and includes the 200PL-14 Quick Release Plate. The RC2 plates can be easily removed or reattached using the spring-loaded cam lock lever, which also has a safety catch to prevent accidental release of the plate.

The 324RC2 features a ball-and-socket joint with an easy-to-grip control handle. By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberised, non-slip surface. The 324RC2 is initially configured for use with the right hand. An included hex key allows the RC2 quick release cam lock to be repositioned along with the control handle, enabling left-handed use.

HEAD

Camera Mounting
1/4"-20 Screw (Quick Release Plate: 200PL-14)
Head Type
Ball Head
Base Mount
Flat Base with 3/8"-16 Female

PAN & TILT

Drag Control
Yes
Vertical Tilt
+90° to -90°
Lateral Tilt
-19° to +90°

GENERAL

Load Capacity
4 kg
Bubble Level
Yes
Weight
0.45 kg


* Specifications subject to change by the manufacturer without notice.

  • Manfrotto 324RC2 Head Joystick & QR Plate
  • 200PL-14 Quick Release Plate
  • Hex Key for RC2 Quick Release Cam Lock
  • Hex Key for Ball-and-Socket Joint
