Speed Up Your Workflow

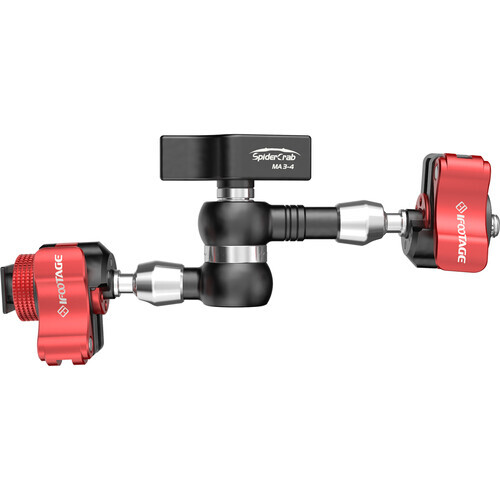

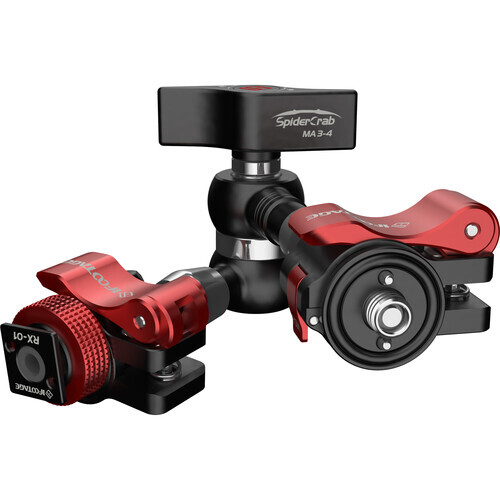

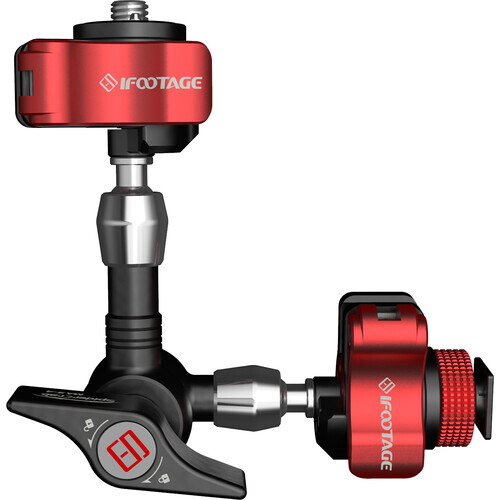

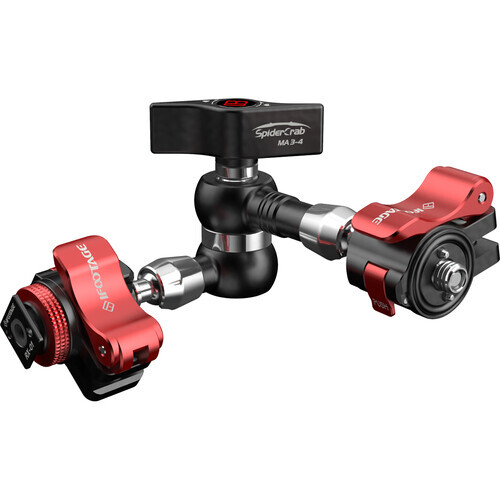

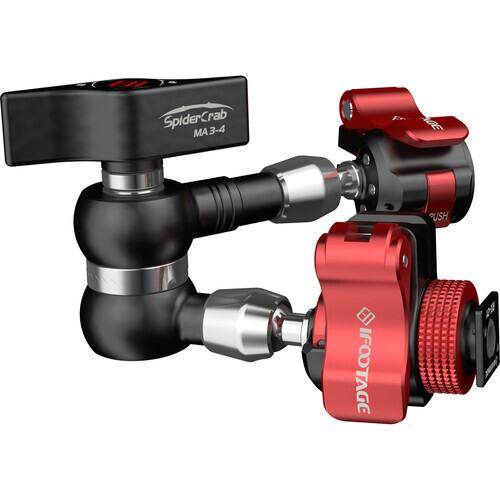

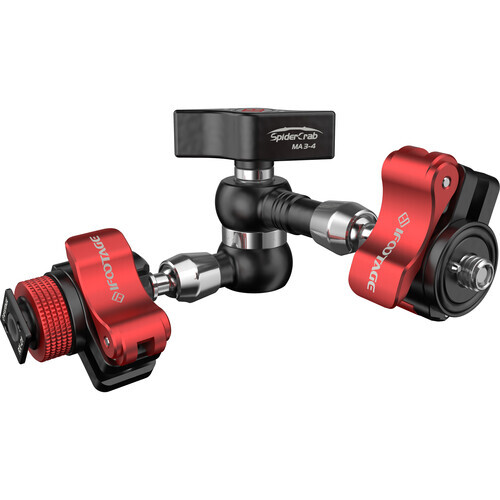

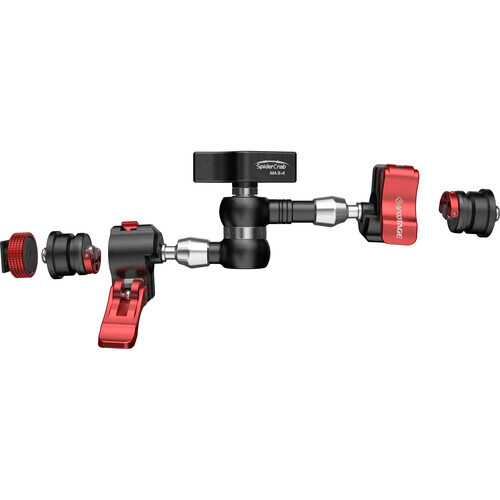

Make your workflow faster and keep your accessories safe with the 7" long MA3-4 Spider Crab Magic Arm from iFootage. QR mounting modules on each end support up to 13.2 lb and feature a QR cold shoe mounting foot on one end and a combination 1/4"-20 and 3/8"-16 QR mounting module with ARRI-Anti-twist pins on the other. You can select between 1/4"-20, 3/8"-16, and 3/8"-16 with ARRI anti-twist pins.

The arm allows you to mount and position accessories such as lights or a monitor onto a cold shoe. The QR system features a dual-lock safety system independent of the arm's central locking knob, and the QR system also allows you to swap out adapter ends for optional replacements for more flexibility. Anti-slip gears in the center hub hold the arm in the position you set when tightening the central locking lever, which also locks the ends in position.

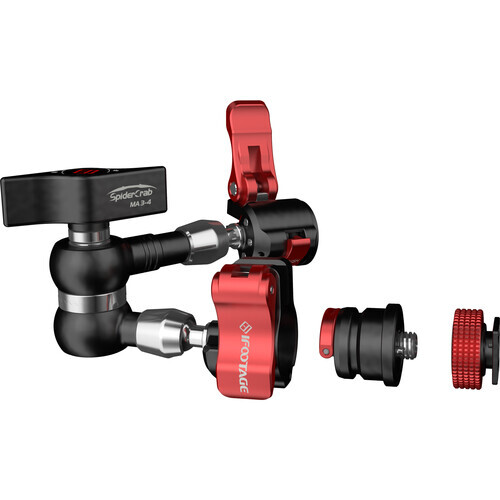

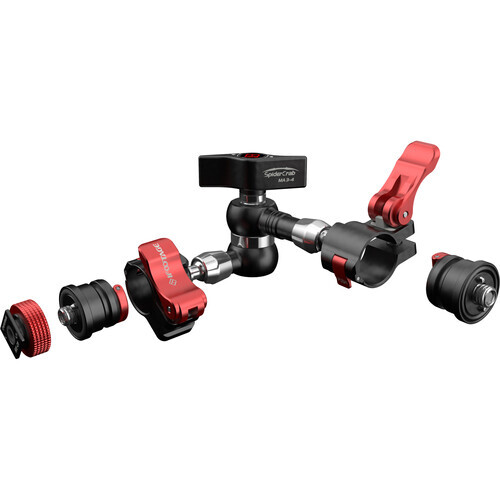

QR Attachment Modules

The QR modules allow you to attach the module to your accessory or camera/cage/support, and then mount the arm on the module and secure it with the dual locking system. This makes it easier to attach the arm to your camera or accessory, as you don't have to contend with the length of the arm or that it is already attached to the camera or accessory. It also enables you to leave just the QR attached to the module when packing your gear away, and you can source additional modules and pre-attach them to your accessory for an even faster workflow.

1/4"-20, 3/8"-16, ARRI Anti-Twist Module

This module features a flip-up twist tab that lets you engage either the 1/4"-20 thread or raise a 3/8"-16 sleeve around the 1/4"-20 screw. Continuing to twist the tab engages the ARRI-compatible anti-twist pins. Reversing the direction of the twist disengages the pins, and then the sleeve.

Load Capacity
13.2 lb / 6 kg
Top Mount
1/4"-20 Male
3/8"-16 Male
ARRI 3/8"-16 Anti-Twist
Bottom Mount
Shoe Adapter
Points of Articulation
3
Material of Construction
Aluminium, Steel
Maximum Length
17.8 cm
Weight
0.380 kg


* Specifications subject to change by the manufacturer without notice

  • iFootage MA3-4 Spider Crab Magic Arm with QR Mounting
  • QR Cold Shoe Mounting Foot
  • QR Multi-Mount (1/4"-20, 3/8"-16, ARRI Anti-Twist)

Manufacturer Warranty


This product comes with a

12  month Australian warranty

from iFootage Australia
