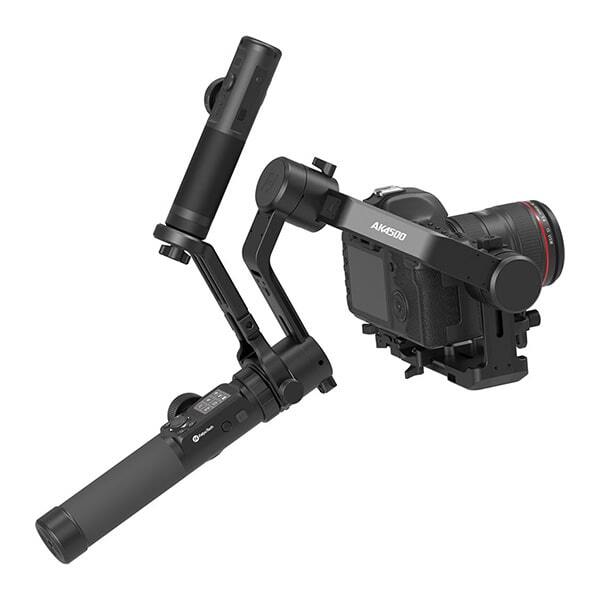

The AK4500 is the latest flagship gimbal from Feiyu Tech with a versatile new rear arm and a modular design that allows you to capture ultra-smooth cinematic footage in exciting new ways. Not only that but you can remove whatever you’re not using for lighter more travel friendly setups. The new AK 4500 gimbal from Feiyu boasts an improved 4.6kg maximum payload that ensures it can support a variety of professional DSLR’s and mirrorless cameras.

4.6kg Payload Capacity

The AK4500 supports most cameras from a minimum payload of 150g to a maximum of 4600g. This makes it’s perfect for mirrorless cameras such as the Sony a7 and a9 series, Nikon’s Z range, Canon’s EOS R range and Panasonic’s Lumix G series as well as DSLRs like the Nikon D850, or the Canon EOS 5D Mark IV.

Versatile Handle for Improved Shooting Ergonomics

Boasting a new ergonomic design optimised for underslung shooting, the flagship gimbal from Feiyutech now has a rear ‘versatile’ handle. This adds an additional rear facing arm so you can mount the Hyperlink Remote Controller as a handle with additional controls

Built for Travel Shooters

Despite the hefty maximum payload, the actual gimbal itself only weighs around 1400g (excluding batteries). It has a removable handle that improves your packing options which combined with the individual axis locks this makes the AK4500 a fantastic travel companion for shooters constantly on the go.

Angled Rear Motor for Better LCD Visibility

Improved visibility of the rear LCD is achieved with a repositioned rear motor that is angled to avoid the back screen being blocked.

Unique Shooting Functions

The gimbal introduces cutting-edge shooting modes like the Vlog Selfie and TikTok style vertical shooting push the envelope of creative filmmaking, as well as some old favourites like the inception and auto-rotation modes. This is in addition to the standard pan follow, pan and tilt follow, and all lock modes that are traditionally found on gimbals.

Touch LCD Screen

The AK4500’s is one of the few gimbals that has a touchscreen that is designed to make selecting different modes & changing settings intuitive. The gimbal also includes a lock screen function to prevent accidental setting changes.

USB Camera Control

Feiyutech have includes USB ports on the side of the mounting arm that can be used in combination with the provided cables to allow operators to adjust settings directly from the gimbal itself using the control wheel and touchscreen.

Large Control Wheel

A large multi-functional control knob can be used to adjust focus, change camera settings or to even change the sensitivity of the gimbal.

Bluetooth and Wi-Fi Functionality

Both Bluetooth and Wi-Fi connectivity ensures that the Feiyu ON APP can be used to calibrate and and update firmware on the gimbal. The app can also be used to modify the motor strength when heavier gear is mounted.

12 Hour Battery Life

The AK 4500 uses four 18650 batteries, each with 2200mAh capacity that combines to deliver an impressive 12 hours of operation time when balanced correctly. Using the provided battery charger the batteries can be fully charged in around 5 hours.

Supports a Range of Accessories

The Feiyu-tech AK 4500 3-sxis gimbal can be expanded with a range of included accessories like the AKFII, a motorised brushless follow focus system, as well as Feiyutech’s Hyperlink Remote Controller for wireless camera and gimbal control. The remote controller is ideal when collaborating with large teams by adding control for a second operator.

Supported Payload



18650 rechargeable battery*4, 2200mAh, 3.7V (please pay attention to installation of batteries)


Battery charging via USB port on gimbal is not supported. Please use the charger provided for charging batteries.

Theoretical Usage Time

12 Hours (When camera is balanced with gimbal)

Charging Time

=5 hours by the charger provided and the adapter 5V/3A (quick charger is banned).


When the indicator on charger give a solid red light, that means batteries are charging. With a solid blue light, batteries are fully charged.

Materials in Main Body

Aluminum Alloys


1656g (not included the battery, shutter release cable, camera, lens and so forth)

Water-Proof Grade

Not Waterproof


429x240x175.3mm(Not included Detachable support frame)

Rotatable Range

Tilt: 230° (with limitation)


Roll: 360° (Unlimited)


Pan: 360° (Unlimited)

Controllable Range

Tilt: +175° to -55°


Roll: 360° (when parallel to the ground, and works in Dutch-Angle shoot mode, it could be automatically rotated 360°in one circle or several circles)


Pan: 360° (unlimited)

Working mode

Pan follow: The roll and tilt direction are fixed, and the camera moves according to the left-right movements of user's hand.


Follow mode: The roll direction is fixed, and camera moves according to the left-right movements, up-down movements of user's hand.


Lock mode: The orientation of the camera is fixed.


All Follow Mode: All three axis of gimbal follows the movements of user's hand.

1/4-inch Sockets

There are nine extended ports in single handle AK4500 (basic version)


One 1/4 thread hole on the top of sliding arm of tilt axis for installation of extension support or other accessories.


* Specifications subject to change by the manufacturer without notice

  • FeiyuTech AK4500 Stabilised Handheld Gimbal

  • Micro USB Cable
  • Panasonic Lumix Shutter Cable A
  • 4x 18650 Li-ion Battery
  • Versatile Arm
  • Tripod
  • Charger
  • Multifunctional Bracket
  • Extension Rod
  • AK Series Brushless Follow Focus
  • Hyperlink Remote Controller

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Feiyu Australia
