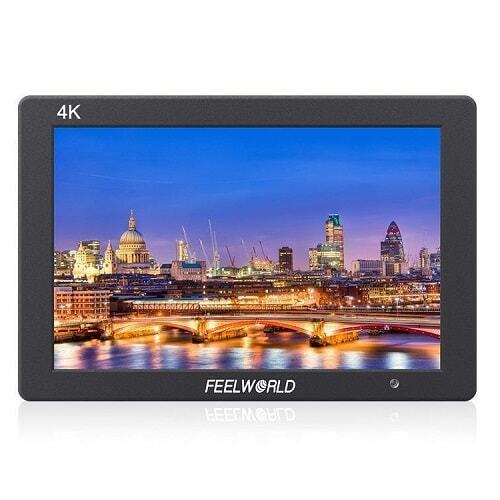

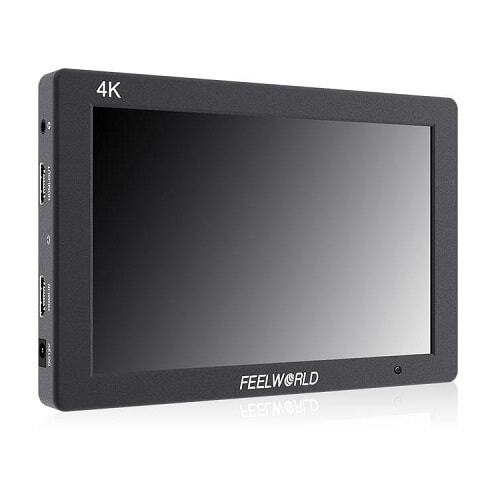

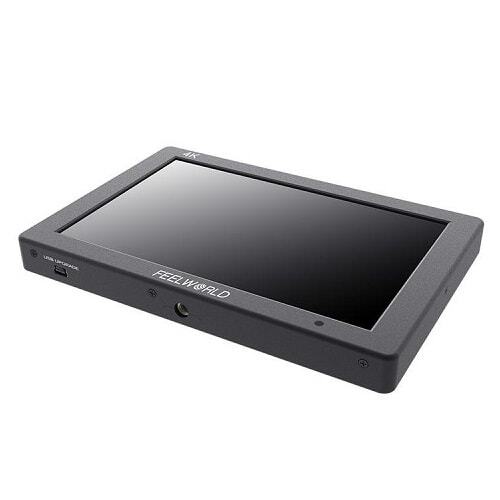

Designed for videographers, cinematographers, and DOPs to get the most out of their shots, the Feelworld T7 is a lightweight, portable on-camera monitor with a 1920x1200 resolution. The sizable 7-inch screen displays a live feed from your DSLR, mirrorless or video camera and provides a range of functions like histograms, zebra exposure, and focus peaking that help you to record sharp and correctly exposed footage every time.

7-Inch Colour Calibrated Screen with 323 Pixel Density

The large 7-inch monitor displays Full HD resolution footage at 1920x1200 with a high pixel per inch rating of 323 PPI. This high level of pixel density allows the monitor to produce incredibly accurate colours and an ultra-sharp picture. The monitor is colour calibrated and uses the industry standard Rec.709 space to display true-to-life colour rendition.

450 Nit Display with 1200:1 Contrast Ratio and Anamorphic Support

With a 450 Nit brightness rating the Feelworld T7 is strong enough to be used in bright sunny conditions and has a high contrast ratio of 1200:1 for a wide dynamic display range. The monitor features a display mode that allows it to compensate for the stretched look of anamorphic footage so you can preview how your final footage will look.

IPS Technology with a 160° Viewing Angle

Using in-plane switching technology the screen offers operators a wide 160° viewing angle that allows you to see your composition from virtually any direction. This can be a lifesaver when operating on smaller sets or shooting a complex moving or tracking shots with a gimbal.

Display Functions

One of the benefits of shooting with an external monitor is the ability display a wide range of additional information like audio levels, safe margins for TV and use framing tools like a rule of thirds grid to help with scene composition. The T7 also allows you to freeze a frame, flip the orientation of the screen, adjust the colour temperature and have absolute control over your shot.

Peaking Assist and Zoom-in Focus Tools

Be confident you’re nailing the focus with the monitors focus peaking assist function that highlights the sharp elements of your shot with one of three selectable colours. For even more refined control over your composition the zoom-in focus magnifier allows you to punch into the frame so you can check and adjust critical focus to ensure your shot is as sharp as possible.

Histogram, Zebra and False Colour Exposure Tools

Make sure your shot is correctly exposed and avoid clipping with the built-in histogram that displays a live graph of exposure data in the bottom corner of the screen. The zebra function shows diagonal lines to indicate blown-out highlights while the false colour function displays the shot with a range of colours that represent IRE values that helps you identify over and underexposed elements.

Customisable Function Buttons and Audio Features

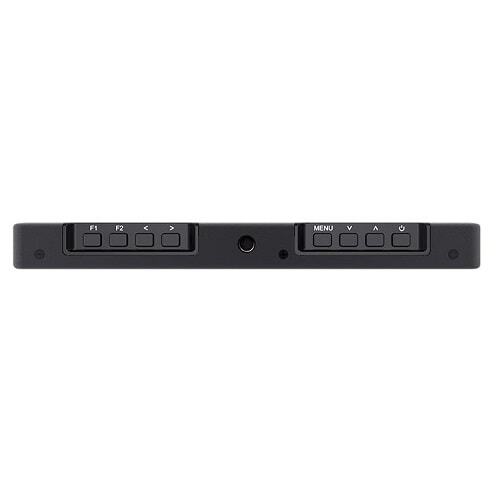

At the top of the unit are two functions buttons that can be programmed as shortcuts for your favourite shooting tools and functions. This means you can quickly activate peaking to set your focus and then flick it off before activating the false colour setting to double check your exposure. The display has a USB port for firmware upgrades, and a built-in speaker and 3.5mm headphone slot for audio monitoring.

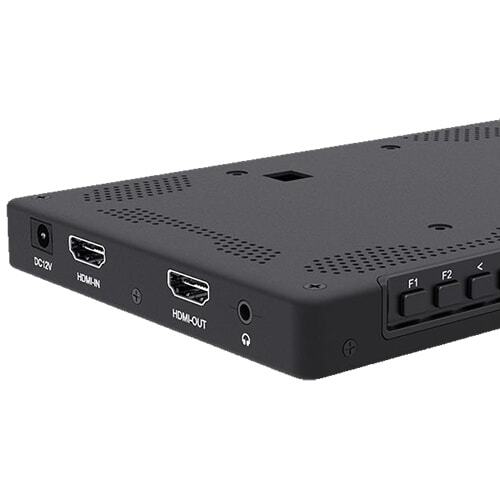

4K HDMI Input and Output with Loop-out Function

Featuring both a HDMI input as well as a HDMI output that support 4K resolutions up to 4096x2160, the T7 can forward a picture signal to another monitor or display while simultaneously displaying that same signal without any decrease in video quality.

Built for Professional Use

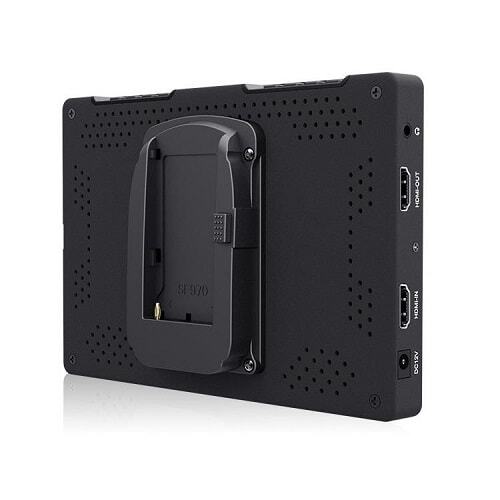

With 1/4-inch tripod sockets at the base and the top of the monitor, attaching the Feel World T 7 to your rig, cage or gimbal is simple. The monitor is incredibly lightweight at only 320 and is constructed from aircraft grade aluminium, ensuring it is robust enough to handle regular use being heavy or bulky. The monitor is designed to be efficient with power consumption and runs off standard sony-style NP-970 batteries.

Display Specifications



Model

T7

Screen Size

7" IPS

Resolution

1920x1200 pixels

Pixel Pitch

0.07875 (H) x 0.07875 (W) (mm)

Aspect Ratio

16:10

Brightness

450cd/m²

Contrast Ratio

1200:1

Backlight

LED

Viewing Angle

80°/80°(L/R) 80°/80°(U/D)

Input



1 X HDMI

HDMI

Output



1 X HDMI

HDMI

Audio



Audio

Stereo Headphone, Speaker

HDMI Input/ Output Support Format



480i/576i/480p/576p



1080i (60/59.94/50)



720p (60/59.94/50/30/29/25/24/23.98)



1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)



4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)



General



Input Voltage

DC7~24V

Power Consumption

=8W

Working Temperature

-20°C~55°C

Storage Temperature

-30°C~65°C

Install Way

1/4"-20 Thread Socket (top, bottom)

Battery Plate

F970 (Standard); D28S/D54, LP-E6, U60 (Optional)

Unit Size

180Lx120Hx18D (mm)

Unit Weight

320g/350g (With F970 Plate)

Advanced Features



* Brightness Histogram



* Embedded Audio



* Peaking Focus Assist (Red, Green, Blue three colours optional highlight over parts of the image in focus)



* False Colours



* Zebra Exposure (1-100IRE adjustable)



* Check Field (Red, Green, Blue, Mono)



* Camera Mode



* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)



* Image Flip (H, V, H/V)



* Image Freeze



* Centre Marker



* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)



* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)



* Colour Temperature Adjustment



* Nine Grid (Zoom one of the images to realize the full screen) (Non-support in 4K input)



* Zoom (4X, 9X, 16X) (Non-support in 4K input)



* Aspect Ratio (Non-support in 4K input)



* Pixel to Pixel (Non-support in 4K input)



* Zoom All (Non-support in 4K input)



* U/D Zoom (Non-support in 4K input)



* L/R Zoom (Non-support in 4K input)




* Specifications subject to change by the manufacturer without notice

  • Feelworld T7 On-Camera Monitor – 7-inch
  • Mini HDMI Cable
  • Sunshade
  • Hot Shoe Mount
  • F970 Battery Plate
  • Operation Manual
  • Prolux Li-Ion Battery 2300mAh - Sony Style NP-F 550
  • Prolux Charger for -  Sony Style NP-F 550 - Battery Charger
