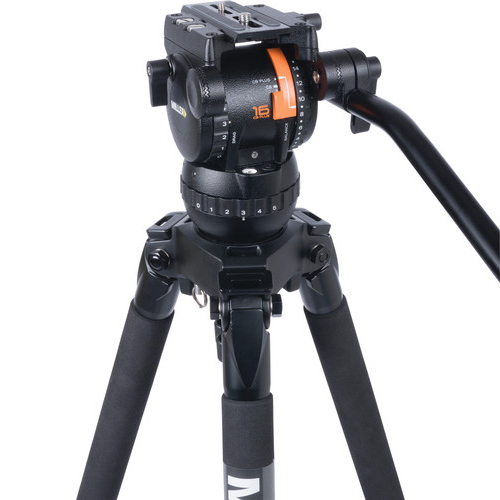

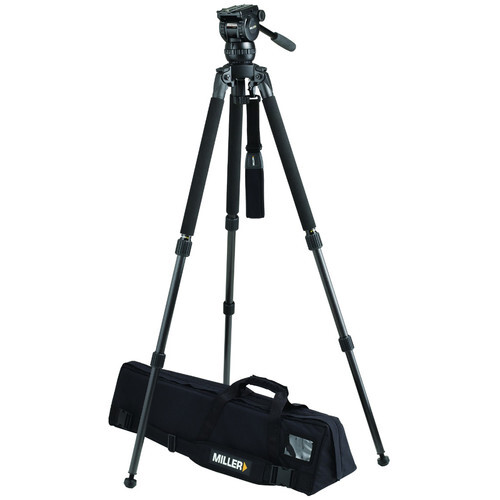

Miller CX8 Tripod System Overview

The Miller CX8 Fluid Head with Solo 75 2-Stage Alloy Tripod System is perfect for videographers on the go. It's light in weight yet offers payload support of up to 12 kg. The quick-deploy 2-stage folding design means there's no need for a spreader. You can shoot low to the ground or above spectators' heads with ease, thanks to the large height range. The wide payload range is supported by a 15+0 step counterbalance and five fluid drag positions, plus a zero drag position. Check out the individual parts of this tripod system for more information.

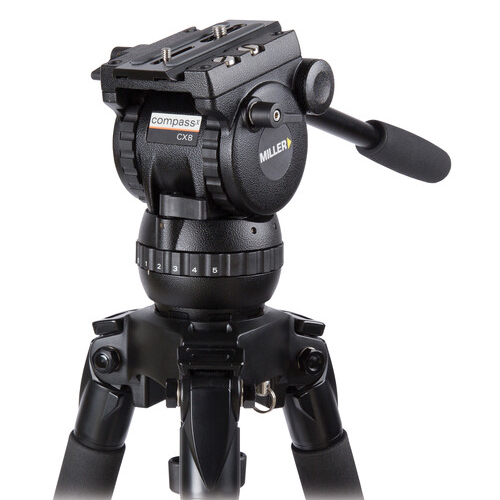

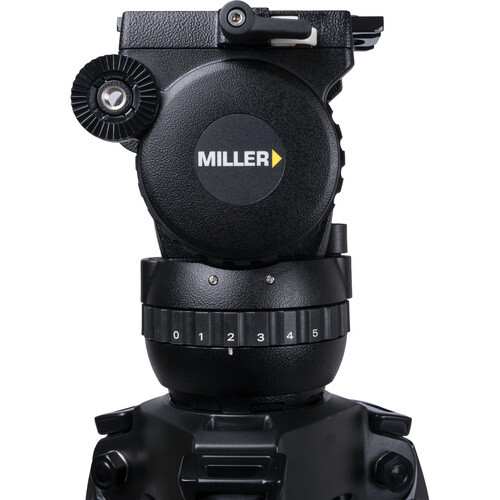

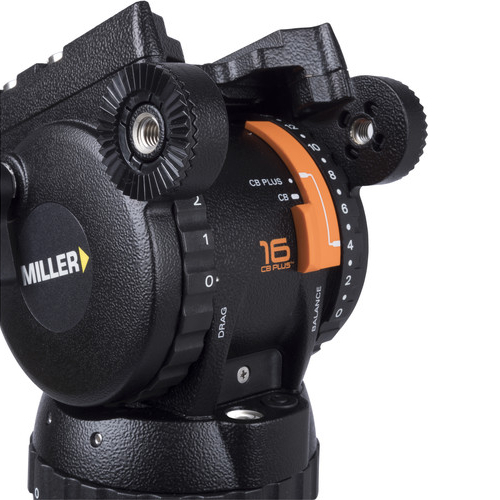

Miller CX8 Fluid Head

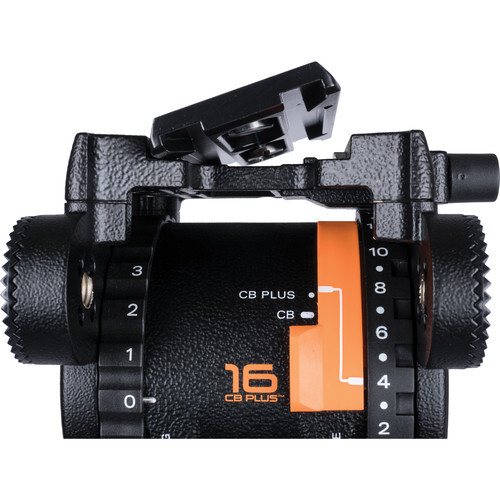

The Miller CX8 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 12 kg, adequate for small cinema cameras with rigs or medium sized ENG camcorders. Securing your camera or rig is easy. The sideload plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 6 cm of sliding range to balance your rig.

To survive fast-paced shooting environments, the CX8 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX8 will perform reliably. The base of the CX8 is a 75mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX8 in dark environments. A fixed length pan handle is included, and a second rosette is available for attaching an optional second pan handle.

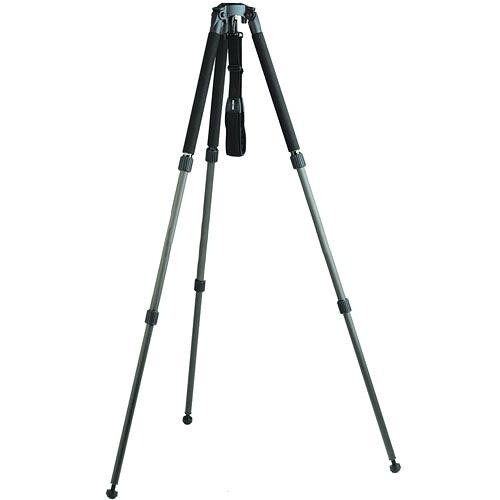

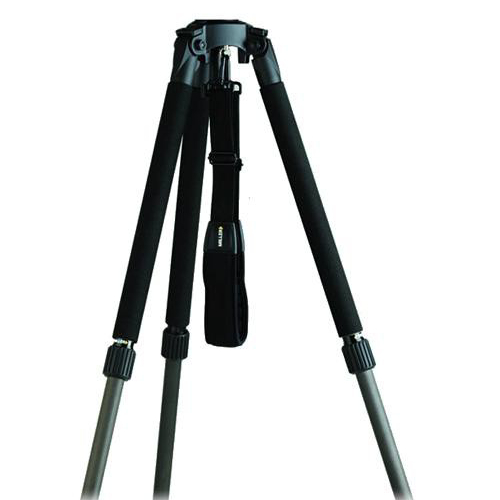

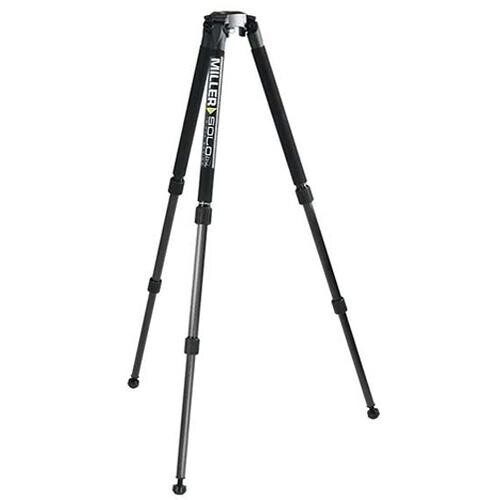

Miller Solo DV aluminium Tripod with 75mm bowl- Supports up to 20 kg

The Miller Solo DV aluminium tripod is a unbraced ultra-light support meant for rapid setup and breakdown while supporting a substantial load of 20 kg. The industry standard 75mm bowl will accommodate many fluid heads, and the spiked legs wind-down rubber pads assure the best footing no matter the terrain.

  • Ultra rigid aluminium alloy and magnesium design
  • 3-position Leg Angle locking - no spreader
  • Spike or wind-down rubber feet

Miller Pan Handle for Compass15 and Compass20 Fluid Heads

The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminium alloy and features a comfortable rubber grip.

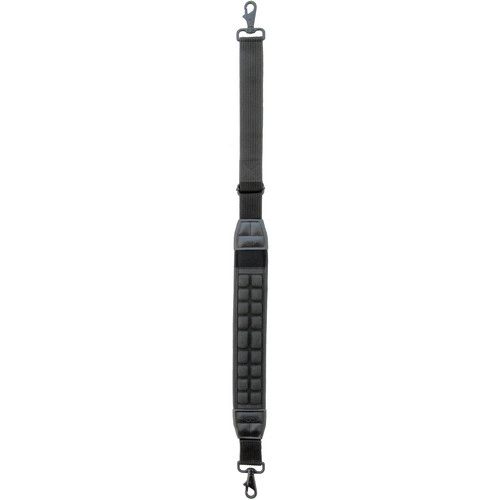

Miller 1520 Solo DV Strap - for Miller Solo DV Tripods

The Miller 1520 Solo DV Strap is a padded tripod carry strap designed for the Miller Solo DV series tripods.

  • 1.5 inch wide tripod carry strap
  • 17 inch long shoulder pad

Compatible with;

  • Miller Solo DV tripods

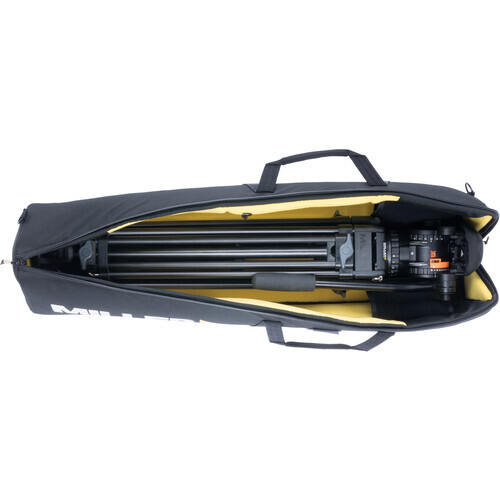

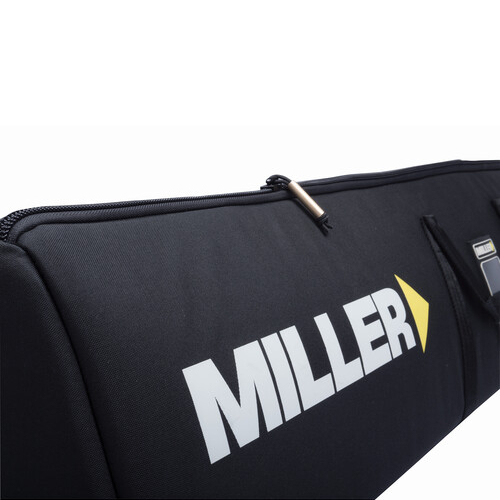

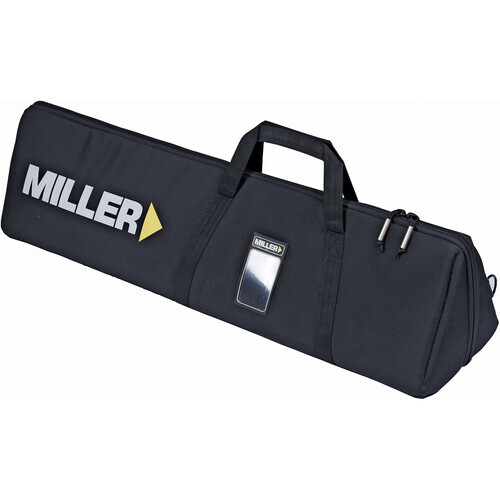

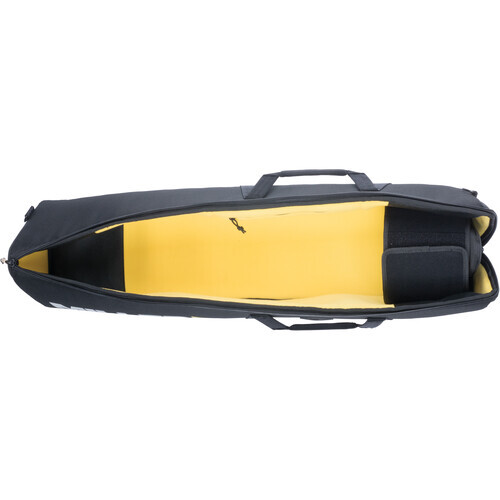

Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)

Store, transport, and protect your tripod or other gear with the black Miller Softcase for 2-Stage Toggle 2 Tripod Systems. This sturdy case is constructed from Cordura nylon and high-density foam, with a brushed polyester interior. The triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.

MILLER CX8 FLUID HEAD

CAMERA PLATE

Camera Plate Features Sliding Balance Plate
Balance Plate Sliding Range 6 cm

HEAD

Base Mount 75 mm Half Ball
Counter Balance Incremental 15-Step Plus 0

PAN & TILT

Drag Control Pan: 5-Step Plus 0
Tilt: 5-Step Plus 0
Vertical Tilt +90° to -75°

GENERAL

Load Capacity 0 to 12 kg
Weight 2.3 kg

MILLER SOLO DV aluminium TRIPOD WITH 75MM BOWL- SUPPORTS UP TO 44 LB (20 KG)

GENERAL

Head Mount Type 75 mm Bowl
Maximum Working Height 161.4 cm
Minimum Working Height 23.4 cm
Closed Length 70 cm
Materials Aluminium
Weight 3 kg

LEGS

Leg Lock Type Twist Lock
Independent Leg Spread Yes
Leg Sections 3
Feet Features Retractable, Spiked

MILLER PAN HANDLE FOR COMPASS15 AND COMPASS20 FLUID HEADS

LEGS

Material Anodized aluminium alloy and rubber
Length 39.0 cm
Weight 0.285 kg

MILLER 1520 SOLO DV STRAP - FOR MILLER SOLO DV TRIPODS

Attachment Method Spring-Loaded Clasp
Shoulder Strap Length 78.7 to 109.2 cm
Strap Width 3.8 cm
Material Nylon

MILLER SOFTCASE FOR 2-STAGE TOGGLE 2 TRIPOD SYSTEMS (BLACK)

GENERAL

Material Cordura nylon exterior, high-density foam padding, and brushed polyester interior
Type of Closure Zipper
Padded Yes
Carrying/Transport Options Dual, top strap handles
Interior Dimensions 93.0 x 26.0 x 24.0 cm
Weight 1.2 kg


*Specifications subject to change by the manufacturer without notice

  • Miller CX8 Fluid Head
  • Pan Handle
  • Miller Solo DV aluminium Tripod with 75mm bowl- Supports up to (20 kg)
  • Miller Pan Handle for Compass15 and Compass20 Fluid Heads
  • Miller 1520 Solo DV Strap - for Miller Solo DV Tripods
  • Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)
