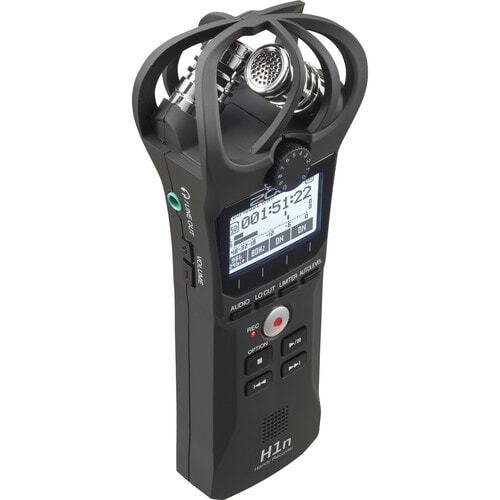

The Zoom H1N Digital Recorder makes it easy to record professional quality audio, perfect for interviews, music, and videos. The microphones are set in an X/Y configuration and can capture stereo sound at up to 24-bit/96 kHz. Offering a distortion free signal up to 120 dB SPL, the on-board limiter produces clean recordings. This is further enhanced by the low-cut filter, which reduces low frequency rumbles and pops. The digital recorder also features an LCD screen and one touch controls so it’s easy to set up, record and transfer your data.

X/Y Microphone Configuration

The Zoom H1N arranges its two microphones in an X/Y configuration at a 90o angle for optimal stereo sound. Thanks to this bidirectional composition, the microphones can record and reproduce sound with greater depth and accuracy, ideal to capture music and ambience.

High Quality Audio Recording

Switch between WAV format up to 24-bit/96kHz, ideal for high-quality audio capture and editing, and MP3 recording up to 320kbps to maximise speed and storage. Synching audio with video is easy thanks to the built-in tone generator and the ability to add audio markers to WAV files, perfect for filmmakers and interviewers.

Low Cut Filter and Limiter

Equipped with an on-board limiter, the H1N can withstand 120 dB SPL of sound pressure, ideal for concerts and loud recordings without distortion. The digital recorder also features a low-cut filter to minimise sound distortions at low frequencies such as rumbling and pops, allowing you to achieve clear recordings even in windy conditions.

Speed Control and Voice Emphasiser

The Zoom H1N allows you to control the playback speed without changing the audio pitch, perfect for transcribing music and interviews. Combined with the Voice Emphasiser Filter, you can record and listen to interviews, dialogue, and vocal performances with clarity and precision.

Overdubbing and Auto Record

Create fuller sounding audio on location with the new overdubbing feature which lets you record an unlimited number of layers over your existing files. Other modes include self-timer, auto-record, and a pre-record function which captures the few seconds of audio just before you hit the record button, perfect for making sure you’ve captured everything you need.

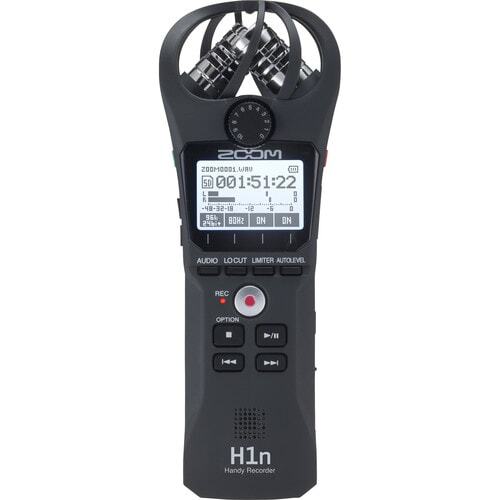

1.25-inch LCD Display

The Zoom digital recorder features a backlit monochrome 1.25-inch screen that’s easy to read in low light and sunlit conditions. The LCD screen displays settings and options in a user-friendly format, making it quick and easy to access and select from the H1N’s range of features.

Simplified Controls and Interface

The redesigned button interface allows you to easily operate the H1N recorder with one hand. The simple design makes changing format and controlling audio input and output intuitive and quick, so you can spend more time recording and less time setting up.

10 Hour Recording Time and microSD Compatibility

Compatible with microSD/SDHC cards up to 32GB, the Zoom audio recorder makes it easy to store and transfer your recordings. With just two standard AAA batteries, you can record for up to 10 hours uninterrupted, perfect for a whole day’s production.

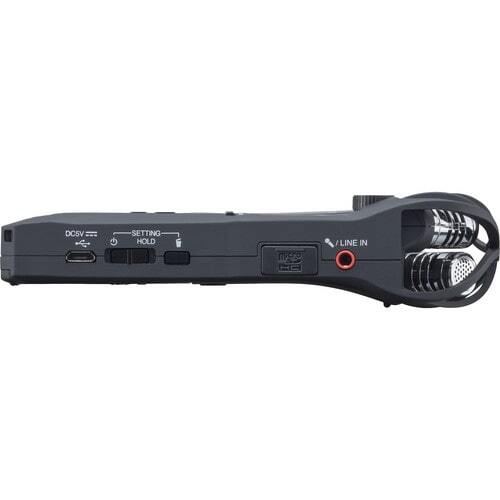

Stereo Line-In and Line-out jacks

It’s easy to use the H1N with your other recording accessories thanks to the 3.5mm jacks on either side of the unit. The line-in jack lets you plug in an external microphone or connect directly to a sound source, like a guitar, while also doubling as another power source outlet. Line-out lets you monitor recordings with external headphones or project your audio over a set of speakers.

USB 2.0 Port and Recording Software

The USB 2.0 Port makes it easy to transfer files without a microSD card reader. Using the USB port, audio can also be recorded at the sample rates of 44.1 or 48 kHz and at 16-bit resolution. The Zoom H1N also comes with music production and audio editing software so you’re ready to remix your recordings out of the box.

Compact and Lightweight Form Factor

The H1N Zoom Recorder has a slim and compact build that can easily fit into your pocket or bag. It’s also lightweight and unobtrusive even while it’s in use, making it a great tool for anyone looking to record high quality audio for a huge variety of applications.

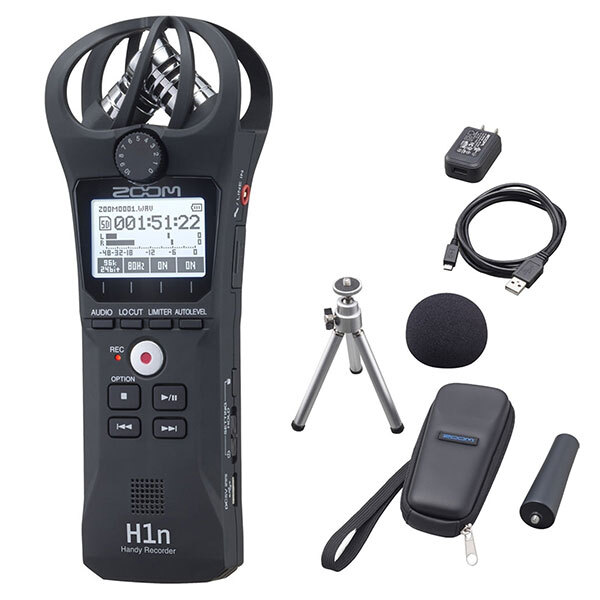

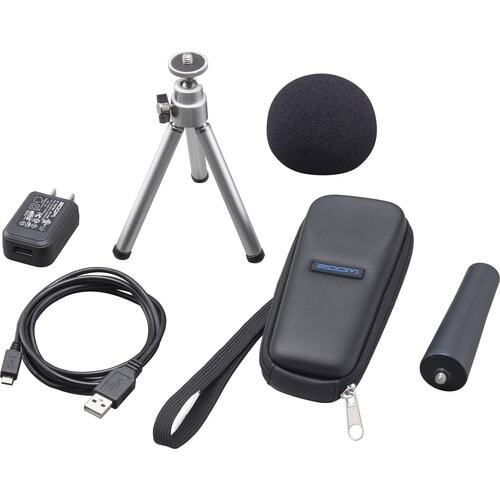

Includes Zoom APH-1n Accessory Pack

The H1N Kit comes with an accessory pack to optimise the use of your recorder. A windscreen and shell case maximises convenience for outdoor recordings while the tripod stand and AC adapter allow you to record longer.

Simultaneous playback tracks:

2

Simultaneous recording tracks:

2

Functions:

Lo-cut Filter, Limiter, Test Tone, Slate-Tone, Voice Emphasize
Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing

A/D conversion:

24-bit, 128x oversampling

D/A conversion:

24-bit, 128x oversampling

Signal processing:

32-bit

Recording media:

microSD/microSDHC cards (Class 4 or higher, up to 32
GB

Display:

1.25-inch monochrome LCD (96 × 64)

Built-in stereo mic:

Unidirectional condenser, 90° XY stereo format
Gain: -8 dB to +39 dB
Maximum sound pressure level: 120 dB SPL

Inputs:

1/8-inch stereo phone jack
Rated input level: -8 dB to -39 dBm
Input impedance: 2 kO
Plug-in power supported (2.5 V)

Built-in speaker:

Built-in 500 mW mono speaker
Output impedance: 8 O

Outputs:

1/8-inch stereo phone jack (combined line/headphones)
Rated output level: 20 mW + 20 mW into 32O load
Output impedance: 10 kO or more

USB:

Micro USB port
Mass storage class operation: USB 2.0 high speed
Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out
Transfer method: asynchronous

Power requirements:

2 AAA batteries (alkaline, nickel-metal hydride rechargeable,
or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A
USB bus power

Battery life (alkaline batteries):

Approximately 10 hours
(continuous recording time using built-in mic, 44.1 kHz/16-bit)

Dimensions:

50 mm (W) × 137.5 mm (D) × 32 mm (H)

Weight:

60 g (without batteries)


* Specifications subject to change by the manufacturer without notice

Zoom H1N Digital Recorder Black
2 AAA Batteries
Windscreen
AD-17 AC adapter
USB cable
Tripod stand
Padded-shell case
MA-2 mic stand adapter
