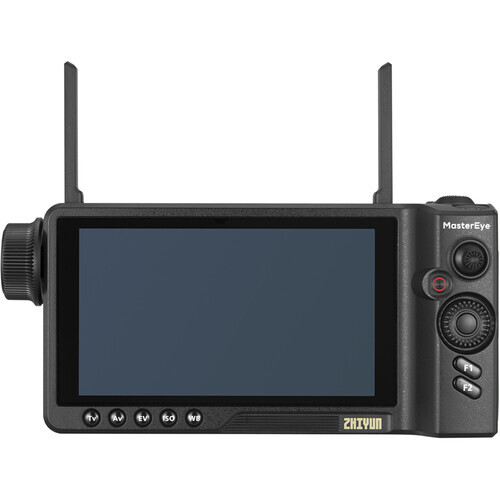

Wireless Camera and Gimbal Control

Take control of your camera and gimbal with the Zhiyun-Tech MasterEye Visual Controller VC100. This device features a 5.5" touchscreen display with a 1920 x 1080 resolution, 1200:1 contrast ratio and 1000 cd/m2 brightness. You can receive a video signal from up to 492' away from a TransMount transmitter, and it has a built-in 2200mAh battery to monitor for up to eight hours.

The monitor can also wirelessly control your camera and gimbal when paired with the optional TransMount focus/zoom control motor and TransMount Video devices. There is a microSD card slot on the VC100 that can record the feed to cards up to 128GB with write speeds over 10 Mb/s, such as a UHS-I/Class 10. There is a 3.5mm headphone output to also monitor the embedded audio. The battery charges using the included USB Type-C port in approximately two hours.

Monitor Vivid Footage

5.5" Full HD touchscreen with 16:9 aspect ratio and a wider screen ensures clear monitoring and every detail is crisp thanks to the 1920 x 1080 resolution.

A Hub of Productivity

With the monitor, wireless video receiver, and remote control integrated into one device, MasterEye Visual Controller VC100 features an ergonomic handgrip with silicone for a comfortable grip, simplified installation and connection, as well as auto-pairing, all contributing to filmmaking efficiency.

Bright and Vivid

To achieve crisp imagery, the MasterEye Visual Controller features 400 PPI, a 1200:1 contrast ratio, and 1000 cd/m2 peak brightness. Auto-adjustment of screen brightness according to the environment is available, or you may manually adjust it according to your needs.

Larger Storage Support

The MasterEye Visual Controller supports a microSD card to a maximum 128GB capacity with write speed exceeding 10 MB/s and a transfer speed of Class 10 and above with a UHS-1 rating.

Screen Recording and Audio Monitoring

It offers 1080p high-quality recording backups and local album playback, and it features a 3.5mm headphone port for real-time audio monitoring in scenes with conversations and audio.

Accurate Focus/Zoom Control and Motion Sensor Control

It pairs with a focus/zoom control motor such as the TransMount Focus/Zoom Control Motor and TransMount Video to adjust focus or focal length. It supports customized adjustment of focus control sensitivity in three levels: Low, Medium, and High. Perform motion sensor control for more convenience, and use the touchscreen for switching stabilizer modes and repositioning.

ZHIYUN VC100

DISPLAY

Panel Type LCD
Size 5.5"
Resolution 1920 x 1080
Maximum Brightness 1000 cd/m2
USB I/O 1 x USB-C Female Input
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC (UHS-I) [128 GB Maximum / Class 10/U1/V10 or Faster Recommended]

WIRELESS

Wi-Fi Yes

BATTERY

Battery Chemistry Lithium-Ion
Battery Capacity 2200 mAh
Recharge Time 2 Hours
Maximum Battery Life 8 Hours

POWER

DC Input Power 6 to 8.4 VDC at 3 A
Power Consumption 3 W
Operating Current 20 mA

ENVIRONMENTAL

Operating Temperature 22 to 77°F / -10 to 45°C

PHYSICAL

Dimensions 20.3 x 15.4 x 7.2 cm (Antennas Extended)
20.3 x 9.2 x 7.2 cm (Antennas Folded)
Weight .45 kg


* Specifications subject to change by the manufacturer without notice

  • Zhiyun MasterEye Visual Controller VC100
  • USB Type-C Cable
