Sony XLR-K3M Dual-Channel Digital XLR Audio Adapter Kit with Shotgun Microphone
SKU code: 47637
- For DSLR, Mirrorless Cameras
- 2 x XLR-1/4" Mic/Line & 1 x 3.5mm Input
- ECM-XM1 Shotgun Mic with Fur Windscreen
- Selectable Digital/Analog Output
- Audio-Level Controls for Each Channel
- Selectable Low-Cut Filter
- Cable-Free Camera Connection via MI Shoe
- Vibration-Resistant Design
For store pickup please contact us
You May Also Like
Bags, Cases & Straps:
Tripods & Monopods:
Cleaning & Maintenance:
Protection & Waterproof:
Viewfinder & LCD:
Sony XLR-K3M Overview

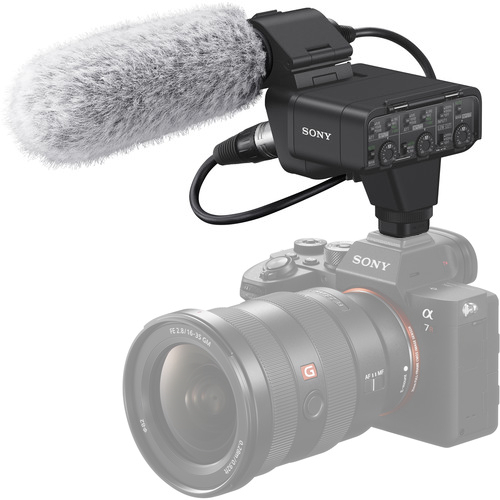

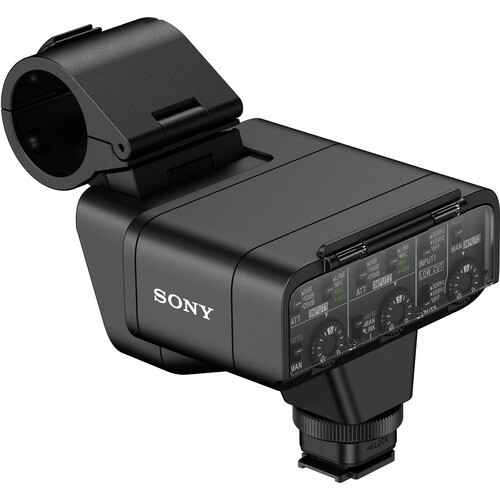

The Sony XLR-K3M is a dual-channel digital XLR audio adapter that allows you to connect microphones and other audio sources to Sony cameras that are equipped with a Multi Interface Shoe. When used with the a7R IV, the adapter is able to provide the highest quality audio by delivering a digital audio stream directly to the camera via the Multi Interface Shoe. Other Sony cameras with the standard MI Shoe can still make use of the microphone as there is a selectable digital/analog output.

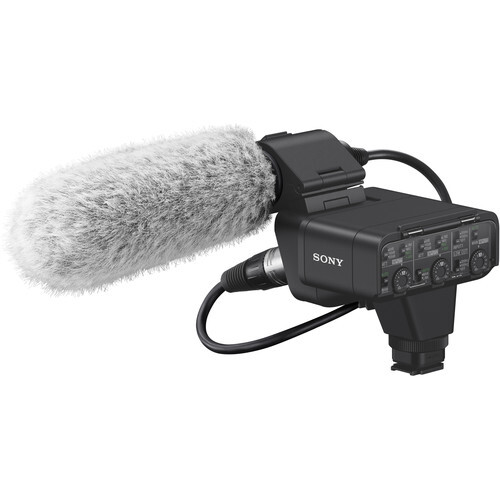

The XLR-K3M features two XLR-1/4" combo mic/line inputs with 48V phantom power, and a 3.5mm stereo input with plug-in power, all with individual-level controls. Intuitive controls make the adapter easy to use right out of the box. An ECM-XM1 shotgun is included so you can immediately start recording your YouTube videos, Facebook Live streams, and interviews, at home, in the studio, or on the go.
Digital Sound with Low Noise
When connected via the Multi Interface Shoe of a compatible camera that features a built-in digital audio interface, the audio signal is directly transferred to the camera in digital form so that no degradation can occur. A simple switch also provides compatibility with a wide range of cameras using an analog interface.
Effective Controls for Clear Sound

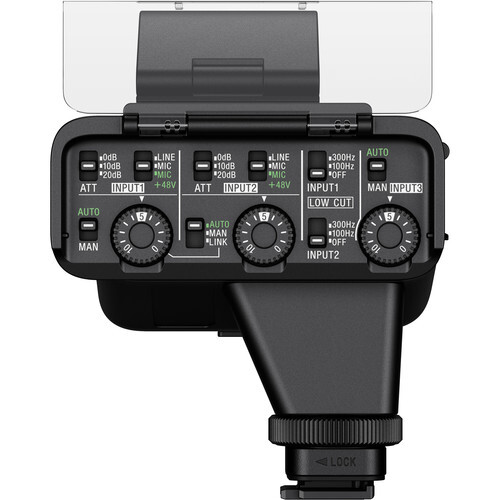

Controls Include: Record level (Auto/Manual), record level link (Input 1-Input 2), attenuator, and low-cut filter (100/300 Hz).
Mechanical Noise Suppression
An advanced shock and vibration-suppressing design effectively minimize low-frequency and handling noise, which can degrade audio quality. The absence of connecting cables, when used with a compatible MI Shoe, also means that no noise can be transmitted to the microphone mechanically via cables and connectors.
Simply clip the microphone into the Multi Interface Shoe on a compatible camera for direct power and audio connections without the need for extra cables or batteries. Sony's Multi Interface Shoe offers intelligent connectivity and control for a variety of accessories, providing maximum flexibility and mobility.

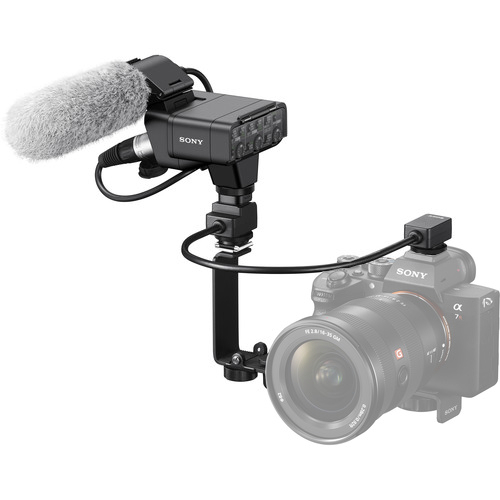

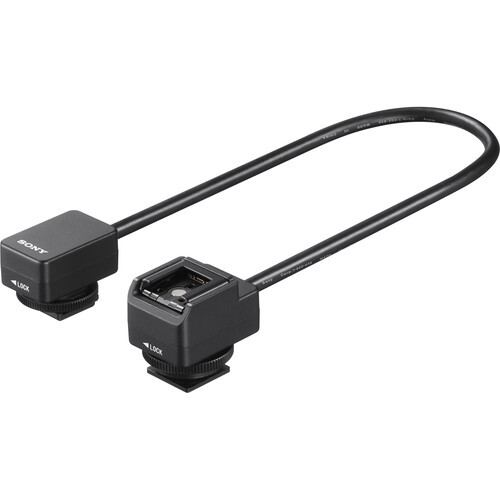

An MI Shoe extension cable is supplied, giving you the flexibility to position the XLR-K3M to accommodate professional rigs and camera cages.
ECM-XM1 Shotgun Microphone
An ECM-XM1 super cardioid monaural microphone and a fur windscreen for wind-noise reduction are supplied.
|Compatibility||Digital Audio: Sony Cameras Equipped with Digital Multi Interface Shoe|
|Analog Audio: Sony Cameras Equipped with Either Multi Interface Shoe or Digital Multi Interface Shoe|

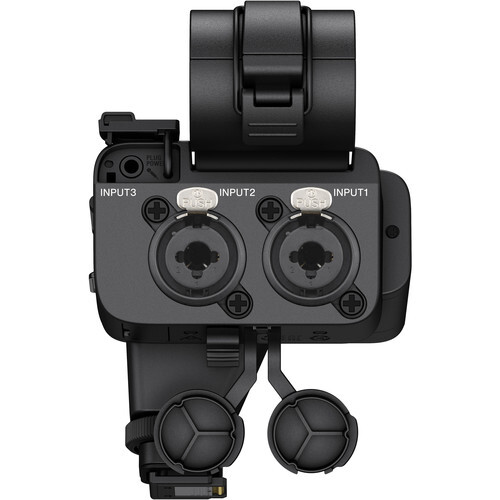

|Input Connections||2 x XLR / TRS Combos, with 48 V Phantom Power, Switchable Mic/Line|
|1 x 1/8" / 3.5mm Stereo, with Plug-In Power|
|Output Connection||Multi Interface Shoe|
|Filters||Low-Cut Filter: 300, 100 Hz|
* Specifications subject to change by the manufacturer without notice
- Sony XLR-K3M Dual-Channel Digital XLR Audio Adapter Kit with Shotgun Microphone
- ECM-XM1 Shotgun Microphone
- Fur Windscreen
- MI Shoe Cable
