Saramonic Blink 500 Transmitter TX
key features
- Ultracompactclip-on body-pack wireless transmitter
- Works with Blink 500 RX, RXDi, and RXUC portable dual-receivers (Sold separately)
- Great soundingbuilt-in omnidirectional microphone
- External mic input (ASR-M1 omnidirectional lavalier microphone included)
- Power indicator
- Volumecontrol buttons
- Built-in clip
For store pickup please contact us
Bags, Cases and Straps
Cleaning and Maintenance
Cables and Connectivity
Books, DVDs and Education
Take your photography to the next level with these Optional Accessories:
Built-in Microphone & Lavalier for Blink 500 Receivers

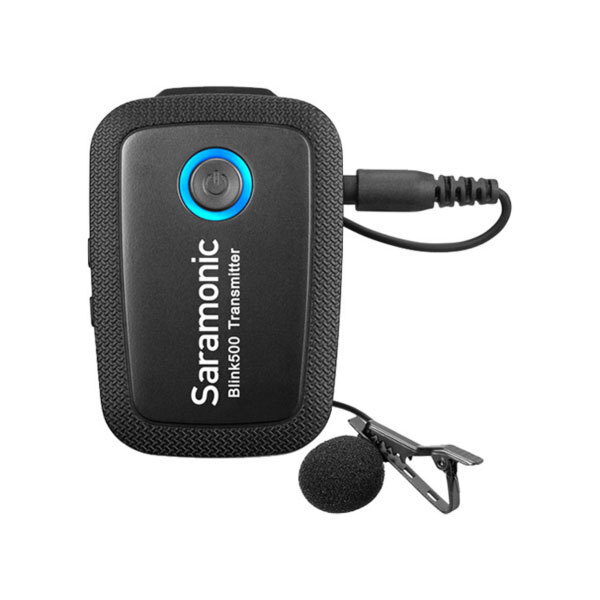

The Saramonic Blink 500 TX is a remarkably compact and lightweight clip-on wireless microphone transmitter with built-in microphone & lavalier that delivers broadcast quality sound and is designed to work with the Blink 500 RX, RXDi, and RXUC portable dual-receivers.
The Saramonic Blink 500 TX has an excellent sounding built-in microphone and the entire device is small and light enough to clip directly to shirt collars, clothing or slide into a pocket. It is also versatile enough to set on a table or podium, or even used handheld.
The built-in microphone is capable of capturing voices clearly and naturally, but if you want an even cleaner visual look, it also operates as a traditional bodypack transmitter with the included SR-M1 professional omnidirectional clip-on lavalier microphone, providing an even more professional and visually discreet miking solution.
The item includes 1 clip-on wireless transmitter with a built-in microphone and a built-in clip, 1 SR-M1 omnidirectional clip-on lavalier microphone and windscreen.
Does not work as a stand alone unit. Requires Saramonic Blink 500 Wireless Receiver which supports up to two simultaneous transmitters. Blink 500 Receiver for Cameras, iPhones and Android Smartphones.
Manufacturer Code: SARAMONIC-BLINK500 TX
Product Code: SaramonicBlink500Transmitter
Transmitter Specifications |
|
Frequency |
2.4GHz |
Oscillator Type |
Gaussian Frequency-Shift Keying (GFSK) |
RF Frequency Band |
2400 to 2483.5 MHz |
RF Output Power |
10 mW |
Signal to Noise Ratio |
≥70dB |
Voice Delay |
≤6ms |
Reference Audio Input Level |
-30 to -42dBv (Microphone Input, 0 dB Attenuation) |
Audio Gain Control |
11dB, 18dB, 25dB |
Plug-In Power |
Yes, 1V |
Distortion |
≤0.1% |
Digital Resolution |
24-bit / 48kHz |
Frequency Response |
20Hz to 16kHz |
Max Operating Range |
30m with Obstacles, 50m line of sight |
Max Number of Simultaneous Systems |
18 (up to 36 Microphones) |
Antenna |
Built-in 1/4λ Wire Antenna |
Buttons |
On / Off / Pair, Volume Up, Volume Down |
Battery |
Built-in Li-ion 3.7V / 400mAh |
Approx. Battery Life |
5 hours |
Charging Connector |
USB Type-C (1.5 hours to be fully charged) |
Input |
3.5mm Microphone Input |
Indicators |
4 x Blue LEDs |
Microphone |
Built-In Pressure Operated Electret Condenser |
Microphone Pickup Pattern |
Omnidirectional (Built-In Microphone and External Lavalier) |
Microphone Frequency Range |
50Hz-18KHz (Built-In Microphone and External Lavalier) |
Microphone Equivalent Noise Level |
>58dB (Built-In Microphone and External Lavalier) |
Maximum SPL |
120dB (Built-In Microphone), 110dB (External Lavalier) |
Mounting Clip |
Built-In |
Operating Temperature |
0°C to 50°C |
Storage Temperature |
-20°C to +50°C |
Dimensions |
63 x 43 x 16.5mm |
Weight |
34g |
* Specifications subject to change by the manufacturer without notice
- Blink 500 TX Transmitter with Built-In Microphone and Clip
- SR-M1 Omnidirectional Lavalier Microphone
- Alligator-Style Lavalier Microphone Clip
- Foam Lavalier Windscreen
- 30.5cm Gold-Plated USB-C to USB-A Charging Cables
- Paring Pin
- Warranty Card
- User Manual
