Designed for High-End Film Production

The Panasonic S1H is the world's first Mirrorless interchangeable lens camera that is capable of 6K video recording. Truly pushing the boundaries of technical innovation, the S1H and its incredible imaging possibilities are looking to disrupt the digital cinema and film production industry forever.

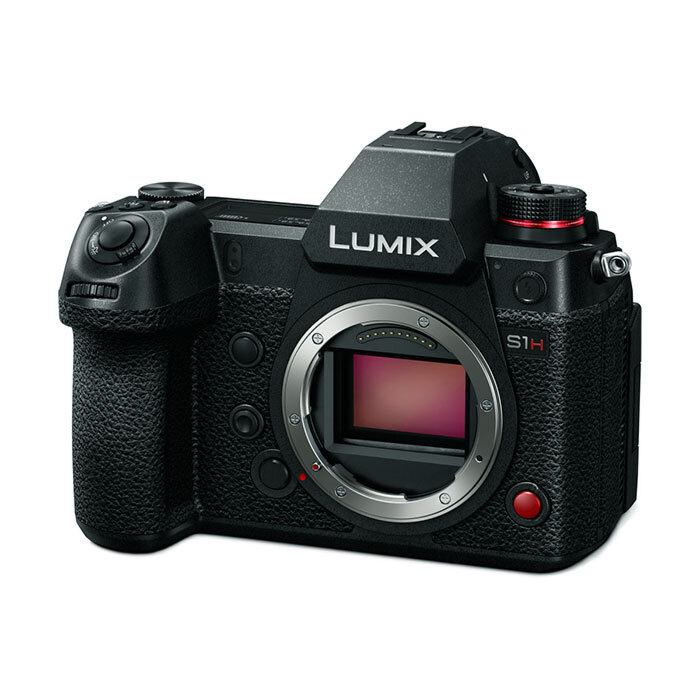

24.2 Megapixel CMOS Sensor

Equipped with a Full-Frame 24.2 Megapixel CMOS sensor and the latest Venus Engine image processor, the S1H has been tuned for excellent low-noise performance cinema quality colour reproduction with a 14-stop dynamic range.

5-Axis Sensor Shift Image Stabilisation

The inclusion of 5-Axis Sensor Shift Stabilisation makes the S1H a very compelling proposition. Compensating for camera-shake when shooting hand-held or on a gimbal, it delivers up to 6 stops of compensation or 6.5 stops when paired with a Dual I.S 2 compatible lens.

Dual Native ISO

Inheriting technology from Panasonic's broadcast range of video cameras, the Lumix S1H is equipped with Dual Native ISO, delivering low noise results in a broad range of lighting conditions. The system comprises of two dedicated circuits for each pixel. This design allows you to use the cameras included picture profiles to deliver clean footage across a broad range of ISO values.

Low ISO Circuit

Its Low ISO circuit provides base sensitivities of ISO100, ideal for regular use. In this mode, ISO values change to ISO640 when V-Log is applied, ISO400 when HLG is applied, and ISO200 when Cinelike D2 is applied.

Low Noise Circuit

The alternative Low Noise circuit offers base sensitivities of ISO640 for normal use, ISO 4000 with V-Log, ISO 2500 with HLG and ISO 1250 when Cinelike D2 is used. The end result is a wide range of options, allowing you to fine-tune your recording based on your specific shooting environment.

6K Video Recording has Arrived

Creating a new entry-point for cinematography the Lumix S1H can deliver true 6K/24p (3:2 aspect ratio) video from it's full frame Sensor. Additionally, it is also the world's first interchangeable lens camera that can shoot 5.9K/30p (16:9 aspect ratio) and 10-bit 60p 4K or Cinema 4K, helping push the technical and creative potential for what's possible in a mirrorless sized camera.

4K 10-bit 60p Video Recording

Like all of Panasonic's range, the camera also supports a variety of recording formats, including 10-bit 4K at 60p, and a 4:3 anamorphic mode at 48p. The high-resolution data of the S1H can also be downscaled to create exceptionally detailed 4K video content for truly life-like results.

Full HD Slow Motion

The S1H is also capable of using an equivalent Super 35mm area of the sensor to output frame rates up to 59.94p. Full HD is also supported at up to 120p for cinematic quality slow-motion effects.

Fast 9fps Burst Mode Shooting

But the S1H is not just a one-trick video recording pony. Its also a very capable stills shooter, delivering an impressive maximum 9fps continuous shooting mode.

96 Megapixel Ultra-High Resolution Mode

Clever utilisation of the 5-Axis Sensor Stabilisation allows the camera to precisely move the sensor to composite a ultra-high resolution 96 megapixel image for maximum detail and post-processing versatility.

14+ Stops of Dynamic Range

The significance of the S1H comes from not only the recording resolution the camera is capable of, but also the rich gradation and wide colour space the sensor can capture. Boasting a range of 14+ stops to ensure a wide spectrum of detail is captured from dark to bright areas, its performance is comparable to Panasonic's high-end Cinema VariCam, except in a significantly more portable size and affordable price range.

V-Log / V-Log L Colour Profile

The S1H offers V-Log/V-Gamut to ensure maximum detail and accuracy in the subtlety of subjects such as skin tone. Designed to fit seamlessly into your existing Panasonic setup, the S1H is compatible with V-Log recorded by VariCam or V-Log L footage from a Lumix GH5 or GH5s.

In-Camera LUT Support

Support for an in-Camera LUT makes monitoring easier, offering a more accurate display of the colour and tone of a scene before post-production even begins. Handy for keeping your rig portable and easy to set up, it potentially eliminates the requirement of a bulky external monitor.

Unlimited Video Recording Time

Similar to all of Panasonic's recent Lumix G and S series cameras, the S1 H is capable of non-stop video recording in every recording mode (depending on battery and memory card capacity). In order to deliver the high product reliability required for mission critical filming scenarios, Panasonic has worked hard to solve heat management problems that are traditionally associated with mirrorless and DSLR cameras to be able to offer an uncompromising solution. This ensures the S1H is suitable for recording a variety of long form subject matter including documentaries, interviews corporate events and more.

Simultaneous Recording

To cater to crews working on critical scenes, the S1H offers simultaneous internal and external recording. Internally the camera utilises Dual UHS-II SD memory card slots and features a HDMI output that supports 4K60 4:2:2 10-bit while recording 4:2:0 10-bit internally or 4K30 4:2:2 10-bit internally and externally.

SMPTE Compliant Time Code

Built-in compatibility with SMPTE-compliant time code ensures it plays nicely with other broadcast cameras. Integrating easily with your existing workflow, footage from the S1H can be easily synced from multiple camera sources saving time and offering convenience during your edit.

Built-in Wi-Fi & Bluetooth Connectivity

The convenience of Bluetooth Low Energy functionality and an ultra-fast 802.11ac Wireless speed ensures a quick, hassle-free connection to your smartphone. Improve your creative potential and social reach by enabling remote shutter release, start/stop video recording and fast image transfer to a smartphone or tablet device.

5.76-Million Dot OLED EVF

Equipped for accuracy, the Panasonic S1H utilises a cutting-edge Real View EVF that utilises a 5.76 million-dot OLED EVF with a large 0.78x viewing magnification that can be customised based on your shooting scenario.

10,000:1 Contrast Ratio

Virtually lag free, the EVF is rated at 0.005 seconds lag and features a 10,000:1 contrast ratio. Its display frame rate can also be adjusted between 60 and 120fps allowing you to fine-tune the display specific to your subject matter or personal preference.

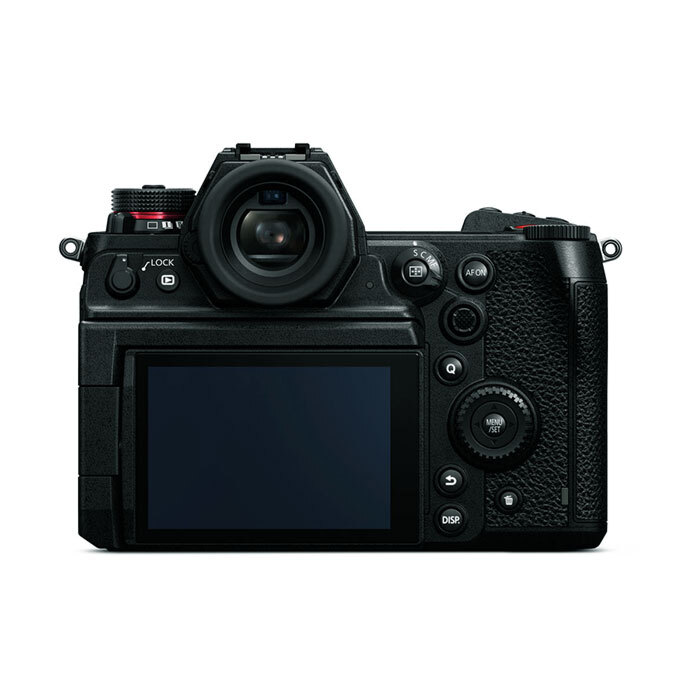

3.2-inch LCD Touchscreen

The rear of the camera houses a larger 3.2-inch LCD Touchscreen. With a 2.33 million dot resolution, it works well with critical focusing applications, ensuring your photos and video are tack-sharp. The touch screen functionality provides a natural, intuitive experience when navigating menus and reviewing photos and video.

Live View Boost & Night Mode

Catering to shooting in difficult lighting, the LCD can be set to a Live View Boost mode where it's viewing sensitivity can be fine-tuned to aid in composing your image when working with dimly lit scenes. For Astro shooters, a Night Mode can be activated to lower the screens backlight intensity while overlaying a red-filter on the display to better preserve your night-adjusted vision.

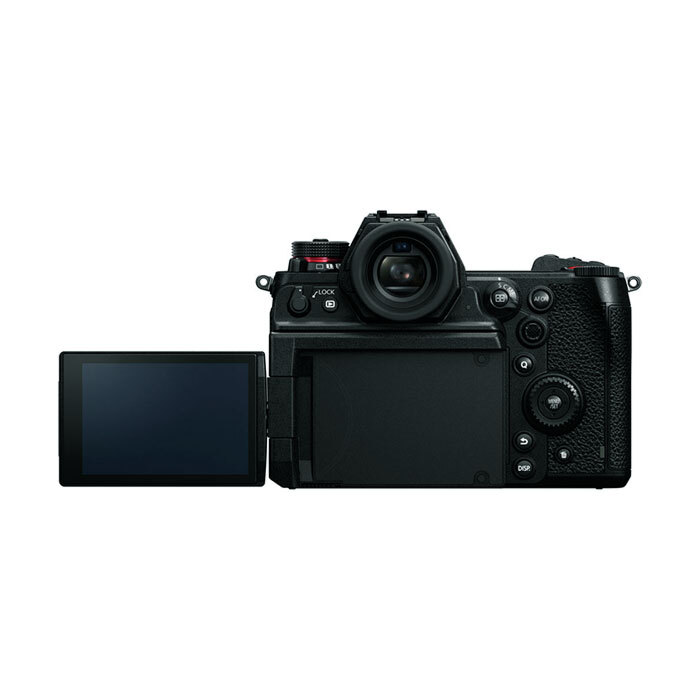

Articulating Screen Design

The articulating design of the rear screen has a cult following in camera circles. Its flip-out design enables shooting from low and high angles with comfort and can be flipped forward for easy monitoring when filming yourself.

Weather Sealed Construction

Constructed from a durable weather-sealed magnesium alloy chassis, the Panasonic Lumix S1H is designed to be a workhorse, capable of holding its own against the toughest shooting conditions. Signalling a new-era of cinematic and professional broadcast equipment, it seamlessly blends uncompromising technical internals with confidence inspiring ergonomics to deliver a truly new standard in camera technology.

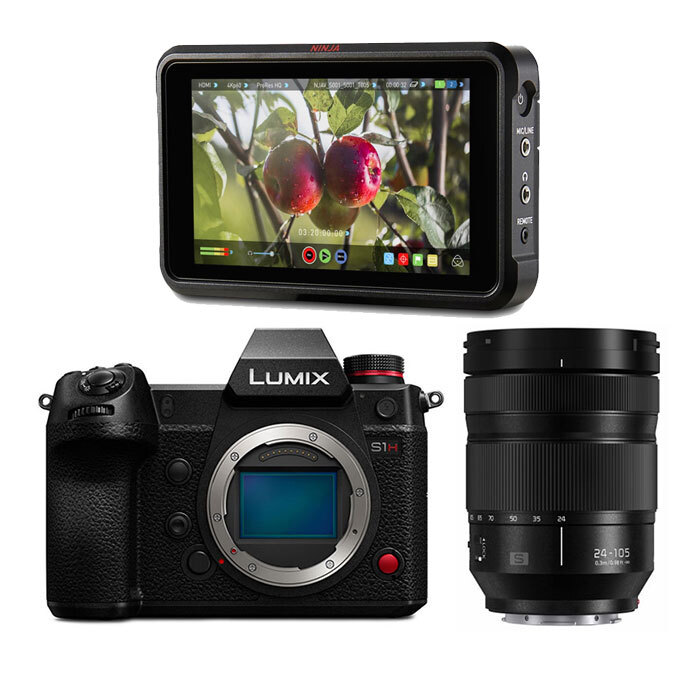

This kit includes the Panasonic Lumix S1H Body + Lumix S 24-105mm F4 MACRO O.I.S. + Atomos Ninja V External Monitor/Recorder.

PANASONIC S1H

IMAGING

Lens Mount
Leica L
Sensor Resolution
Actual: 25.28 Megapixel
  Effective: 24.2 Megapixel (6000 x 4000)
Image Sensor
35.6 x 23.8 mm (Full-Frame) CMOS
Image Stabilization
Sensor-Shift, 5-Axis
Capture Type
Stills & Video

EXPOSURE CONTROL

Shutter Type
Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed
Mechanical Shutter
  1/8000 to 60 Seconds
  Up to 30 Minute in Bulb Mode
  Electronic Front Curtain Shutter
  1/2000 to 60 Seconds
  Up to 30 Minutes in Bulb Mode
  Electronic Shutter
  1/8000 to 60 Seconds
  1/16000 to 1/125 Second in Movie Mode
  Up to 60 Seconds in Bulb Mode
Bulb/Time Mode
Bulb Mode
ISO Sensitivity
Photo/Video
  100 to 51,200 (Extended: 50 to 204,800)
Metering Method
Center-Weighted Average, Highlight Weighted, Multiple, Spot
Exposure Modes
Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation
-5 to +5 EV (1/3 EV Steps)
Metering Range
0 to 18 EV
White Balance
2500 to 10,000K
  Presets: Auto, Cloudy, Colour Temperature, Daylight, Flash, Incandescent,
Shade, White Set 1, White Set 2, White Set 3, White Set 4
Continuous Shooting
Up to 9 fps at 24.2 MP for up to 60 Frames (Raw) / 999 Frames (JPEG)
  Up to 30 fps at 18 MP
  Up to 60 fps at 8 MP
Interval Recording
Yes
Self-Timer
2/10-Second Delay

STILL IMAGE CAPTURE

Image Sizes
0.16875
  10,656 x 8000
  5312 x 3984
  4992 x 3744
  3536 x 2656
  3328 x 2496
  2880 x 2160
  2560 x 1920
  1840 x 1376
  0.126388889
  12,000 x 8000
  5984 x 4000
  5184 x 3456
  3888 x 2592
  3504 x 2336
  3232 x 2160
  2784 x 1856
  1968 x 1312
  0.672916667
  12,000 x 6736
  5888 x 3312
  4064 x 2288
  3840 x 2160
  2816 x 1584
  1920 x 1080
Aspect Ratio
1:1, 2:1, 3:2, 4:3, 16:9, 65:24
Image File Format
JPEG, Raw
Bit Depth
14-Bit

VIDEO CAPTURE

Internal Recording Modes
H.265/MOV 4:2:0 10-Bit
  5952 x 3968 at 23.98/24.00 fps [200 Mb/s]
  5376 x 3584 at 25/29.97 fps [200 Mb/s]
  5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s]
  DCI 4K (4096 x 2160) at 47.95/48.00/50/59.94 fps [200 Mb/s]
  UHD 4K (3840 x 2160) at 47.95/48.00/50/59.94 fps [200 Mb/s]
  3328 x 2496 at 47.95/48.00/50 fps [200 Mb/s]
  1920 x 1080p at 47.95/48.00/100 fps [100 to 150 Mb/s]
  H.264/MOV 4:2:2 10-Bit
  DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]
  UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]
  3328 x 2496 at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]
  1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps [50 to 200 Mb/s]
  1920 x 1080i at 50/59.94 fps [50 Mb/s]
  H.264/MOV 4:2:0 8-Bit
  DCI 4K (4096 x 2160) from 2 to 59.94 fps [100 to 150 Mb/s]
  UHD 4K (3840 x 2160) from 2 to 59.94 fps [100 to 150 Mb/s]
  3328 x 2496 from 2 to 50 fps [100 to 150 Mb/s]
  1920 x 1080p [100 Mb/s]
  H.265/MP4 4:2:0 10-Bit
  UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [72 to 100 Mb/s]
  H.264/MP4 4:2:0 8-Bit
  UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [100 Mb/s]
  1920 x 1080p at 23.98/25/29.97/50/59.94 fps [20 to 28 Mb/s]
  AVCHD 4:2:0 8-Bit
  1920 x 1080p at 23.98/50/59.94 fps [17 to 28 Mb/s]
  1920 x 1080i at 50/59.94 fps [17 to 28 Mb/s]
External Recording Modes
4:2:2 10-Bit via HDMI
  DCI 4K (4096 x 2160) at 23.98/24.00/50/59.94 fps
  UHD 4K (3840 x 2160) at 23.98/24.00/50/59.94 fps
  Raw 12-Bit via HDMI
  5888 x 3312 at 23.98/25/29.97 fps
  4096 x 2960 at 23.98/25/29.97/50/59.94 fps
  3536 x 2656 at 23.98/25/29.97/50 fps
Sensor Crop Modes
Super35 / APS-C
  4K (4096 x 2160)
  4K (3840 x 2160)
  4K (3328 x 2496)
  1080p (1920 x 1080)
Sensor Crop While Recording
1080p (1920 x 1080)
Fast-/Slow-Motion Support
Yes
Gamma Curve
HDR-HLG
Broadcast Output
NTSC/PAL
IP Streaming
RTP, RTSP
  3840 x 2160
Built-In Microphone Type
Stereo
Audio Recording
MOV: 2-Channel 16-Bit 48 kHz LPCM Audio
  MP4: 2-Channel AAC Audio
  AVCHD: 2-Channel AC-3 Audio

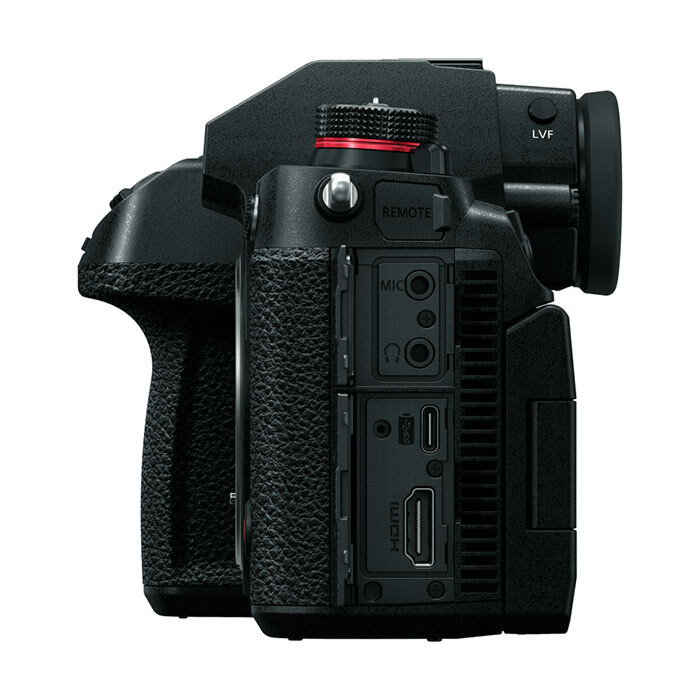

INTERFACE

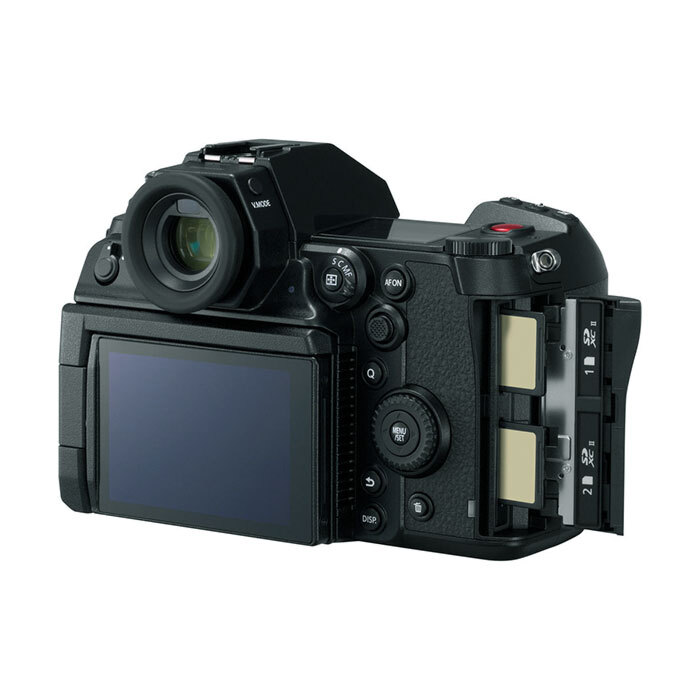

Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-II)
Video I/O 1 x HDMI Output
Audio I/O 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Output
  1 x 1/8" / 3.5 mm TRRS Headphone/Mic Mic/Line Input
Power I/O 1 x USB-C Input
Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 1) Output (Shared with Power Input)
  1 x 2.5 mm Sub-Mini Control Input
Wireless
2.4 GHz Wi-Fi (802.11b/g), Wi-Fi 4 (802.11n)
  5 GHz Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Mobile App Compatible
Yes

MONITOR

Display Size
3.2"
Resolution
2,330,000 Dot
Display Type
Free-Angle Tilting Touchscreen LCD
Secondary Display
Top: Status Display

VIEWFINDER

Type
Built-In Electronic (OLED)
Resolution
5,760,000 Dot
Eye Point
21 mm
Coverage
1
Magnification
Approx. 0.78x
Diopter Adjustment
-4 to +2

FOCUS

Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Contrast Detection: 225
Autofocus Sensitivity
-6 to +20 EV

FLASH

Flash Modes
Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction,
Off, Slow Sync, Slow Sync/Red-Eye Reduction
Maximum Sync Speed
1/320 Second
Flash Compensation
-3 to +3 EV (1/3 EV Steps)
Dedicated Flash System
TTL
External Flash Connection
PC Terminal

ENVIRONMENTAL

Operating Temperature
14 to 104°F / -10 to 40°C
Operating Humidity
10 to 80%

GENERAL

Battery Type
1 x DMW-BLJ31 Rechargeable Lithium-Ion, 7.4 VDC, 3050 mAh (Approx. 400 Shots)
PoE Support
Yes
Power Consumption
≤6.3 W
Netflix Approved
Yes
Tripod Mounting Thread
1 x 1/4"-20 Female (Bottom)
Accessory Mounting Thread
1 x
Material of Construction
Magnesium Alloy
Dimensions (W x H x D)
15.1 x 11.42 x 11.04 cm
Weight
1.16 kg (With Battery, Recording Media)

PANASONIC LUMIX S 24-105MM F/4 MACRO O.I.S. LENS

Focal Length
24 to 105mm
Maximum Aperture
f/4
Minimum Aperture
f/22
Lens Mount
Leica L
Lens Format Coverage
Full-Frame
Angle of View
84° to 23°
Minimum Focus Distance
11.81" / 30 cm
Maximum Magnification
0.5x
Macro Reproduction Ratio
0.043055556
Optical Design
16 Elements in 13 Groups
Diaphragm Blades
9, Rounded
Focus Type
Autofocus
Image Stabilization
Yes
Filter Size
77 mm (Front)
Dimensions (ø x L)
8.4 x 11.8 cm
Length at Maximum Extension
16.19 cm
Weight
0.680 kg

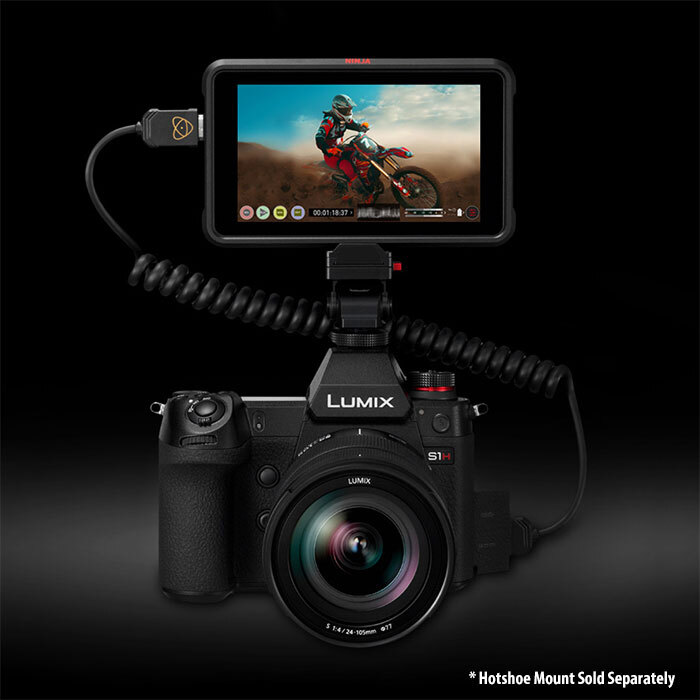

ATOMOS NINJA V

DISPLAY

Panel Type
IPS-Type LCD
Display Size
5.0" / 12.7 cm
Resolution
1920 x 1080
Aspect Ratio
0.672916667
Touchscreen
Yes
Maximum Brightness
1000 nits / cd/m2
Bit Depth / Colour Support
8-Bit+FRC (1.07 Billion Colours)
HDR Compatibility
HDR10, Hybrid Log Gamma
Pixels Per Inch (ppi)
423 ppi
Colour Gamut
100% Rec. 709
Real-Time LUT Monitoring
SDR
Image Controls
Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking,
Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra

INPUTS / OUTPUTS

Video I/O 1 x HDMI 2.0 Input
  1 x HDMI 2.0 Output
Embedded Audio
HDMI: 2-Channel
  HDMI: 8-Channel
Audio I/O 1 x 1/8" / 3.5 mm Mic/Line Input
  1 x 1/8" / 3.5 mm Headphone Output
Power I/O
1 x D-Tap Input
Other I/O
1 x 2.5 mm (LANC)
Media/Memory Card Slot
Single Slot: SSDmini/SSD with Master Caddy II/III
Bluetooth
Yes
Mobile App Compatible
Yes: iOS Only
  App Name: AtomRemote
  Functionality: Adjust Settings, Remote Control

FORMAT SUPPORT

Video Format
HDMI (8/10-Bit 4:2:2)
  DCI 4K: 60/50/30/25/24
  UHD 4K: 60/50/30/25/24
  1080p: 120/60/50/30/25/24
  1080i: 60/50
  720p: 60/50
Gamma Curve
Rec709
Video Signal Conversion
HDMI to SDI
  DCI 4K: 60/50/30/25/24
  UHD 4K: 60/50/30/25/24
  1080p: 120/100/60/50/30/25/24
  1080i: 60/50
  720p: 60/50

RECORDING

Pulldown Conversion
2:2, 3:2
Camera Trigger
HDMI
Pre-Roll Record
4K: 2 Seconds
  Full HD: 8 Seconds
Encoding Formats
Up to 4097 x 2160
  ProRes 422, HQ, LT, Raw, Raw HQ 8/10-Bit
  DNxHR HQ, HQX, LB, SQ 8/10-Bit
Maximum Audio Tracks
12
Metadata Tagging
10

POWER

DC Input Power
5.8 to 7.2 VDC
Battery Type
1 x L-Series
Power Consumption
10 W (Typical)
  22 W (Maximum)

MOUNTING

Mounting
2 x 3/8"-16 Female

ENVIRONMENTAL

Operating Temperature
104°F / 40°C

GENERAL

Material of Construction
Aluminum, Polycarbonate
Dimensions
15.1 x 9.15 x 3.15 cm
Weight
0.360 kg


* Specifications subject to change by the manufacturer without notice

  • Panasonic Lumix S1H Body - Black
  • Lumix S 24-105mm F4 MACRO O.I.S.
  • Atomos Ninja V External Monitor/Recorder
  • Body Cap
  • Hot Shoe Cover
  • Eye Cup
  • Flash Synchro Socket Cap
  • Cover for the Battery Grip Connector
  • Shoulder Strap
  • Battery Pack
  • Battery Charger
  • AC Adaptor
  • AC Mains Lead
  • USB Connection Cable (C-C)
  • USB Connection Cable (A-C)
  • BNC Converter Cable
  • Cable Holder
  • Ninja V Master Caddy II
  • Ninja V AC Power Supply (12V-3A)
  • Lens cap
  • Lens rear cap
  • Lens hood
  • Lens storage bag

Manufacturer Warranty


This product comes with a

12  month Australian warranty

from Panasonic Australia

Want to read more about warranties?

Click here

Add extra protection for peace of mind


One Year Warranty

One Year Warranty

$348.44

One Year Warranty

Two Year Warranty

$456.84

Please call us to purchase a 1 or 2 year Warranty on this product.

Reviews

* Dispatch timeframes are indications only and may vary for multiple quantities. Timeframes are updated regularly during normal business hours.
