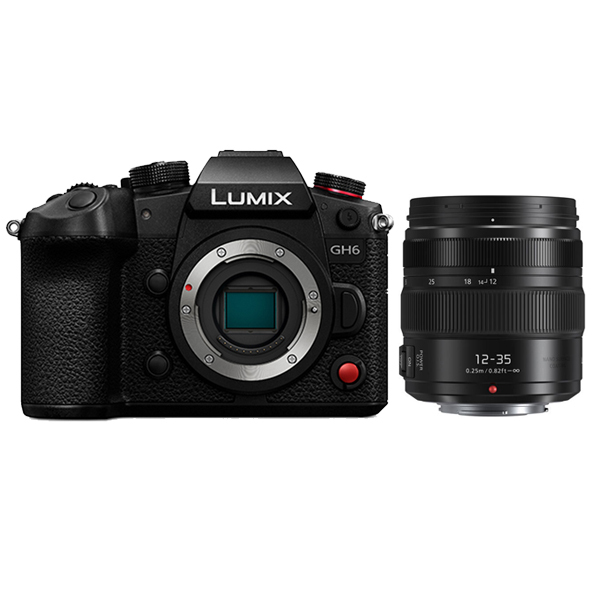

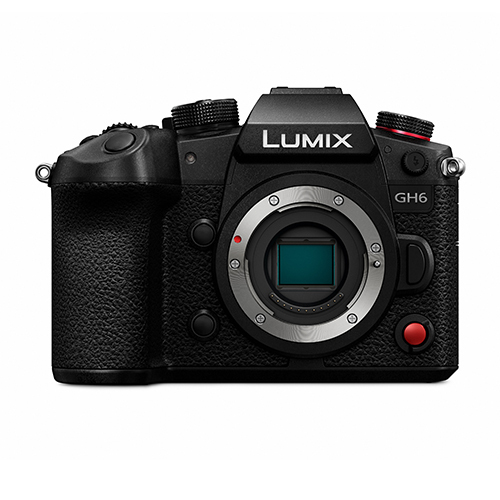

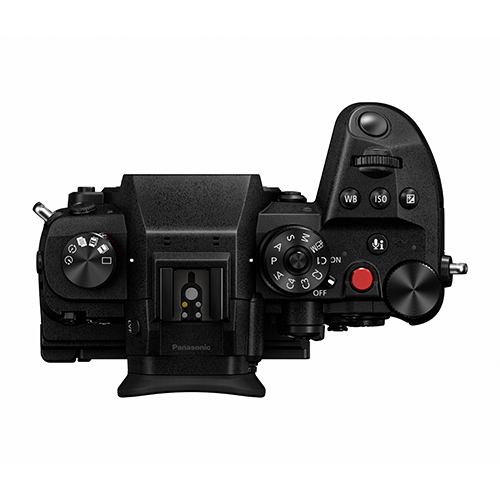

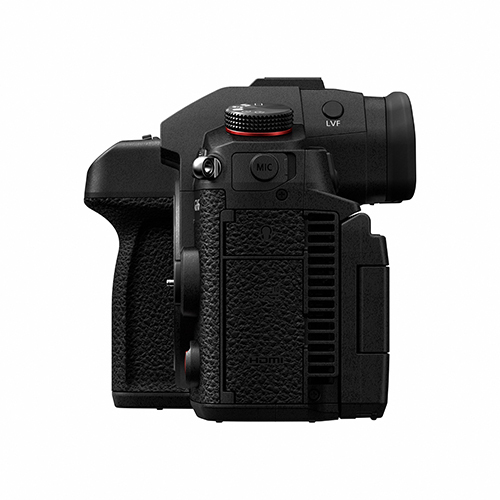

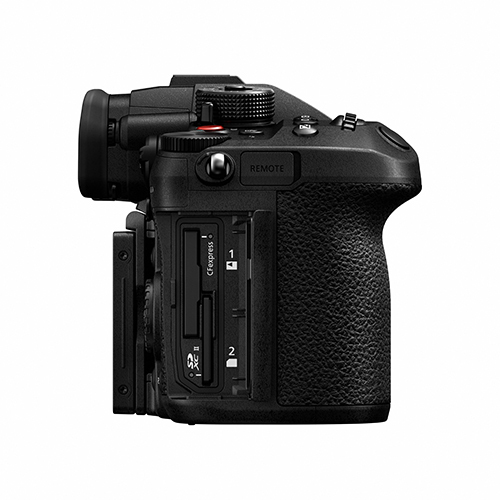

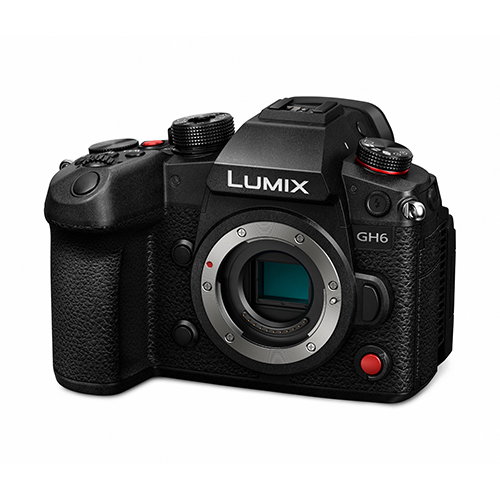

The Panasonic Lumix GH6 mirrorless camera paired with Lumix G X Vario 12-35mm f/2.8 II Lens is the latest flagship model in the LUMIX G Series digital mirrorless camera range, pushing the limits of what is possible from a Micro Four Thirds system camera.

The GH6 features a newly built 25.2-megapixel Live MOS Sensor, a first in the Micro Four Thirds category. Aside from high-resolution imaging and fast signal readout, the sensor's single exposure HDR technology represents a considerable improvement in dynamic range capability. Not only offers the next-generation Venus Engine power advanced image processing and computational photography, but it also opens up a new universe of video codec options and frame rates to improve workflow and flexibility for professional and budding videographers. The GH6 supports V-Log/V-Gamut and has an impressive 13+ stops dynamic range.

The Lumix GH6 now offers Apple ProRes 422 HQ, 5.7K 30p internal video recording, which simplifies workflow for filmmakers. This saves time in the editing process by eliminating the time-consuming procedure of transcoding media from standard compressed codecs into ProRes or proxy formats, which is frequently done by mirrorless hybrid camera users. Today's designers want high framerate recording possibilities in larger resolutions as well. The GH6 does this with superb C4K 120p in 10-bit 4:2:0, all without cropping or the image quality compromises that are common in the hybrid camera segment. LUMIX customers have always enjoyed consistently lengthy recording times, and the GH6 is no different, with unlimited recording aided by Panasonic's newest heat management technology, even in intense recording settings like HDR.

The Panasonic GH6 camera delivers 7.5 stops of outstanding image stabilisation in both wide and telephoto focal lengths, building on their tradition of great stabilisation for hybrid shooters. Dual I.S.2 allows users to choose between using tripods, gimbals or shooting completely handheld, all while delivering smooth and professional shots. The GH6 contains a new extremely high-precision 5-axis gyro sensor with a unique algorithm, which achieves 7.5 stops of Body I.S. and Dual I.S.2.

Panasonic Lumix GH6 Key Capabilities:

Sensor and processor technologies

Panasonic has created a new 25.2-megapixel Live MOS Sensor (Micro Four Thirds System) with no LPF (Low-pass Filter) and a high resolution, high-speed signal readout that reduces rolling shutter and achieves a wide dynamic range. With pre-installed V-Log and HLG recording and the Dynamic Range Boost setting, the Lumix GH6 offers 13+ stops of a wide dynamic range. This mode employs two analogue circuits, one with a high gain and one with a low gain, each of which captures a distinct exposure and saturation/noise level at the same time. The two pictures are pixel-by-pixel blended to produce a high dynamic range photo with low noise and high saturation, delivering clear and smooth HDR footage with rich gradation.

Newly developed Venus Engine

The new Venus Engine has roughly double the processing capability of the preceding generation. Intelligent Detail Processing, 2D Noise Reduction, High Precision 3D Noise Reduction for Video, and High Precision 3D Colour Control are some of the important technologies that have evolved. They work together to produce less noise, more detail and richness, and improved colour reproduction for rich, true-to-life colour representation.

100-megapixel high resolution images

100-megapixel high-definition photographs can be produced in-camera utilising the High-Resolution setting, either with a tripod or handheld, thanks to the strong image stabilisation technology. Using the Body I.S., eight consecutive photos are shot automatically while changing the sensor. The end result is a beautiful 100-megapixel (11552 × 8672-pixel) photo that properly reproduces fine details and can be stored in both RAW and JPEG formats. Multiple modes for photographing a variety of scenarios, including those with motion, are offered to give photographers the most shooting versatility.

Professional-quality video performance for unlimited expression

The GH6 has a remarkable C4K 60p 10-bit 4:2:2 limitless video recording capability. Furthermore, high frame rate video recording has been improved to incorporate 4K 120p 10-bit 4:2:0 and FHD 240p 10-bit 4:2:2 (with audio recording), allowing for amazing expressiveness such as speed ramping. VFR (Variable Frame Rate) is available in Full HD 10-bit at up to 300fps for dynamic slow motion.

Wide screen anamorphic content

When using dedicated anamorphic lenses or filters, the GH6 provides full-sensor 5.8K 30p 10-bit recording for filmmakers requiring widescreen anamorphic imagery. It is possible to display de-squeezed footage for real-time monitoring.

4:2:2 10-bit C4K 60p video recording

The LUMIX GH6 also supports 4:2:2 10-bit C4K 60p both internally and externally through HDMI. With a future firmware upgrade, HDMI 2.1 will offer C4K 120p HDMI video output. An upcoming firmware upgrade will also enable C4K 120p 12-bit RAW output to the Atomos Ninja V+ monitor recorder.

Multiple video assist functions

Panasonic has integrated video assist capabilities such as a Waveform Monitor, Zebra Pattern, Luminance Spot Meter, Frame Marker, Anamorphic Desqueeze Display, Red REC Frame Indicator, and Tally lamps in response to expert user requirements. Safety Zone Marker, which gives a guide of 95 percent, 90 percent, or 80 percent recording area, is one of the new updated features, and Centre Marker now enables you to select the type of marker. The kelvin values can now be presented on the user interface while filming under Colour Temperature Setting.

High resolution audio recording

High-resolution audio recording is now possible, with up to 24-bit 96kHzv support. Videographers can capture four channels of audio using the optional XLR Microphone Adaptor DMW-XLR1 and the 3.5mm input jack/built-in microphone, avoiding the requirement for external audio recording devices. External microphone combinations can be employed to best meet the recording scenario, such as outdoor interviews when both voices and ambient sound must be recorded. During video recording, the headphone channel can be altered, and audio menus can be accessed immediately using the Fn1 button on top of the camera for quick sound level checks during 4-channel audio recording.

Internal time lapse

Inside the camera, 4K 60p Time Lapse footage can also be created. The Exposure Levelling tool automatically adjusts the exposure to eliminate dramatic fluctuations in brightness between adjacent frames, allowing day-to-night 'holy grail' time lapses to be recorded in-camera. Users can understand the required parameters without the usage of other apps/intervalometers thanks to the inbuilt time-lapse calculator.

Agile and smart operation for professional use

The autofocus capability of the LUMIX GH6 has been improved by taking advantage of the upgraded sensor and image processing engine. Subject detection performance has been greatly improved to produce higher accuracy AF thanks to faster signal processing by the new image processor and an upgraded AF algorithm. The AF Focus Limiter is a new feature that allows users to specify a near and distant range that the camera's autofocus will stay within, ensuring consistent results in difficult settings.

Manual focusing assist

The LUMIX GH6 offers practical manual focusing options, such as MF Assist, which allows the focus point to be increased while video recording, to support high-precision focusing. By altering the degrees required for the lens to travel over the focus range from close to infinity focus, the linear focus control allows for reproducible focus pulls.

Free-angle touch-control 3.0-inch Screen

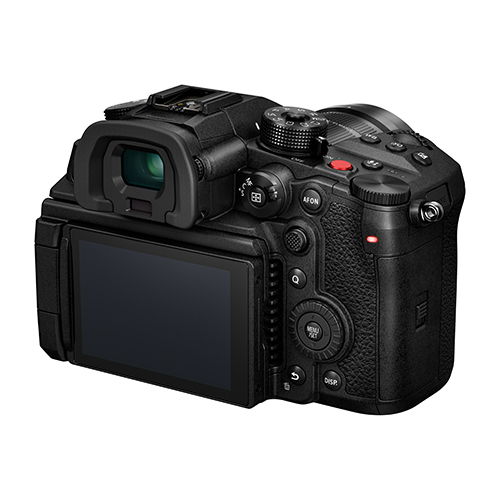

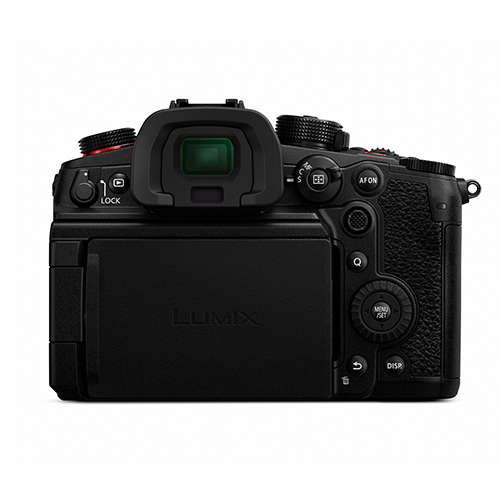

The LUMIX GH6 boasts a flexible free-angle touch-control 3.0-inch LCD back monitor to improve shooting ergonomics (3:2 aspect, 1840K-dot resolution). Tilt/rotation angle can be easily adjusted so that HDMI and USB cords do not get in the way during shooting. A huge, 3,680K-dot OLED (Organic Light-Emitting Diode) LVF (Live View Finder) with a magnification ratio of about 1.52x / 0.76x is included (35mm camera equivalent).

Reliable quality and performance for professional use and connectivity

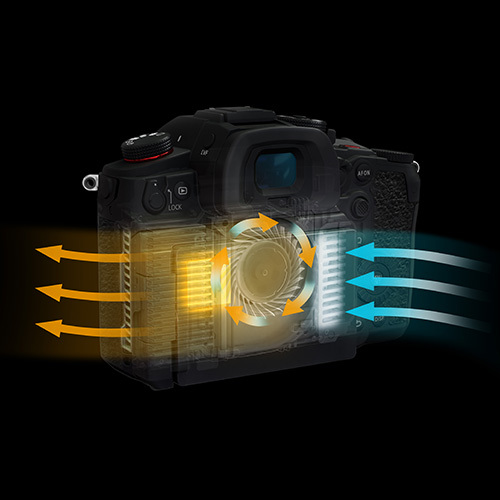

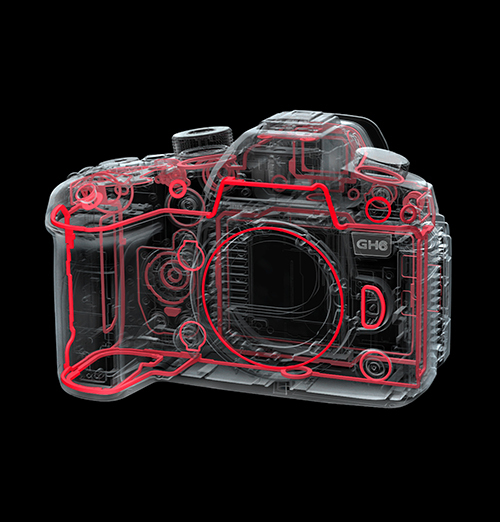

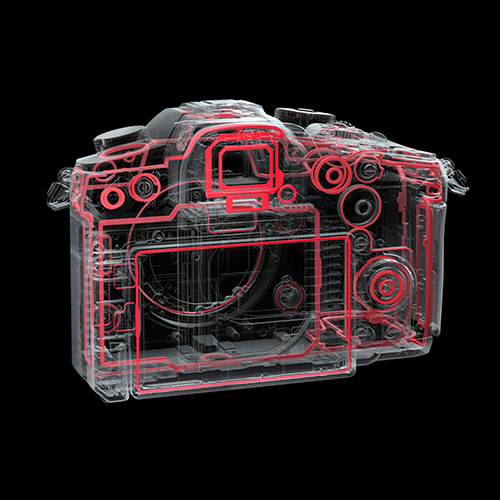

The Lumix GH6 has a durable field-ready construction. It has a splash and dust-resistant magnesium alloy full diecast front/rear frame, as well as being freeze-resistant down to -10 degrees Celsius. Recording buttons are situated on the top and front of the camera, making it simple to start and stop recording even when shooting from a low angle or with a shoulder rig.

Future firmware updates

There is a strong firmware roadmap to expand GH6 capabilities. The following functions will be available with future firmware updates to meet evolving customer needs.

  • DCI4K ProRes 422 HQ / ProRes 4 2 2
  • FHD ProRes 422 HQ / ProRes 4 2 2
  • USB-SSD direct recording
  • 4K 120p HDMI Video output during Live View
  • DCI 4K 120p HDMI RAW Video Data Output to ATOMOS Ninja V+

Panasonic Lumix G X Vario 12-35mm f/2.8 Mk II Lens

The Panasonic Lumix G X Vario 12-35 mm f/2.8 Lens is an all-purpose zoom designed for use with the LUMIX G Series and micro four thirds mount cameras. It has a constant f/2.8 aperture over the zoom range and delivers a handy 35mm focal length equivalent of 24-70mm. With 14 optical elements in 9 groups, it produces sharp images and is resistant to dust and water incursion, making it a great choice for professionals working in unforgiving conditions.

TYPE

Type

Digital Single Lens Mirrorless camera

Lens mount

Micro Four Thirds mount

IMAGE SENSOR

Type

Live MOS sensor (17.3 x 13.0 mm)

Camera effective pixels / Total pixels

25.21 megapixels / 26.52 megapixels

AR (Anti Reflection) coating

Yes

Aspect ratio / Color filter

4:3 / Primary color filter

Dust reduction system

Image sensor shift type

LATITUDE

Dynamic Range Boost ON: 13+ stops (V-Log) Dynamic Range Boost OFF: 12+ stops (V-Log)

STILL IMAGE

Recording file format

JPEG (DCF, Exif 2.31), RAW

Aspect ratio

4:3 / 3:2 / 16:9 / 1:1

File size (Pixels)

4:3

5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)*

*High Resolution Mode.

3:2

5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)*

*High Resolution Mode.

16:9

5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)*

*High Resolution Mode.

1:1

4336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)*

*High Resolution Mode.

Image quality

RAW / RAW+Fine / RAW+Standard / Fine / Standard

Color space

sRGB, AdobeRGB

MOTION PICTURE

Recording file format

MOV: H.264/MPEG-4 AVC, H.265/HEVC, ProRes





MP4: H.264/MPEG-4 AVC, H.265/HEVC



Audio format

MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)





MP4: AAC (2ch 48kHz/16-bit)





*When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).



System frequency

59.94Hz / 50.00Hz / 24.00Hz



Image area of video

Full / Pixel by Pixel



MOV (*1) (*2)

59.94Hz

[5.8K] 5760x4320 (4:3)

29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)



*HLG is selectable.



[5.7K] 5728x3024 (17:9)

59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)







[4.4K] 4352x3264 (4:3)

59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)







[C4K] 4096x2160

119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*









59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









*When Dynamic Range Boost is set to OFF.







[4K] 3840x2160

119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*









59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









*When Dynamic Range Boost is set to OFF.







[FHD] 1920x1080

239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**









239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**









119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*









119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*









59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)









23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)









*When Dynamic Range Boost is set to OFF. **When Image Area of Video is set to FULL.





50.00Hz

[5.8K] 5760x4320 (4:3)

25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[5.7K] 5728x3024 (17:9)

50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[4.4K] 4352x3264 (4:3)

50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[C4K] 4096x2160

100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 *When Dynamic Range Boost is set to OFF.

[4K] 3840x2160

100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 *When Dynamic Range Boost is set to OFF.

[FHD] 1920x1080

200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
 200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 *When Dynamic Range Boost is set to OFF. **When Image Area of Video is set to FULL.





24.00Hz

[5.8K] 5760x4320 (4:3)

24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[5.7K] 5728x3024 (17:9)

48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[4.4K] 4352x3264 (4:3)

48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[C4K] 4096x2160

120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 *When Dynamic Range Boost is set to OFF.

[4K] 3840x2160

120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 *When Dynamic Range Boost is set to OFF.

[FHD] 1920x1080

120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
 120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
 *When Dynamic Range Boost is set to OFF.



MP4 (*1)

59.94Hz

[4K] 3840x2160

59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*









29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*









23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*









29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)









23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)









*HLG is selectable.







[FHD] 1920x1080

59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)









29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)









23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)





50.00Hz

[4K] 3840x2160

50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*









25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*









25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)









*HLG is selectable.







[FHD] 1920x1080

50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)









25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)





24.00Hz

-

-



ProRes (*1) (*2)

59.94Hz

[5.7K] 5728x3024 (17:9)

29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4
 23.98p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4

AVC, LPCM)
 AVC, LPCM)

50.00Hz

[5.7K] 5728x3024 (17:9)

25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4

AVC, LPCM)

24.00Hz

[5.7K] 5728x3024 (17:9)

24.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4

AVC, LPCM)

VARIABLE FRAME RATE

MOV (*1)
 *HLG is selectable.

59.94Hz

[5.7K] 5728x3024 (17:9)

29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *When Image Area of Video is set to FULL.

[C4K] 4096x2160

59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.

[4K] 3840x2160

59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.

[FHD] 1920x1080

59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
 *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.

50.00Hz

[5.7K] 5728x3024 (17:9)

25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *When Image Area of Video is set to FULL.

[C4K] 4096x2160

50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.

[4K] 3840x2160

50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.

[FHD] 1920x1080

50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
 *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.

24.00Hz

[5.7K] 5728x3024 (17:9)

24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *When Image Area of Video is set to FULL.

[C4K] 4096x2160

24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
 24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.

[4K] 3840x2160

24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.

[FHD] 1920x1080

24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
 *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
 *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.

VIEWFINDER

Type

OLED Live View Finder

Pixels

Approx. 3.68 million dots

Field of view / Magnification

Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3

Eye point / Diopter adjustment

Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)

Eye sensor

Yes

REAR MONITOR

Type

TFT LCD monitor with static touch control

Monitor size

Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect

Pixels

Approx. 1.84 million dots

Field of view

Approx. 100%

FOCUS (*3)

Type

Contrast AF system

DFD technology

Yes

Focus mode

AFS (Single) / AFC (Continuous) / MF

AF mode

Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
 *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.

AF detective range

EV -4 - 18 (F2.0, ISO100 equivalent, AFS)

AF custom setting

AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

AF assist light

Yes

AF lock

Set the Fn button in custom menu to AF lock

Focus ring control

Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)

*When a compatible lens is attached.

Others

AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus
 Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

Light metering system

1,728-zone multi-pattern sensing system

Light metering mode

Multiple / Center Weighted / Spot / Highlight Weighted

Metering range

EV0-18 (F2.0 lens, ISO100 equivalent)

Mode dial

Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
 *The same exposure operations as P/A/S/M mode is available.

Exposure compensation

1/3 EV step ±5EV (±3EV for motion picture)

Dynamic Range Boost

ON / OFF

ISO sensitivity (Standard
 output sensitivity)

Still image

[Normal]
 Auto / 50 (Extended ISO) / 100-25600
 [V-Log]
 Auto / 125 (Extended ISO) / 250-12800
 *Switchable between 1/3 or 1 EV step.

Motion picture

[Normal]
 Dynamic Range Boost OFF (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800 Dynamic Range Boost ON (Creative Video Mode) (Base ISO 800): Auto / 800-12800
 [V-Log]
 Dynamic Range Boost OFF (Base ISO 250): Auto / 125 (Extended ISO) / 250-12800 Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800
 [Hybrid Log Gamma]
 Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
 Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800
 *Switchable between 1/3 or 1 EV step.

AE lock

Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

B.I.S. (5-axis / 7.5-stop*)
 *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.
 Dual I.S. 2 (7.5-stop**)
 **Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

WHITE BALANCE

White balance

AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

White balance adjustment

Blue/Amber bias, Magenta/Green bias

Color temperature setting

2500-10000K in 100K

SHUTTER

Type

Focal-plane shutter

Shutter speed

Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
 Motion picture: 1/25,000 - 1/25
 Creative Video M mode / MF mode: 1/25,000 - 1/8

Self timer

10sec, 3 images / 2sec / 10sec / Custom Time

Remote control

Remote control by DMW-RS2 (sold separately)

Silent mode / Shutter type

Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket

3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

Aperture bracket

3, 5 or all positions

Focus bracket

1 to 999 images, focus steps can be set in 10 levels

White balance bracket

3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed

Mechanical shutter /
 Electronic front curtain shutter

H: 14 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
 M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) L: 2 frames/sec (AFS/MF/AFC) (with Live View)

Electronic shutter

SH75: 75 frames/sec (AFS/MF) SH60: 60 frames/sec (AFS/MF) SH20: 20 frames/sec (AFS/MF)
 H: 14 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
 M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) L: 2 frames/sec (AFS/MF/AFC) (with Live View)

Number of recordable images

H/M/L*
 RAW+JPEG: More than 40 images
 RAW: More than 65 images**, More than 50 images*** JPEG: More than 95 images**, More than 90 images***
 *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
 **When using a card with CFexpress Type B
 ***When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".
 SH
 RAW / RAW+JPEG / JPEG: 200 images

TIME LAPSE SHOT

Yes

STOP MOTION ANIMATION

Yes

FLASH

Flash type

TTL External Flash (sold separately)

Flash mode

Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off     *For iA only.

Flash synchronization

1st Curtain Sync, 2nd Curtain Sync.

Flash output adjustment

1/3EV step ±3EV

Synchronization speed

Less than 1/250 second

Wireless control

Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

Flash sync socket

Yes

EXTRA TELE CONVERSION

2.0x (EX S), 1.4x (EX M)     *Only for still image recording.

PHOTO STYLE

Photo Style

Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Hybrid Log Gamma / My Photo Style 1-10

Picture adjustment

Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
 *Adjustable settings vary depending on the Photo Style mode.

FILTER

Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass

MOTION PICTURE FUNCTION

Master pedestal level

31 steps

Luminance level

8-bit: 0-255 / 16-235 / 16-255
 10-bit: 0‒1023 / 64‒940 / 64‒1023

Wave form monitor / Vectorscope

Selectable

LUT view assist

Supported file types: .vlt, .cube Monitor / HDMI

HLG view assist

Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)

Anamorphic desqueeze display

2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF

Synchro scan

Yes

SS/Gain operation

Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

Color bars / 1kHz test tone

Yes (SMPTE / EBU / ARIB) / Yes

Knee control

Yes (in Like709 mode)

Red REC frame indicator

ON / OFF

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

Yes

FUNCTION BUTTON

REC

Exposure Comp. / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure
 NR / Min. Shutter Speed / 1 Shot RAW+JPG / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK
 / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive   Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default

PLAY

Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

OSD LANGUAGE

Please refer to "OSD" Sheet

PRINT

PictBridge compatible

INTERFACE

USB

USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))

HDMI (*4)

HDMI

HDMI TypeA
 Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)

Monitor-through

4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
 Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF

Playback

59.94Hz: 8K/30p* / C4K/120p** / C4K/60p / C4K/30p / 4K/120p** / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p** / 480p**
 50.00Hz: 8K/25p* / C4K/100p** / C4K/50p / C4K/25p / 4K/100p** / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p** / 576p**
 24.00Hz: 8K/24p* / C4K/120p** / C4K/24p / 4K/120p** / 4K/24p / 1080/120p / 1080p
 *Only for still image playback. **Only for playback.

Remote input

φ2.5mm

Audio

Build-in microphone

Stereo
 Wind Noise Canceller: OFF / Standard / High

External microphone / External audio device input

φ3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE
 Wind Cut: OFF / Low / Standard / High     *When attaching DMW-MS2 (sold separately).
 Special Mic: Stereo / Shotgun     *When attaching DMW-MS2 (sold separately).

XLR microphone

Yes with DMW-XLR1 (sold separately)

4ch mic input

Yes with DMW-XLR1 (sold separately)

Speaker

Monaural

Headphone output

φ3.5mm

Card slot

Slot 1: CFexpress Card (CFexpress Type B)
 Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
 *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

TC IN/OUT

Yes with BNC Converter Cable (bundled)

Count up

Rec Run / Free Run

Time code mode

Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)

HDMI time code output

ON / OFF

External TC setting

TC Synchronization / TC Output Reference

FAN

Auto1 / Auto2 / Fast / Normal / Slow / OFF*     *OFF can be set when in iA/P/A/S/M mode.

LAMP

Tally Lamp (front/rear) / Card Access Light / Power Indicator / Charging Light/Network Connection Light

WIRELESS

Wi-Fi

2.4GHz (STA/AP) (IEEE802.11b/g/n)
 5GHz (STA) (IEEE 802.11a/n/ac)
 Security: WPA/WPA2/WPA3 Please refer to "Wi-Fi" sheet

Bluetooth

Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
 *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery

Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
 USB power supply, USB power charging, USB power delivery

Battery life (CIPA standard)

When using CFexpress Card

Approx. 330 images, 750 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22 Approx. 350 images, 800 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
 *Using a Lexar CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

When using SD memory card

Approx. 360 images, 850 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22 Approx. 380 images, 900 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
 *Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

Continuous recordable time (Motion picture) (*1)

When using CFexpress
 Card

MP4 [4K/60p]: Approx. 80 min with H-ES12060 / H-FS12060
 MP4 [FHD/60p]: Approx. 90 min with H-ES12060 / H-FS12060

When using SD memory card

MP4 [4K/60p]: Approx. 90 min with H-ES12060 / H-FS12060 MP4 [FHD/60p]: Approx. 100 min with H-ES12060 / H-FS12060

Actual recordable time (Motion picture) (*1)

When using CFexpress
 Card

MP4 [4K/60p]: Approx. 40 min with H-ES12060 / H-FS12060
 MP4 [FHD/60p]: Approx. 45 min with H-ES12060 / H-FS12060

When using SD memory card

MP4 [4K/60p]: Approx. 45 min with H-ES12060 / H-FS12060 MP4 [FHD/60p]: Approx. 50 min with H-ES12060 / H-FS12060

DIMENSIONS / WEIGHT

Dimensions (W x H x D)

Approx. 138.4 x 100.3 x 99.6 mm / 5.45 x 3.95 x 3.92 inch (excluding protrusions)

Weight

Approx. 823g / 1.81 lb (SD Memory Card x 1, Battery, Body) Approx. 739g / 1.63 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature

-10oC to 40oC (14oF to 104oF)

Operating humidity

10%RH to 80％RH

STANDARD ACCESSORIES

Software

Recording

LUMIX Tether
 ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
 http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
 LUMIX Sync
 ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software. https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)

Playback / Editing

･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
 http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)

Standard accessories

DC-GH6 Kit
 Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, BNC Converter Cable
 DC-GH6L Kit / DC-GH6M Kit
 Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, , BNC Converter Cable, Lens Cap, Lens Hood, Lens Rear Cap
 ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

(*1) About motion picture recording

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
 Motion pictures with 72Mbps or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
 Motion pictures with 200Mbps or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher Motion pictures with 400Mbps or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
 Motion pictures with 600Mbps or less: CFexpress card, SD memory card with Video Speed Class 90 Motion pictures with 800Mbps or more, variable frame rate with ALL-Intra, or ProRes: CFexpress card

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
 Motion pictures with less than 72Mbps: 30 minutes Motion pictures with 72Mbps or more: 3 hours 4 minutes

- A new file will be created to continue recording if the file size exceeds the following conditions. [MP4] in [FHD]: 4GB
 [MP4] in [4K]: 96GB
 [MOV] in 600Mbps or less: 192GB [MOV] in 800Mbps: 640GB [ProRes] in [5.7K]: 640GB

- If the resolution is higher than C4K, the frame rate is higher than 60p or set to ProRes, the camera may stop the recording to protect itself. Wait until the camera cools down.

(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).

(*3) About AF
 - Continuous AF is not available for High Frame Rate video shooting above 120p (200p or 240p). It will be the AFS operation for 1-Area AF. 200p High Frame Rate video shooting requires a firmware update for the compatible lens.
 - Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
 - Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.
 (*4) To output motion pictures with 4K or higher,use an Ultra High Speed HDMI cable (Type A–Type A plug, up to 1.5 m (4.9 feet) long).





* Specifications subject to change by the manufacturer without notice

Lumix GH6 Body Body Cap Hot Shoe Cover Eye Cup Flash Synchro Socket Cap Shoulder Strap Battery Pack (DMW-BLK22) Battery Charger (DMW-BTC15) AC Adaptor USB Connection Cable (A-C) Cable Holder BNC Converter Cable Panasonic Lumix G X Vario 12-35mm f/2.8 POWER O.I.S. II Lens Lens Cap Lens Rear Cap Lens Hood Lens Storage Bag Instruction Manual

Manufacturer Warranty

This product comes with a

12  month Australian warranty

from Panasonic Australia

Want to read more about warranties?

Click here

Add extra protection for peace of mind

Reviews

* Dispatch timeframes are indications only and may vary for multiple quantities. Timeframes are updated regularly during normal business hours.
