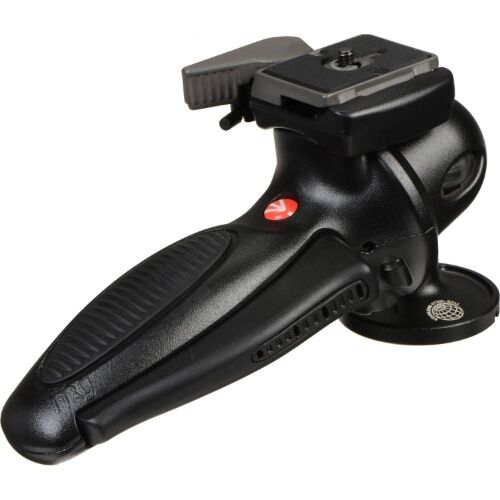

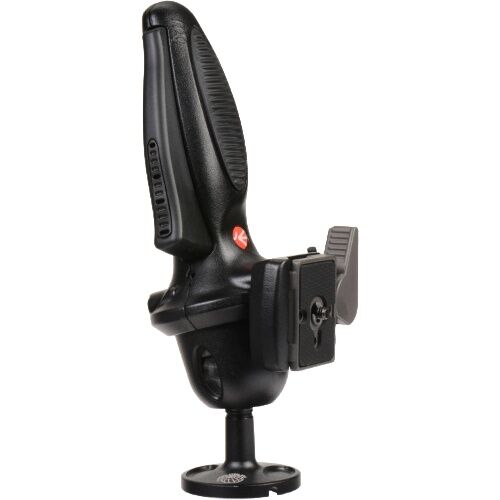

Manfrotto 327RC2 Ball Head with 200PL-14 Quick Release Plate

This 327RC2 Ball Head from Manfrotto has a load capacity of 13.2 kg and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

The 327RC2 features a ball-and-socket joint with an easy-to-grip control handle. By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberised, non-slip surface. The 327RC2 is initially configured for use with the right hand. An included hex key allows the RC2 quick release cam lock to be repositioned along with the control handle, enabling left-handed use.

327RC2 Ball Head

13.2 kg load capacity

Compatible with tripods or support systems that feature a 3/8"-16 mount

Uses ball-and-socket joint with easy-to-grip control handle to help maximise pan-and-tilt flexibility

By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position

When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place

A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements

RC2 quick release cam lock

Built-in bubble level

Can be configured for left-handed use

Durable, magnesium-alloy construction

Hex key to adjust position of RC2 quick release cam lock

Hex key to adjust tension on ball-and-socket joint

HEAD

Camera Mounting
1/4"-20 Screw (Quick Release Plate: 200PL-14)
Head Type
Ball Head
Base Mount
Flat Base with 3/8"-16 Female

PAN & TILT

Drag Control
Yes
Vertical Tilt
+90° to -90°
Lateral Tilt
-30° to +90°

GENERAL

Load Capacity
6 kg
Bubble Level
Yes
Weight
0.615 kg


* Specifications subject to change by the manufacturer without notice.
