Key Features:
- Ball Head with Control Handle
- Horizontal and Joystick Grip Positions
- Integrated Handle Squeeze Trigger
- 90° Forwards, Backwards & Portrait Tilt
- 360° Rotation, Ball Head Tension Control
- Bull's-Eye Bubble Level
- 200PL-14 QR Plate with 1/4"-20 Mount
You May Also Like
The Essentials:
Bags, Cases & Straps:
Tripods & Monopods:
Cleaning & Maintenance:
Protection & Waterproof:
Studio Lighting:
Cables & Connectivity:
Storage:
Other:

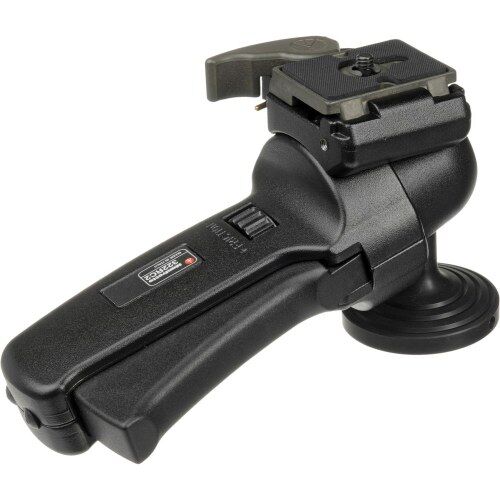

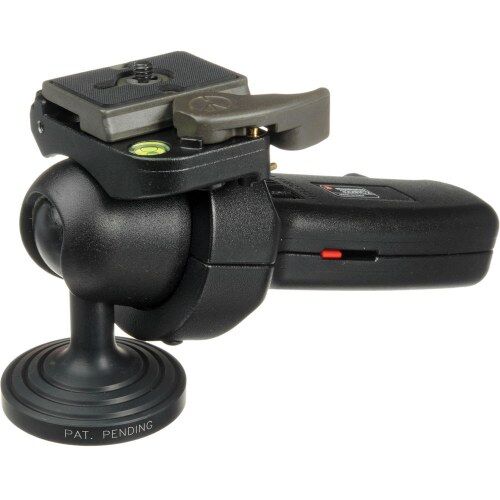

Manfrotto 322RC2 Ball Head with 200PL-14 Quick Release Plate
The 322RC2 Ball Head from Manfrotto can be attached to tripods or other support systems that feature a 3/8"-16 mount. By squeezing the control handle's integrated trigger, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.
The control handle is initially oriented to provide a horizontal grip for the right hand. However, the included 322RA Quick Release Adapter with 200PL-14 Quick Release Plate are detachable and can be repositioned to enable left-handed use with a horizontal grip. Alternatively, the 322RC2 can be transformed into a joystick-grip ball head suitable for right or left-handed use with the control handle oriented vertically and the quick release adapter attached to the top of the configuration. The 322RC2 has a load capacity of 17.6 kg.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberised, non-slip surface.
322RC2 Ball Head
Compatible with tripods or support systems that feature a 3/8"-16 mount
Uses ball-and-socket joint with easy-to-grip control handle to help maximise pan-and-tilt flexibility
By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position
When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place
A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements
Built-in tension-control indicator within the control handle

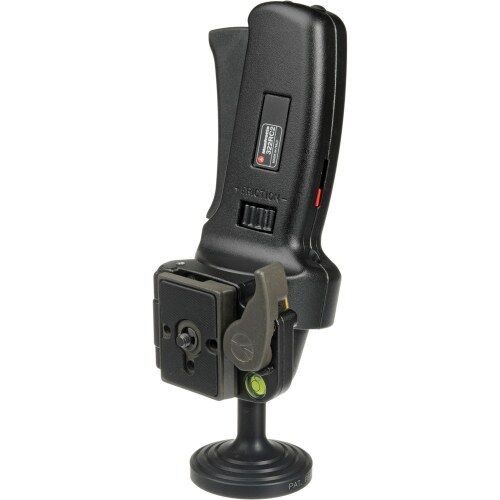

Can provide a horizontal grip for either right or left-handed use
HEAD | |
Camera Mounting |
1/4"-20 Screw (Quick Release Plate: 200PL-14)
|
Head Type |
Ball Head
|
Base Mount |
Flat Base with 3/8"-16 Female
|
PAN & TILT | |
Drag Control |
Yes
|
Vertical Tilt |
+90° to -90°
|
Lateral Tilt |
-90° to +30°
|
GENERAL | |
Load Capacity |
8 kg
|
Bubble Level |
Yes
|
Weight |
0.816 kg
|
* Specifications subject to change by the manufacturer without notice.
