Achieve Closer Focus with Existing Lenses

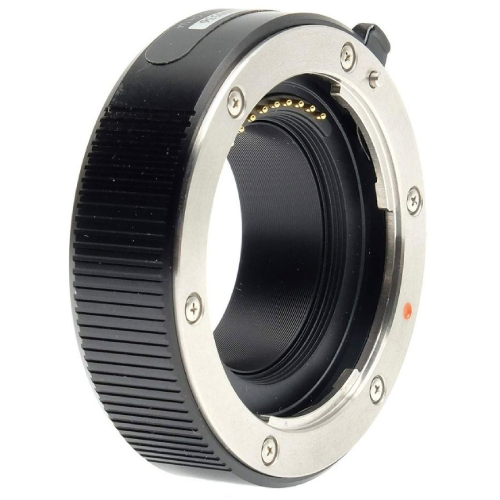

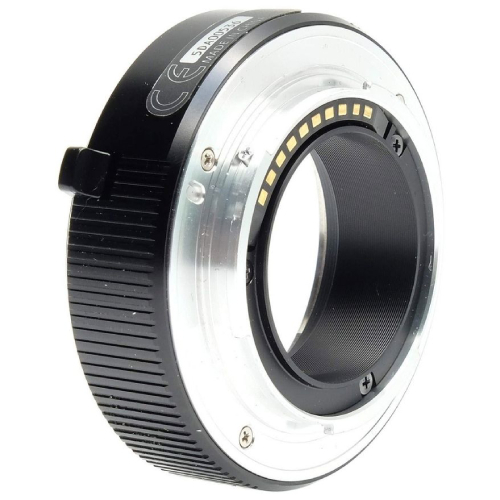

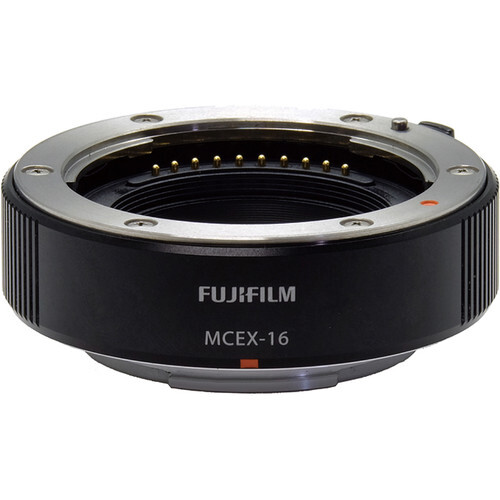

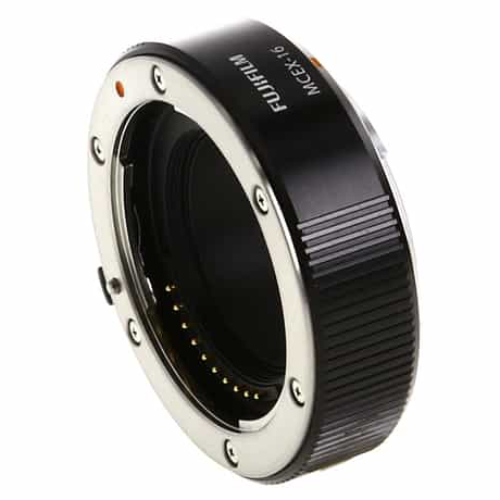

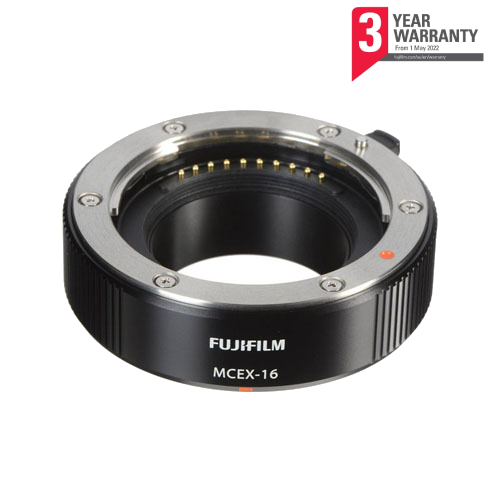

The Fujifilm X-Mount Macro Extension Tube MCEX-16 is a 16mm extension tube that lets you achieve much closer focus and a higher level of magnification from your existing Fuji X Lenses.

By increasing the distance between the sensor and lens, the lens is able to focus closer than the normal minimum focus distance.

Autofocus compatible

With integrated electronic contacts, attached Fuji XF lenses retain both autofocus capabilities and auto-exposure information for aperture control.

Precise, Solid Construction

A solid high-grade metal construction and precise manufacturing tolerances ensures a perfect fit with both X-series interchangeable cameras and lenses.
  • 16mm Macro Extension Tube
  • Achieve Closer Focus with Fuji XF Lenses
  • Compatible with Fuji X Series Cameras
  • Retain Autofocus and Auto-exposure Capabilities
  • Durable Construction
Lens Max Magnification Working Distance (mm) Shortest Shooting Distance (mm)
XF18mmF2 1.01 18 86
XF23mmF1.4 R 0.83 10 108
XF27mmF2.8 0.66 60 118
XF35mmF1.4 R 0.61 55 140
XF56mmF1.2 R 0.39 138 242
XF60mmF2.4 R Macro 0.76 143 241
XF90mmF2 R LM WR’ 0.40 280 419


For full macro extension magnification capabilities including XF Zoom Lenses, see the Fuji Magnification of Macro Extension Tube table.

* Specifications subject to change by the manufacturer without notice
Fujifilm Extension Tube MCEX-16
