Desview V5 Overview

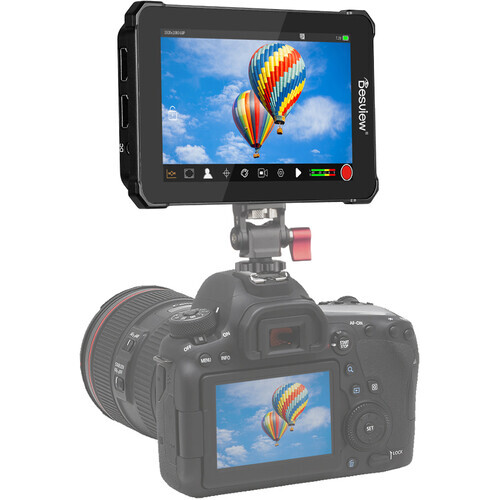

Capture and record stunning video from your DSLR camera with the Desview V5 5.5'' 4K/Full HD HDMI Recording Monitor. This monitor offers a range of video assist functions and HDMI ports for up to 1080p Full HD video recording in MP4 formats and DCI 4K video monitoring. With one HDMI input and one HDMI output, you can easily connect the monitor to your recording device and a larger display.

Visualizing your cinematography is intuitive and easy with the monitor's 5.5" screen with 2800 cd/m² brightness and 1000:1 contrast ratio. Upload your own customized 3D LUTs using the USB-C input. Power is delivered to the V5 via its NP-F battery plate or DC input port. Included with the monitor are HDMI cables, a power adapter cable, 32GB SD card for firmware updates, TF card cover, and a tiltable monitor mount compatible with its 1/4"-20 threads.

Features at a Glance

  • Playback function, real-time monitoring
  • Upgraded UI menu for advanced monitoring functions
  • SD card slot supports firmware updates
  • Upload 3D LUTs via USB-C port
  • 99.5% DCI-P3 colour gamut
  • Two 1/4"-20 mounting threads, tilting monitor mount
  • DC input port, NP-F battery plate
  • 3.5mm stereo headphone input for audio monitoring
  • MP4 video file format, 48 kHz audio sample rate

Video Assist Functions

  • Gamma Curve
  • Histogram
  • Vectorscope
  • Grid
  • Anamorphic
  • Mark Ratio
  • Zoom
  • HDR Monitoring
  • Colour Temperature
  • False Colour
  • Focus Peaking
  • Monochrome
  • Zebra
  • Center Marker
  • Safe Area
DISPLAY

Panel Type IPS-Type LCD
Display Size 5.5" / 14.0 cm
Screen Area 12.09 x 6.80 cm
Resolution 1920 x 1080
Aspect Ratio 16:09
Viewing Angle Horizontal: 178°
Vertical: 178°
Touchscreen Yes
Maximum Brightness 2800 nits / cd/m2
Contrast Ratio 1000:01:00
Pixels Per Inch (ppi) 400 ppi
Colour Gamut 99.5% DCI-P3
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Screen Markers, Vectorscope, Zebra

INPUTS / OUTPUTS

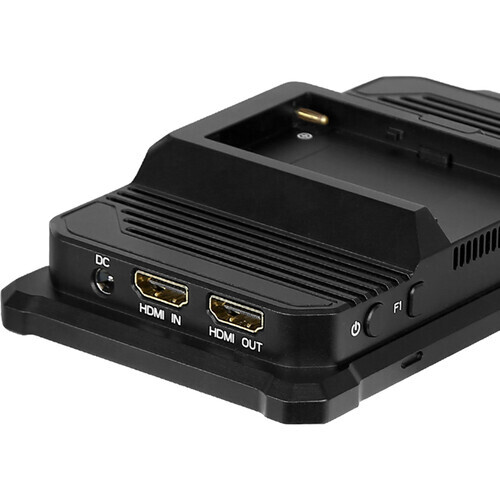

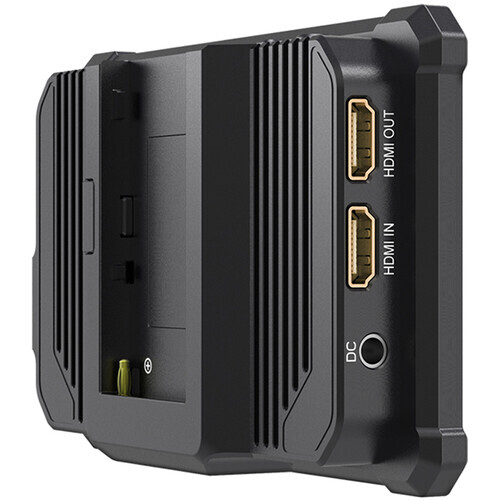

Video I/O 1 x HDMI Input
1 x HDMI Output
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Power I/O 1 x Barrel (16.8 VDC) Input
Other I/O 1 x USB-C (LUT Upload) Input
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC

FORMAT SUPPORT

Video Format HDMI
DCI 4K: 25/24/23.98
UHD 4K: 30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

RECORDING

Encoding Formats Up to 1920 x 1080
H.264

POWER

DC Input Power 6.5 to 16.8 VDC
Battery Type 1 x L-Series
Power Consumption 12 W

MOUNTING

Mounting 2 x 1/4"-20 Female

GENERAL

Material of Construction Aluminum
Dimensions 15.44 x 9.21 x 2.98 cm


* Specifications subject to change by the manufacturer without notice

  • Desview V5 5.5'' 4K/Full HD HDMI Recording Monitor
  • Tilting Monitor Mount
  • HDMI Cable
  • Micro-HDMI Cable
  • SD Card
  • Micro-SD to SD Adapter
  • D-Tap Adapter Cable
  • Cleaning Cloth
