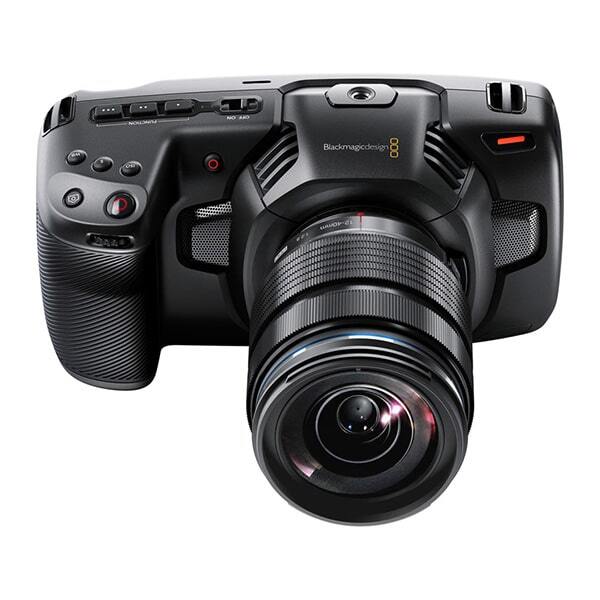

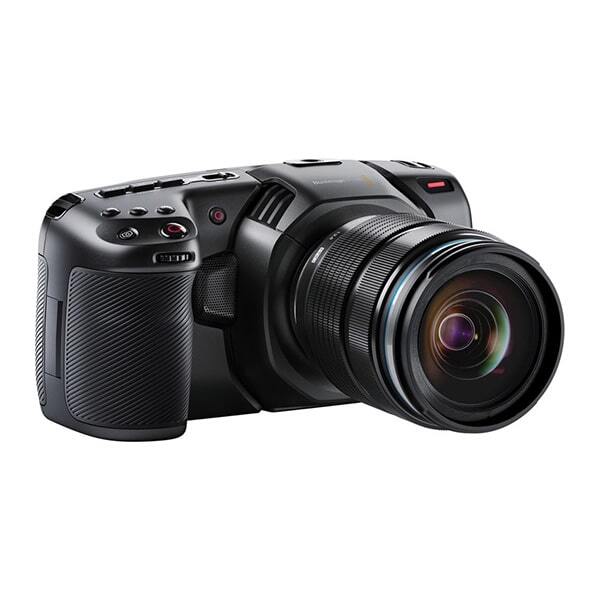

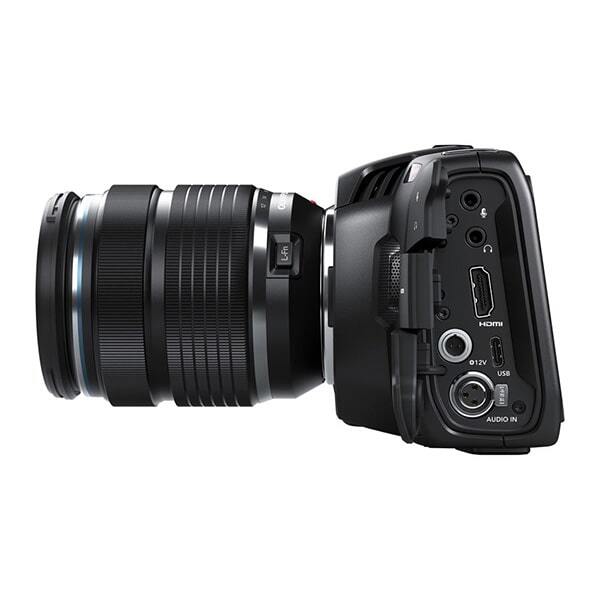

The Blackmagic Pocket Cinema Camera 4K combines ultra high resolution video capabilities with a compact portable body design. Optimised for digital film productions, the compact Micro-Four Third sensor can capture ultra-high resolution footage of 4096 x 2160 at up to 60fps in CinemaDNG Raw or ProRes 422. Featuring integrated Dual Native ISO technology and 13 stops of dynamic range, the compact cinema camera delivers impressive low-light performance and wonderfully rich HDR images. It is packed with high end professional features including a 5-inch touchscreen display, and direct recording to external drives capabilities, making it the perfect camera for filmmakers on the go.

Full Size Four Thirds Sensor

Capturing rich details and ultra-sharp footage the Blackmagic 4K pocket cinema camera has a full size 4/3 sensor capable of capturing an impressive 13 stops of dynamic range. According to Black Magic the full size sensor reduces the crop factor of Micro Four Thirds Lenses for a wider field of view.

DCI 4K 60fps and 120 fps Full HD Video

Ultra-sharp DCI 4K (4096 x 2160) recording capabilities are available at up to 60 fps with high bitrate, suitable for cinema and broadcast applications. You can also capture fast action in smooth slow motion at 120fps in windowed Full HD (1080 recording). Still images can also be captured with sharp colour reproduction.

Dual Native ISO and 13 Stop Dynamic Range

Perfect for handheld and lowlight cinematography, the pocket Blackmagic features Dual Native ISO to maximise clarity in a wide range of lighting conditions. Coupled with the huge ISO range of up to 25,600 and a massive 13 stop dynamic range, this optimises detail retention perfect for postproduction editing.

ProRes and CinemaDNG RAW

Capable in recording in a range of high quality open file formats, the Black Magic 4K Cinema Camera ensures high retention of detail and dynamic range. Choose between 10-bit Apple ProRes 422 (HQ) or 12-bit lossless compressed CinemaDNG RAW/Raw 4:1/Raw3:1 for a range of postproduction and efficiency options.

Active Micro Four Thirds Lens Mount

Thanks to the built-in MFT (Micro Four Thirds) lens mount, the Black Magic Pocket 4K camera is compatible with a wide range of compact and lightweight MFT lenses and adapters. Support for full electronic focus and aperture control also allow you to take full advantage of all the features on your favourite lenses.

External Recording via High Speed USB-C

Speed up your turnaround times with the selection of recording media choices. Internal SD / UHS-II cards and CFast 2.0 cards are fast and compatible with a host of devices for easy transferal while recording to an external hard drive using the built-in USB-C Expansion Port is perfect for larger RAW files.

5-inch High Resolution Display

Thanks to the 5-inch monitor’s large 1920x1080 resolution, it’s easy to compose your shots and check your settings even in lowlight. Featuring an intuitive touchscreen, you can zoom-in to focus and adjust your settings with pinpoint accuracy. Recording parameters, camera status, histogram, focus and peaking indicators offer even more tweaking precision.

Intuitive Touchscreen Interface

Camera functions and settings are all accessible via the Blackmagic navigation menu. By simply tapping and swiping through the menu, you can also apply 3D LUTs and add metadata for easy organisation.

Wide Range of Power Options

Powered by a rechargeable Canon LP-E6 li-ion battery, you can record up to 60 minutes uninterrupted at full capacity. A 12V DC power input and USB-C port allow you to recharge via AC power, mobile devices or power bank, great for travellers and adventure videographers.

XLR Audio Input Support

Delivering hi-fidelity audio recording, your videos can be shared straight from the camera. A built-in stereo microphone allows you to record with less bulk while the regular 3.5mm input port and mini audio XLR with phantom power makes it easy to hook up with your favourite external microphone. Complete with a 3.5mm headphone jack, simply plug in your headphones for easy monitoring.

Bluetooth Connectivity and HDMI Output

Built-in Bluetooth connectivity offers wireless image sharing and remote shutter control via smartphones and mobile devices for maximum compositional capabilities. You can also watch and record HD footage on an external monitor using the HDMI video output terminal.

Robust and Lightweight Carbon Fibre Body

Engineered from a high-strength carbon fibre polycarbonate composite, the compact camera is lightweight and portable while strong enough to withstand shoots in rough conditions, perfect for hiking, holidays and adventures.

Dual Mounting Points on Top and Bottom

Configure your camera using the widely-compatible 1/4-inch threaded mounting points. Available on both the top and bottom of the camera, these allow you to modify each shoot with a whole range of external accessories such as tripods and mounts, rail systems with follow focus, lights and microphones.

DaVinci Resolve Studio Included Software

The Blackmagic Design 4K Pocket Cinema Camera comes with DaVinci Resolve Studio for all your postproduction needs. Compatible with Mac and Windows, the software can easily handle the 12-bit RAW files, allowing you to edit without losing dynamic range and details for stunning quality videos, ready to share.

This kit includes Blackmagic Pocket Cinema Camera - 4K + Olympus M.Zuiko 12-40mm f/2.8 PRO Micro Four Thirds Lens

Effective Sensor Size

18.96mm x 10mm (4/3-inch)

Sensor Type

CMOS

Sensor Resolution

4096 x 2160

Lens Mount

Active Micro Four Thirds

Lens Control

Iris, focus and zoom on supported lenses.

ISO

Dual Native ISO

Max 25,600

Dynamic Range

13 Stops.

Shooting Resolutions

4096 x 2160 (4K DCI)

3840 x 2160 (Ultra HD)

1920 x 1080 (HD)

Frame Rates

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

Off-speed frame rates up to 60 fps in 4K DCI, 120 fps in HD windowed.

Focus

Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions and Resolution

5-inch (1920 x 1080)

Screen Type

LCD capacitive touchscreen.

Metadata Support

Automatically populated lens data from electronic Micro Four Thirds lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Video Connectors

Input: None

Output: 1 x HDMI Type A

Audio Connectors

1 x 3-Pin Mini XLR Mic/Line Level (+48 V Phantom Power) Input

1 x 3.5 mm Stereo Mic Level Input

1 x 3.5 mm TRRS Headphone/Microphone Output

Audio Inputs

Integrated stereo microphone

Built-in mono speaker

Computer Interface

USB Type-C for external drive recording, software updates and media download.

Wireless Interface

Bluetooth

Battery Type

Canon LP-E6

Power Connectors

1 x Barrel (12.0 to 20.0 VDC) Input

SD Video Standards

None.

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

4K DCI Standards

4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60.

Recording Media

1 x CFast 2.0 slot

1 x SDXC UHS-II card slot

Recording Formats

Lossless CinemaDNG RAW

RAW 3:1 and RAW 4:1 with film dynamic range at 4096 x 2160, 3840 x 2160 and 1920 x 1080

Apple ProRes 4096 x 2160, 3840 x 2160 and 1920 x 1080 with either film, video and extended video dynamic range.

Supported Codecs

CinemaDNG RAW

CinemaDNG RAW 3:1

CinemaDNG RAW 4:1

ProRes 422 HQ QuickTime

ProRes 422 QuickTime

ProRes 422 LT QuickTime

ProRes 422 Proxy QuickTime

Storage Rates (based on 30fps)

4096 x 2160: CinemaDNG RAW - 270 MB/s

4096 x 2160: CinemaDNG RAW 3:1 - 128 MB/s

4096 x 2160: CinemaDNG RAW 4:1 - 96 MB/s

3840 x 2160: Apple ProRes 422 HQ - 110 MB/s

3840 x 2160: Apple ProRes 422 - 73.6 MB/s

3840 x 2160: Apple ProRes 422 LT - 51 MB/s

3840 x 2160: Apple ProRes Proxy - 22.4 MB/s

1920 x 1080: Apple ProRes 422 HQ - 27.5 MB/s

1920 x 1080: Apple ProRes 422 - 18.4 MB/s

1920 x 1080: Apple ProRes 422 LT - 12.75 MB/s

1920 x 1080: Apple ProRes Proxy - 5.6 MB/s

Controls

Touchscreen menus on 5-inch screen

1 x Power Switch

1 x Record Button

1 x Stills Button

1 x Scroll Wheel with push integrated into handgrip

1 x ISO Button

1 x White Balance

1 x Shutter Button

3 x software configurable Fn buttons

1 x High Frame Rate (HFR) Button

1 x Zoom Button

1 x Menu Button

1 x Play Button

1 x Focus Button

1 x IRIS Button

Software Included

Pocket Cinema Camera 4K Operating System.

DaVinci Resolve Studio on SD Card.

Blackmagic Camera Setup.


Specification of Olympus M.Zuiko 12-40mm f/2.8 PRO Micro Four Thirds Lens



Lens type Standard Zoom
35mm Equivalent Focal Length 24-80mm
Focal Length 12-40mm
Angle of View 30-84 degrees
Lens Construction 14 elements in 9 groups (2 ED lenses, 1 EDA lens, 2 HR lenses, 1 HD lens, 1 DSA lens, 2 aspherical lenses)
Maximum Image Magnification 0.3x
Closest Focusing Distance 0.2m
Minimum Field Size 58x44mm
35mm Equivalent Max. Image Magnification 0.6x
Maximum Aperture f/2.8
Number of Blades 7 (circular aperture)
Filter Size 62mm
Minimum Aperture f/22
Weight 382g
Dimensions 69.9 x 84mm
Box Content Lens cap (LC-62D), lens rear cap (LR-2), lens hood (LH-66), lens case (LSC-0918), instruction manual, Olympus international Warranty Card




* Specifications subject to change by the manufacturer without notice.

  • Blackmagic Pocket Cinema Camera 4K
  • Olympus M.Zuiko 12-40mm f/2.8 PRO Micro Four Thirds Lens
  • Battery (LP-E6)
  • Lens Dust Cap
  • 30W Power Supply with Locking Connector and International Adapters
  • Software and Manual on SD card
  • DaVinci Resolve Studio with Activation Key
