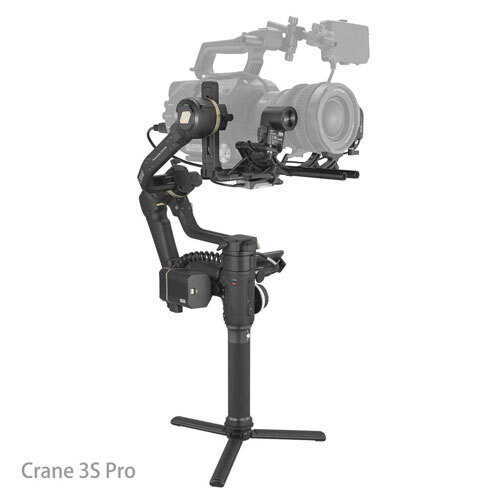

The Zhiyun Crane 3-S Handheld Gimbal Digital Stabiliser is a product that was built with filmmakers in mind, so we know it’s the very best. With a new modular design, this model is ambitious, and encourages you to be ambitious with your creations, whatever they may be. This kit has revolutionised video production, with the TransMount 3S EasySling and SmartSling Handles offering a superior experience.

New 6.5kg Payload

The product has undergone a complete redesign, featuring an extremely sturdy construction that can hold up to 6.5kg, while facilitating a wider variety of camera combinations.

Extended Run Time

Along with the battery insert, the Crane 3S is equipped with a power input port that supports up to 25.5V input for direct charging. Additionally, it comes with a TransMount PowerPlus battery pack that holds up to 6 18650 batteries. To top it off, the gimbal can also be used as a power-bank for your devices. This can operate for up to 12 hours with batteries and up to 18 hours with the PowerPlus.

Remarkable Speed Without Compromising Quality

Powered by a new algorithm system that facilitates speed and smoothness, this gimbal is up to the challenge of taking on the strongest of winds and the fastest of movements.

Superior Zoom and Focus Capabilities

Armed with larger lens mounts added in the zoom and focus system to cater to the needs of cinematographers. Additionally, the focus wheel features a white board to mark a focus distance, while you can control the zoom with the SmartSling handle.

Three Control Options

There are three control options available on this product, giving the user the option to make commands from the gimbal, a smartphone or from the motion sensor controller.

Extendable Arm

This feature allows for more flexibility when filming. For larger cinema cameras, there is the option to install an extension module on the horizontal arm, meaning you can get even more range from the product. In addition, if you are working with a smaller DSLR camera, this extension can be detached so that it is easier to move around.

TransMount EasySling Handle

One of the handle options, the EasySling Handle extends the arm grip, offering you more comfort while operating the device.

TransMount SmartSling

This handle option includes a control panel and OLED screen, allowing you to directly adjust the parameters of the camera and the gimbal.

Battery



Operation Voltage

Max: 25.2V



Standard: 11.1V



Min: 9.8V

Operation Current

Max: 5400mA



Min: 360mA

Output

5V, 1A

Battery Runtime

Lab Data: 12h

Charging Time

Lab Data: 4h

Stabiliser



Following Deviation in Static State

Max: ± 0.04°



Min: ± 0.01°

Following Deviation in Motion State

Max: ± 0.3°



Standard: ± 0.1°



Min: ± 0.05°

Tilt Mechanical Range

360°

Roll Mechanical Range

Max: ± 75°



Standard: 330°



Min: -255°

Pan Mechanical Range

360°

Valid Payload

Max: 14.33lbs



Min: 1.32lbs

Operation Temperature

Max: 45?



Standard: 25?



Min: -10?

Bluetooth

Bluetooth 5.0

  • Crane 3SE Gimbal
  • Quick Release Plate
  • 2600mAh Battery
  • Battery Charger
  • Cable
  • Tripod
  • Lens Tray
  • Backing Case
  • TransMount 3S EasySling Handle
  • TransMount 3S SmartSling Handle
  • Wireless Image Transmitter
  • Phone Holder with Crown Gear
  • CRANE 3S Servo Zoom Motor
  • CRANE 3S Servo Focus Motor
  • TransMount PowerPlus Battery Unit (including 6pcs of 2600 mAh 18560 Batteries)
