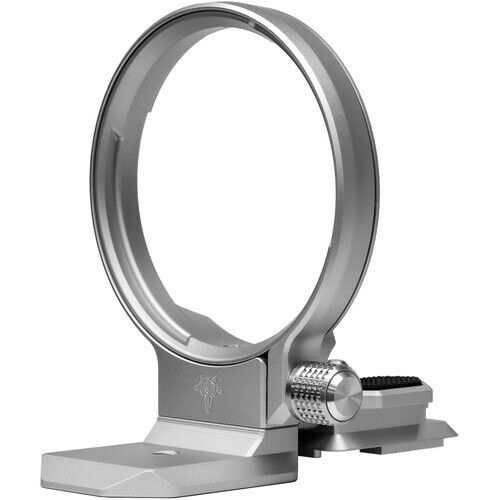

Silence Corner Atoll C Overview

The Atoll C Rotating Camera Collar from Silence Corner is a rotating collar that attaches to a camera body, allowing you to quickly switch from portrait to landscape orientation. This is perfect for when you need vertical and horizontal images. Unlike a traditional L-bracket, the Atoll doesn't need to be removed from the tripod head to change orientation. All you need to do is release the locking knob and rotate the camera to switch from portrait to landscape orientation in a jiffy. Articulating screens can be fully moved and positioned without any compromise. The Atoll has tactile indicators at 0-, 90-, and 180° to ensure alignment is maintained, and the camera is mounted with the sensor positioned in the centre of the Atoll, so the centre point of the image is maintained during rotation.

The mounting foot on the Atoll is Arca-type compatible, providing wide-range compatibility with most tripod heads and clamps on the market. It also features a standard 1/4"-20 threaded socket. The second plate under the camera is also Arca-type compatible and additionally compatible with various capture clip-style accessories. The Atoll is constructed from aircraft-grade Aluminium alloy with a silver finish, and is rugged yet remarkably lightweight.

Compatible Cameras

Canon: R6 II, R6, R5, R

Leica: SL2, SL

Compatible Cameras with Additional Heightening Plate

Canon: RP, R7, R10 (required)

Nikon: Z7 II, Z7, Z6II, Z6, Z5 (recommended); Z30, Z50, Zfc (required)

FUJIFILM: X-H1, X-T3, X-T2 (required)

Panasonic: GX8, GX9, G85, S5 (required)

Olympus: EM5 III, EM5 II (required)

Operational Restrictions

  • Inner Diameter: 75mm
  • The diameter of most Sigma and Tamron f/2.8 DSLR lenses exceeds the inner diameter of the Atoll and cannot be mounted
  • Cameras with a protruding pentaprism / pop-up flash housing may only provide 135° of rotation
  • IR remote ports or function buttons on the front of the camera may be covered by the Atoll S
  • Compatible with Sigma MC11 adapter
  • Not Compatible Sony LA-EA5 adapter, Metabones adapter or select other adapters
  • Not compatible with tilt/shift lenses
  • Some cameras bodies may require the use of a Heightening Plate, available separately
  • Not compatible with flagship cameras (like Canon 1DX/Canon R3/Nikon D4/Nikon Z9)
  • Not compatible with medium format cameras (like FUJIFILM GFX 100S)
  • Not compatible with camera with battery grips or body cages
Mounting Screw
1 x 1/4"-20 Male
Tripod Mounting Thread
1 x 1/4"-20 Female
Arca-Type
Yes
Material of Construction
Aluminium
Length
9.08 cm
Width
10.95 cm
Height
9.32 cm
Weight
0.108 kg


* Specifications subject to change by the manufacturer without notice

  • Silence Corner Atoll C Rotating Camera Collar for Select Mirrorless Cameras (Silver)
  • 4mm Hex Wrench
  • 3mm Hex Wrench
  • Spare Link Screw
  • Spare 1/4"-20 Screw

Manufacturer Warranty


This product comes with a

12month Australian warranty

from Silence Corner Australia
