Sennheiser EW 112P G4 Overview

The Sennheiser EW 112P G4 camera-mount wireless lavalier microphone system is a reliable and flexible choice for videographers, journalists and content creators. This system provides broadcast-quality sound and has become an industry standard all over the world.

The EW 112P G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The frequency scan function automatically searches for the cleanest frequency at your location, while the adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio.

The system includes the improved ME 2-II omnidirectional lavalier mic, a bodypack transmitter, and a camera-mount receiver. It connects to a camcorder or a DSLR/mirrorless camera to capture crisp-sounding speech or dialogue for projects ranging from documentaries to wedding videos, corporate spots, and hands-free interviews.

The EW 112P G4 is backward-compatible with previous evolution systems, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 500 systems.

Built for Dependable Performance in the Field

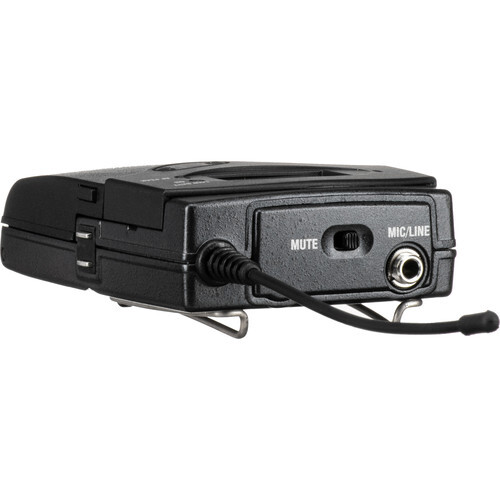

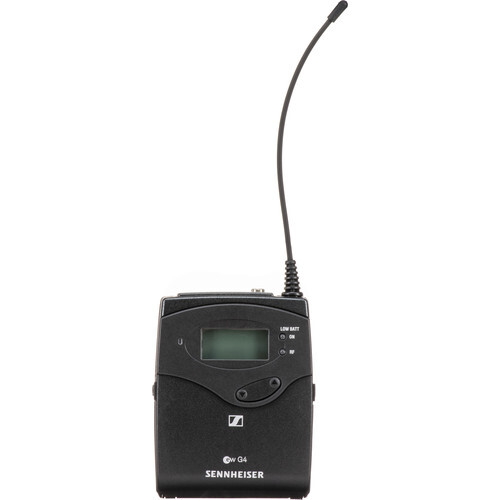

  • The EW 112P G4 features rugged, all-metal chassis well suited for extended use on location. The lightweight, compact bodypack transmitter is easy to conceal and offers rounded edges that are soft to the touch and comfortable for the talent to wear. A locking connector ensures that your lav doesn't detach at a critical moment, while a convenient switch allows you to mute your mic.
  • Using the included shoe mount adapter, the equally compact receiver easily mounts your camera without adding much weight. The included cables allow you to connect the receiver to the 3.5mm or XLR audio input of any DSLR/mirrorless, camcorder, or recording device.
  • Both transmitter and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level. To get you going quickly, they synchronize via an infrared interface with the simple push of a button.

Proven Broadcast-Quality Sound

  • The EW 112P G4 ships with the popular ME 2-II omnidirectional lavalier microphone, which delivers a natural sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.
  • To take full advantage of the ME 2-II's dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission, and delivering audio with remarkable accuracy and quality.

Additional Features

  • Adaptive-diversity reception for reliable transmission up to 330'
  • 42 MHz bandwidth with 1680 tunable UHF frequencies for clean reception
  • 20 frequency banks, each with up to 12 factory-preset channels to prevent intermodulation
  • Pilot tone squelch for eliminating RF noise when the transmitter is turned off
  • Receiver with an adjustable output range of 42 dB to match the audio input of your camera or recording device
  • User-friendly menu operation with flexible control options
  • The transmitter and receiver feature a 4-step battery-life indicator
  • Auto-Lock function avoids accidental changing of settings
  • RF Mute function
  • 8 hours of battery life
  • Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
  • Side contacts for recharging the Accupacks without removing them from either transmitter or receiver require the L 2015 quick-charging unit (available separately)
  • Operate up to 12 wireless mics at once on set
  • Unlike digital wireless systems, the SK 100 G4 transmitter can transmit to an unlimited number of EW Series receivers
  • A wide range of accessories adapts the system to a variety of applications

EW 100 G4 vs EW 500 G4 Systems at a Glance

  • Bandwidth: Up to 46 MHz vs up to 88 MHz
  • UHF Frequencies: 1680 vs up to 3520
  • RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
  • Mics at Once: Up to 12 mics vs up to 32 mics
  • Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
  • Headphone Output: No vs yes
  • Audio Output: Unbalanced vs balanced
  • Plug-On Transmitter: No phantom vs +48V phantom power
SENNHEISER EW 112P G4

SYSTEM

Wireless Technology Analog UHF
Number of RF Channel Frequencies 1680
Included Transmitters 1 x Bodypack with Microphone
Diversity Antenna Diversity
RF Frequency Band G: 566 to 608 MHz
RF Bandwidth 42 MHz
Frequency Step Size 25 kHz
Max Operating Range 10060 cm (Line of Sight)
Max Transmitters per Band 12
Deviation 48 kHz (Peak)
Modulation Wideband FM

RECEIVER

Receiver Type Camera-Mount
Mounting Options Shoe-Mount (with Included Hardware)
Antenna 1 x Flexible Whip, Fixed
Number of Audio Channels 1
Audio I/O 3.5 mm TRS Female Unbalanced Output (Lockable)
Gain Range 42 dB (6 dB Steps)
Audio Output Level +12 dBu
Squelch 5 to 25 dBμV
Adjacent Channel Isolation >65 dB
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 x Sennheiser Accupack (Not Included)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 6.4 x 8.2 x 2.4 cm
Weight 0.16 kg (with Batteries)

TRANSMITTER

Transmitter Type Bodypack
RF Output Power 30 mW
Audio I/O 1 x Sennheiser Accupack (Not Included)
Muting Mute Switch
Audio Input Level 3 V RMS (Max)
Gain Range 60 dB (3 dB Steps)
Frequency Response 80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line)
Sync Method IR
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
Housing Metal
Dimensions 6.4 x 8.2 x 2.4 cm
Weight 0.16 kg (with Batteries)

MICROPHONE

Microphone Type Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 18 kHz
Equivalent Noise Level 36 dB
Maximum SPL 130 dB SPL Peak
Sensitivity 20 mV/Pa
Outputs 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 160 cm
Operating Voltage 7.5 V


* Specifications subject to change by the manufacturer without notice

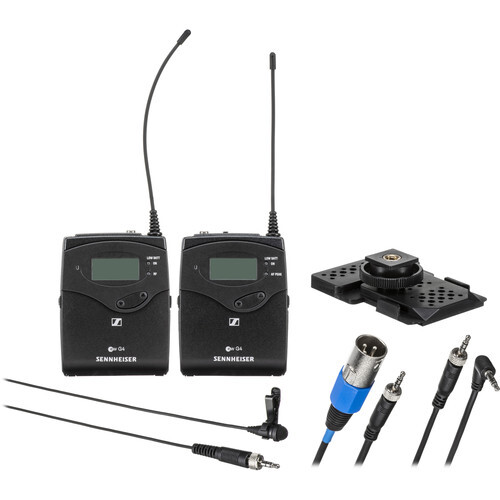

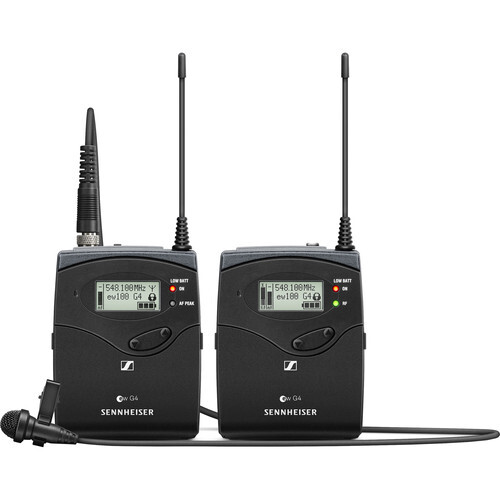

  • Sennheiser EW 112P G4 Camera-Mount Wireless Omni Lavalier Microphone System - G: 566 to 608 MHz

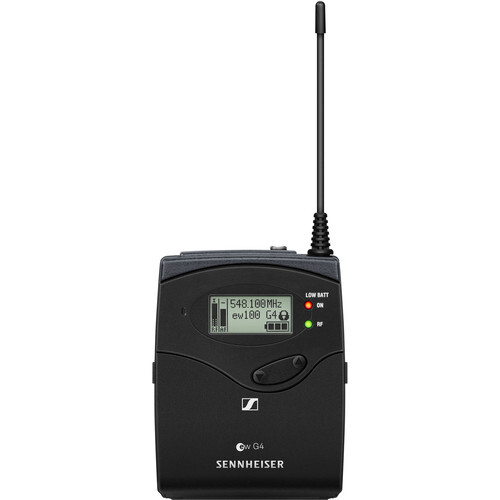

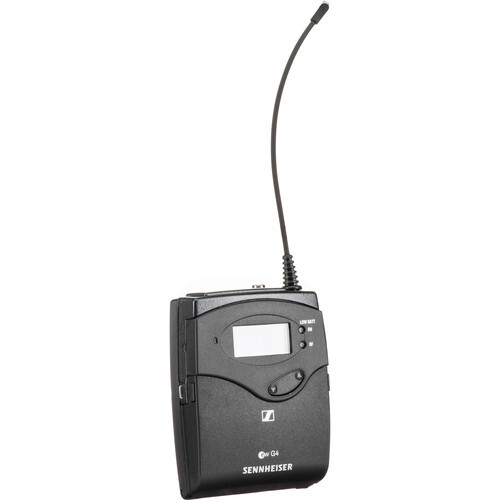

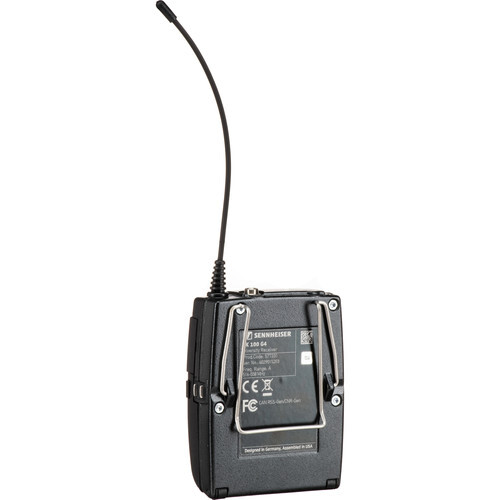

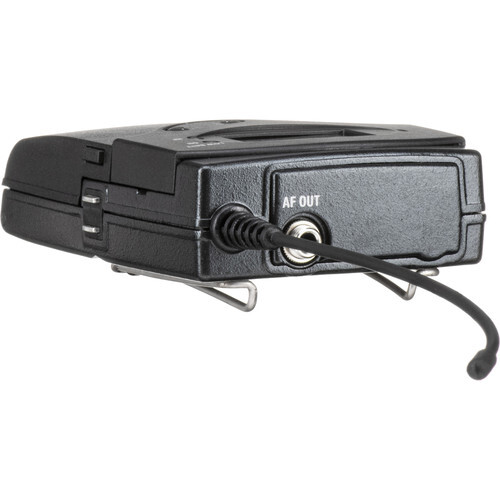

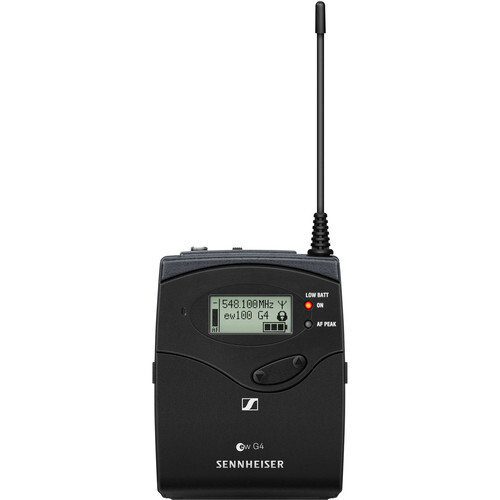

  • Sennheiser EK 100 G4 Camera-Mount Wireless Receiver (G: 566 to 608 MHz)

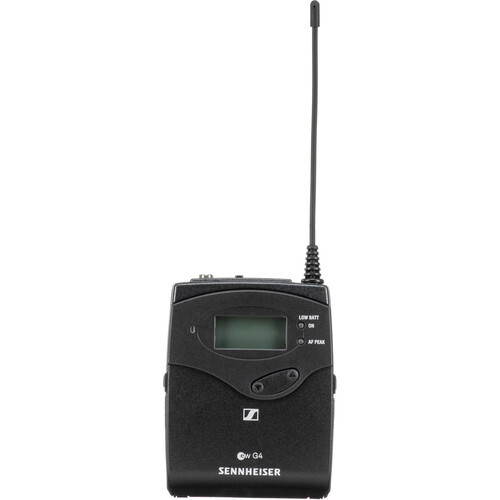

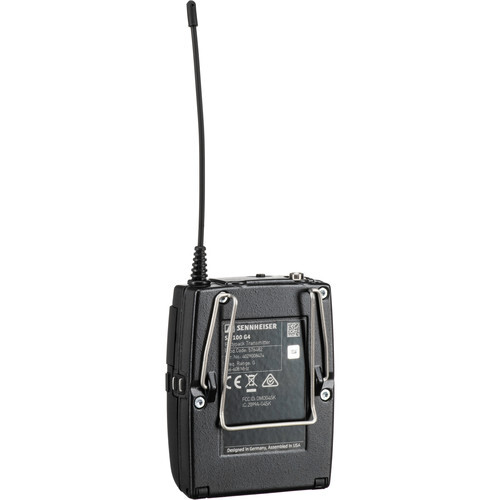

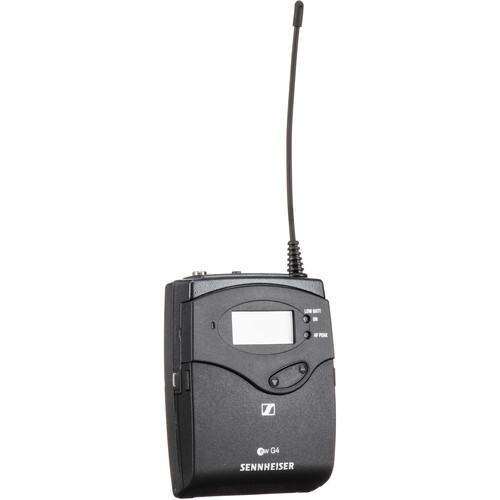

  • Sennheiser SK 100 G4 Wireless Bodypack Transmitter (G: 566 to 608 MHz)

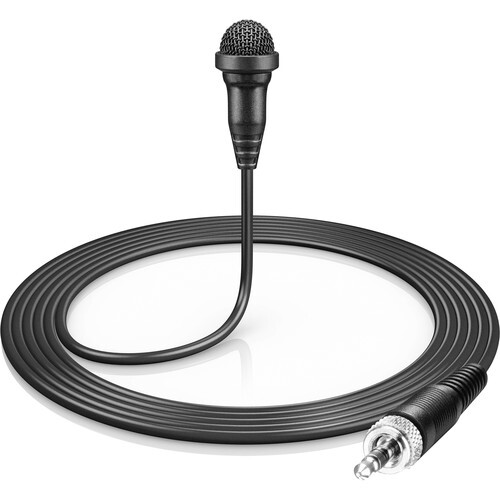

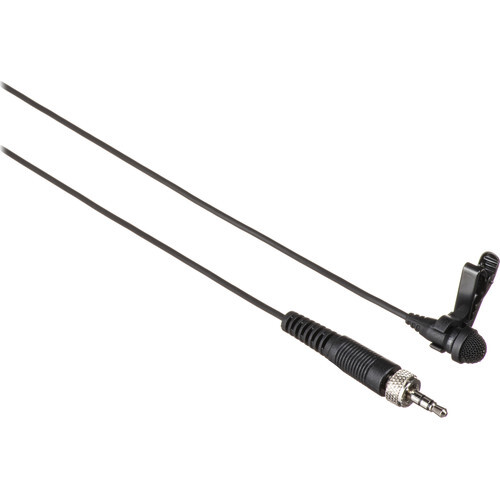

  • Sennheiser ME 2-II Omnidirectional Lavalier Microphone with Locking 3.5mm Connector (Black)

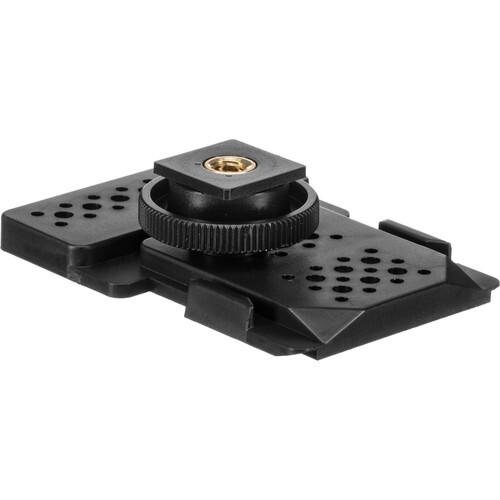

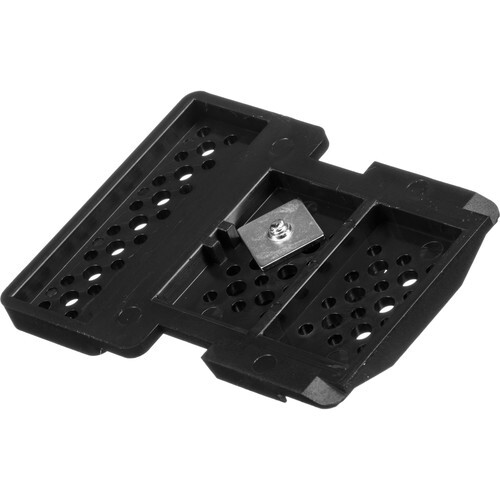

  • Sennheiser CA2 Shoemount Adapter for EW Series Camera Mountable Receivers

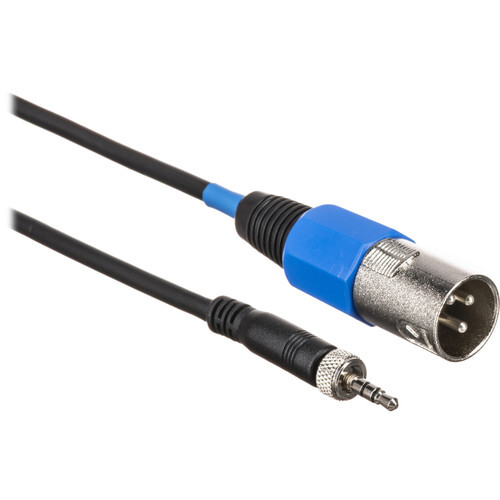

  • Sennheiser CL-100 1/8"-Male Mini Jack to XLR-Male Connector Cable for Sennheiser EK100 Receiver

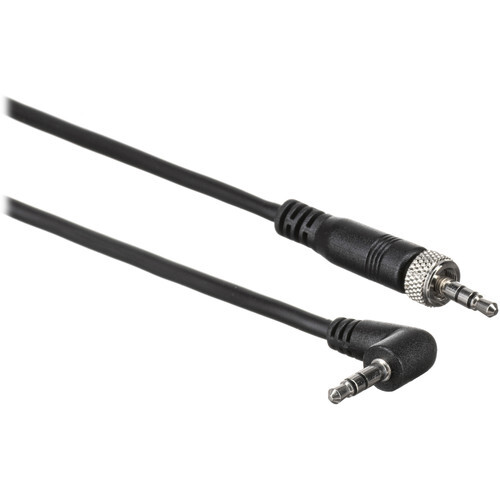

  • Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
  • 4 x AA Batteries
