A New Perspective with Every Step

This ultra-wide-angle 20mm lens is ideal for capturing expansive landscapes as well as working in tight spaces. Its compact, lightweight design makes it easy to get closer to your subject, shoot from low angles, and explore different viewpoints as you move around.

With its bright F2.5 maximum aperture, the lens is well suited to low-light shooting, from indoor environments and evening scenes to dramatic nightscapes.

Compact, Lightweight Design

Designed with portability in mind, the lens is the same size as the LUMIX S 40mm lens and matches the size of the LUMIX S 18-40mm zoom lens when retracted. All three lenses also share the same 62mm filter diameter, making it easier to use the same filters across your kit.

Customisable Focus Ring

The focus ring can also be used as a customisable control ring, allowing you to assign key functions for faster, more intuitive operation. This includes Crop Zoom, providing convenient zoom-like control even when shooting with a fixed focal length.

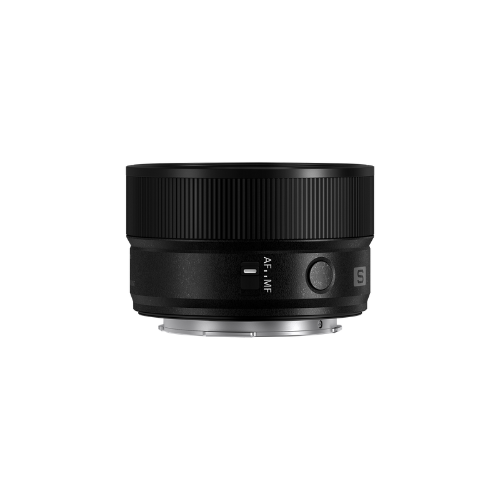

Focus Button (Fn Button)

A dedicated focus button on the lens barrel lets you lock focus while pressed, giving you greater control when composing your shot. The button can also be customised as an Fn button, providing quick access to your preferred settings for a more intuitive shooting experience.

Dust, Splash and Freeze-Resistant Design

Built for shooting in unpredictable conditions, the lens features a dust- and splash-resistant construction and is designed to operate in temperatures as low as -10°C. A fluorine coating on the front lens element also helps repel oil and dirt, making the surface easier to keep clean when shooting outdoors.

Barcode (UPC / EAN): 8887549910913

Mount L-Mount
Lens Construction 11 elements in 9 groups (3 aspherical lenses, 3 ED lenses)
Focal Length 20mm
Diagonal Angle of View 94°
Maximum Aperture F2.5
Minimum Aperture F22
Aperture Type 7 diaphragm blades / Circular aperture diaphragm
Closest Focusing Distance 0.18m / 0.59ft
Maximum Magnification 0.15x
Optical Image Stabilizer No
Filter Size 62mm
Maximum Diameter 69.4mm / 2.56in
Overall Length Approx. 40.9mm / 1.61in (from the tip of the lens to the base side of the lens mount)
Weight Approx. 142g / 0.31lb (excluding lens front cap and lens rear cap)
Dust and Splash Resistant Yes*
Recommended Operating Temperature -10°C to 40°C (14°F to 104°F)
Standard Accessories Lens front cap, Lens rear cap

*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.


* Specifications subject to change by the manufacturer without notice

  • Panasonic LUMIX S 20mm f/2.5 Lens - Black
  • Lens Cap
  • Lens Rear Cap

Manufacturer Warranty


This product comes with a

5* year Australian warranty

from Panasonic Australia

*Available with free registration at

https://www.panasonic.com.au/warranty/ within 120 days of purchase.
