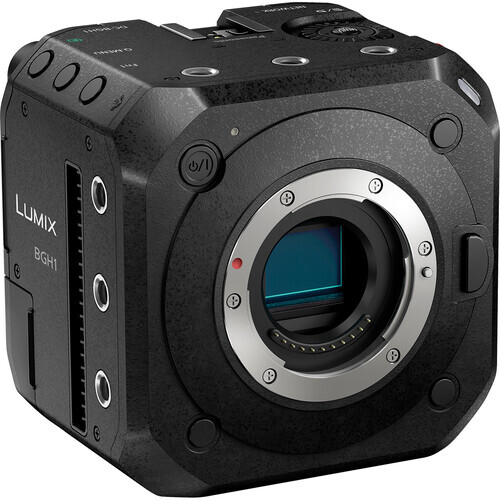

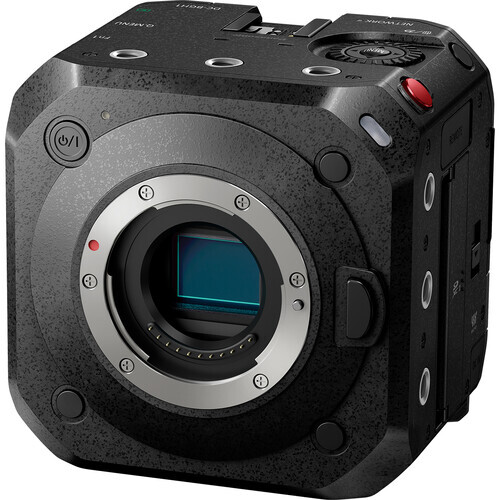

Panasonic have released their first box-style cinema camera, the Lumix BGH1 Digital Single Mirrorless Camera, which is equipped with an impressive feature set perfect for professional cinematographers and videographers. The small cube design makes it an extremely functional product, allowing for use in limited or tight spaces, the connection of accessories for camera control, as well as featuring fittings to attach accessories such as cages, gimbals and handles.

Versatile Operation

The light and compact design of this camera makes it extremely versatile and flexible. By using a Micro Four Thirds System mount, the camera takes advantage of the impressive interchangeable lens range. Additionally, its operation expands to being mounted on drones, IP remote control, direct live streaming and more.

As a means of achieving unlimited video recording, the BGH1 is equipped with a new heat dispersion structure, making it an ideal camera for lengthy shoots, like documentaries or interviews.

Pro-level Video Quality

Equipped with a 10.2 megapixel Live MOS Sensor with Dual Native ISO technology along with Panasonic’s Venus Engine, you can except to effortlessly capture crystal clear footage. With the ability to shoot 4:2:0 10-bit C4K/4K 60p / 50p internal video, the results are going to be incredibly sharp and clean. On top of this, the camera boasts an improved Deep Learning autofocus algorithm that provides a higher level of accuracy when detecting subjects such as humans, human faces and rapidly moving animals. The camera will continue to track a subject even if they are not facing the camera, allowing for greater flexibility when shooting.

The sensor can control a dual-base ISO setting, which dramatically reduces noise and provides a higher quality image. This allows you to expand your creativity and shoot in low-light situations without having to worry about a diminished quality video.

Simultaneous SDI/HDMI Output

To cater to the variety of needs of video production, the camera is fitted with an SDI terminal that can be simultaneously used with HDMI output. Remote control via USB or LAN ensures you have uncompromised production flexibility when it comes to remote or drone mounting shooting, multi-camera productions or live stream broadcasts.

Type Digital Single Lens Mirrorless camera
Recording Media SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

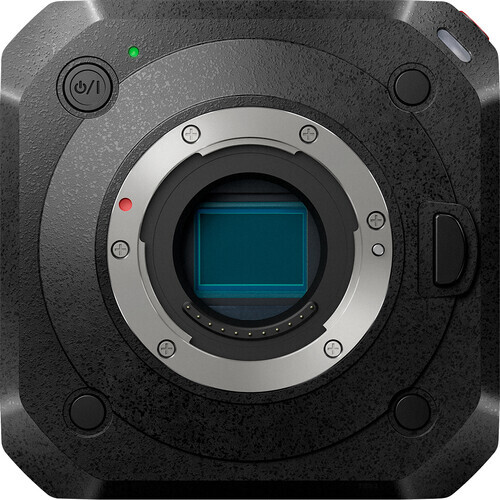

Lens Mount Micro Four Thirds mount
Sensor Type Live MOS sensor (17.3 x 13.0 mm)
Effective Pixels 10.28 megapixels
Latitude 13 stops (V-Log L)
Recording Modes AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 10-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s)
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 400 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 to 200 Mb/s)
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV 4:2:0 8-Bit:
4096 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
3840 x 2160p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
3328 x 2496p at 23.98/24/25/29.97/50/59.94 fps (100 to 150 Mb/s)
1920 x 1080p at 23.98/24/25/29.97/50/59.94 fps (100 Mb/s)
AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (72 to 100 Mb/s)
AVC-Intra/AVC-LongG/H.264/H.264 Long GOP/H.265/MP4 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97 fps (100 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)
Focus Type Contrast AF System
Focus Mode AF/MF
AF Mode Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area *Still image shooting is available only when using the LUMIX Tether software.
Light Metering System 1,728-zone multi-pattern sensing system
Metering Range EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure Mode Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO Sensitivity Auto / 80* / 100* / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Dual Native ISO [Normal]
Native ISO: 160, 800
Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 80* / 100* / 160-800 *Extended ISO
High: Auto / 800-51200 / 102400* / 204800* *Extended ISO
[V-Log L]
Native ISO: 400, 2000
Auto: Auto / 400-25600
Low: Auto / 400-2000
High: Auto / 2000-25600
[HLG]
Native ISO: 320, 1600
Auto: Auto / 320-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 320-1600
High: Auto / 1600-51200 / 102400* / 204800* *Extended ISO
[Cinelike D2 / Cinelike V2]
Native ISO: 160, 800
Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 80* / 100* / 160-800 *Extended ISO
High: Auto / 800-51200 / 102400* / 204800* *Extended ISO
Exposure Compensation Motion picture: 1/3 EV step ±3EV
Still image: 1/3 EV step ±5EV *Still image shooting is available only when using the LUMIX Tether software.
Colour Temperature Setting 2500-10000K in 100K
Shutter Speed Motion picture: 1/16,000 - 1/2
Still image: 1/16,000 - 1 *Still image shooting is available only when using the LUMIX Tether software.
Recording Functions Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Image Area of Video / Digital Zoom / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Cursor Button Lock / DISP. / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Monochrome Live View / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Colour Bars / Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
Audio Recording MOV: 24-Bit 48 kHz LPCM Audio
MOV: 24-Bit 96 kHz LPCM Audio
MP4: 24-Bit 48 kHz LPCM Audio
MP4: 24-Bit 96 kHz LPCM Audio

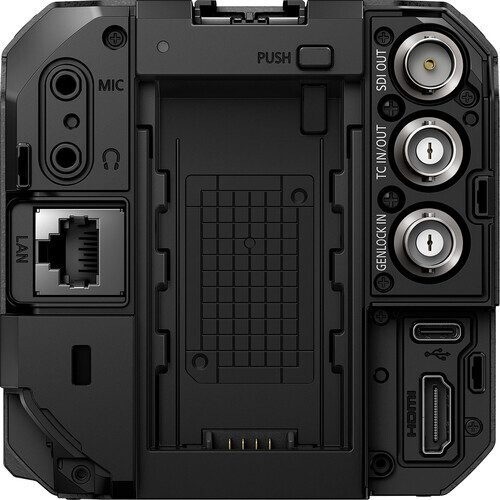

Video Connectors 1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output

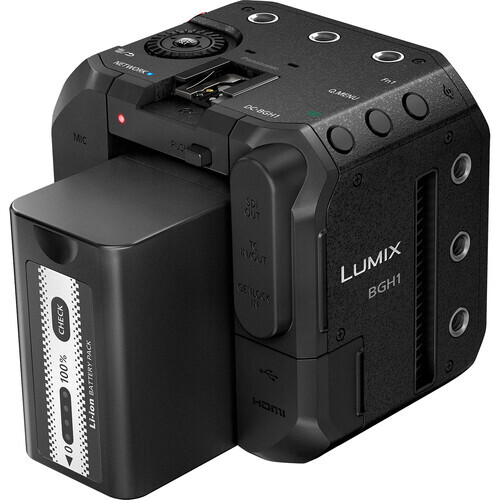

Battery Type Panasonic AG-VBR Series
Power Connectors 1 x Weipu SF610/S2 (12 VDC) Input
Tripod Mounting Thread 1/4”-20 Female
Weight 545g


* Specifications subject to change by the manufacturer without notice
