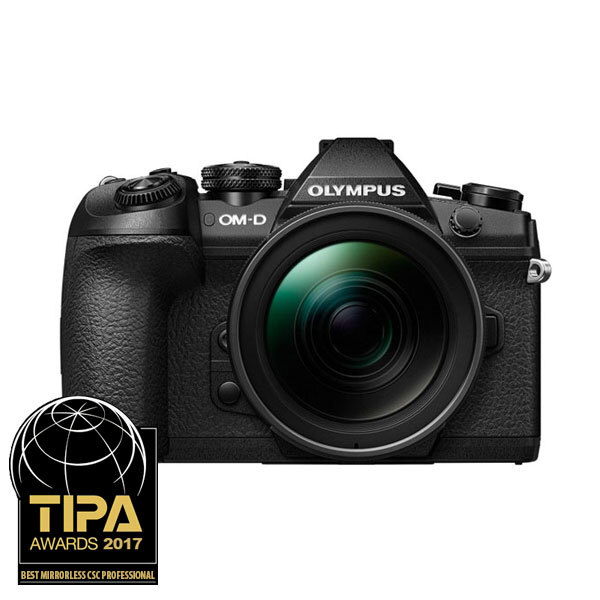

The Olympus OM-D E-M1 Mark II is the revolutionary Olympus flagship model capable of delivering blistering fast autofocus, and an incredibly high speed of capture for impressive results. With a new 20.4 Megapixel Live MOS Sensor and a lightning quick 120fps viewfinder it is built to be durable and robust with advanced weather sealing.

The E-M1 Mark II is the perfect camera for professional photographers that demand high performance but also don’t want to carry around a tonne of gear.




Re-Designed Image Quality

Featuring a 20.4 megapixel Live MOS Sensor ensures that you can capture images with fine detail and accurate colours.

The updated sensor improves pixel performance and has been optimised for operation at higher sensitivities.

With an anti-reflective coating on the surface of the sensor flaring and ghosting are reduced and a high speed readout decreases the rolling shutter effect when shooting video.
Olympus OM-D E-M1 Mark II
Olympus OM-D E-M1 Mark II

Dual Quad Core Image Processor

The new TruePic VIII Image Processor allows the camera to process image data quickly and accurately to provide 18fps of constant subject tracking and auto exposure calculations.

It consists of two separate quad core processors one dedicated solely to image processing and the other handling camera control and other computations.

This advanced image processor can parallel process the sensor reading to provide speedy response and a low power consumption.

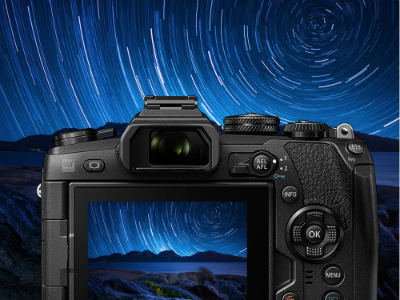

Perfect Framing

Using a completely new 2.36M dot electronic view finder (EVF) provides a blistering quick 120fps refresh rate.

With such a fast refresh rate it makes it easier than ever to track your subject and ensure that your image composition is spot-on.
Olympus OM-D E-M1 Mark II
Olympus OM-D E-M1 Mark II

Improved Continuous Drive Mode

Boasting an 18 frames per second drive mode with auto focus tracking and auto exposure the Camera can also offer a ridiculously quick 60 frames per second with the autofocus and exposure locked for the first frame by using an electronic shutter.

This means you can capture a huge amount of frames, perfect for fast paced action or occasions when you need to have as much coverage as possible.




Redefined Autofocus

Speedy reliable autofocus is as essential for sports shooters, as it is for animal photographers and photo journalists.

In this department the mark II certainly does not disappoint, with a 121 cross-type focus points in its on-chip AF sensor it offers autofocus with a refined response.
Olympus OM-D E-M1 Mark II
Olympus OM-D E-M1 Mark II

Pro Capture Mode

The New Pro Capture Mode starts capturing JPEG or RAW images as soon as you half press the button using the cameras silent electronic shutter.

When you finish the shutter press, the camera records that exact moment as well as the 14 previous frames.

This gives you even more ways to time your capture and provides 14 frames of backup if you're a little late to the party.

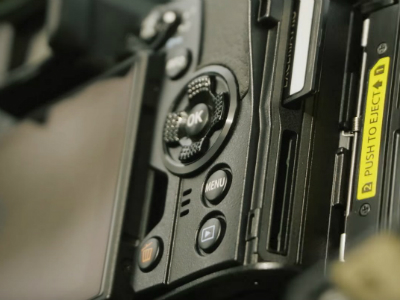

Dual Card Slots

Professionals demand reliability and want to know that the moment they press the shutter button their image is backed up for their clients.

The E-M1 Mark II has dual integrated SD Card slots that can be setup as an overflow system or as an instant backup to make sure that even if one of your cards stops working your images and safe and protected on the other slot.

Slot 1 can support UHS-II/UHS-I while Slot 2 support UHS-I so you can take advantage of the fastest cards on the market.
Olympus OM-D E-M1 Mark II
Olympus OM-D E-M1 Mark II



4K Cinema Video

The Olympus OM-D E-M1 Mark II introduces 4K video to the EM-1 range so that you can capture Cinema 4K at a resolution of 4096x2160 pixels for an even better resolution in all your videos.

The camera also features HDMI monitor connection with a 4:2:2 output for expanded colour grading options.

4K video features include single frame extraction at a much higher megapixel resolution than normal High Definition video files.

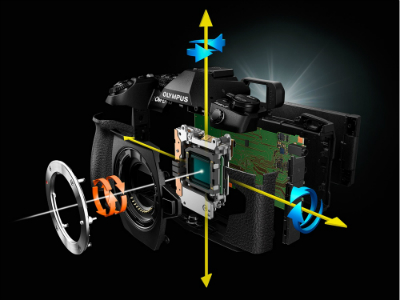

5-Axis Stabilisation

The updated stabilisation system enables slower shutter speeds in dark lighting situations to achieve much better results.

With an incredible 5.5 stops of vibration control it only gets better when you combine the camera with lens that offers in-built image stabilisation, which allows you to use 5-axis sync IS with a whopping 6.5 stops of shake reduction.

Combined with the improved high ISO performance this makes the camera a fantastic option for low light photography.
Olympus OM-D E-M1 Mark II
Olympus OM-D E-M1 Mark II

Weather-Proof Construction

The Olympus OM-D E-M1 Mark II is constructed to be dustproof, splash proof and freeze proof to -10°C to deliver high end performance in any environment.

This rugged construction means that you can be confident in your camera allowing you to focus on getting the shot that you want to capture.




Advanced Shooting Modes

As well as excellent optical performance for quick moving subjects and video applications the EM1 Mark II also offers a broad range of different shooting modes.

With Silent Mode for more discrete shooting, Focus Stacking Mode for Excellent Macro Shooting, as well as a Live Composite Mode that allows you to create beautiful nightscapes without the risk of overexposure.

The stabilised sensor can also be used to create an Ultra-high-resolution image by shifting the sensor and combining the image to deliver 50 Megapixel shots.
Olympus OM-D E-M1 Mark II
Olympus OM-D E-M1 Mark II

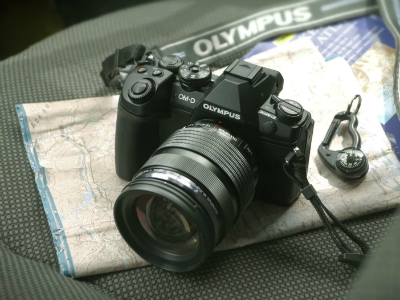

Portable Versatile Design

The Olympus EM1 Mark II is designed to be taken anywhere, with its impressive all weather design as well as a lightweight design.

An new battery offers a more than 35% higher capacity for the camera and an updated battery charger can refresh batteries 50% faster.

Even with a Battery and a Memory card the Body weighs only 574g making it perfect for travel photographers and people on the go.







Featuring a massive range of features and a sleek professional body design the Olympus OMD E M1 Mark II sets a new benchmark for mirrorless systems by offering high end performance while still retaining a compact form factor. Complementing the Olympus range of PRO and Premium lenses this camera promises to deliver astounding image and 4K video results.

Product type

Micro Four Thirds interchangeable lens system camera

Memory

SD, SDHC[1], SDXC[1], Eye-Fi Card compatible[2]



1 Slot1: UHS-I, II compatible, Slot2: UHS-I compatible.



2 Not compatible with Endless Memory.

Sensor size

17.4 mm (H) x 13.0 mm (V)

Lens mount

Micro Four Thirds Mount

Image Sensor



Product type

4/3 Live MOS Sensor

Number of pixels / aspect ratio

Number of effective pixels: Approx. 20.4 million pixels



Total number of pixels: Approx. 21.8 million pixels



Aspect ratio: 1.33 (4:3)

Dust reduction

Supersonic Wave Filter (image sensor dust reduction system)

Recording (Still)



Recording format

DCF2.0, Exif2.3

File format

RAW (12-bit lossless compression), JPEG, RAW+JPEG

Recording image size

[RAW] 5184 x 3888 pixels



[JPEG] 5184 x 3888 pixels - 1024 x 768 pixels

Dual Slot Settings

Standard, Auto Switch, Dual Independent, Dual Same



When two cards are inserted, the card to be saved on to or to be viewed can be designated.

Folder creation and selection

With

Copy

Copy single file, copy multiple files, copy all



When copied, the new file will be given a different name from that of the original file.

Image Stabilisation System



Type

Built-in 5-axis sensor-shift image stabilisation for movie and still photos



yaw / pitch / roll / vertical shift / horizontal shift

Mode

4 modes (S-IS AUTO, S-IS1, S-IS2, S-IS3), OFF

Live View image stabilisation

Activation by half-pressing shutter button or enlarging the view

Focal length setting

11 settings: 10 programmable settings (10 lenses), 1 open setting

Lens IS priority

With

5 axis Sync IS

With



When using M.Zuiko Digital lenses equipped with image stabilisation

Stabilisation performance

5.5 EV



Based on CIPA measurement conditions. When using M.Zuiko Digital ED 12-40mm f/2.8 PRO (focal length =40mm (35mm equivalent: 80mm))

Finder



Finder type

Eye-level electronic viewfinder, approx. 2.36M dots

Field of view / Viewfinder magnification

Approx. 100% / Approx. 1.30x[1] - 1.48x[2] (-1m-1, 50mm lens, Infinity)



1: Finder Style 1, 2 (aspect ratio 4:3)



2: Finder Style 3 (aspect ratio 4:3)

Eye point / Dioptre adjustment range

Approx. 21 mm (-1m-1, Distance from rear lens surface) / -4 ~ +2m-1

Preview

Live View preview with depth of field preview lock

Display Grid

Off / normal grid / trichotomy / golden grid / scale / diagonal / movie grid



grid colour is selectable

Level Gauge

2-axis (horizontal/vertical) level gauge

Finder Style

3 styles

Brightness and Colour Temperature Control

Adaptive brightness technology (EVF Auto Luminance) / ±7 level manual brightness control /±7 level manual colour temperature control

S-OVF (Simulated OVF)

Expands the Live View dynamic range.



Available in the EVF when in P, A, S and M modes. Art filter, WB and exposure are not reflected in EVF.

Eye Cup

Optional eyecup EP-13 is available.

Live View



Live View

Approx. 100% field of view,



exposure compensation preview, WB adjustment preview,



gradation preview, face detection preview (up to 8 faces),



grid line, magnification display (x3 / x5 / x7 / x10 / x14),



Display modes: Standard, Histogram, Highlight & Shadow, Level Gauge, Off (Image Only)

Preview

Preview with depth of field preview lock

Live View Boost

Live View Boost 1 , Live View Boost 2 (slow frame rate for dark areas)



Settings can be assigned for each shooting mode



Exposure compensation will not be applied

Monitor



Monitor type

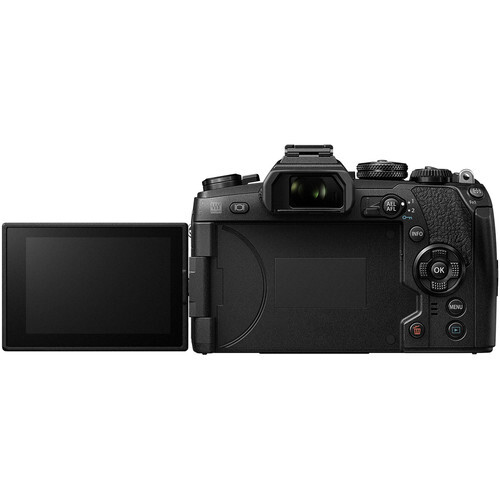

3.0-inch vari-angle monitor



Approx. 1037k dots (3:2), electrostatic capacitance touch panel

Touch control

Shutter release, magnification, AF area selection, AF area size adjustment, AF touch pad, frame forward/backward, magnified playback, Live Guide, Super Control Panel, Wi-Fi connection, movie controls, movie effects, movie teleconverter , selfie controls (shutter release, e-Portrait, custom self timer)

Tilting capability

With (mirror display when monitor is in self portrait position)

Brightness / Colour temperature control

±7 levels / ±7 levels

Colour tone select

Vivid / Natural

Focusing



AF system

High-speed imager AF: Imager phase detection AF and imager contrast AF (active AF automatically selected by camera; when a Micro Four Thirds lens is attached, imager phase detection AF is always selected)

Focusing point

121-point cross-type phase detection AF and 121-point contrast AF

Focusing point selection mode

All target, group target (9-area or 5-area), single target

Focus mode

Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF / AF tracking (C-AF + TR) / Preset MF[*]



Distance setting values are rough estimates and not compatible lens except the AF lens.

AF performance

C-AF lock (5 steps), AF scanner (3 types)

AF limiter

With (Fn button can be assigned to On/Off; can save 3 settings)



Distance setting values are rough estimates.

AF targeting pad

With (activate / deactivate with double tap on rear monitor)

Magnified frame AF

3x , 5x , 7x , 10x , 14x



Autofocusing is possible in the magnified frame; can be assigned to button to turn magnify frame AF on and to activate magnification; touch icon on monitor to turn off; enables selection of AF point from over 800.

Super spot AF

With (Contrast AF in center of the monitor when magnified)



Available only when a Micro Four Thirds lens is attached.

Face detection AF / Eye detection AF

With (Eye Detection AF mode : off / nearer-eye priority / right-eye priority / left-eye priority)

Manual focus assist

Focus ring rotation activates Live View image magnification and / or focus peaking when in S-AF+MF or MF mode

Peaking function

Activate with Fn button or focus ring



Change peaking settings using the Info button



Colour selection: white, black, red, yellow



Intensity selection: high, normal, low



Back light effect: on, off

AF Focus Adj.

Adjust all, adjust by lens (for Phase detection AF only)

AF illuminator

With

Exposure Control (Still)



Metering system

Digital ESP metering (324-area multi pattern metering), centre-weighted average metering, spot metering[*], spot metering with highlight control, spot metering with shadow control

(TTL Image sensor metering)

Also available AF target spot metering

Metering range

EV- 2 - 20 (using 17 mm f/2.8, ISO 100)

Exposure mode / Shooting mode

iAuto (Live Guide can be used), P: program AE (programme shift can be performed), A: aperture priority AE, S: Shutter priority AE, M: Manual (Live Bulb, Live Time and Live Composite are available), Custom 1~3, Art Filter, Underwater wide / Underwater macro (to be assigned to the Fn1 button)

Live Guide

Saturation, Colour, Brightness, Background Blur, Expressing Motion, Shooting Tips



Multiple effects can be used simultaneously.

ISO sensitivity

AUTO ISO (default) : LOW (approx. 64) - 6400 with customizable upper limit (200 - 6400)



Manual ISO : LOW (approx. 64), 200 - 25600 (adjustable in 1/3 or 1 EV steps)

Exposure compensation

±5 EV, adjustable by 1/3, 1/2 or 1 EV steps



When shooting in HDR or in video, only adjustable up to ±3 EV steps



Live View only reflects up to ±3 EV steps

AE lock

Locks with a half-press of the shutter button, AEL / AFL button (can be set to Fn button as well)

Shutter



Shutter type

[Focal-plane shutter (mechanical shutter)]



1/8000 - 60 sec., with selectable EV adjustment steps (1/3, 1/2, 1)



Live Bulb / Live Time: selectable exposure time (1 / 2 / 4 / 8 / 15 / 20 / 25 / 30 min.), with 8-min. default setting. Live Composite: maximum shooting time 3 hours




[Electronic first curtain shutter (Anti-shock mode)]



1/320 - 60 sec.



[Electronic shutter (Silent mode)]



1/32000 - 60 sec.

Drive



Sequential shooting maximum speed

[Sequential shooting H] approx. 15 fps with selectable 10-15 fps



[Sequential shooting L] approx. 10 fps with selectable 1-10 fps



[Anti-shock sequential shooting L] approx. 8.5 fps with selectable 1-8 fps



[Silent sequential shooting H] approx. 60 fps with selectable 15, 20, 30, 60 fps



[Silent sequential shooting L] approx. 18 fps with selectable 1-10, 15, 18 fps



[Pro Capture H] approx. 60 fps with selectable 15, 20, 30, 60 fps



[Pro Capture L] approx. 18 fps with selectable 1-10, 15, 18 fps



When using the M.Zuiko Digital ED 12-40mm f/2.8 PRO



Maximum sequential shooting speed may be affected by several factors including lens used, brightness, aperture, shutter speed, and ISO setting.



When in Pro Capture mode, slower shutter speeds and flash cannot be used.



When ISO is 8000 or above, the maximum sequential shooting speed is 30 fps, and the actual shooting speed may become slower than the set shooting speed by a few frames per second. When using ISO Bracketing, performance will be affected at ISO 2000 or above.



Focus and exposure are fixed at the values of the first shot when using sequential shooting H.



Maximum sequential shooting speed is 8.5 fps for anti-shock sequential shooting L, even when set to 9 or 10 fps.

Sequential shooting frame count

1- 99 frames

Pre-shutter Frames

Number of frames recorded prior to full-press of the shutter button can be set from 0 to 14 frames.

For Pro Capture mode



Self-timer

Operation time: 12 sec., 2 sec., custom (Wait time: 1-30sec., Shot interval: 0.5 / 1 / 2 / 3sec., Number of shots: 1-10, Every time AF: ON/OFF)

Flash



Flash intensity control method

TTL Auto, Auto[*], Manual, Super FP[*] (FP-TTL AUTO, FP-MANUAL)



Available on the external flash

Bundled standard flash

FL-LM3 (dustproof and splashproof flash)



GN = 9.1 (ISO100·m) / GN = 12.9 (ISO200·m)



Bounce Capability (up and down: 45, 60, 75, 90 degree / left and right 30, 60, 90, 120, 150, 180 degree)



Powered by the camera

Flash mode

Redeye, Fill-in, Flash Off, Red-eye Slow sync. (1st curtain), Slow sync. (1st curtain), Slow sync. (2nd curtain), Manual (1/1 (FULL) ~ 1/64)

Synchronisation speed

1/250 sec.



When using Super FP: 1/125-1/8000 sec.



When using electronic shutter: 1/50 sec. up to ISO6400, 1/20 sec. for ISO 8000 and higher, and 1/20 sec. for ISO bracketing

Flash intensity control

Up to ±3 EV in 1/3, 1/2, 1 EV steps selectable

Compatible external flash

FL-50R, FL-36R, FL-20, FL-14, FL-300R, FL-600R, FL-900R, STF-8

Wireless Flash Control



Compatible external flash

FL-50R, FL-36R, FL-300R, FL-600R, FL-900R

Control method

Triggered and controlled by Olympus Wireless RC Flash system compatible flashes: included FL-LM3 or separately available FL-600R and FL-900R, STF-8

External Flash intensity type

TTL Auto, Auto, Manual, FP-TTL-AUTO, FP-MANUAL

Channel

4 channels

Group No.

4 groups (External flash 3 groups + commander flash)

White Balance



White balance mode

Auto WB, 7 Preset WBs, 4 Capture WBs, Custom WB(Kelvin setting)

White balance compensation

±7 steps along A-B / G-M axis (Except for Custom WB)

Colour Mode



Colour matrix

sRGB, Adobe RGB

Picture Mode



Mode

i-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, e Portrait, Underwater, Colour Creator, Art Filters

Gradation

Auto, Normal, High Key, Low Key [except when using i-Enhance, Underwater, Art Filters, Color Creator]

Hilight and shadow control

±7 steps each for highlight, shadow, midtone

Art Filter



Art Filter

Pop Art (I, II / a.b.c.d.e.f)

(Variation / Art Effect)

Soft Focus ( - / c.e)



Pale & Light Colour (I, II / a.b.c.d.f)



Light Tone ( - / d.f)



Grainy Film (I, II / b.c.d.g.h)



Pin Hole (I, II, III / d)



Diorama ( I,II / d)



Cross Process (I, II / b.c.d.f)



Gentle Sepia ( - / a.b.c.d.f)



Dramatic Tone (I / b.c.d.e.f) (II / b.c.d.e.f.g.h)



Key Line (I, II / a.b.c.d.e)



WaterColour (I, II / a.b.c.d)



Vintage (I, II, III / a.b.c.d.e.f.i)



Partial Colour (I, II, III / a.b.c.d.e.f)

Detail of Art Effect

a. Soft Focus Effect



b. Pin-Hole Effect



c. White Edge Effect



d. Frame Effect



e. Star Light Effect



f. Blur Effect (Top & bottom, Left & Right)



g. B&W Effect (None, Yellow, Orange, Red, Green)



h. Pict. Tone (None, Sepia, Blue, Purple, Green)



i. Shade Effect (Top & bottom, Left & Right)

Colour Ring (for partial color)

18 colour selectable

Colour Creator



Colour Creator

Colour pattern : 30 colours / Saturation setting -4 ~ +3

Bracketing



Exposure bracketing

2, 3 or 5 frames in 0.3 / 0.7 / 1.0 EV steps selectable, 7 frames in 0.3 / 0.7EV steps selectable

ISO bracketing

3 frames in 0.3 / 0.7 / 1.0 EV steps selectable

White balance bracketing

3 frames in 2, 4, 6 selectable steps for A-B/G-M axis.

Flash bracketing

3 frames in 0.3 / 0.7 / 1.0 EV step selectable

Art Filter bracketing

i-Enhance, Vivid, Natural, Muted, Portrait, Monotone, Custom, Art Filters, Colour Creator selectable

Focus bracketing

3 to 999 shots, focus steps adjustable from 1 to 10 (compatible with Micro Four Thirds lenses)

Focus stacking

8 shots are taken at different focus points and automatically composited together into a single image



Angle of view becomes slightly smaller



Compatible with :



M.Zuiko Digital ED 60mm f/2.8 Macro



M.Zuiko Digital ED 12-40mm f/2.8 PRO



M.Zuiko Digital ED 40-150mm f/2.8 PRO



M.Zuiko Digital ED 30mm f/3.5 Macro



M.Zuiko Digital ED 7-14mm f/2.8 PRO



M.Zuiko Digital ED 8mm f/1.8 Fisheye PRO



M.Zuiko Digital ED 300mm f/4.0 IS PRO

HDR Function



HDR(Auto composite)

HDR1, HDR2 (painting-like)



ISO sensitivity is fixed at 200, and maximum shutter speed setting is 4 sec.



Exposure compensation can be performed.

Bracketing for HDR post process

3 or 5 frames in 2.0 or 3.0 EV steps, or 7 frames in 2.0 EV steps.



This sequential shooting H AE bracketing is specifically for shooting images that will be HDR-processed on a PC.

Keystone Compensation



Keystone Compensation

With (can be confirmed in Live View)



Horizontal and vertical compensation can be performed simultaneously.

High Res Shot



Resolution

Equivalent to 50 megapixels / 25 megapixels (8 shots combined into a single JPEG using sensor shift)



Available in P/A/S/M mode, RAW+JPEG or JPEG.



JPEG: 8160 x 6120(50M) 5760 x 4320(25M) / RAW: 10368 x 7776



RAW data can be developed in-camera. Development by PC is possible with Olympus Viewer 3 ver. 2.0

Shutter Type

Electronic shutter

Shutter Speed

1/8000 - 60 sec.

Shutter start delay

0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30sec.

Charge Time

0, 1, 2, 4, 8, 15, 30sec.

Anti-shock Mode



Shutter Type

Electronic first curtain shutter

Shutter Speed

1/320 - 60 sec.



For speeds over 1/320 sec., mechanical shutter will automatically be selected.

Shutter start delay

0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30 sec.

Silent Mode



Shutter Type

Electronic shutter

Shutter Speed

1/32000 - 60 sec.

Shutter start delay

0, 1/8, 1/4, 1/2, 1, 2, 4, 8, 15, 30 sec.

Silent Mode Settings

Settings for sound, AF illuminator, and flash can be customised (default setting is Off for all three)

Live Bulb /. Live Time



Update interval time

0.5 sec. - 60 sec.

Live Composite



Update interval time / composite method

0.5 sec. - 60 sec. / Lighten Mode (Bright area prioritisation)

Interval Mode



Interval Mode

Interval Time 1 sec. - 24 hours, Max 999 frames



Automatic creation of time-lapse movies possible

Multi Exposure



Number of picture / Function

2 frames / auto gain adjustment, exposure on recorded picture (RAW)

Multi Aspect



Aspect Ratio

4:3 (Default) / 3:2 / 16:9 / 1:1 / 3:4

One push Tele-converter



Magnification

x2

Level Gauge



Detection

2-axis

Movie



Recording format

MOV(MPEG-4AVC/H.264), AVI(Motion JPEG)

Mode / frame rate / compression method

[MOV]



4096 x 2160 (C4K) / 24p / IPB (approx. 237 Mbps)



3840 x 2160 (4K) / 30p, 25p, 24p / IPB (approx. 102 Mbps)



1920x1080 (FHD) / 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N)



1920x1080 (FHD) / 60p, 50p / IPB (SF, F, N)



1280x720(HD) / 60p, 50p, 30p, 25p, 24p / ALL-I (A-I), IPB (SF, F, N)



60p: 59.94 fps, 50p: 50.00 fps, 30p : 29.97 fps, 25p : 25.00 fps, 24p: 23.98 fps, C4K 24.00 fps



FHD ALL-I (A-I: ALL-Intra / approx. 202 Mbps), FHD IPB (SF: SuperFine / approx. 52 Mbps, F: Fine / approx. 30 Mbps, N: Normal / approx. 18 Mbps)



HD ALL-I (A-I: ALL-Intra / approx. 102 Mbps), HD IPB(SF : SuperFine / approx.26Mbps, F:Fine / approx.14Mbps, N : Normal / approx.10Mbps)




[AVI]



HD (1280x720) / 30p



Frame rates may drop when particular Art Filters and Movie Effects are used.



Speed Class 10 SD card is recommended for shooting movies.



UHS-II or UHS-I Speed Class 3 card is recommended for 4K, C4K, ALL-I shooting.

Maximum recording time

[MOV] Approx. 29min



[AVI] HD: Approx. 7min[*]



Excluding when particular Art Filters are used

Art Filter Movie

With (Frame rates may drop when certain Art Filters are used)

Movie Effect

One-shot Echo / Multi-echo / Art Fade / Old Film

One-push Movie Digital Converter

Approx. 3x (enlarges view of touched area)

Time Lapse Movie

[AVI ]



3840 x 2160 (4K) / 5 fps



1920 x 1080 (FHD) / 5 fps, 10 fps, 15 fps



1280 x 720 (HD) / 5 fps, 10 fps, 15 fps, 30 fps

Clips

1, 2, 4, 8 sec.



(Further continued shooting possible up to 16 seconds by pressing movie record button again)

Quick Movie / Slow Movie

With (this function is not available for videos with certain frame rates)

Image Stabilization for Movie

M-IS1 (Image sensor shift and electronic image stabilizer with multi motion IS),



M-IS2 (Image sensor shift with multi motion IS), Off



While using M-IS1, field of view may be affected.

Grid Line / Focus Peaking

4 types of grid lines / 4 colours for focus peaking

Time code

Rec run/free run, drop frame/non-drop frame

REC Bit

With

Live View Output via HDMI

Monitor Mode (outputs video and info display to a connected monitor)[1]



Record Mode (outputs video only, with no info display)[2]



1 Info display is not shown on the camera while recording. Footage is simultaneously displayed on the HDMI monitor (normal size) and on the camera (normal size or enlarged). However, the image cannot be enlarged on the camera when a movie is being recorded.



2 Movie quality is set to YCbCr 4:2:2, frame rate follows movie setting (24p, 30p and 60p settings are not recommended.), and sound will be recorded.

Movie Picture Mode

Flat

Exposure Control

Programme AE, aperture priority AE, shutter priority AE, manual

AE Lock

With

Recording (Sound)



Recording format

Wave Format (Stereo linear PCM/16-bit, Sampling frequency 48kHz)

Microphone / Speaker

Built-in stereo microphone / built-in mono speaker



External stereo microphone can be attached

Microphone function

Wind noise reduction, recording volume, microphone volume limiter, Audio dubbing possible for still pictures (up to 30 sec.)



May affect audio quality.

IC recorder linkage

Slate Tone / Synchronised Audio Rec-Movie Rec



LS-100 compatible

Wi-Fi Function



GPS info. Function

Via smartphone GPS data

Wireless Shooting

Live View, Rec View, Wireless Touch AF shutter, Self Timer (w/Countdown guidance, Sequential shooting, movie recording capability), Wireless Release, Movie Recording, Power Off



iAuto / ART / P / A / S / M (Live Bulb, Live Time, Live Composite) and drive mode can be selected.



Aperture, shutter speed, exposure, ISO sensitivity, white balance can be adjusted.



When in private connection

Image Share

File Type: JPEG, MOV



Connect to up to 4 devices simultaneously. Marking function for image share.

Easy Connection

QR code setting

Tethered shooting



Tethered shooting

Via USB cable (camera can be operated by both PC or camera controls)

Playback



Playback mode

Single-frame, information display, index display (4/9/25/100 frames), Clips, calendar, enlargement (2x - 14x), movie (with sound, FF/REW/Pause), picture rotation (auto), slideshow (with sound including BGM, Slide show effects, replaceable BGM), Light Box display

Information display

Histogram (independent luminance / RGB available), Highlight/Shadow point warning, AF frame, Photographic information, OFF

Image Editing



Movie Editing function

Trimming (beginning / end) / in-movie image extraction (4K only)



MOV format only

Editing function

RAW data edit, Gradation auto, Monochrome, Sepia, Red-eye fix, Saturation, Resize (1280x960, 640x480, 320x240), Trimming, Aspect, e-Portrait, Image Overlay, Post recording

RAW data edit

RAW data edit based on settings of the camera (including e-Portrait, Color Creator, Art Filter, ART-BKT). 2 programmable settings, preview capability.

Print



Print function

Print reservation (DPOF), Direct print (PictBridge compatible)

Menu



Languages

34 languages selectable :



- English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinese, Simplified Chinese, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai

Custom



Mode dial my set

Modes C1, C2, and C3 can be accessed by mode dial

Menu my set

Modes C1, C2, and C3 can be accessed via the menu

Dial customization

Dial function and dial direction are customizable for both dials

Lever Customization

Select assignment from 3 different modes, power switch, or off (no function assignment)

Button Customization

Buttons can be customized (select from 35 functions)



Buttons on lenses and HLD-9 power batter holder can also be customized from the camera



Some buttons may have restrictions to what functions can be assigned

Copyright Settings/Lens info Settings

With / With (save up to 10 lenses)

Input / Output



USB

USB Type-C

Remote controller connector

f2.5Pin Jack (when using separately available RM-CB2)

HDMI connector

Micro HDMI (type D)

Flash attachment

Hot shoe, sync terminal

Wireless LAN

Built-in (IEEE 802.11b/g/n)

Microphone input jack

f3.5 stereo mini jack (plug-in power on/off)

Headphone connector

f3.5 stereo mini jack

PC interface

Super Speed (USB3.0)

Power Requirements



Battery

BLH-1 Li-ion battery (included)

Battery status display

Remaining power (4 steps, %, or by-minute display), shot count, degradation

Power Battery Holder

HLD-9 power battery holder is separately available (holds one BLH-1 battery).

AC Adapter

AC-5 AC adapter is separately available (connects to power battery holder HLD-9 to provide power to camera).

Sleep mode

With (1 / 3 / 5 min. off)

Dimensions / Weight



Dimensions

W: 134.1 mm, H: 90.9 mm, D: 68.9 mm (based on CIPA standards: excludes protrusions)

Weight

Approx. 574 g (with BLH-1 battery and Memory card, based on CIPA standards)



Approx. 498 g (body only)

Operating Environment



Temperature

-10? ~ +40? (when in operation) / -20 ~ +60? (when stored)

Humidity

30 - 90% (when in operation) / 10 - 90% (when stored)


Specifications for M.Zuiko 12-40mm f/2.8 PRO Lens



Lens type Standard Zoom
35mm Equivalent Focal Length 24-80mm
Focal Length 12-40mm
Angle of View 30-84 degrees
Lens Construction 14 elements in 9 groups (2 ED lenses, 1 EDA lens, 2 HR lenses, 1 HD lens, 1 DSA lens, 2 aspherical lenses)
Maximum Image Magnification 0.3x
Closest Focusing Distance 0.2m
Minimum Field Size 58x44mm
35mm Equivalent Max. Image Magnification 0.6x
Maximum Aperture f/2.8
Number of Blades 7 (circular aperture)
Filter Size 62mm
Minimum Aperture f/22
Weight 382g
Dimensions 69.9 x 84mm


* Specifications subject to change by the manufacturer without notice

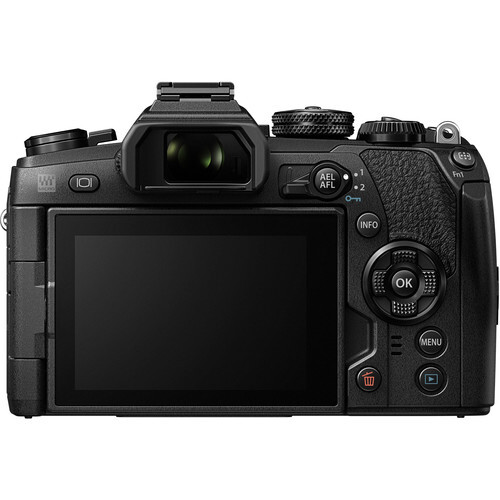

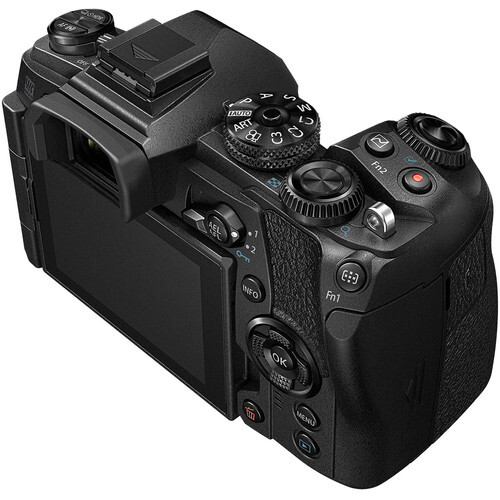

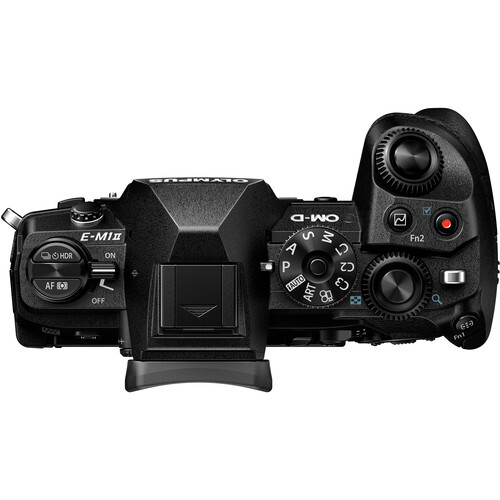

  • Camera Body
  • Olympus 12-40mm f/2.8 PRO Lens
  • Li-ion Battery (BLH-1)
  • Rapid Li-ion battery charger (BCH-1)
  • FL-LM3 flash
  • Front Lens cap (LC-62D)
  • Rear Lens Cap (LR-2)
  • Lens Hood (LH-66)
  • Lens Case (LSC-0918)
  • USB cable
  • Cable clip
  • Shoulder strap
  • Instruction manual
  • Manufacturer Warranty


    This product comes with a

    24 month Australian warranty

    from Olympus Australia

    Want to read more about warranties?

    Click here

    Add extra protection for peace of mind


    Reviews

    * Dispatch timeframes are indications only and may vary for multiple quantities. Timeframes are updated regularly during normal business hours.
