Extension tubes are designed to enable a lens to focus closer than its normal set minimum focusing distance. Getting closer has the effect of magnifying your subject (making it appear larger in the viewfinder and in your pictures). They are exceptionally useful for macro photography, enabling you to convert almost any lens into a macro lens at a fraction of the cost while maintaining its original optical quality.

The DG extension tubes have no optics. They are mounted in between the camera body and lens to create more distance between the lens and film plane. By moving the lens father away from the film or CCD sensor in the camera, the lens is forced to focus much closer than normal. The greater the length of the extension tube, the closer the lens can focus.

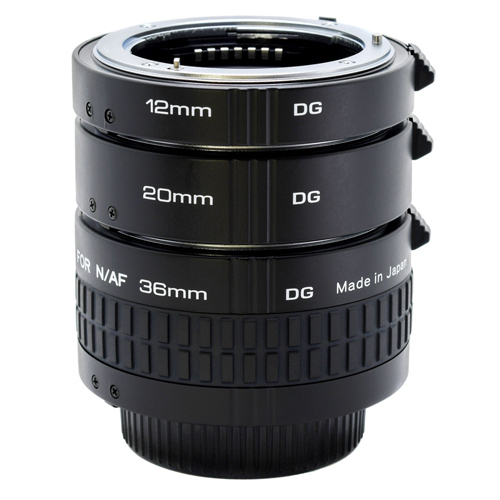

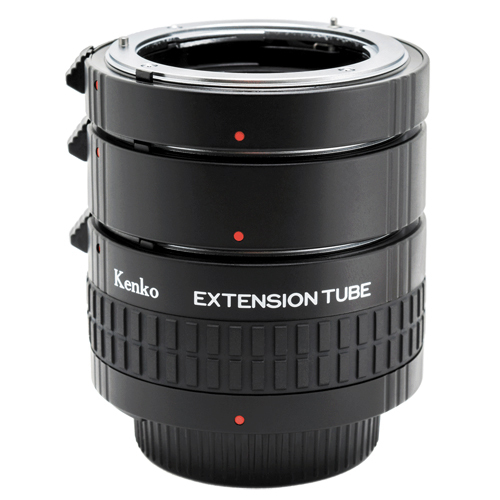

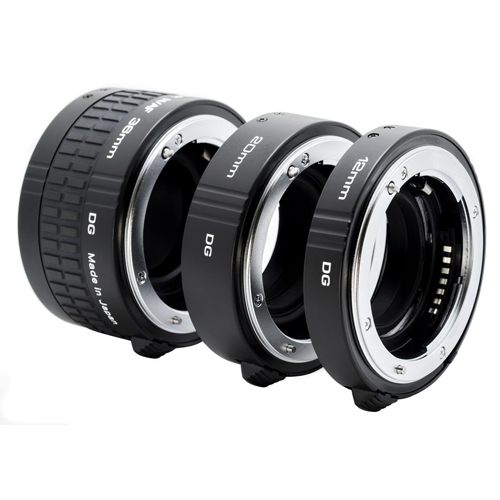

The KENKO DG AUTO EXTENSION TUBE SET contains three tubes of different length, a 12 mm, 20 mm, and 36 mm, which can be used individually or in any combination to obtain the desired magnification.

Kenko's Auto Focus extension tubes are designed with all the circuitry and mechanical coupling to maintain auto focus and TTL auto exposure with most Nikon lenses, given there is enough light to activate the camera’s AF system properly.


Please Note:

1. When using extension tubes the lens will not focus to infinity. The focus range will be greatly limited to a very close focusing distance.
2. There is light fall off when using any extension tube, sometimes the equivalent of 3 f-stops of light is lost when using multiple extension tubes together. This light lost can affect the camera's ability to auto focus. Manual focusing is recommended should the lens begin to "hunt" (not lock onto the subject).
3. Nikon "D" information is not transmitted because the lens is focusing closer than its programmed to focus.
4. Kenko DG Auto Extension Tubes are auto focus compatible with Nikon AF lenses including Nikon AF-S (silent Wave) lenses.

Model

Kenko Extension Tube Set DG for Nikon F

Mount

Nikon F

Supported Sensor Size

APS-C, Full Frame

TTL Metering

Yes

Diaphragm Coupling

Fully Automatic

Length of Tubes, mm

12, 20, 36

Weight

60 g (12 mm Tube)

85 g (20 mm Tube)

125 g (36 mm Tube)


* Specifications subject to change by the manufacturer without notice
12mm Extension Tube
20mm Extension Tube
36mm Extension Tube
Front Lens Cap
Rear Lens Cap
