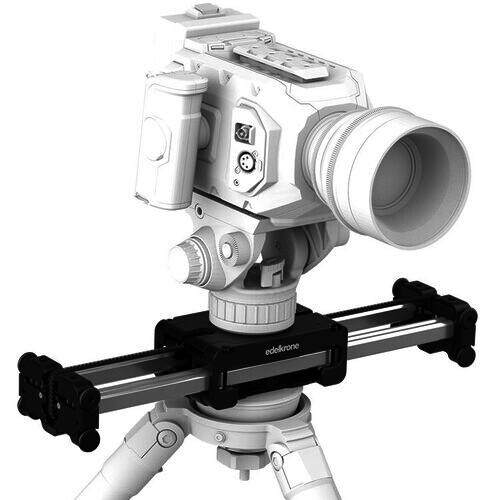

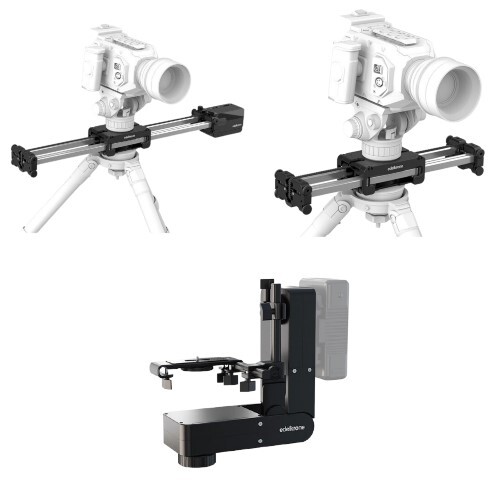

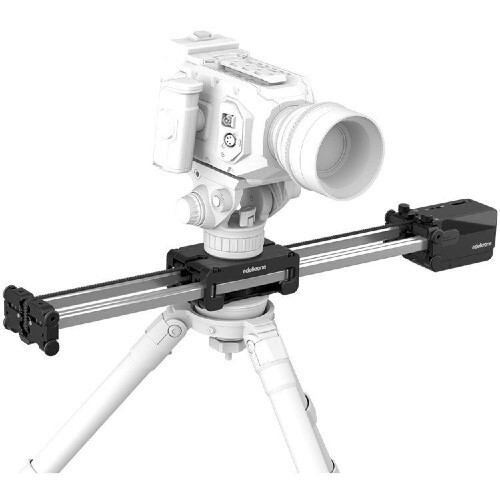

Easily achieve seamless, stable slides or program your cameras movements with the Edelkrone SliderPLUS v5 PRO Compact kit. These three products provide ultimate smoothness, allowing you to focus on the creative aspect of your video while the slider do the hard work.

Silent Motorised Pan and Tilt Movement

Using step motors and a backlash free gear design, the system can perform ultra-smooth tilting and pan movements in complete silence, making it perfect for wedding shooters or on film sets when absolute silence is required. Adding a pan and tilt movement to your shot creates the parallax effect that dramatically increases the production value of your shot.

Auto Target Tracking with Real-time Switching

The HeadPLUS PRO can learn 3 different targets and can automatically track them even while moving on one of the Edelkrone sliders or dollies. This creates slick looking camera movements that are great for product shots and dramatical storytelling. You can even use the Edelkrone mobile app to switch in real-time between 3 preset targets for an ultra-smooth transition.

Hand Controlled

You can easily and quickly adjust the positions of the SliderPLUS while the Slide Module V3 is attached, offering a timely solution and delivering a smooth workflow. There is no need to worry about fiddly gadgets as it is hand controlled, offering a more intuitive and precise experience.

Macro Capabilities

Due to the smoothness the product exudes, macro shots are made easy. You can control the speed the slide moves at with its intuitive design that is comprised of backlash free gear. It can additionally perfectly repeat any motion, allowing for greater creativity when it comes to creating and editing videos.

Automatic Target Tracking

The SliderPLUS has the ability to recognise three different targets when used with the HeadPLUS, meaning that when transitioning between targets, each target is kept in frame and focus. This allows for seamless, automated parallax shots.

Functional and Easy to Use

The SliderPLUS is an extremely quick and easy product to set up and use. Only taking seconds to set up, it is perfect for busy studio days where you don’t have any time to waste. It weighs around half of what a traditional slider does, so it is extremely portable and easy to transport or travel with. Don’t let the small size fool you though, the SliderPlus offers twice the amount of camera travel and a longer dolly in/out range compared to standard sliders.

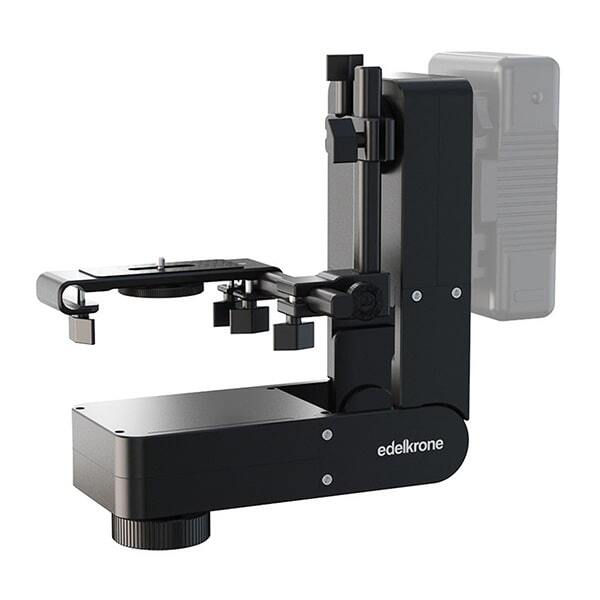

HeadPLUS PRO



Recommended Camera Load

9kg

Mounting Options

3/8”-16 mounting port on bottom. 1/4”-20 mounting screw on L bracket (also 3/8”-16 screw is included for compatible cameras)

Max Speed

360° in 20 seconds

Number of Axes

2 (pan and tilt)

Motor Type

2 x ultra-precise step motors with ultra high resolution encoders

Battery Life

4 hour operation (continuously at full speed)

Power Input



V-Mount type battery, Gold Mount type battery, AC/DC adapter (NOT included)

Shutter Trigger Cable Socket

2.5mm (shutter trigger cable sold separately)

DC Plug Specs



Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive centre, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm

Dimensions



HeadPLUS PRO: (L x W x H) 432 x 103 x 78 mm
L Bracket (folded): (L x W x H) 174 x 150 x 80 mm

Weight

HeadPlusPRO: 3.62kg

L Bracket: 450g

Slide Module V3



Motor Type



Step motor with ultra high-res encoder

Power Inputs

x2 LP-E6 type battery or x2 NP-F type battery (Batteries and battery brackets sold separately)

Mobile Device Connection

2.4GHz direct link for inter-device communication and BLE for pairing/mobile phone connection

DC Plug Specs

Voltage input 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive centre, Output connector: Barrel plug, 2.1mm I.D x 55mm O.D x 9.5mm

Incline Capacity



Up to 22.5° with 2.5 kg

Battery Life

2 hour operation (continuously at full speed)

Dimensions

(L x W x H) 135 x 81 x 66mm

Weight

850g

SliderPLUS v5 PRO Compact



Load Capacity on tripod/ground

11.3kg / 22.5kg

Mounting Options

3/8"-16 mounting port on bottom
3/8"-16 mounting screw on top

Working Mechanism

Non-friction ball bearing
Tracking system

Camera Travel on tripod/ground

25cm / 45cm

Dimensions

(L x W x H) 437 x 108 x 71mm

Weight

Compact: 1.55kg

Long: 1.84kg


* Specifications subject to change by the manufacturer without notice
  • HeadPLUS PRO
  • L Bracket for cameras up to 9 kg
  • Width extenders for SliderPLUS legs
  • Link cable
  • Slide Module V3
  • Slide Module
  • Connection Screws for Slide Module
  • SliderPLUS v5 PRO
  • 1 pair of Geared belts with magnetic belt clips
  • Cleaning Kit
  • Extra attachment screws
  • Allen Keys
