edelkrone HeadPLUS v2 Pan and Tilt Head
SKU code: 48519
- Smooth, Automatic Pan and Tilt Head
- 10 lb Maximum Load
- Use on Tripod, SliderPLUS, DollyPLUS
- Manual or Smartphone App Control
- Record and Replay Motion
- Time-Lapse, FX, Precise Dual Motors
- Folding Design, Aluminum Construction
- Optional Laser Module and FocusPLUS PRO
You May Also Like
Bags, Cases & Straps:
Tripods & Monopods:
The smooth, precise operation of edelkrone's HeadPLUS v2 Pan and Tilt Head will improve your shots. This improved, sturdy head made of steel and aluminium can withstand a maximum equipment load of 10 lb. It can be mounted onto a tripod with a 3/8"-16 screw or paired with the SliderPLUS, SliderPLUS PRO, SliderONE, Slide Module v2/v3, DollyONE, DollyPLUS, FocusPLUS PRO (new and old models), or the laser module for smooth, accurate, sharply focused pan-and-tilt sliding shots.
The v2 head can be precisely controlled via the edelkrone smartphone app or it can be moved manually. When mounted on the SliderPLUS or DollyPLUS, you can track objects automatically to produce dramatic motion shots such as parallax effects. The head can also be programmed for time-lapse or special effects shots by recording motions and repeating them.
You can also purchase the Laser Module which can record the distance and location of your subject, allowing you to track the object while in motion. The head also has a LANC port which allows you to trigger your camera's shutter with a separately available cable. The head folds flat, which makes it easy to store in a production bag. The HeadPLUS v2 also includes an L-bracket with 1/4"-20 mounting screw for your camera. You can power the unit with a separately available AC adapter or optional V-mount, Gold mount, LP-E6, or NP-F battery plates.
Sturdy Aluminum Design
The HeadPLUS v2 is made with CNC-machined aluminum and can hold an equipment load of up to 10 lb. It weighs under 5 lb and folds to fit in a bag.
Easy Manual or Auto Operation
The head requires no calibration and operates smoothly and silently. You can either program it for automated motion or operate it manually.

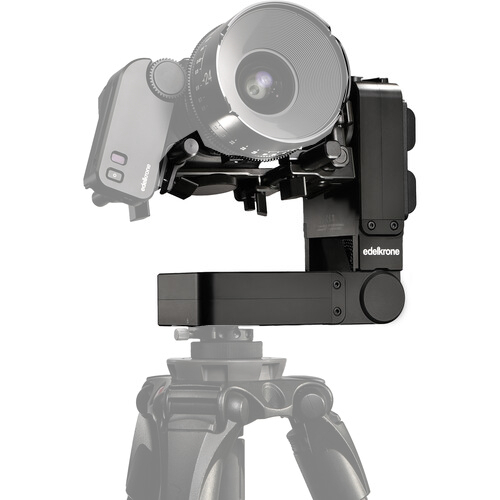

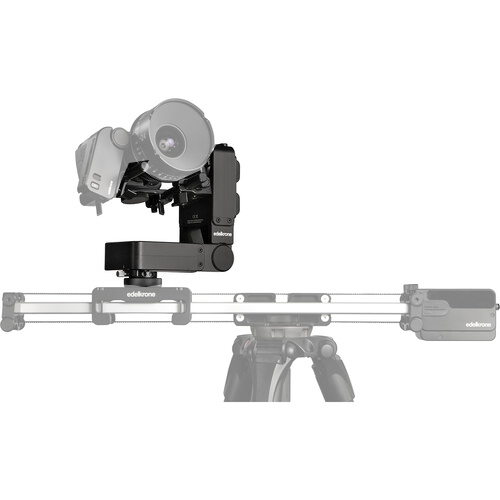

The HeadPLUS v2 can be installed on a tripod with a 3/8"-16 mount or used with the SliderPLUS with Slide Module for sliding shots. It can also be used with the SliderPLUS PRO and the previous-generation SliderPLUS and SliderPLUS PRO. It comes with an L-bracket with a 1/4"-20 camera-mounting screw.
SliderONE v2, Slide Module v2, Slide Module v3, SliderPLUS, SliderPLUS PRO, DollyONE, DollyPLUS, FocusPLUS PRO, Laser Module, and previous-generation SliderPLUS, SliderPLUS PRO
Smartphone App Control
Connect the edelkrone smartphone app via Bluetooth to control speed and record/repeat motions for time-lapses, visual effects, or other complex shots.
You can purchase the optional Laser Module to pinpoint your subject, learn its distance, and track it when performing complex pan-and-tilt sliding shots.
Power with a separately available AC adapter or optional V-mount, Gold mount, LP-E6, or NP-F battery plates. Operates for approximately five hours and shoots 36,000 photos in time-lapse mode on 28.8Wh batteries.
|Material of Construction||CNC-Machined Aluminum and Stainless Steel|
|Load Capacity||10 lb / 4.5 kg|
HeadPLUS v2: 3/8"-16 Thread on Bottom
L-Bracket: 1/4"-20 Screw
|Motor Type||2 x Step Motors with Ultra High-Resolution Encoders|
|Number of Axes||2, Pan and Tilt|
|Maximum Speed||360° in 20 Seconds|
Inter-Device Communication: 2.4 GHz Direct Wireless
|App Compatibility||iOS 11.0 orLater Android 5.0 or Later|
Voltage Input: 100-240 V
Voltage Output: 9.0 V
Current Output: 2 AAC
Adapter: Optional Barrel Plug Output Connector
Plates: Optional Gold Mount, V-Mount, LP-E6, NP-F
Battery Life: 5 Hours Continuous with 28.8 Wh Battery Max.
Time-Lapse Mode: 36,000 Photos on Full Charge
|Control Ports||Shutter Control: 1 x 2.5 mm LANC|
HeadPLUS: 14.3 x 3.93 x 2.79" / 36.4 x 10 x 7.1 cm
L-Bracket, Folded: 6.7 x 5.6 x 2.9" / 16.85 x 14 x 7.5 cm
HeadPLUS: 4.73 lb / 2.15 kg
L-Bracket: 14.9 oz / 423 g
* Specifications subject to change by the manufacturer without notice
- Edelkrone HeadPLUS v2 Pan and Tilt Head
- Width Extender Leg Set for SliderPLUS
- Allen Wrench Set
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
